530CB010M945BG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 530CB010M945BG

530CB010M945BG: DescriptionCMOS Output Clock Oscillator, 10MHz Min, 1400MHz Max; CategoryPassive components oscillator; File Size403KB，16 Pages; ManufacturerSilicon Laboratories Inc

Download Datasheet Parametric View All

530CB010M945BG Overview

CMOS Output Clock Oscillator, 10MHz Min, 1400MHz Max

530CB010M945BG Parametric

Parameter Name	Attribute value
Maker	Silicon Laboratories Inc
Reach Compliance Code	unknown
Other features	TRAYS
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	SI530
Installation features	SURFACE MOUNT
Maximum operating frequency	1400 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	6.30mm x 4.50mm x 1.85mm
longest rise time	1 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

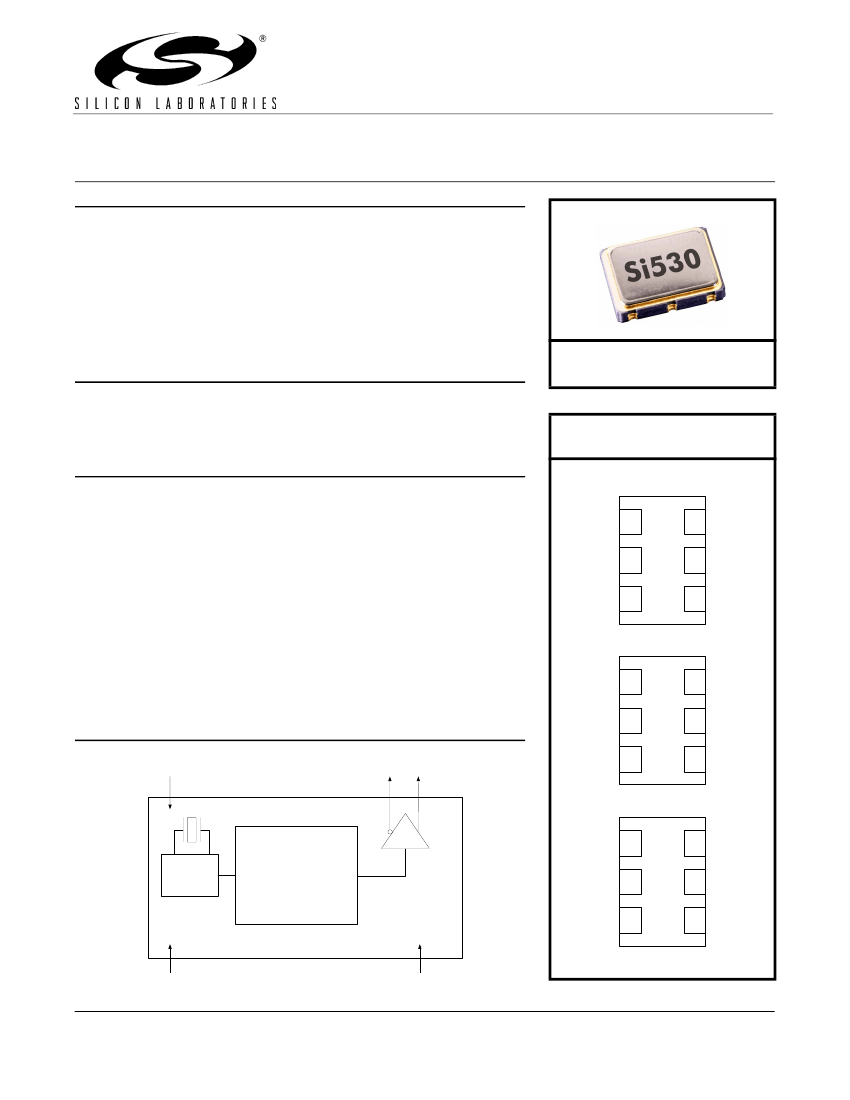

S i 5 3 0 / 5 31

R Y S TA L

S C I L L A T O R

(XO)

(10 M H

Z T O

1.4 G H

)

Features

Available with any-rate output

frequencies from 10 MHz to 945 MHz

and select frequencies to 1.4 GHz

3rd generation DSPLL

with superior

jitter performance

3x better frequency stability than

SAW-based oscillators

Internal fixed crystal frequency

ensures high reliability and low

aging

Available CMOS, LVPECL,

LVDS, and CML outputs

3.3, 2.5, and 1.8 V supply options

Industry-standard 5 x 7 mm

package and pinout

Pb-free/RoHS-compliant

Si5602

Ordering Information:

See page 7.

Applications

SONET/SDH

Networking

SD/HD video

Test and measurement

Clock and data recovery

FPGA/ASIC clock generation

Pin Assignments:

See page 6.

(Top View)

GND

Description

The Si530/531 XO utilizes Silicon Laboratories’ advanced DSPLL circuitry

to provide a low jitter clock at high frequencies. The Si530/531 is available

with any-rate output frequency from 10 to 945 MHz and select frequencies to

1400 MHz. Unlike a traditional XO, where a different crystal is required for

each output frequency, the Si530/531 uses one fixed crystal to provide a

wide range of output frequencies. This IC based approach allows the crystal

resonator to provide exceptional frequency stability and reliability. In addition,

DSPLL clock synthesis provides superior supply noise rejection, simplifying

the task of generating low jitter clocks in noisy environments typically found in

communication systems. The Si530/531 IC based XO is factory configurable

for a wide variety of user specifications including frequency, supply voltage,

output format, and temperature stability. Specific configurations are factory

programmed at time of shipment, thereby eliminating long lead times

associated with custom oscillators.

CLK–

CLK+

Si530 (LVDS/LVPECL/CML)

GND

Functional Block Diagram

CLK– CLK+

CLK

Si530 (CMOS)

Fixed

Frequency

Any-rate

10–1400 MHz

DSPLL

Clock

Synthesis

GND

CLK–

CLK+

Si531 (LVDS/LVPECL/CML)

GND

Rev. 1.0 7/06

Si530/531
