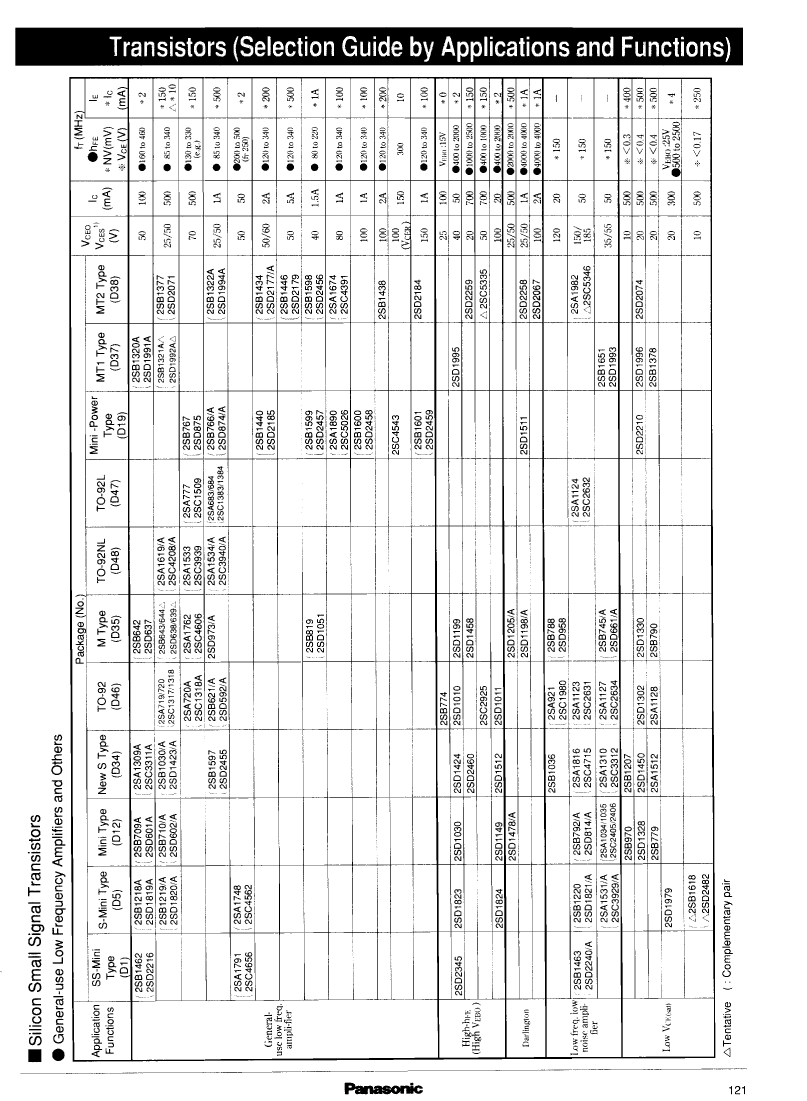

Small Signal Bipolar Transistor, 1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon
| Parameter Name | Attribute value |
| package instruction | IN-LINE, R-PSIP-T3 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 1 A |
| Collector-emitter maximum voltage | 50 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 85 |
| JESD-30 code | R-PSIP-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Polarity/channel type | PNP |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |
| 2SB1597 | 2SB1601 | 2SB1598 | 2SB1618 | 2SD2456 | 2SD2482 | 2SD2455 | 2SD2458 | 2SB1600 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon | Small Signal Bipolar Transistor, 1A I(C), 150V V(BR)CEO, 1-Element, PNP, Silicon | Small Signal Bipolar Transistor, 1.5A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon | Small Signal Bipolar Transistor, 0.5A I(C), 10V V(BR)CEO, 1-Element, PNP, Silicon | Small Signal Bipolar Transistor, 1.5A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 0.5A I(C), 10V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 1A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon | Small Signal Bipolar Transistor, 1A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon |
| package instruction | IN-LINE, R-PSIP-T3 | SMALL OUTLINE, R-PDSO-F3 | IN-LINE, R-PSIP-T3 | SMALL OUTLINE, R-PDSO-G3 | IN-LINE, R-PSIP-T3 | SMALL OUTLINE, R-PDSO-G3 | IN-LINE, R-PSIP-T3 | SMALL OUTLINE, R-PDSO-F3 | SMALL OUTLINE, R-PDSO-F3 |
| Reach Compliance Code | unknow | unknow | unknow | unknow | unknow | unknow | unknow | unknow | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 1 A | 1 A | 1.5 A | 0.5 A | 1.5 A | 0.5 A | 1 A | 1 A | 1 A |
| Collector-emitter maximum voltage | 50 V | 150 V | 40 V | 10 V | 40 V | 10 V | 50 V | 100 V | 100 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| JESD-30 code | R-PSIP-T3 | R-PDSO-F3 | R-PSIP-T3 | R-PDSO-G3 | R-PSIP-T3 | R-PDSO-G3 | R-PSIP-T3 | R-PDSO-F3 | R-PDSO-F3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE |
| Polarity/channel type | PNP | PNP | PNP | PNP | NPN | NPN | NPN | NPN | PNP |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | YES | NO | YES | NO | YES | NO | YES | YES |
| Terminal form | THROUGH-HOLE | FLAT | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING | THROUGH-HOLE | FLAT | FLAT |
| Terminal location | SINGLE | DUAL | SINGLE | DUAL | SINGLE | DUAL | SINGLE | DUAL | DUAL |
| transistor applications | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Minimum DC current gain (hFE) | 85 | 120 | 80 | - | 80 | - | 85 | 120 | 120 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
