535862-4 datasheet, PDF - EEWORLD Datasheet

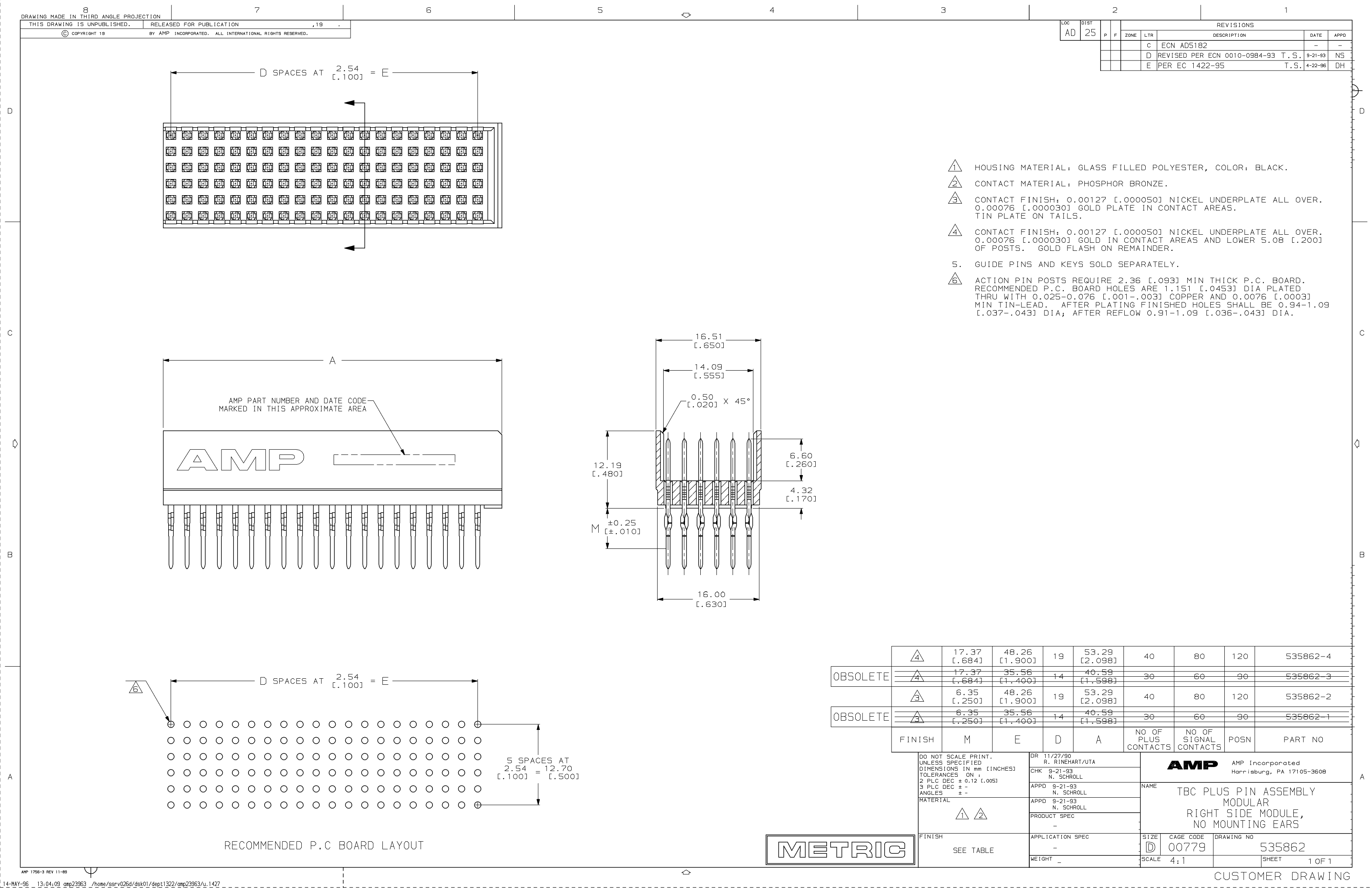

535862-4: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,120 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

535862-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	535862-4	-	-	View	Buy Now

HEADER CONNECTOR,PCB MNT,RECEPT,120 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,LOCKING,BLACK

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
body width	0.65 inch
subject depth	0.48 inch
body length	2.098 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	535862
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	6
Number of rows loaded	6
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	50u inch
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	120
