50864R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 50864R

50864R: DescriptionTelecom Transformer, CHIP; CategoryPower management transformer; File Size179KB，3 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

50864R Overview

Telecom Transformer, CHIP

50864R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Wurth Elektronik
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TURNS RATIO: 2.2:1; COMPATIBLE WITH GLOBESPAN CHIP SETS
Certification	IEC
high	12.7 mm
length	17.75 mm
Manufacturer's serial number	50864R
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L17.75XB13.46XH12.7 (mm)
main impedance	135 OHMS
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	13.46 mm

Preview

Download Datasheet

View All

TransformingMagnetics

DigitalTelecom

Globespan HDSL recommendations

EP13 - SMD

Features

Compatible with Globespan chip sets

Good total harmonic distortion characteristics

Optimized design for size and performance

Customization available

Volume production and automated lines

For IC manufacturer approval status, contact

Midcom

• 135 ohm line

•

EP13 - TH

EPX9 - SMD

Part Number

51576R

50517R

50516

50711R

50864R

51081R

50835

51074R

51128R

51160

51075R

51197R

51166R

51719R

11/22/05

Application

Orion IDSL

Analog front end

HDSL2

MDSL

IDSL

HDSL2

IDSL-M2B1Q

MSDL-HMS

g.SHDSL

Octane SHDSL

Turns Ration

PRI:SEC

5.4:1

2:1

2.2:1

4:1

5.4:1

2:1

1.4:1

4:1

0.7:1

Safety

Agency

IEC950

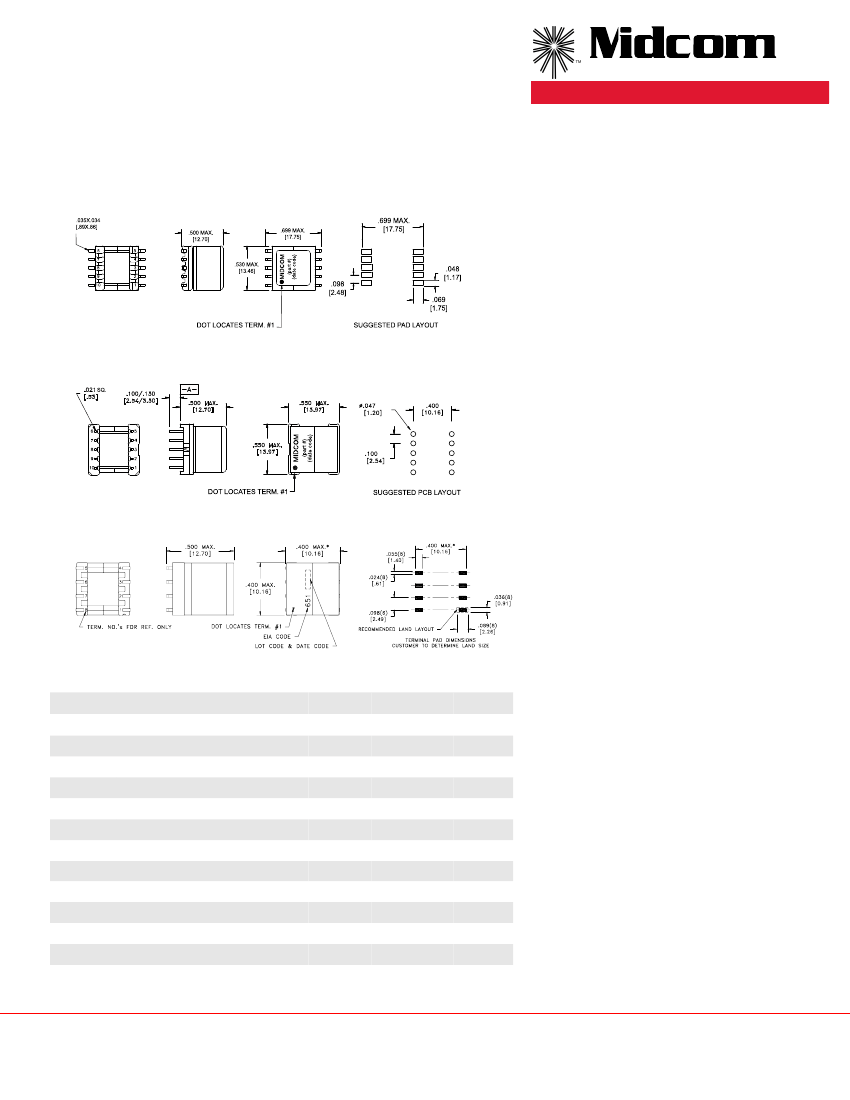

Mechanicals

EP13 - SMD

EP13 - TH

EP13 - SMD

EP13 - TH

EP13 - SMD

EP13 - TH

EP13 - SMD

EPX9-SMD

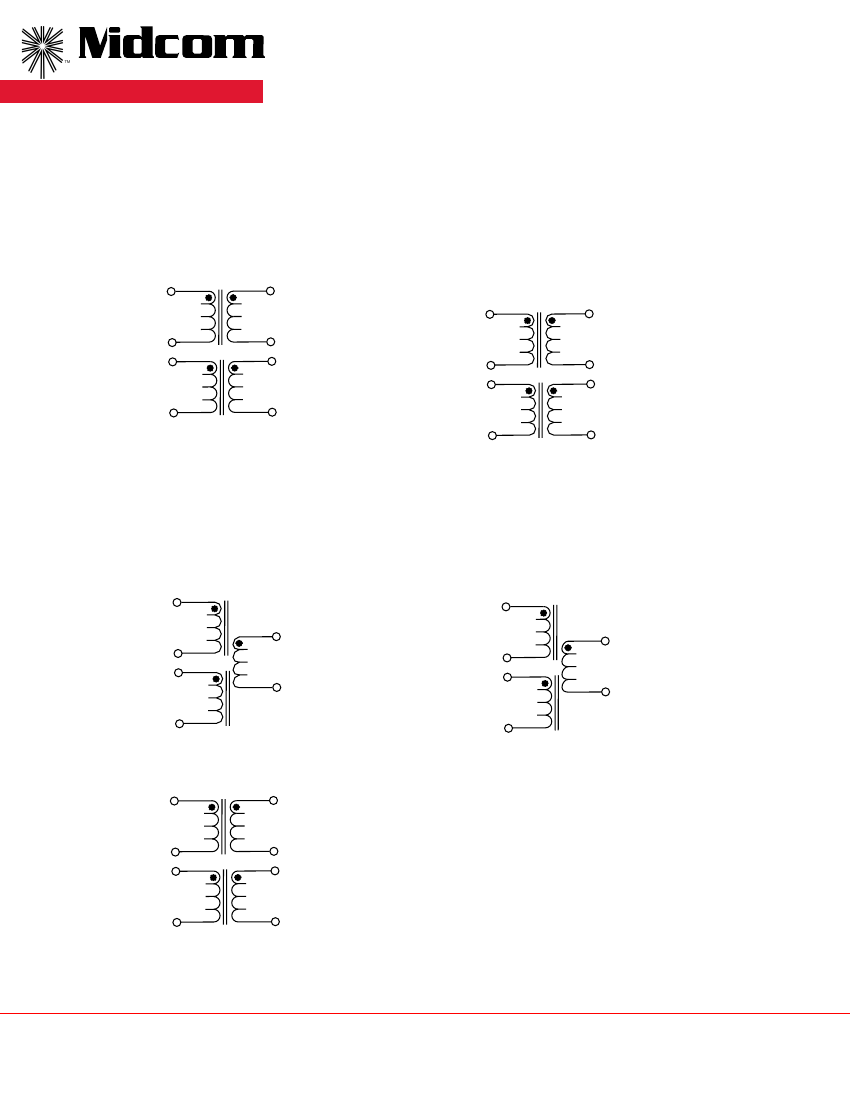

Schematic

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are ± .010/0,25 and electrical specifications are @ 25°C unless otherwise specified.

Midcom, Inc. USA

121 Airport Drive - PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.midcom-inc.com ~ email:sales@midcom-inc.com

Midcom, Inc. China

10/F Spectrum Tower 53 Hung to Road

Kwun Tong, Kowloon, HK

T: 852.2320.4221 ~ F: 852.2352.3272

www.midcom.com.cn ~ email:sye@midcom-inc.com

50864R Related Products

	50864R	50516	50517R
Description	Telecom Transformer, CHIP	Telecom Transformer	Telecom Transformer, CHIP
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	TURNS RATIO: 2.2:1; COMPATIBLE WITH GLOBESPAN CHIP SETS	TURNS RATIO: 2:1; COMPATIBLE WITH GLOBESPAN CHIP SETS	TURNS RATIO: 2:1; COMPATIBLE WITH GLOBESPAN CHIP SETS
Certification	IEC	IEC	IEC
high	12.7 mm	12.7 mm	12.7 mm
length	17.75 mm	13.97 mm	17.75 mm
Manufacturer's serial number	50864R	50516	50517R
Installation features	SURFACE MOUNT	THROUGH HOLE MOUNTED	SURFACE MOUNT
physical size	L17.75XB13.46XH12.7 (mm)	L13.97XB13.97XH12.7 (mm)	L17.75XB13.46XH12.7 (mm)
main impedance	135 OHMS	135 OHMS	135 OHMS
surface mount	YES	NO	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	13.46 mm	13.97 mm	13.46 mm
package instruction	CHIP	-	CHIP
