Part Number:
Status:
Overview:
Description:
0015446804
Active
cgrid__sl_products
2.54mm (.100") Pitch C-Grid® Receptacle, Through Hole, Dual Row, High Profile,
Vertical, High-Temperature, 4 Circuits
Documents:
3D Model

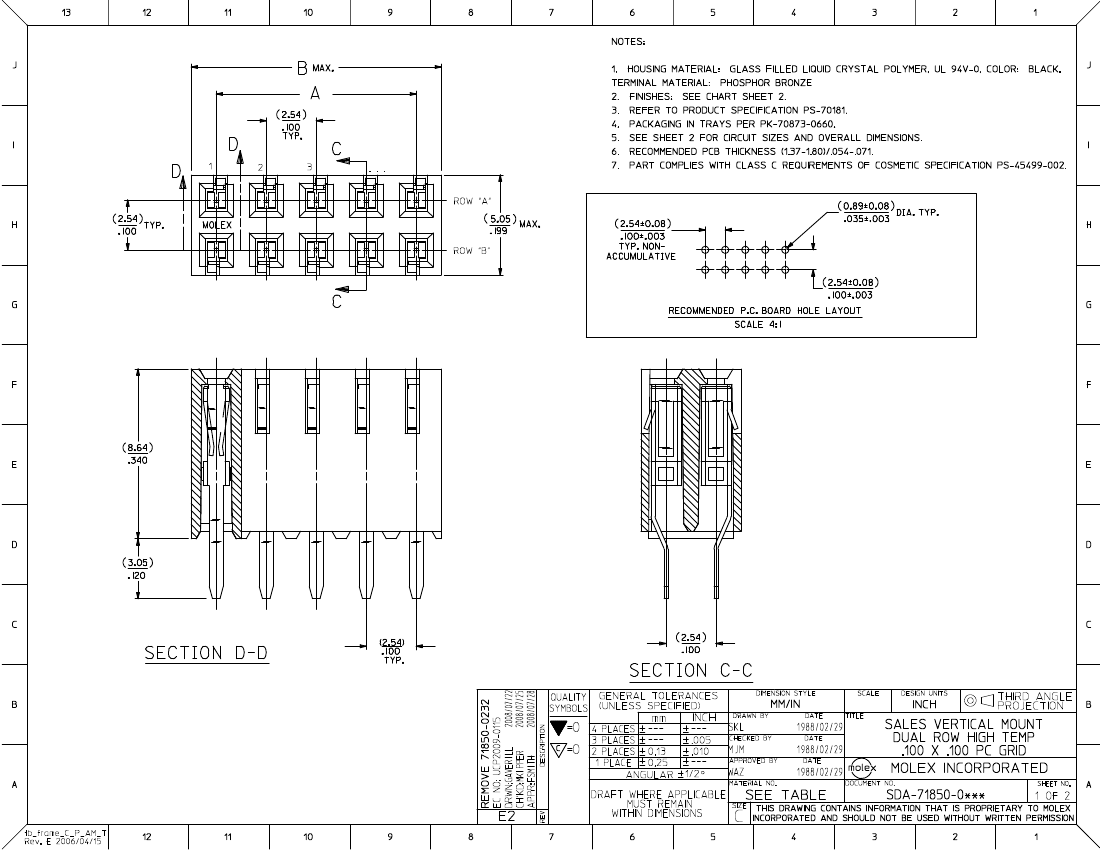

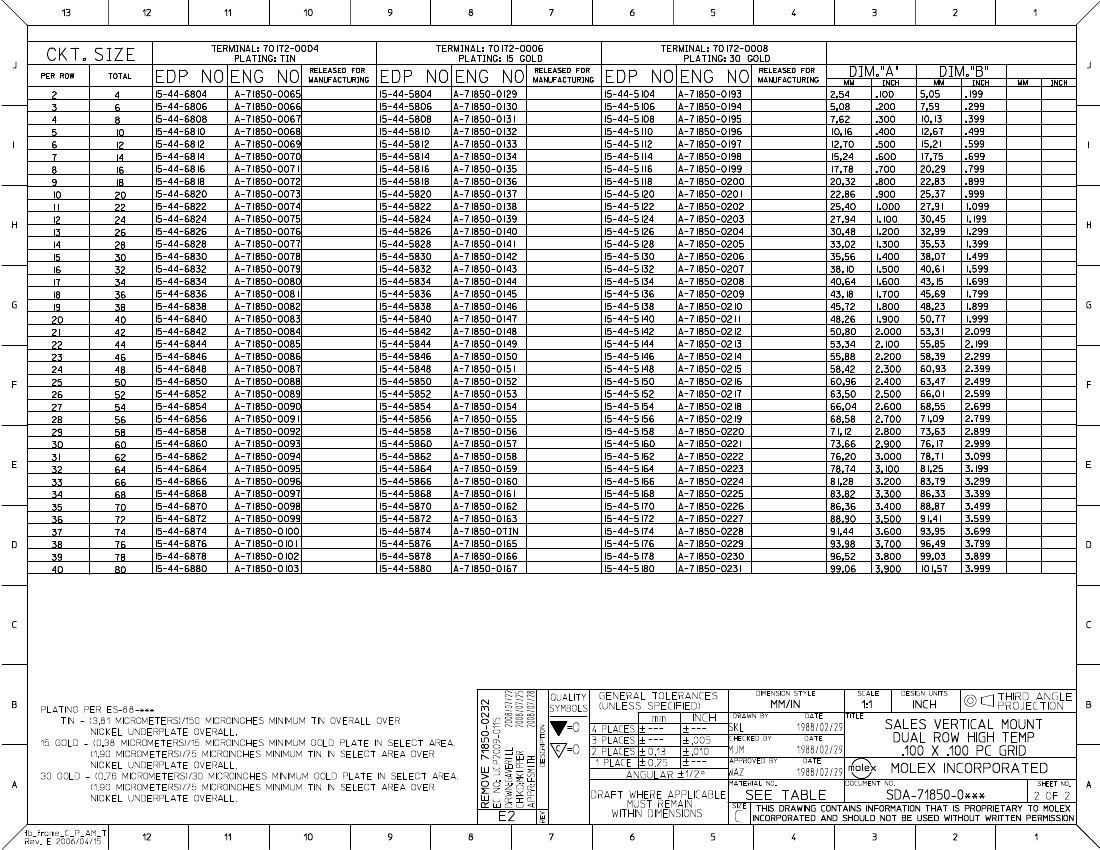

Drawing (PDF)
Product Specification PS-70181 (PDF)
RoHS Certificate of Compliance (PDF)
Series

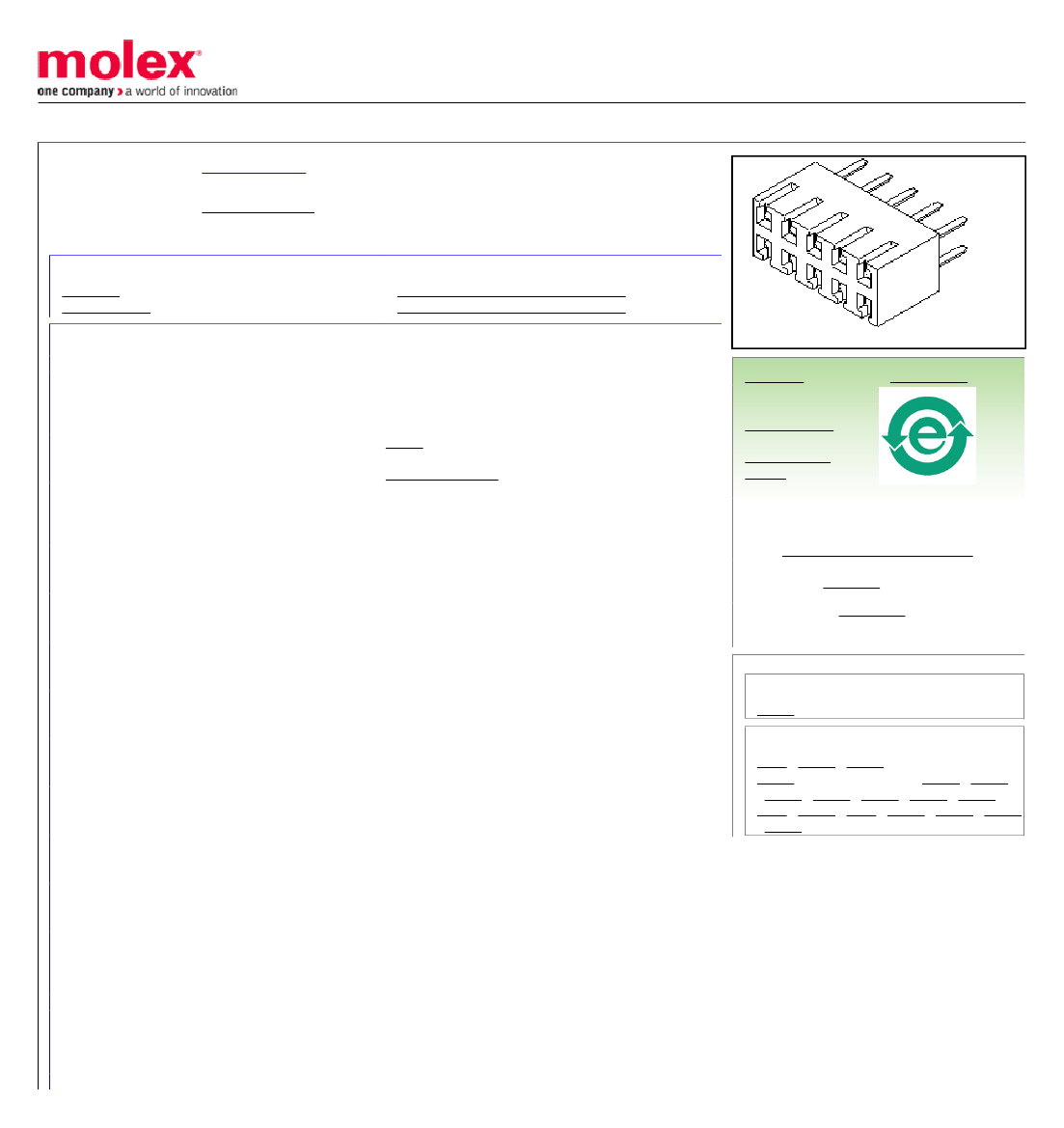

image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Overview
Product Name
PCB Receptacles
71850
Board-to-Board
cgrid__sl_products
C-Grid®
Physical
Circuits (Loaded)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Temperature Range - Operating
Termination Interface: Style
4
Black
25
94V-0
No
Phosphor Bronze
Tin
Tin
High Temperature Thermoplastic
2
Vertical
0.120 In
3.05 mm
No
None
0.062 In
1.60 mm
Tray
0.100 In
2.54 mm
150
3.75
150
3.75
No
-40°C to +105°C
Through Hole
Search Parts in this Series
71850Series
Mates With
8624 , 70203 , 70246 Straight Header,
70247 Right Angle Header, 70287 , 70289
, 70227 , 70567 , 70280 , 70524 , 70260 ,
8723 , 70568 , 8724 , 71764 , 70229 , 70216
, 71308
Electrical
Current - Maximum per Contact
Voltage - Maximum
2.5A
250V
Solder Process Data
Lead-free Process Capability
Process Temperature max. C
SMC & Wave Capable (TH only)
260
