5KP SERIES
5000W TRANSIENT VOLTAGE SUPPRESSOR
WON-TOP ELECTRONICS
Pb
Features
Glass Passivated Die Construction
5000W Peak Pulse Power Dissipation
5.0V – 440V Standoff Voltage
Uni- and Bi-Directional Versions Available
Excellent Clamping Voltage
Typical Response Time < 1nS
Plastic Case Material has UL Flammability
Classification Rating 94V-0
A
B
A
C
Mechanical Data
Case: P-600, Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band Except Bi-Directional
Weight: 2.10 grams (approx.)
Mounting Position: Any
Marking: Type Number
Lead Free: For RoHS / Lead Free Version,
Add “-LF” Suffix to Part Number, See Page 6
P-600
Min
25.4
8.60
1.20
8.60
D
Dim
A
B
C
D
Max
—
9.10
1.30
9.10
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
Characteristic
Peak Pulse Power Dissipation on 10/1000µS Waveform (Note 1, 2, 5)
Peak Pulse Current on 10/1000µS Waveform (Note 1)
Peak Forward Surge Current (Note 2, 3)
Maximum Instantaneous Forward Voltage at 100A (Note 3, 4)
Power Dissipation at T
L
= 75°C (Note 2)
Typical Thermal Resistance, Junction to Ambient (Note 2)
Typical Thermal Resistance, Junction to Lead (Note 2)
Operating and Storage Temperature Range
@T
A
=25°C unless otherwise specified
Symbol
P
PPM
I
PPM
I
FSM
V
F
P
D
R
θJA
R
θJL
T
J
, T
STG
Value
5000
See Table 1
400
3.5 / 5.0
8.0
40
8.0
-55 to +150
Unit
W
A
A
V
W
°C/W
°C
Note: 1. Non-repetitive current pulse per Figure 5 and derated above T
A
= 25°C per Figure 1.
2. Mounted on 20 x 20 x 1.0mm thick copper pads to each terminal that maintained at a distance of 9.5mm from the case.
3. Measured on 8.3ms single half sine-wave, duty cycle = 4 pulses per minute maximum. For uni-directional devices only.
4. V
F
< 3.5V for V
BR
≤
200V and V
F
< 5.0V for V
BR
≥
201V.
5. Peak pulse power waveform is 10/1000µS.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
1
®
5KP SERIES
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
100
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
500
WON-TOP ELECTRONICS
Single Half-Sine-Wave
JEDEC Method
80
400
60
300
40
200
20
100
0
0
15
30 45 60 75 90 105 120 135 150
T
A
, AMBIENT TEMPERATURE (°C)

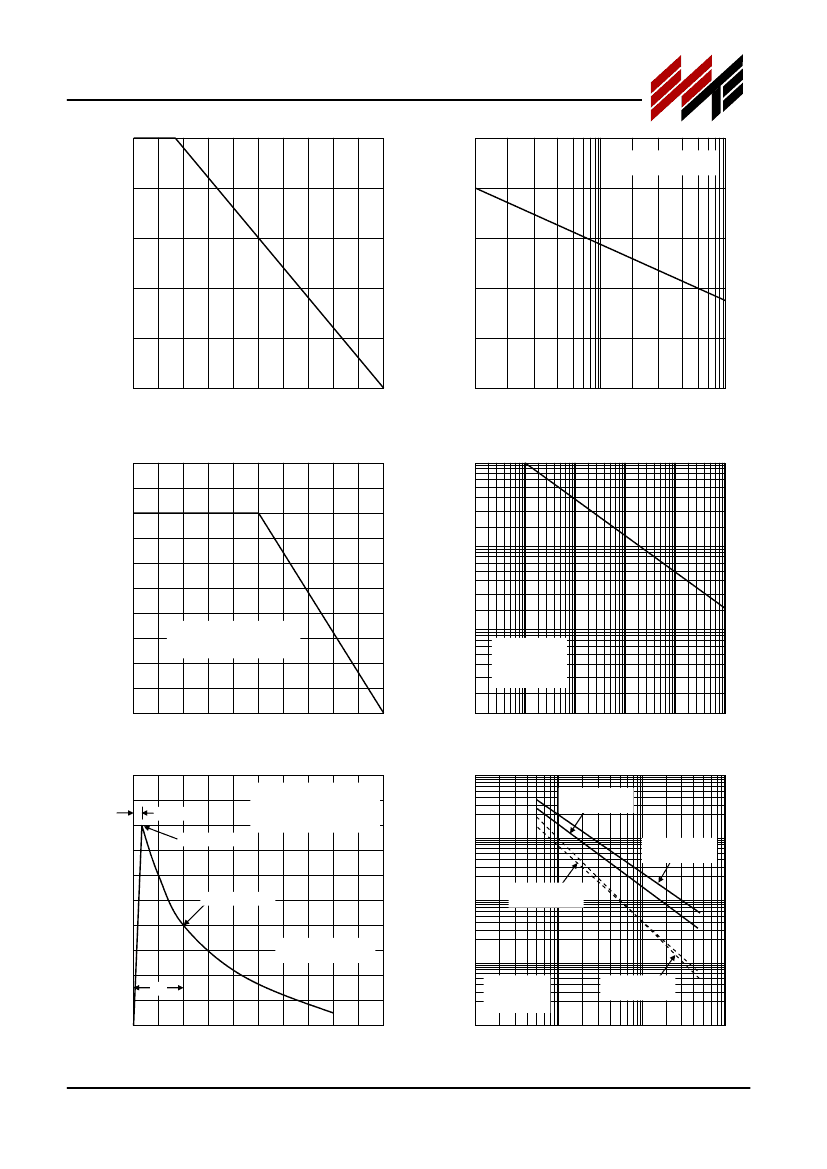

Fig. 1 Pulse Derating Curve
0
1
10
100
NUMBER OF CYCLES AT 60Hz
Fig. 2 Forward Surge Current Derating Curve
P
D
, STEADY STATE POWER DISSIPATION (W)
10
100
8
P
PK
, PEAK POWER (kW)
10
6
4
Mounted on 20 x 20 x 1.0mm
copper pads to each terminal.
Lead length = 9.5mm.
1
T
A
= 25°C
Non Repetitive
Pulse Waveform
Shown in Fig. 5
2
0
0
15
30 45 60 75 90 105 120 135 150
T
L
, LEAD TEMPERATURE (°C)
Fig. 3 Steady State Power Derating Curve
T
A
= 25°C
Pulse Width (t
d
) is defined as
the point where the peak
current decays to 50% of I
PPM
0.1
0.1
1
10
100
1000
t
d
, PULSE WIDTH (µs)
Fig. 4 Pulse Rating Curve
10000
125
t
r
= 10µs
100000
C
J
, JUNCTION CAPACITANCE (pF)
Bi-Directional
@ Zero Bias
I
PPM
, PEAK PULSE CURRENT (%)
100
Peak Value I
PPM
10000
Uni-Directional
@ Zero Bias
Uni-Directional
@ V
RWM
75
Half Value I
PP
/2
1000
50
10/1000µs Waveform
as defined by R.E.A.
100
T
J
= 25°C
f = 1MHz
V
sig
= 50mV
p-p
Bi-Directional
@ V
RWM
25
t
d
0
0
1
2
3
t, TIME (ms)
Fig. 5 Pulse Waveform
4
5
10
1
10
100
V
BR
, BREAKDOWN VOLTAGE (V)
Fig. 6 Typical Junction Capacitance
1000
www.wontop.com
2
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
®
5KP SERIES
WON-TOP ELECTRONICS
Electrical Characteristics (@T
A
=25°C unless otherwise specified) Table 1
Uni-Directional
Part No.
5KP5.0
5KP5.0A
5KP6.0
5KP6.0A
5KP6.5
5KP6.5A
5KP7.0
5KP7.0A
5KP7.5
5KP7.5A
5KP8.0
5KP8.0A
5KP8.5
5KP8.5A
5KP9.0
5KP9.0A
5KP10
5KP10A
5KP11
5KP11A
5KP12
5KP12A
5KP13
5KP13A
5KP14
5KP14A
5KP15
5KP15A
5KP16
5KP16A
5KP17
5KP17A
5KP18
5KP18A
5KP20
5KP20A
5KP22
5KP22A
5KP24
5KP24A
5KP26
5KP26A
5KP28
5KP28A
5KP30
5KP30A
5KP33
5KP33A
5KP36
5KP36A
5KP40
5KP40A
5KP43
5KP43A
5KP45
5KP45A
5KP48
5KP48A
5KP51
5KP51A
5KP54
5KP54A
5KP58
5KP58A
Bi-Directional
Part No.
5KP5.0C
5KP5.0CA
5KP6.0C
5KP6.0CA
5KP6.5C
5KP6.5CA
5KP7.0C
5KP7.0CA
5KP7.5C
5KP7.5CA
5KP8.0C
5KP8.0CA
5KP8.5C
5KP8.5CA
5KP9.0C
5KP9.0CA
5KP10C
5KP10CA
5KP11C
5KP11CA
5KP12C
5KP12CA
5KP13C
5KP13CA
5KP14C
5KP14CA
5KP15C
5KP15CA
5KP16C
5KP16CA
5KP17C
5KP17CA
5KP18C
5KP18CA
5KP20C
5KP20CA
5KP22C
5KP22CA
5KP24C
5KP24CA
5KP26C
5KP26CA
5KP28C
5KP28CA
5KP30C
5KP30CA
5KP33C
5KP33CA
5KP36C
5KP36CA
5KP40C
5KP40CA
5KP43C
5KP43CA
5KP45C
5KP45CA
5KP48C
5KP48CA
5KP51C
5KP51CA
5KP54C
5KP54CA
5KP58C
5KP58CA
Reverse
Stand-Off
Voltage
V
RWM
(V)
5.0
5.0
6.0
6.0
6.5
6.5
7.0
7.0
7.5
7.5
8.0
8.0
8.5
8.5
9.0
9.0
10.0
10.0
11.0
11.0
12.0
12.0
13.0
13.0
14.0
14.0
15.0
15.0
16.0
16.0
17.0
17.0
18.0
18.0
20.0
20.0
22.0
22.0
24.0
24.0
26.0
26.0
28.0
28.0
30.0
30.0
33.0
33.0
36.0
36.0
40.0
40.0
43.0
43.0
45.0
45.0
48.0
48.0
51.0
51.0
54.0
54.0
58.0
58.0
Breakdown Voltage
V
BR
(V) @I
T
Min.
6.40
6.40
6.67
6.67
7.22
7.22
7.78
7.78
8.33
8.33
8.89
8.89
9.44
9.44
10.00
10.00
11.10
11.10
12.20
12.20
13.30
13.30
14.40
14.40
15.60
15.60
16.70
16.70
17.80
17.80
18.90
18.90
20.00
20.00
22.20
22.20
24.40
24.40
26.70
26.70
28.90
28.90
31.10
31.10
33.30
33.30
36.70
36.70
40.00
40.00
44.40
44.40
47.80
47.80
50.00
50.00
53.30
53.30
56.70
56.70
60.00
60.00
64.40
64.40
Max.
7.30
7.00
8.15
7.37
8.82
7.98
9.51
8.60
10.20
9.21
10.90
9.83
11.50
10.40
12.20
11.10
13.60
12.30
14.90
13.50
16.30
14.70
17.60
15.90
19.10
17.20
20.40
18.50
21.80
19.70
23.10
20.90
24.40
22.10
27.10
24.50
29.80
26.90
32.60
29.50
35.30
31.90
38.00
34.40
40.70
36.80
44.90
40.60
48.90
44.20
54.30
49.10
58.40
52.80
61.10
55.30
65.10
58.90
69.30
62.70
73.30
66.30
78.70
71.20
Test
Current
I
T
(mA)
50
50
50
50
50
50
50
50
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Maximum
Clamping
Voltage @I
PP
V
C
(V)
9.6
9.2
11.4
10.3
12.3
11.2
13.3
12.0
14.3
12.9
15.0
13.6
15.9
14.4
16.9
15.4
18.8
17.0
20.1
18.2
22.0
19.9
23.8
21.5
25.8
23.2
26.9
24.4
28.8
26.0
30.5
27.6
32.2
29.2
35.8
32.4
39.4
35.5
43.0
38.9
46.6
42.1
50.0
45.4
53.5
48.4
59.0
53.3
64.3
58.1
71.4
64.5
76.7
69.4
80.3
72.7
85.5
77.4
91.1
82.4
96.3
87.1
103.0
93.6
Peak Pulse
Current
I
PP
(A)
520.83
543.48
438.60
485.44
406.50
446.43
375.94
416.67
349.65
387.60
333.33
367.65
314.47
347.22
295.86
324.68
265.96
294.12
248.76
274.73
227.27
251.26
210.08
232.56
193.80
215.52
185.87
204.92
173.61
192.31
163.93
181.16
155.28
171.23
139.66
154.32
126.90
140.85
116.28
128.53
107.30
118.76
100.00
110.13
93.46
103.31
84.75
93.81
77.76
86.06
70.03
77.52
65.19
72.05
62.27
68.78
58.48
64.60
54.88
60.68
51.92
57.41
48.54
53.42
Reverse
Leakage*
@V
RWM
I
R
(µA)
5000
5000
5000
5000
2000
2000
1000
1000
250
250
150
150
50
50
20
20
15
15
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
*For bi-directional devices V
RWM
≤
10V, the I
R
limit is double.
© Won-Top Electronics Co., Ltd.
Revision: September, 2012
www.wontop.com
3
