52609-1671 datasheet, PDF - EEWORLD Datasheet

52609-1671: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Plug, LEAD FREE; CategoryThe connector The connector; File Size302KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

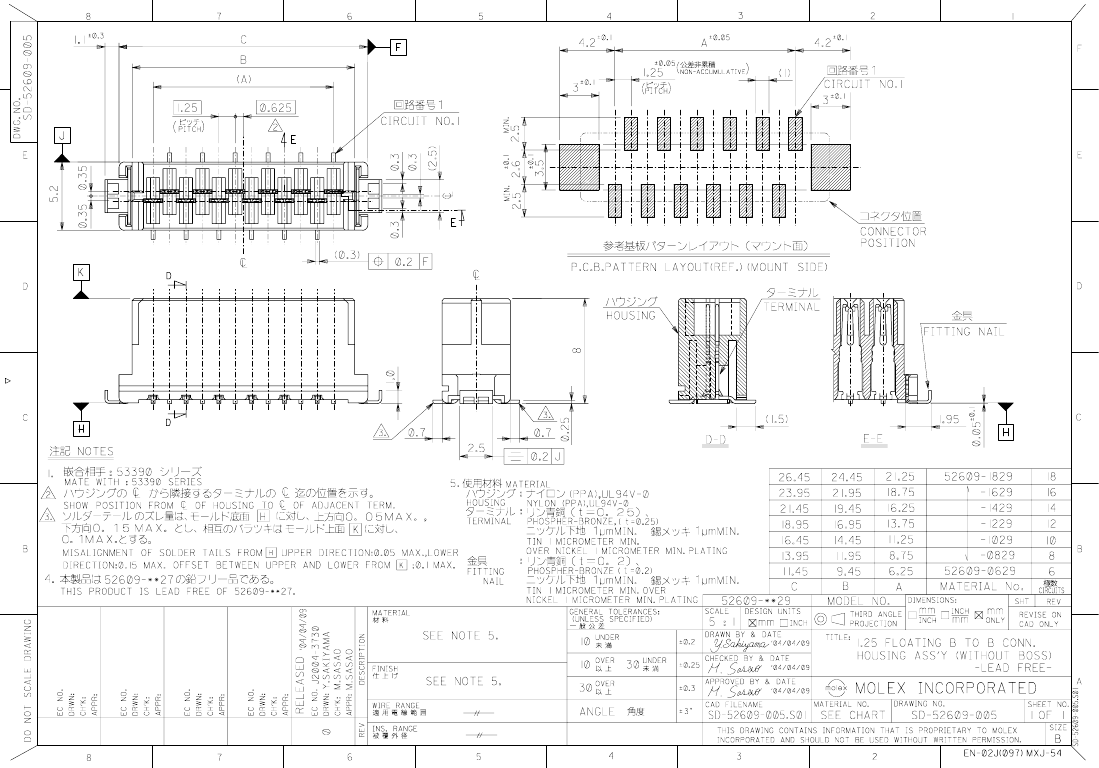

52609-1671 Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Locking, Plug, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown

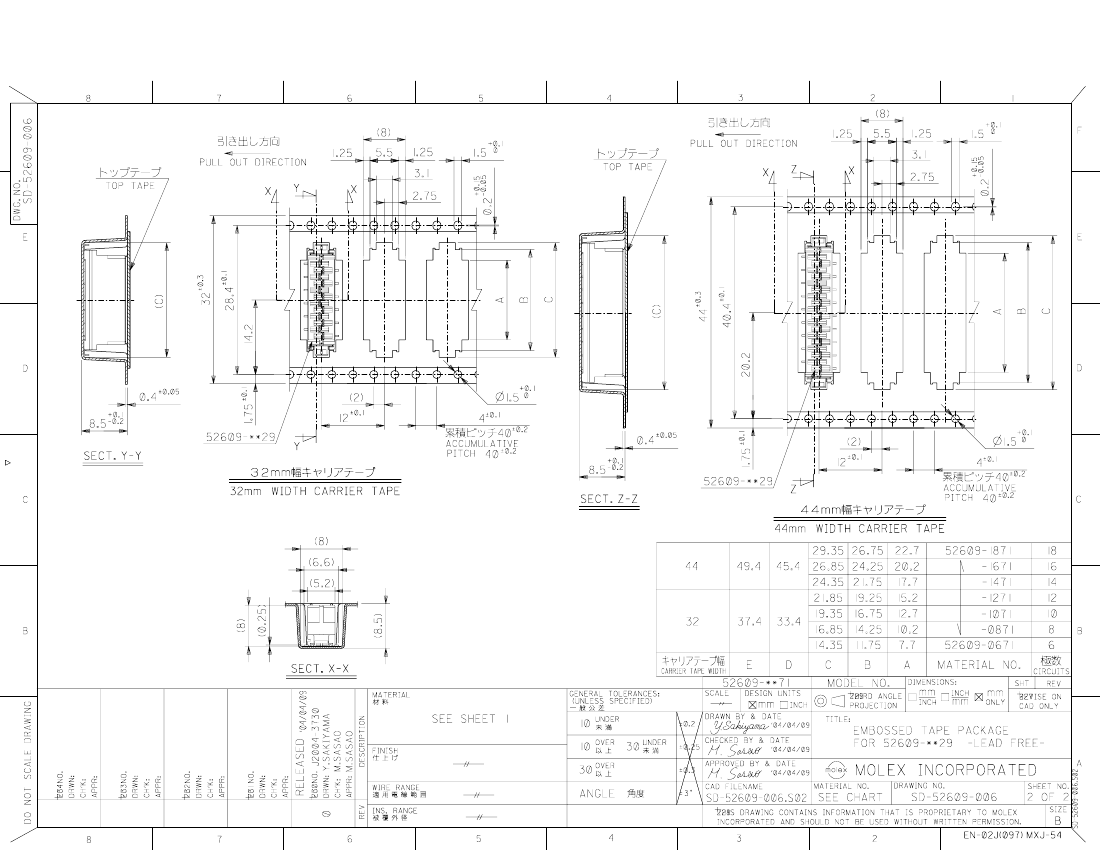

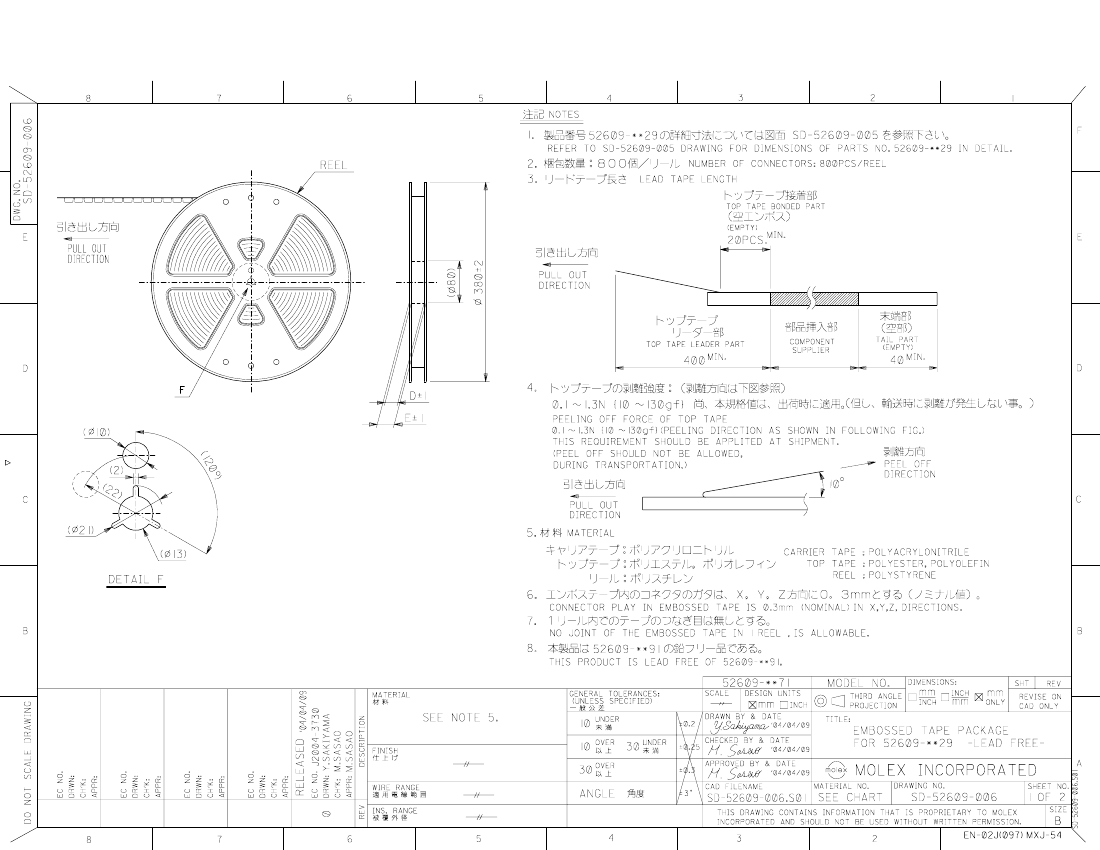

Other features	ROHS COMPLIANT & TAPE PACKAGE
Board mount options	FITTING NAIL
body width	0.205 inch
subject depth	0.315 inch
body length	0.943 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	40 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	POLYPHTHALAMIDE
MIL compliance	NO
Manufacturer's serial number	52609
Plug contact pitch	0.098 inch
Match contact row spacing	0.028 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	5.1054 mm
Plating thickness	39u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
UL Flammability Code	94V-0
