52492-0720: DescriptionCard Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size201KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

52492-0720 Overview

Card Edge Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.049 inch Pitch, Solder Terminal

52492-0720 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BOTTOM ENTRY, STAGGERED CONFIGURATION
body width	0.339 inch
subject depth	0.232 inch
body length	0.478 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.049 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.9972 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

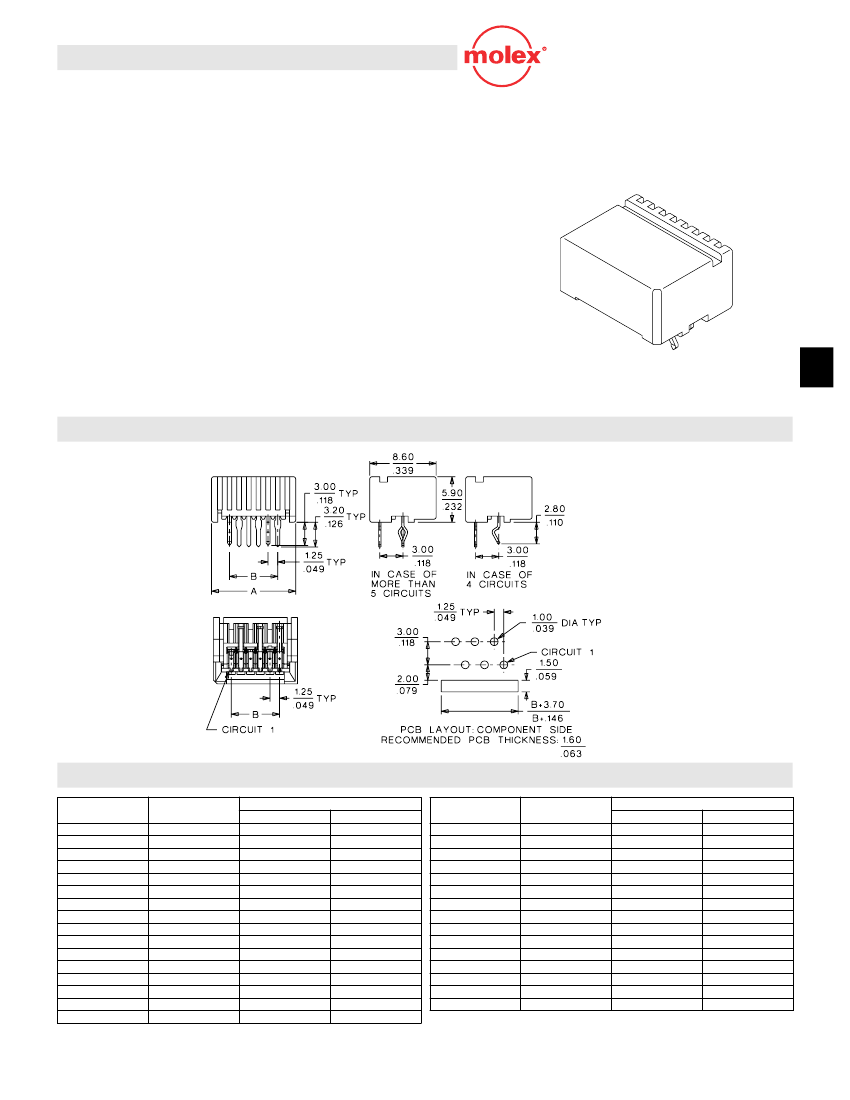

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Sizes 6 to 36 circuits

s

For 0.30mm thick FFC/FPC

s

Kinked solder tails for added PCB retention

Reference Information

Packaging: Tray

Designed In: Millimeters

Electrical

Voltage: 200V

Current: 1.0A

Contact Resistance: 30m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 500 M

Ω

min.

Physical

Housing: PBTP, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin

Operating Temperature: -40 to +85˚C

1.25mm (.049") Pitch

FFC/FPC Connector

52492

Bottom Entry

FFC/FPC Connectors

G

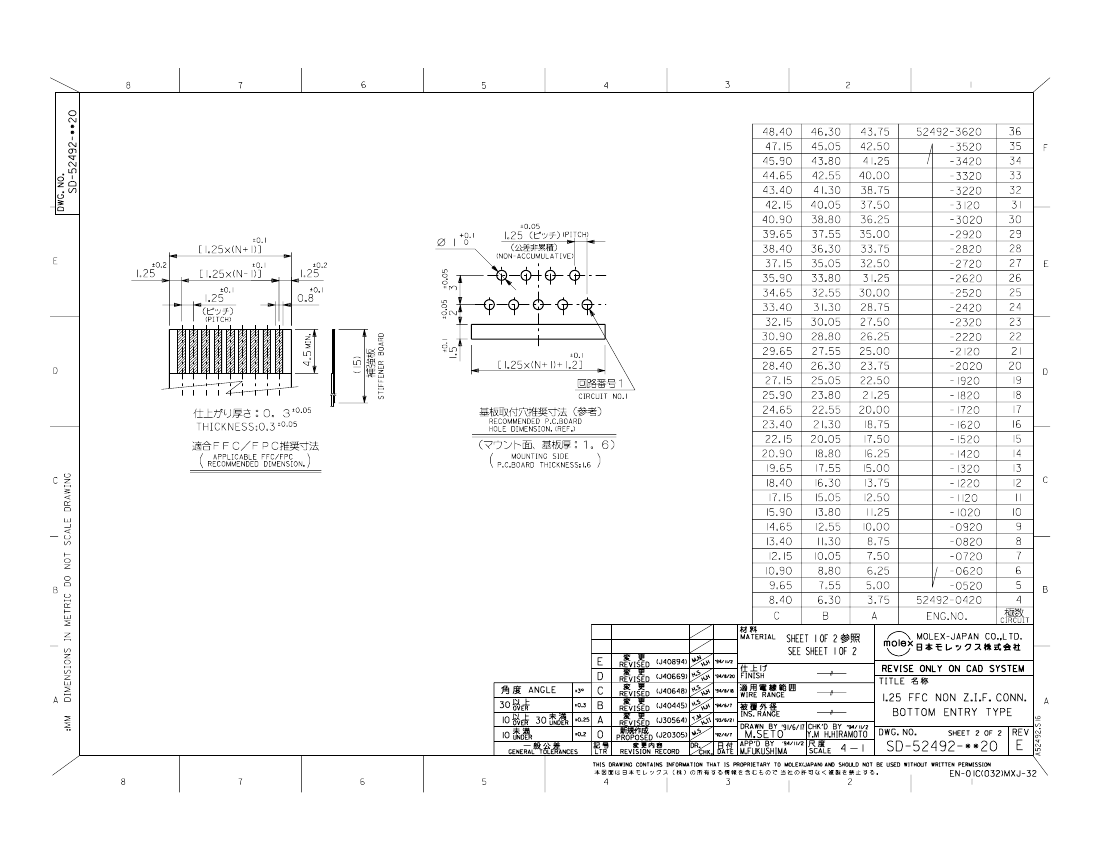

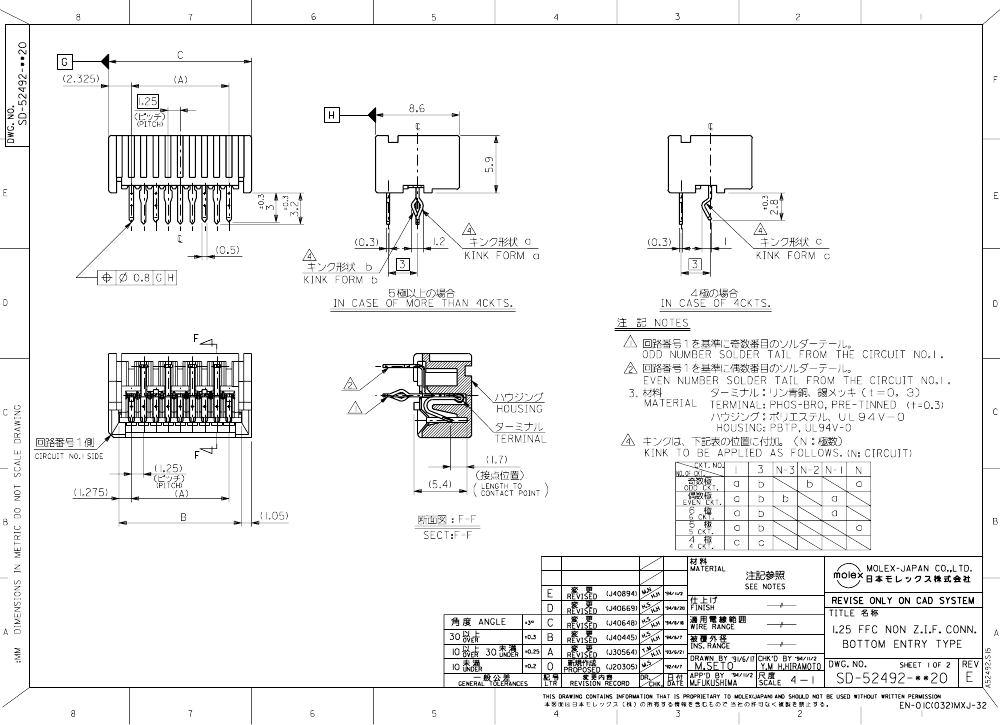

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

6

17

8

19

10

11

12

13

14

15

16

17

18

19

20

21

Order No.

52492-0620

52492-0720

52492-0820

52492-0920

52492-1020

52492-1120

52492-1220

52492-1320

52492-1420

52492-1520

52492-1620

52492-1720

52492-1820

52492-1920

52492-2020

52492-2120

Dimension

A

10.90 (.429)

12.15 (.478)

13.40 (.528)

14.65 (.577)

15.90 (.626)

17.15 (.675)

18.40 (.724)

19.65 (.774)

20.90 (.823)

22.15 (.872)

23.40 (.921)

24.65 (.970)

25.90 (1.020)

27.15 (1.069)

28.40 (1.118)

29.65 (1.167)

B

6.25 (.246)

7.50 (.295)

8.75 (.344)

10.00 (.394)

11.25 (.443)

12.50 (.492)

13.75 (.541)

15.00 (.591)

16.25 (.640)

17.50 (.689)

18.75 (.738)

20.00 (.787)

21.25 (.837)

22.50 (.886)

23.75 (.935)

25.00 (.984)

Circuits

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

Order No.

52492-2220

52492-2320

52492-2420

52492-2520

52492-2620

52492-2720

52492-2820

52492-2920

52492-3020

52492-3120

52492-3220

52492-3320

52492-3420

52492-3520

52492-3620

Dimension

A

30.90 (1.217)

32.15 (1.266)

33.40 (1.315)

34.65 (1.364)

35.90 (1.413)

37.15 (1.463)

38.40 (1.512)

39.65 (1.561)

40.90 (1.610)

42.15 (1.659)

43.40 (1.709)

44.65 (1.758)

45.90 (1.807)

47.15 (1.856)

48.40 (1.906)

B

26.25 (1.033)

27.50 (1.083)

28.75 (1.132)

30.00 (1.181)

31.25 (1.230)

32.50 (1.280)

33.75 (1.329)

35.00 (1.378)

36.25 (1.427)

37.50 (1.476)

38.75 (1.526)

40.00 (1.575)

41.25 (1.624)

42.50 (1.673)

43.75 (1.722)

MX01
