Q-12.000000M-AC3225/4-F-20-20-E-16-TR: DescriptionParallel - Fundamental Quartz Crystal, 12MHz Nom, ROHS COMPLIANT, LEADLESS, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size124KB，1 Pages; ManufacturerAuris; Environmental Compliance

Download Datasheet Parametric View All

Q-12.000000M-AC3225/4-F-20-20-E-16-TR Overview

Parallel - Fundamental Quartz Crystal, 12MHz Nom, ROHS COMPLIANT, LEADLESS, CERAMIC, SMD, 4 PIN

Q-12.000000M-AC3225/4-F-20-20-E-16-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Auris
package instruction	ROHS COMPLIANT, LEADLESS, CERAMIC, SMD, 4 PIN
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.002%
frequency tolerance	20 ppm
load capacitance	16 pF
Manufacturer's serial number	AC3225/4
Installation features	SURFACE MOUNT
Nominal operating frequency	12 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L3.2XB2.5XH1.0 (mm)/L0.126XB0.098XH0.039 (inch)
Series resistance	120 Ω
surface mount	YES

Preview

Download Datasheet

View All

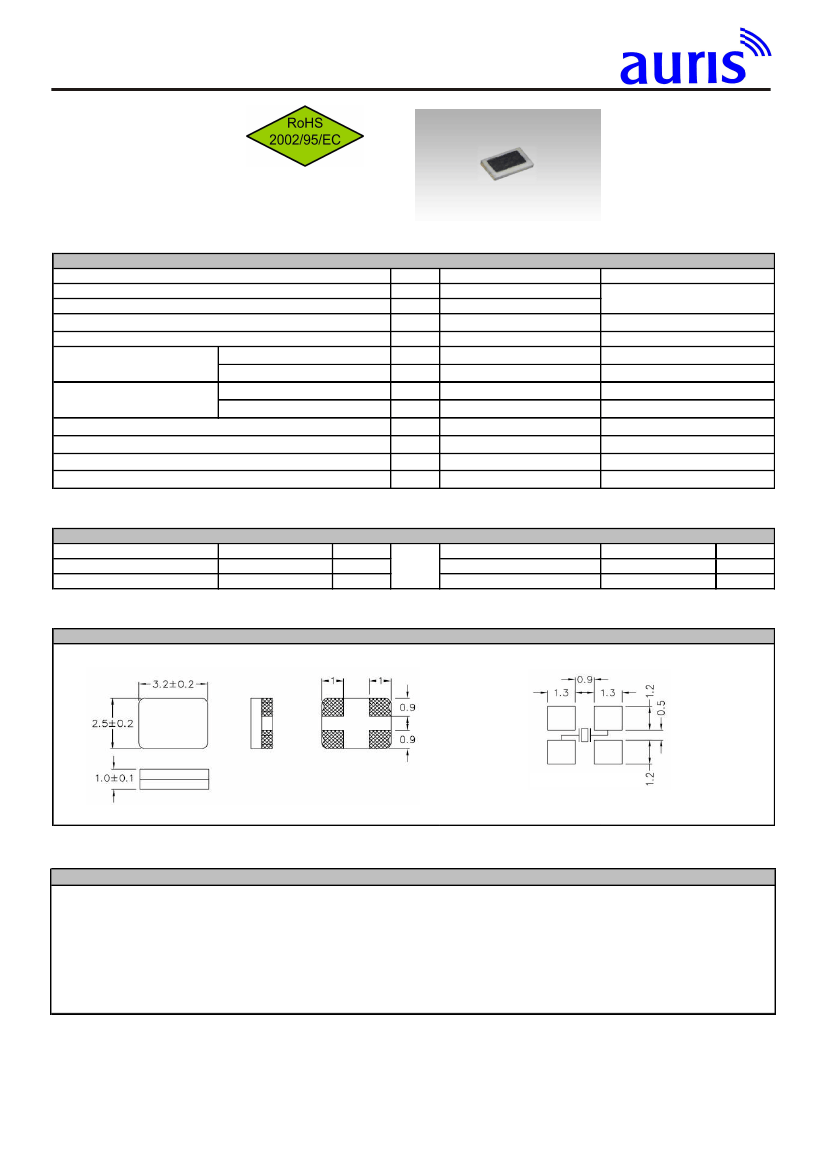

Quartz SMD, Ceramic

AC3225/4

Features:

- SMD

- ultra-thin and small leadless type

- for high mechanical demands available

Specifications

Frequency range

Frequency tolerance,Ta=25°C

Load capacitance

Temperature tolerance

Temperature range

Drive level

Series resistance

Shunt capacitance

Insulation resistance

Aging

Storage temperature

Operating temperature

Maximum drive level

Recommended drive level

Symbol

f

∆f/f

C

L

∆f/f

T

STG

T

OPR

M

DL

R

DL

R

1

C

0

I

R

∆f

A

AC3225

12.000MHz ~ 40.000MHz

±20ppm

10pF ~ series

±20ppm ~ ±30ppm

-55°C ~ +125°C

500µW

10µW ~ 100µW

As per table

7pF

500M Ohm

±5ppm/Year max

25°C ±3°C

Max

Others are offered

Remarks

Fundamental mode

Please specify

-20°C~+70°C/-40°C~+85°C Others are offered

Resistance of series resonance (ESR)

Frequency (MHz)

Mode

12 <= f < 20

Fundamental

20 <= f < 25

Fundamental

Ohm max

120

80

Frequency (MHz)

25 <= f < 30

30 <= f < 40

Mode

Fundamental

Ohm max

60

50

Drawing

AC3225

Soldering Pattern

Dimensions in mm

Order key

Q

Part

Q=Quartz

- 36.000000M - AC3225/4

Frequency

Package

-F

Mode of

oscillation

- 30

Frequency

tolerance

±ppm

(25°C)

- 50

Temperature

tolerance

±ppm

(Temp. range)

-D

Temperature

range

A=

0°C ~ +70°C

- 16

Load

capacitance

pF

SR=series

- TR

Option

TR=Tape and reel

X=Special options

M=MHz

AC3225/4

/4 = 4 pads

F=fund.

B= -10°C ~ +60°C

C= -10°C ~ +70°C

D= -20°C ~ +70°C

E= -40°C ~ +85°C

auris-GmbH

office@auris-gmbh.de www.auris-gmbh.de

All specifications are subject to change without notice.
