53S152-K00N5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53S152-K00N5

53S152-K00N5: DescriptionRF Connector Adapter, N-BNC, Male-Female, Plug-jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size41KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/; Environmental Compliance

Download Datasheet Parametric View All

53S152-K00N5 Overview

RF Connector Adapter, N-BNC, Male-Female, Plug-jack, ROHS COMPLIANT

53S152-K00N5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Rosenberger
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	N-BNC
Other features	INSERTION LOSS AND VSWR MAX AT: 4 GHZ
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-FEMALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.05 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.29

Preview

Download Datasheet

View All

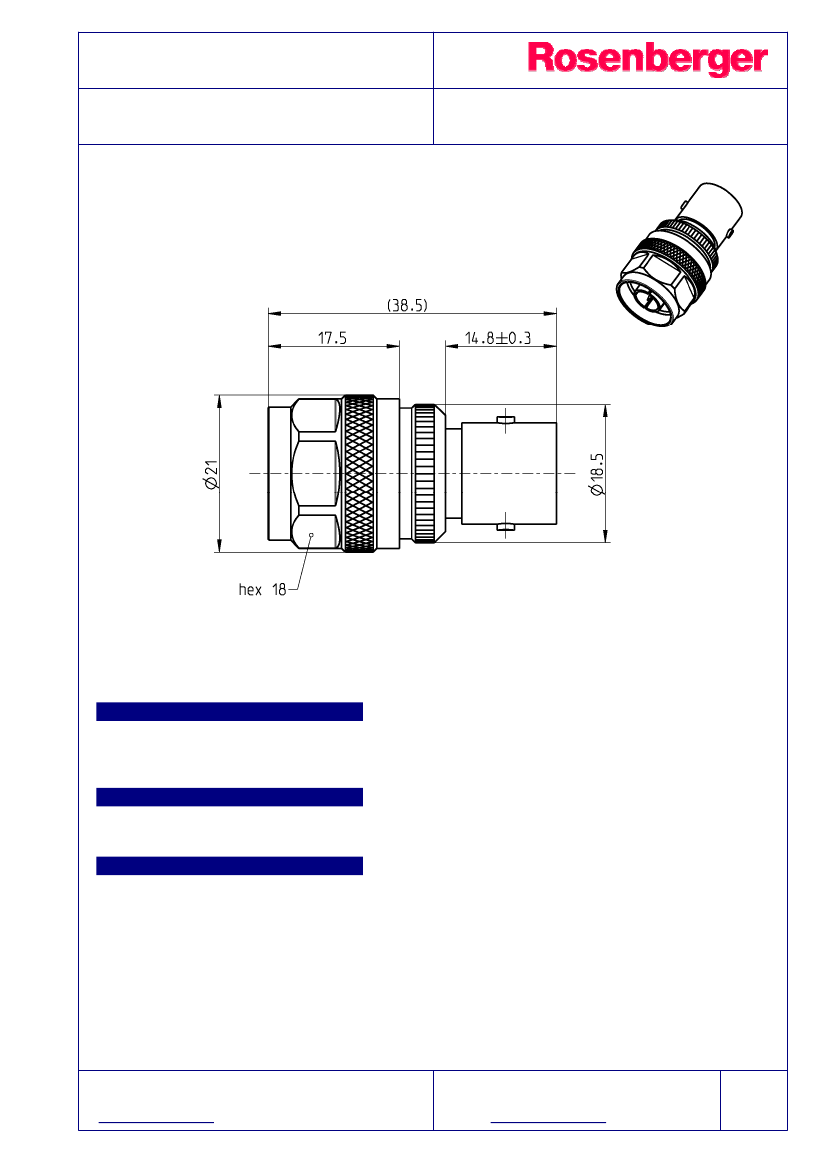

TECHNICAL DATA SHEET

ADAPTOR

N 50



PLUG – C JACK

53S152-K00N5

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

N side:

C side:

IEC 60169-16, MIL-PRF-39012, CECC 22210

IEC 60169-7, MIL C-39012, VG 95240, DIN 47222

Documents

N/A

Material and plating

Connector parts

Center contact

Outer contact N side

Outer contact C side

Dielectric

Gasket

Coupling nut

Material

CuBe

Brass

PTFE

Silicone

Brass

Plating

AuroDur®, gold plated

Flash white bronze over silver(e.g. Optargen®)

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

email: info@rosenberger.de

Page

1/2
