TECHNICAL DATA SHEET
ADAPTOR
N 50
Ω
PLUG – UHF JACK
53S154-K00N5

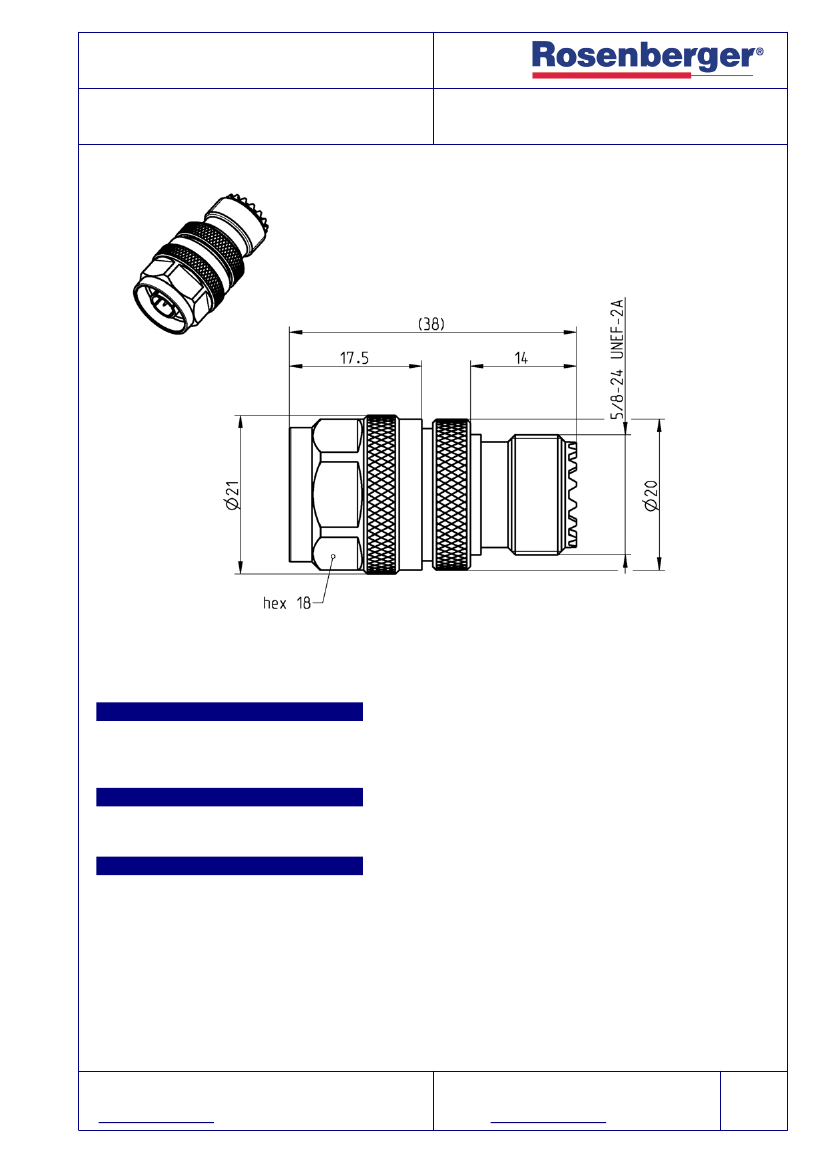

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
N side:
UHF side:
IEC 60169-16, MIL-PRF-39012, CECC 22210
IEC 60169-12
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact N
Outer contact UHF
Dielectric
Gasket
Coupling nut
Material
Spring bronze
Brass
Brass
PTFE
Silicone
Brass
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
N 50
Ω
PLUG – UHF JACK
Electrical data
Impedance
Frequency
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Contac current
Power handling
(at 20 °C, sea level, VSWR 1.0)
50
Ω,
N side
DC to 300 MHz
≥
5 x10
3
MΩ
≤
1 mΩ, N side
≤
0.25 mΩ, N side
2000 V rms
750 V rms
≤
10 A typ.
400 W @ 300 MHz
not defined, UHF side
53S154-K00N5
≤
5 mΩ, UHF side
≤
5 mΩ, UHF side
Mechanical data
Mating cycles
Coupling nut retention
Center contact captivation: axial
Coupling test torque
Recommended torque
N side
min. 500
≥
450 N
≥
28 N
max. 1.7 Nm
0.7 Nm to 1.1 Nm
UHF side
min. 500
N/A
≥
28 N
N/A
N/A
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
2002/95/EC (RoHS)
-25°C to +70°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
I
Tooling
N/A
Suitable cables
N/A
Packing
Standard
Weight
1 pce in bag
42.3 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
08/06/04
Approved
Fellner A.
Date
15.10.07
Rev.
d00
Engineering change number
07-0154
Name
S_Kra.
Date
15.10.07
