5264-09TB/N datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5264-09TB/N

Preview

5264-09TB/N: DescriptionD Type Connector, 9 Contact(s), Female, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size215KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

5264-09TB/N Overview

D Type Connector, 9 Contact(s), Female, Solder Terminal, Locking, Plug

5264-09TB/N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.763 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5264
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.794 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

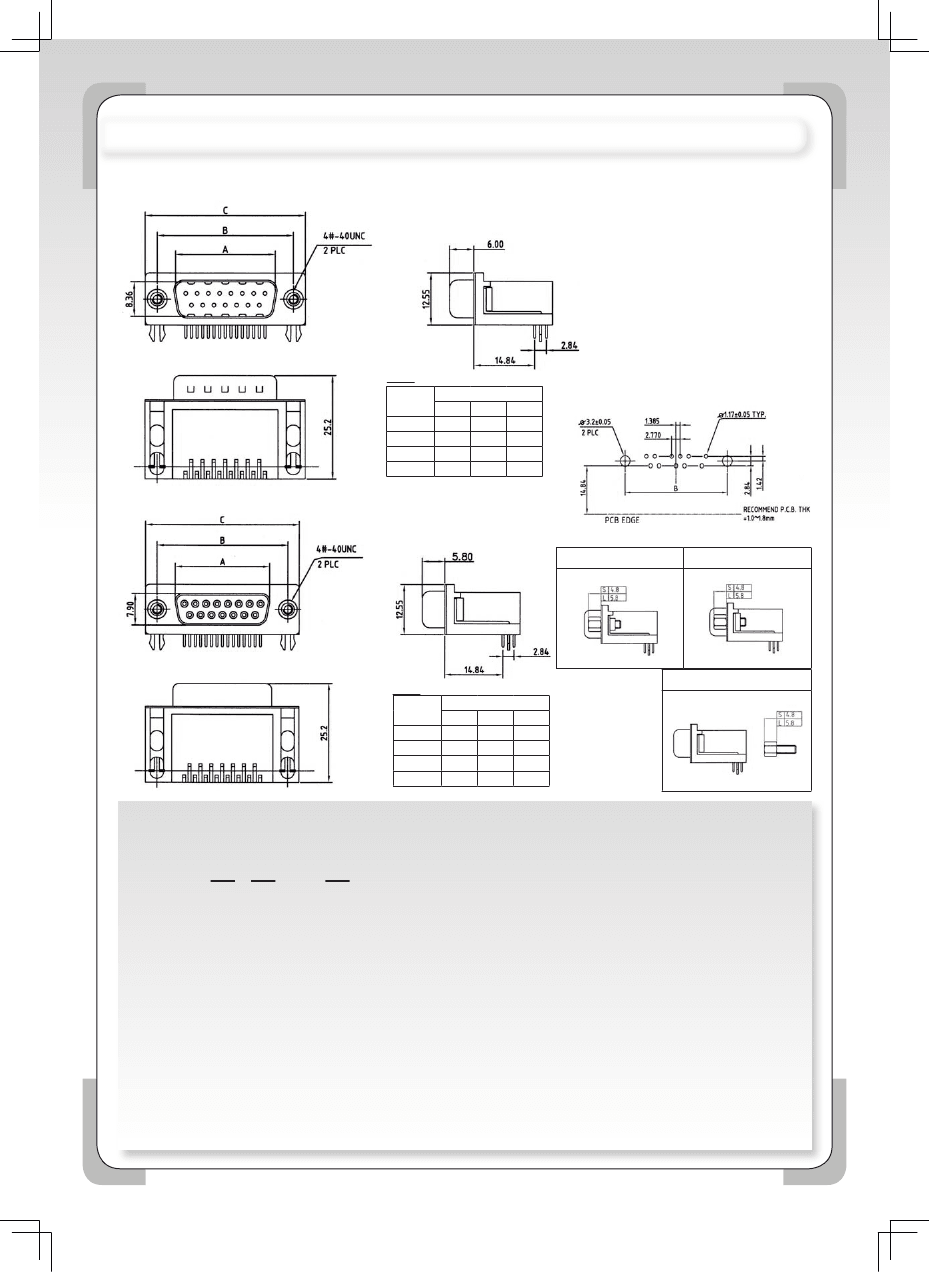

D-SUB. CONNECTOR RIGHT ANGLE TYPE WITH STAMPED CONTACTS

(CONTACT EXTENSION: 13.84MM)

SPECIFICATIONS

Current Rating:

3.0 Amperes

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

MATERIALS

5263

No. of

Contacts

09

15

25

37

Dimensions(mm)

A

B

C

16.92 24.99 30.81

25.25 33.32 39.14

38.96 47.04 53.04

55.42 63.50 69.32

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

Recommended P.C.Board Layout

(BLANK)

NJ

5264

No. of

Contacts

09

15

25

37

NH

Dimensions(mm)

A

B

C

16.33 24.99 30.81

24.66 33.32 39.14

38.38 47.04 53.04

54.84 63.50 69.32

ORDERING INFORMATION:

P/N 5 2 x x - x x T B / x x

1

2

3

1. CONNECTOR TYPE:

"63" MALE

"64" FEMALE

2. NO. OF CONTACTS:

09, 15, 25, 37

3. MOUNTING OPTION:

" " LOCKED SCREWS (4.8MM)

"N" WITHOUT SCREWS (5.8MM)

"NH" LOOSE SCREWS (4.8MM)

"NJ" ASSEMBLED SCREWS (4.8MM)

C0064
