55980-0043 datasheet, PDF - EEWORLD Datasheet

55980-0043: DescriptionPCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

55980-0043 Overview

PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Connector type	PCMCIA CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	55980
Plug information	91931-31169
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Total number of contacts	68
UL Flammability Code	94V-0

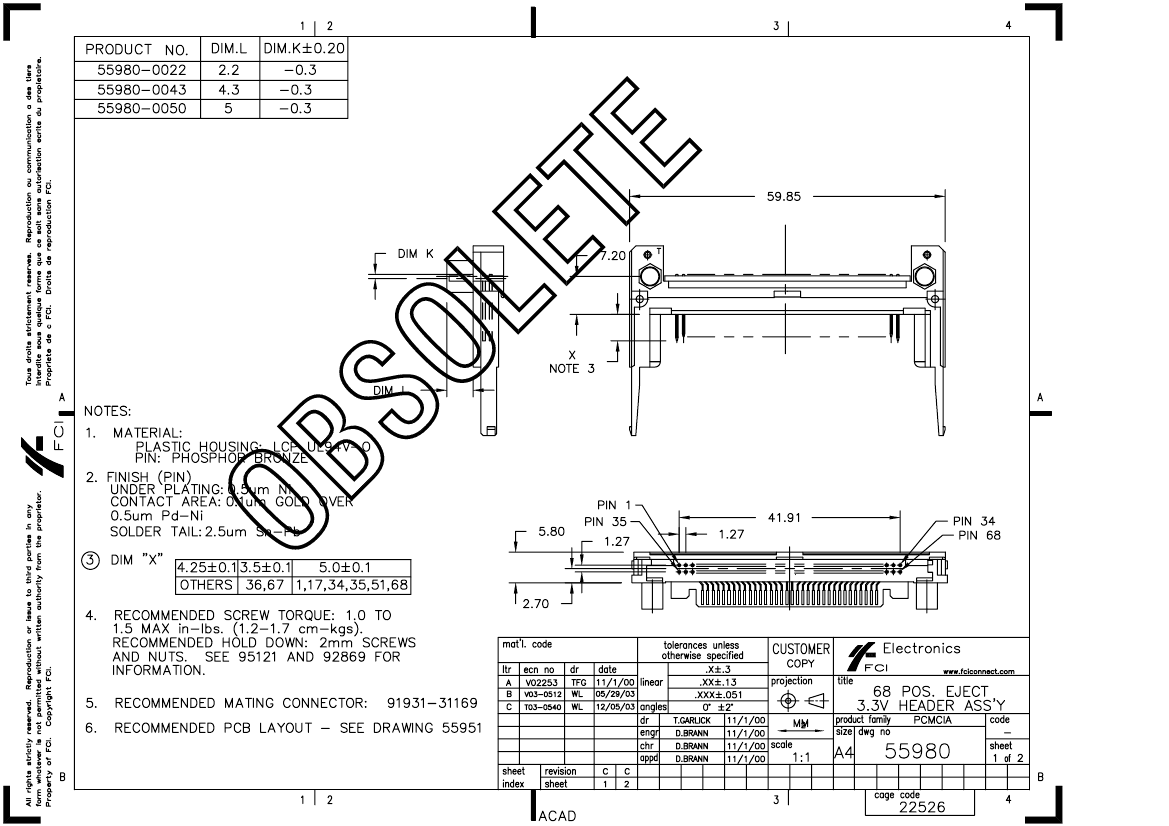

PDM: Rev:C

STATUS:

Released

Printed: Dec 10, 2003

	55980-0043	55980-0022	55980-0050
Description	PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle	PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle	PCMCIA Connector, 68 Contact(s), 2 Row(s), Male, Right Angle
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown	unknown
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	55980	55980	55980
Plug information	91931-31169	91931-31169	91931-31169
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Total number of contacts	68	68	68
UL Flammability Code	94V-0	94V-0	94V-0
