5042ES1643K3.3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5042ES1643K3.3

Preview

5042ES1643K3.3: DescriptionBoard Euro Connector, 16 Contact(s), 3 Row(s), Female, Straight, Wire Wrap Terminal; CategoryThe connector The connector; File Size160KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

5042ES1643K3.3 Overview

Board Euro Connector, 16 Contact(s), 3 Row(s), Female, Straight, Wire Wrap Terminal

5042ES1643K3.3 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	5042
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	16
UL Flammability Code	94V-0

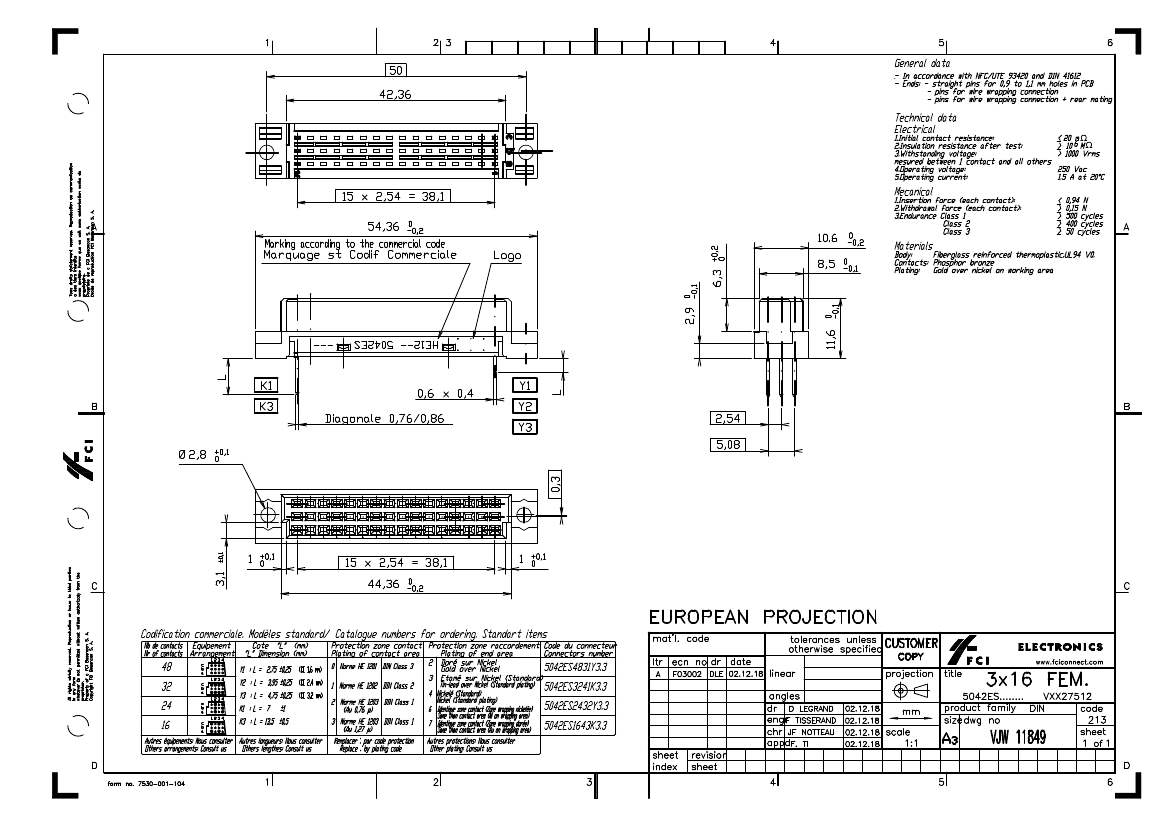

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Jan 31, 2003

5042ES1643K3.3 Related Products

	5042ES1643K3.3	5042ES2432Y3.3	5042ES3241K3.3	5042ES4831Y3.3
Description	Board Euro Connector, 16 Contact(s), 3 Row(s), Female, Straight, Wire Wrap Terminal	Board Euro Connector, 24 Contact(s), 3 Row(s), Female, Straight, Wire Wrap Terminal	Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Straight, Wire Wrap Terminal	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Straight, Wire Wrap Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612	STANDARD: DIN 41612
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
DIN compliance	YES	YES	YES	YES
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	5042	5042	5042	5042
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	16	24	32	48
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
