52273-0610 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52273-0610

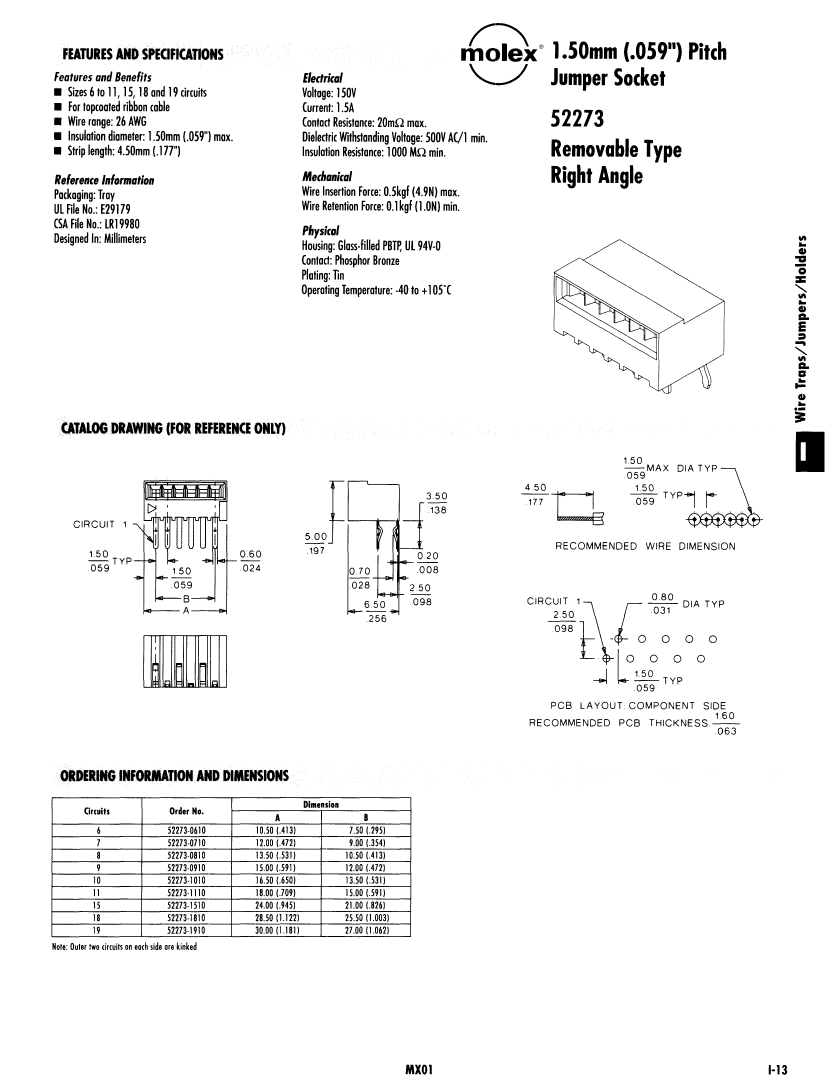

52273-0610: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, IDC Terminal, Socket; CategoryThe connector The connector; File Size54KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52273-0610 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, IDC Terminal, Socket

52273-0610 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	SOLDERED DIRECTLY TO THE BOARD
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	52273
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.5 mm
Termination type	IDC
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

52273-0610 Related Products

	52273-0610	52273-1810	52273-1510	52273-1110	52273-1910	52273-1010	52273-0810	52273-0910	52273-0710
Description	Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, IDC Terminal, Socket	Board Connector, 18 Contact(s), 1 Row(s), Female, Right Angle, 0.059 inch Pitch, Solder Terminal, Socket	Board Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, 0.059 inch Pitch, Solder Terminal, Socket	Board Connector, 11 Contact(s), 1 Row(s), Female, Right Angle, 0.059 inch Pitch, Solder Terminal, Socket	Board Connector, 19 Contact(s), 1 Row(s), Female, Right Angle, 0.059 inch Pitch, Solder Terminal, Socket	Board Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, 0.059 inch Pitch, Solder Terminal, Socket	Board Connector, 8 Contact(s), 1 Row(s), Female, Right Angle, 0.059 inch Pitch, Solder Terminal, Socket	Board Connector, 9 Contact(s), 1 Row(s), Female, Right Angle, 0.059 inch Pitch, Solder Terminal, Socket	Board Connector, 7 Contact(s), 1 Row(s), Female, Right Angle, 0.059 inch Pitch, Solder Terminal, Socket
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SOLDERED DIRECTLY TO THE BOARD	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	52273	52273	52273	52273	52273	52273	52273	52273	52273
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.5 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm	3 mm
Termination type	IDC	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	6	18	15	11	19	10	8	9	7
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	-	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
subject depth	-	0.256 inch	0.256 inch	0.256 inch	0.256 inch	0.256 inch	0.256 inch	0.256 inch	0.256 inch
body length	-	1.122 inch	0.945 inch	0.709 inch	1.181 inch	0.65 inch	0.531 inch	0.591 inch	0.472 inch
Contact to complete cooperation	-	SN	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	-	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact material	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	-	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	-	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	-	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch	0.059 inch
Plug information	-	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE	RIBBON CABLE
Number of connectors	-	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	-	2	2	2	2	2	2	2	2
Maximum operating temperature	-	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	-	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
Rated current (signal)	-	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	-	UL	UL	UL	UL	UL	UL	UL	UL
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	-	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Base Number Matches	-	1	1	1	1	1	1	1	-
