1A FAST RECOVERY GLASS PASSIVATED RECTIFIER
FR10-005SG THRU FR10-10SG
FEATURES
FAST RECOVERY TIMES
UL 94V0 FLAME RETARDANT EPOXY MOLDING COMPOUND
GLASS PASSIVATED CHIP JUNCTION
LOW COST
HIGH SURGE CURRENT CAPABILITY
LEAD FREE
1.0(25.4)
MIN
.025(0.6)
.021(0.5)
.205(5.2)
.166(4.2)
.107(2.7)
.080(2.0)
MECHANICAL DATA
CASE: TRANSFER MOLDED, A-405, DIMENSIONS
IN INCHES AND (MILLIMETERS)
LEADS: SOLDERABLE PER MIL-STD-202, METHOD 208
POLARITY: CATHODE INDICATED BY COLOR BAND
WEIGHT: 0.20 GRAMS
1.0(25.4)
MIN
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED
SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
FR10
FR10
FR10
FR10
FR10
FR10
FR10
UNITS
RATINGS
SYMBOL
-005SG
-01SG
-02SG
-04SG
-06SG
-08SG
-10SG
MAXIMUM RECURRENT PEAK REVERSE VOLTAGE
MAXIMUM RMS VOLTAGE
MAXIMUM DC BLOCKING VOLTAGE
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT
0.375”(9.5mm) LEAD LENGTH AT TA=55°C
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
SINE-WAVE SUPERIMPOSED ON RATED LOAD
TYPICAL JUNCTION CAPACITANCE (NOTE 1)
TYPICAL THERMAL RESISTANCE (NOTE 2)
STORAGE TEMPERATURE RANGE
OPERATING TEMPERATURE RANGE
V
RRM
V
RMS
V
DC
I
O
I
FSM
C
J
R
θjc
T
STG
T
OP
50
35
50
100
70
100
200
140
200
400
280
400
1.0
30
15
50
- 55 TO + 150
- 55 TO + 150
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
PF
℃/W
℃
℃
ELECTRICAL CHARACTERISTICS (A
T
T
A
=25°C UNLESS OTHERWISE NOTED)
FR10
FR10
CHARACTERISTICS
SYMBOL
-005SG
-01SG
MAXIMUM FORWARD VOLTAGE AT I
O
DC
V
F
MAXIMUM REVERSE CURRENT AT 25℃
MAXIMUM REVERSE CURRENT AT 100℃
I
R
I
R
FR10
-02SG
FR10
-04SG
1.3
5
50
FR10
-06SG
FR10
-08SG
FR10
-10SG
UNITS
V
μA
μA
MAXIMUM REVERSE RECOVERY TIME (NOTE 3)
T
RR
150
NOTE: 1. MEASURED AT 1 MHZ AND APPLIED REVERSE VOLTAGE 0F 4.0 VOLTS
2. BOTH LEADS ATTACHED TO HEAT SINK 20x20x1t(mm) COPPER PLATE AT LEAD LENGTH 5mm
3. REVERSE RECOVERY TEST CONDITIONS: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
250
500
nS
FR10-005SG THRU FR10-10SG
Page: 1

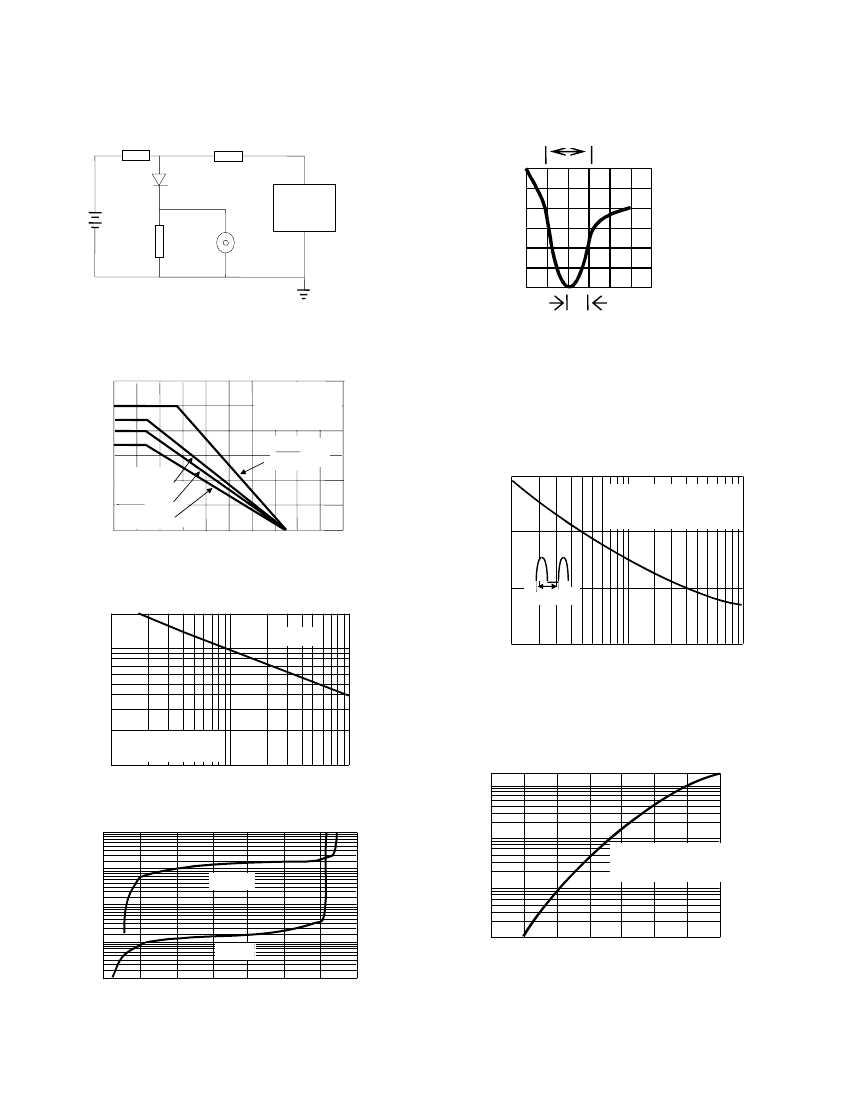

RATINGS AND CHARACTERISTIC CURVE FR10-005SG THRU FR10-10SG
FIG. 1-TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTIC
50Ω
NO INDUCTIVE
10Ω
NO INDUCTIVE
Trr
(-)
D.U.T.
(+)
25 V
dc
(approx)
PULSE
GENERATOR
( NOTE 2 )
1Ω
NON
INDUCTIVE
OSCILLOSCOPE
( NOTE 1 )
+0.5A
0
-0.25A
(-)
(+)
-1.0A
NOTE: 1. RISE TIME=7ns MAX. INPUT
IMPEDANCE=1 MOhms 22PF
2. RISE TIME =10ns MAX. SOURCE
IMPEDANCE=50OHMS
Fig. 2-MAXIMUM FORWARD CURRENT
DERATING CURVE
1.0
0.8
0.6
0.4
0.2
0
0
CAPACITIVE
LOAD
I(pk)
I(AV)
=
RESISTIVE OR
INDUCTIVE LOAD
0.375”(9.5mm)
LEAD LENGTH
1cm
SET TIME BASE
FOR 10/20 ns/cm
Io-AVERAGE RECTIFIED
CURRENT (A)
π
PEAK FORWARD SURGE CURRENT
AMPERES
Fig. 5-MAXIMUM FORWARD SURGE
CURRENT
I(pk)
I(
AV
)
5
= 10
20
60 80 100 120 140 160 180 200
30
T
A
=75
o
C
8.3ms SINGLE HALF
SINE-WAVE JEDEC METHOD
20
20 40
T
A
-AMBIENT TEMPERATURE (
O
C)
FIG. 3-TYPICAL JUNCTION CAPACITANCE
10
1.0 CYCLE
20
Tj=25
o
C
CAPACITANCE, pF
10
0
1
10
NUMBER OF CYCLES AT 60 HZ
100
1
1
INSTANTANEOUS REVERSE
CURRENT, MICRO AMPERES(uA)
f = 1 MHz
Vsig = 50 mVp-p
INSTANTANEOUS FORWARD
CURRENT, I
F
(A)
10
REVERSE VOLTAGE, VOLTS
100
20
10
3
1
.3
.1
.03
.01
0.4
FIG. 6-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
100
10
1
0.1
.01
0
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
T
J
=100 C
o
Tj=25
o
C
PULSE WIDTH =300us
1% DUTY CYCLE
T
J
=25 C
o
0.6
0.8
1.0
1.2
1.4
1.6 1.8
20
40
60
80
100
120 140
INSTANTANEOUS FORWARD
VOLTAGE, (V)
PERCENT OF RATED PEAK REVERSE VOLTAGE
FR10-005SG THRU FR10-10SG
Page: 2
