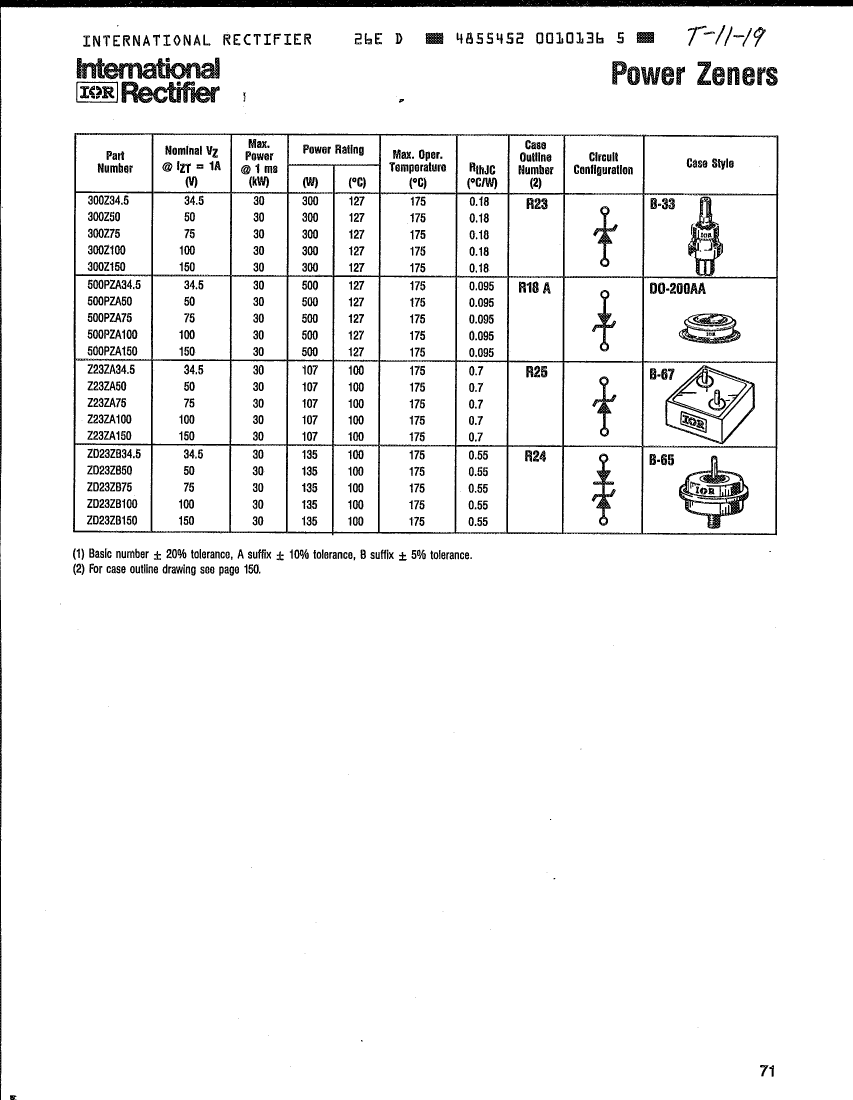

Zener Diode, 100V V(Z), 20%, 500W, Silicon, Unidirectional, DO-200AA
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | International Rectifier （ Infineon ） |
| package instruction | O-CEDB-N2 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | ZENER DIODE |
| JEDEC-95 code | DO-200AA |
| JESD-30 code | O-CEDB-N2 |
| Humidity sensitivity level | 1 |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 175 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | ROUND |
| Package form | DISK BUTTON |
| Peak Reflow Temperature (Celsius) | 225 |
| polarity | UNIDIRECTIONAL |
| Maximum power dissipation | 500 W |
| Certification status | Not Qualified |
| Nominal reference voltage | 100 V |
| surface mount | YES |
| technology | ZENER |
| Terminal form | NO LEAD |
| Terminal location | END |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Maximum voltage tolerance | 20% |
| Working test current | 1000 mA |
| 500PZA100 | 300Z100 | 300Z75 | 500PZA150 | 500PZA34.5 | 300Z150 | 300Z34.5 | 300Z50 | 500PZA50 | 500PZA75 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Zener Diode, 100V V(Z), 20%, 500W, Silicon, Unidirectional, DO-200AA | Zener Diode, 100V V(Z), 20%, 300W, Silicon, Unidirectional, | Zener Diode, 75V V(Z), 20%, 300W, Silicon, Unidirectional | Zener Diode, 150V V(Z), 20%, 500W, Silicon, Unidirectional, DO-200AA | Zener Diode, 34.5V V(Z), 20%, 500W, Silicon, Unidirectional, DO-200AA | Zener Diode, 150V V(Z), 20%, 300W, Silicon, Unidirectional | Zener Diode, 34.5V V(Z), 20%, 300W, Silicon, Unidirectional | Zener Diode, 50V V(Z), 20%, 300W, Silicon, Unidirectional | Zener Diode, 50V V(Z), 20%, 500W, Silicon, Unidirectional, DO-200AA | Zener Diode, 75V V(Z), 20%, 500W, Silicon, Unidirectional, DO-200AA |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE | ZENER DIODE |
| JESD-30 code | O-CEDB-N2 | O-MUPM-H1 | O-MUPM-H1 | O-CEDB-N2 | O-CEDB-N2 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-CEDB-N2 | O-CEDB-N2 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 1 | 1 | 2 | 2 | 1 | 1 | 1 | 2 | 2 |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | METAL | METAL | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | METAL | METAL | METAL | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | DISK BUTTON | POST/STUD MOUNT | POST/STUD MOUNT | DISK BUTTON | DISK BUTTON | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | DISK BUTTON | DISK BUTTON |
| Peak Reflow Temperature (Celsius) | 225 | NOT SPECIFIED | 225 | 225 | 225 | 225 | 225 | 225 | 225 | 225 |
| polarity | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL | UNIDIRECTIONAL |
| Maximum power dissipation | 500 W | 300 W | 300 W | 500 W | 500 W | 300 W | 300 W | 300 W | 500 W | 500 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal reference voltage | 100 V | 100 V | 75 V | 150 V | 34.5 V | 150 V | 34.5 V | 50 V | 50 V | 75 V |
| surface mount | YES | NO | NO | YES | YES | NO | NO | NO | YES | YES |
| technology | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER | ZENER |
| Terminal form | NO LEAD | HIGH CURRENT CABLE | HIGH CURRENT CABLE | NO LEAD | NO LEAD | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | NO LEAD | NO LEAD |
| Terminal location | END | UPPER | UPPER | END | END | UPPER | UPPER | UPPER | END | END |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum voltage tolerance | 20% | 20% | 20% | 20% | 20% | 20% | 20% | 20% | 20% | 20% |
| Working test current | 1000 mA | 1000 mA | 1000 mA | 1000 mA | 1000 mA | 1000 mA | 1000 mA | 1000 mA | 1000 mA | 1000 mA |
| package instruction | O-CEDB-N2 | - | O-MUPM-H1 | O-CEDB-N2 | O-CEDB-N2 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-CEDB-N2 | O-CEDB-N2 |
| Humidity sensitivity level | 1 | - | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 |
