3A GLASS PASSIVATED ULTRA FAST RECOVERY RECTIFIER
FUF5400 THRU FUF5408
FEATURES
PLASTIC PACKAGE HAS UNDERWRITERS LABORATORY
FLAMMABILITY CLASSIFICATION 94V-0
ULTRA FAST RECOVERY TIMES FOR HIGH EFFICIENCY
LOW FORWARD VOLTAGE, HIGH CURRENT CAPABILITY
LOW LEAKAGE
HIGH SURGE CAPABILITY
HIGH TEMPERATURE SOLDERING GUARANTEED:
260°C.375” (9.5mm) LEAD LENGTHS FOR 10 SECONDS AT
5 LBS. (2.3 KG) TENSION.
GLASS PASSIVATED JUNCTION
MECHANICAL DATA
CASE: JEDEC DO-201AD, MOLDED PLASTIC, DIMENSIONS
IN INCHES AND (MILLIMETERS)
TERMINALS: AXIAL LEADS SOLDERABLE PER MIL-STD-202,
METHOD 208
POLARITY: COLOR BAND DENOTES CATHODE END
MOUNTING POSITION: ANY
WEIGHT: 1.2 GRAM
1.0(25.4)
MIN
.052(1.3)
.048(1.2)
.375(9.5)
.335(8.5)
.220(5.6)
.197(5.0)
1.0(25.4)
MIN
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED
SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
FUF
FUF
FUF
FUF
FUF
FUF
FUF
FUF
UNITS
RATINGS
SYMBOL
5400
5401
5402
5403
5404
5406
5407
5408
MAXIMUM RECURRENT PEAK REVERSE VOLTAGE
V
RRM
50
100
200
300
400
600
800
1000
V
MAXIMUM RMS VOLTAGE
V
RMS
35
70
140
210
280
420
560
700
V
MAXIMUM DC BLOCKING VOLTAGE
V
DC
50
100
200
300
400
600
800
1000
V
MAXIMUM AVERAGE FORWARD RECTIFIED CURRENT
I
O
3.0
A
0.375”(9.5mm) LEAD LENGTH AT TA=55°C
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
I
FSM
150
A
SINE-WAVE SUPERIMPOSED ON RATED LOAD
TYPICAL JUNCTION CAPACITANCE (NOTE 1)
C
J
75
50
PF
TYPICAL THERMAL RESISTANCE (NOTE 2)
STORAGE TEMPERATURE RANGE
OPERATING TEMPERATURE RANGE
R
θjc
T
STG
T
OP
20
- 55 TO + 150
- 55 TO + 150
℃/W
℃
℃
ELECTRICAL CHARACTERISTICS (A
T
T
A
=25°C UNLESS OTHERWISE NOTED)
FUF
FUF
FUF
FUF
FUF
CHARACTERISTICS
SYMBOL
5400
5401
5402
5403
5404
MAXIMUM FORWARD VOLTAGE AT I
O
DC
V
F
1.3
MAXIMUM DC REVERSE CURRENT AT TA=25°C
I
R
5
MAXIMUM DC REVERSE CURRENT AT TA=100°C
I
R
50
MAXIMUM REVERSE RECOVERY TIME (NOTE 3)
T
RR
50
NOTE:
1. MEASURED AT 1 MHZ AND APPLIED REVERSE VOLTAGE 0F 4.0 VOLTS
2. BOTH LEADS ATTACHED TO HEAT SINK 20x20x1t(mm) COPPER PLATE AT LEAD LENGTH 5mm
3. REVERSE RECOVERY TEST CONDITIONS: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
FUF
5406
FUF
5407
1.7
75
FUF
UNITS
5408
V
μA
μA
nS
FUF5400 THRU FUF5408
Page: 1

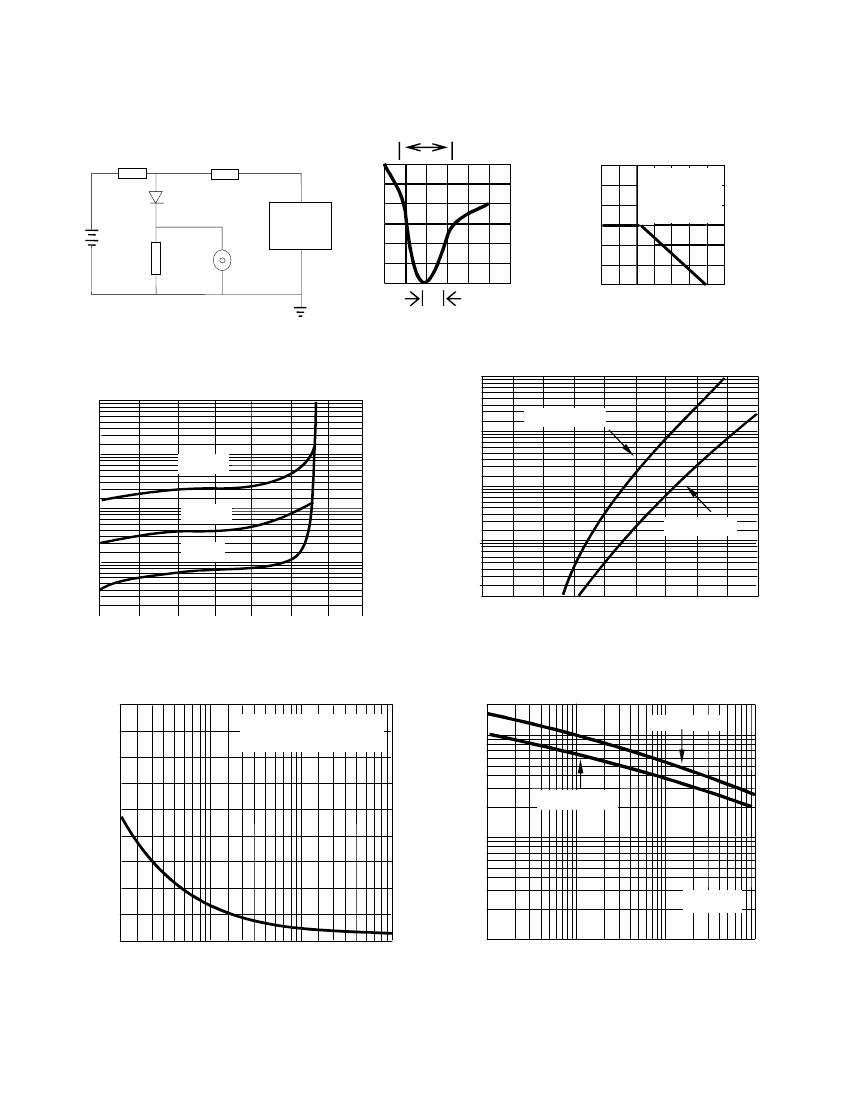

RATINGS AND CHARACTERISTIC CURVE FUF5400 THRU FUF5408
FIG. 1-TEST CIRCUIT DIAGRAM AND REVERSE
RECOVERY TIME CHARACTERISTIC
50Ω
NO INDUCTIVE
10Ω
NO INDUCTIVE
Trr
+0.5A
(-)
FIG. 2 -TYPICAL FORWARD
CURRENT DERATING CURVE
D.U.T.
(+)
25 V
dc
(approx)
PULSE
GENERATOR
( NOTE 2 )
1Ω
NON
INDUCTIVE
OSCILLOSCOPE
( NOTE 1 )
0
-0.25A
(-)
(+)
-1.0A
1cm
SET TIME BASE
FOR 10/20 ns/cm
6
5
4
3
2
1
0
AVERAGE FORWARD
CURRENT (A)
Single Phase Half
Wave 60 Hz
Resistive or
Inductive Load
NOTE: 1. RISE TIME=7ns MAX. INPUT
IMPEDANCE=1 MOhms 22PF
2. RISE TIME =10ns MAX. SOURCE
IMPEDANCE=50 OHMS
FIG. 3 -TYPICAL REVERSE CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT (uA)
25 50 75 100 125 150 175
AMBIENT TEMPERATURE (
o
C)
FIG. 4 -TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT (A)
100
FUF5401~5404
1000
10
100
T
J
=125
o
C
1
FUF5405~5407
10
T
J
=80
o
C
T
J
=25
o
C
.1
1
.01
.2
.4
.6
.8
1.0
1.2
1.4
1.6
1.8
2.0
INSTANTANEOUS FORWARD VOLTAGE (V)
0.1
0
20
40
60
80
100
120 140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 5 -MAXIMUM NON-REPETITIVE
FORWARD SURGE CURRENT
FIG. 6 -TYPICAL JUNCTION CAPACITANCE
300
PEAK FORWARD SURGE CURRENT (A)
8.3 ms Single Half Sine Wave
JUNCTION CAPACITANCE (pF)
(JEDEC Method)
200
FUF5401~5404
100
40
20
10
6
4
2
1
T
J
=25
o
C
FUF5405~5407
200
100
0
1
10
100
1000
.1 .2
.4
1.0 2
4
10 20 40 100
NUMBER OF CYCLES AT 60 Hz
REVERSE VOLTAGE (V)
FUF5400 THRU FUF5408
Page: 2
