Product Guide
Transceivers, Transponders, and Active Cables for
Datacom and Telecom Applications
CFP
QSFP
SFP+
XFP
300 PIN
Active Cable
TrANSCeIverS, TrANSPONDerS, AND ACTIve CAbleS FOr DATACOM AND TeleCOM APPlICATIONS
Finisar’s
broad product selection and innovative technology have made us the optical module manufacturer of choice for all major networking
equipment vendors worldwide. We have taken a leading role in transforming the datacommunications and telecommunications equipment market
from utilizing discrete optical components to leveraging the design and pay-as-you-grow flexibility offered by pluggable modules. Our products
are fully compliant with Ethernet, Fibre Channel, SONET/SDH/OTN and PON standards and operate at data rates up to 100 Gb/s. They are capable of
distances ranging from very short reach within a datacenter to campus, access, metro, and long-haul reaches. They feature outstanding performance
over extended voltage and temperature ranges, while minimizing jitter, electromagnetic interference (EMI) and power dissipation.

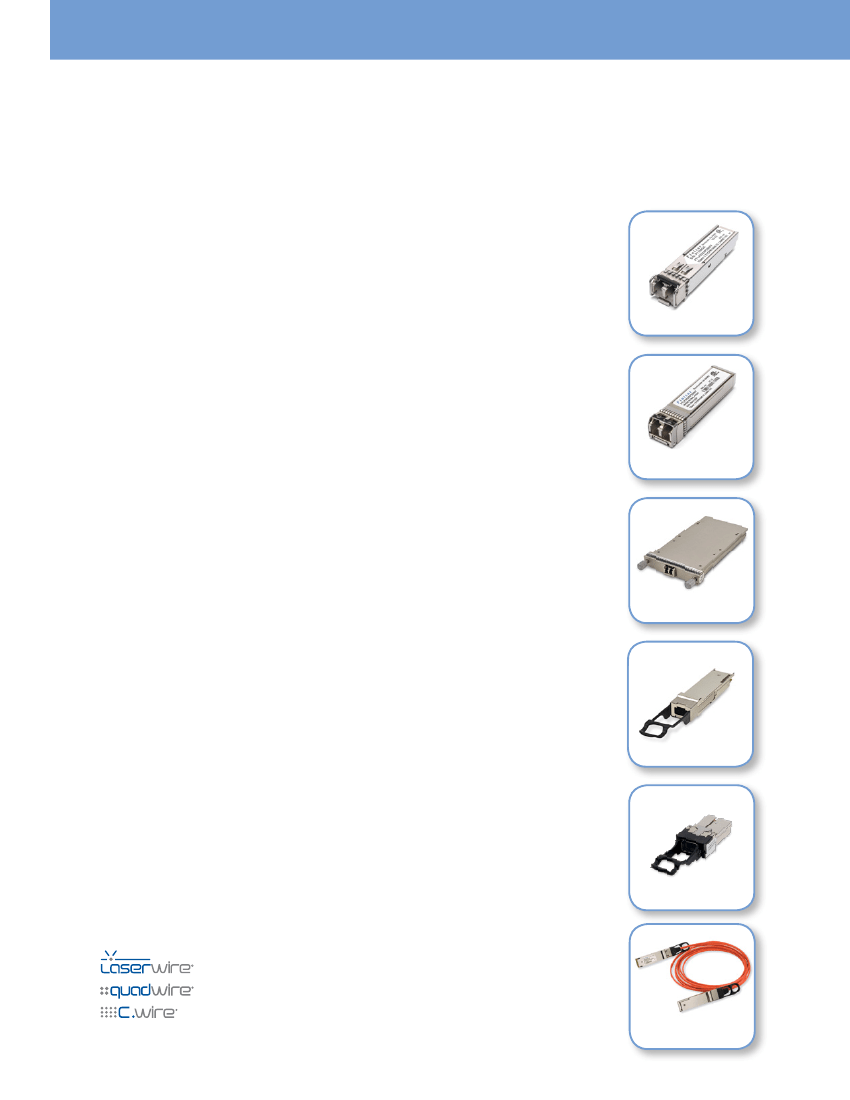

FiniSAr MOduleS Are AvAilAble in A wide vAriety OF FOrM FACtOrS:
SFP
(copper and optical; longwave, shortwave and WDM)
– DATACom
applications using Fast Ethernet, Gigabit Ethernet, 1x/2x/4x Fibre Channel
– TeleCom
applications using OC-3/STM-1, OC-12/STM-4 and OC-48/STM-16 across all reaches
Features
•
•
•
•
•
•
3.3 V operating voltage
Distances from very short links up to 100+ km
Wide operating temperature range
Metal enclosure for lower EMI
Digital diagnostics
Wireless CPRI/OBSAI compliant
SFP
SFP+
(optical; longwave and shortwave)
– DATACom
applications using 10 Gigabit Ethernet and 2x/4x/8x/16x Fibre Channel
Features
•
•
•
•
•
•
3.3 V operating voltage
Supports bit rates up to 14.025 Gb/s
Distances from short links up to 80 km metro links
Wide operating temperature range
Digital diagnostics
Wireless CPRI/OBSAI compliant
SFP+
CFP
(optical; longwave and shortwave)
– DATACom
applications using 40G and 100G Ethernet
– TeleCom
applications using OTU3 across all reaches
Features
•
•
•
•
Hot-pluggable CFP form factor
Supports 39.8 Gb/s to 103.1 Gb/s aggregate bit rates
CFP MSA-compliant form factor
Single 3.3 V power supply
CFP
QSFP
(optical; longwave and shortwave)
– DATACom
applications using 40G Ethernet
– TeleCom
applications using OTU3
Features
•
•
•
•
Four-channel full-duplex transceiver module
Hot Pluggable, MSA-compliant QSFP+ form factor
Maximum link length of 100 m on OM3 MMF, 150 m on OM4 MMF, and 10 km on SMF
Multirate capability; supports 1.06 Gb/s to 11.3 Gb/s per channel
QSFP
CXP
(optical; shortwave)
– DATACom
applications using 100G Ethernet and chassis interconnections
Features
•
•
•
•
Twelve-channel full-duplex transceiver module
Hot Pluggable CXP form factor
Maximum link length of 100m on OM3 MMF and 150m on OM4 MMF
Multirate capability: supports 1.06 Gb/s to 12.5 Gb/s per channel
CXP
Active Optical Cables
10 Gb/s Serial Active Optical Cable for 1/10GbE and 1/2/4/8x Fibre Channel
40 Gb/s to 56 Gb/s Parallel Active Optical Cable for 40GbE, InfiniBand 4xQDR,
and Infiniband 4xFDR
150 Gb/s Parallel Active Optical Cable for 100GbE and InfiniBand 12xQDR
Active Optical Cables
SnAP12
(optical; shortwave)
– DATACom
applications for inter-chassis connections
Features
•
•
•
•
Twelve-channel transmitter and receiver modules
Pluggable MegArray connector and unretimed electrical interface
Maximum link length of 600m at 2.5Gb/s on OM3 MMF Fiber
Multirate capability: 1 Gb/s to 2.7 Gb/s per channel

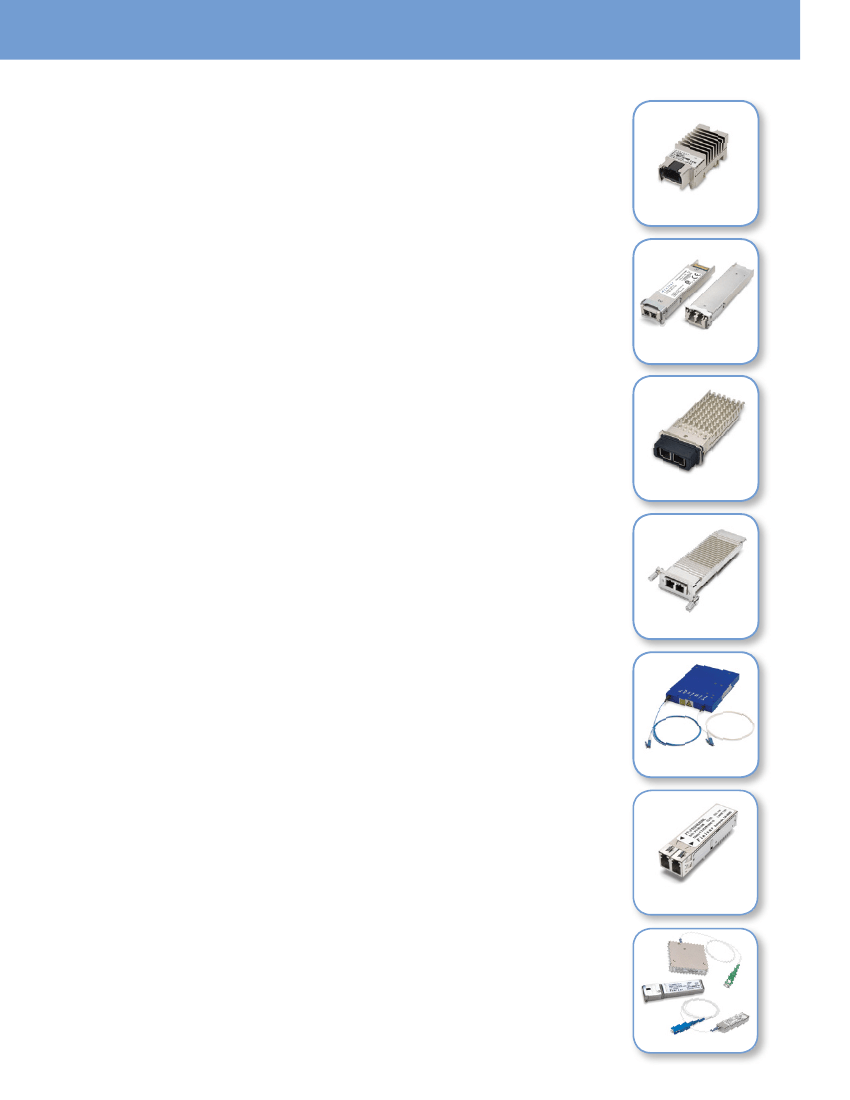

SNAP12
XFP
(optical; longwave, shortwave, DWDM, and Tunable)
– DATACom
applications using 10 Gigabit Ethernet and 10x Fibre Channel
– TeleCom
applications using OC-192/STM-64
Features
• Supports bit rates up to 11.3 Gb/s
• Distances up to 80 km
• Digital diagnostics
XFP
X2/XenPAK
(optical; longwave and shortwave)
– DATACom
applications using 10 Gigabit Ethernet and 10x Fibre Channel
Features
•
•
•
•
1.2 V, 3.3 V and 5 V operating voltage
Supports bit rates up to 10.5 Gb/s
Distances up to 10 km
Digital diagnostics
X2
300 Pin
(optical; longwave)
– TeleCom
10 Gb/s and 40 Gb/s applications
Features
•
•
•
•
Supports bit rates up to 44.6 Gb/s
Available in RZ-OOK (10G), NRZ-OOK (10G/40G), and NRZ-DPSK (40G) formats
Compliant to industry standards (ITU-T; SFI-4/5; 300 PIN MSA)
DWDM broadly 50GHz spaced tunablility across C or L bands
SFF
(optical 2x5, 2x7 and 2x10; longwave and shortwave)
– DATACom
applications using Gigabit Ethernet, 1x/2x/4x Fibre Channel
– TeleCom
applications using OC-3/STM-1, OC-12/STM-4 and OC-48/STM-16 across all reaches
Features
•
•
•
•
•
3.3 V operating voltage
Distances from very short links up to 80 km
Wide operating temperature range
Metal enclosure for lower EMI
2x7 and 2x10 incorporate digital diagnostics
XeNPAK
300 PIN
POn
(optical; longwave)
– TeleCom
access applications for GPON and EPON
Features
•
•
•
•
3.3 V operating voltage
EPON stick incorporates full EPON ONU functionality
Distances up to 20 km, Class B+, PX-20+
Digital diagnostics
SFF
FiniSAr’S PAtented digitAl diAgnOStiCS
Finisar’s XFP, XPAK, X2, XENPAK, 300 PIN, SFP, SFP+, and 2x7 and 2x10 SFF transceivers feature a
microprocessor and diagnostics interface that provides performance information on the data link.
Users can remotely monitor—in real-time—received optical power, transmitted optical power,
laser bias current, transceiver input voltage and transceiver temperature of any transceiver in the
network. These digital diagnostic functions provide network managers with a highly accurate,
cost-effective tool for implementing reliable performance monitoring.
PON
