52480-9611 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52480-9611

52480-9611: DescriptionBoard Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, White Insulator, Plug, LEAD FREE; CategoryThe connector The connector; File Size280KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52480-9611 Overview

Board Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, White Insulator, Plug, LEAD FREE

52480-9611 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS AND ELV COMPLIANT
body width	0.413 inch
subject depth	0.453 inch
body length	3.732 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.9174 N
Insulation resistance	1000000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED PBTP
MIL compliance	NO
Manufacturer's serial number	52480
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96
UL Flammability Code	94V-0
Evacuation force-minimum value	.9174 N

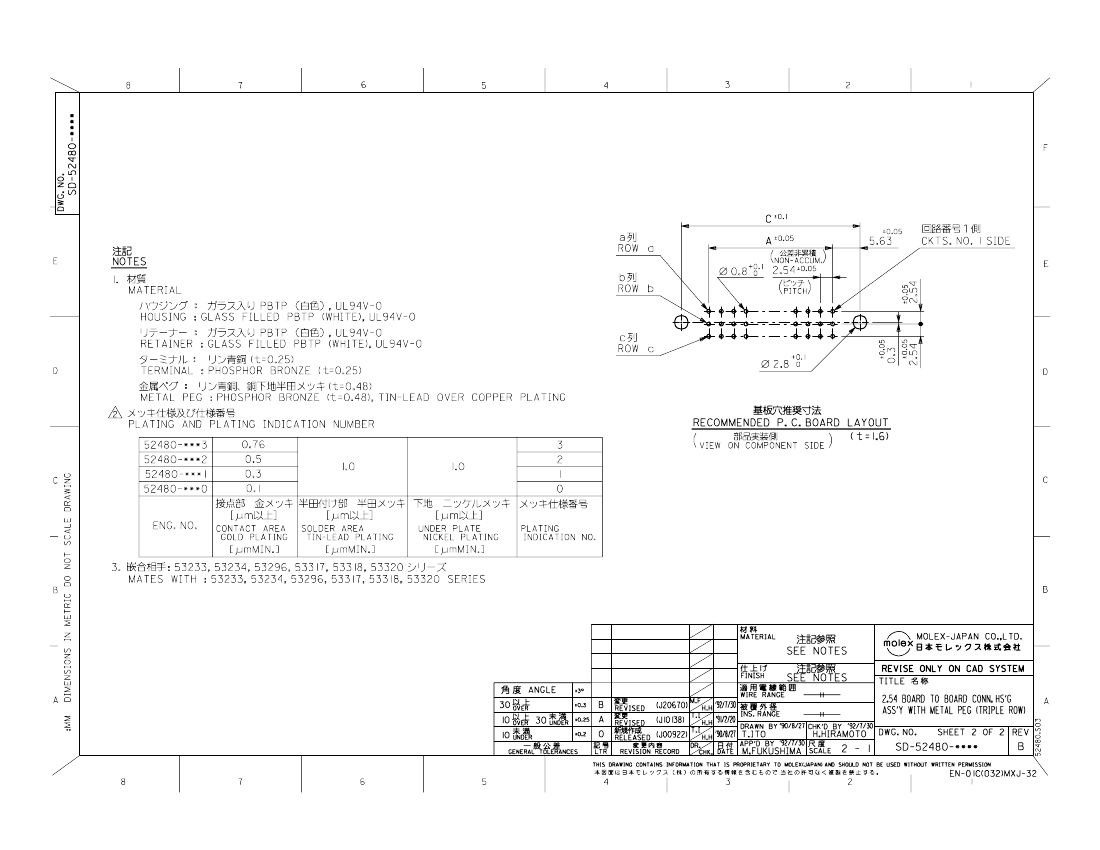

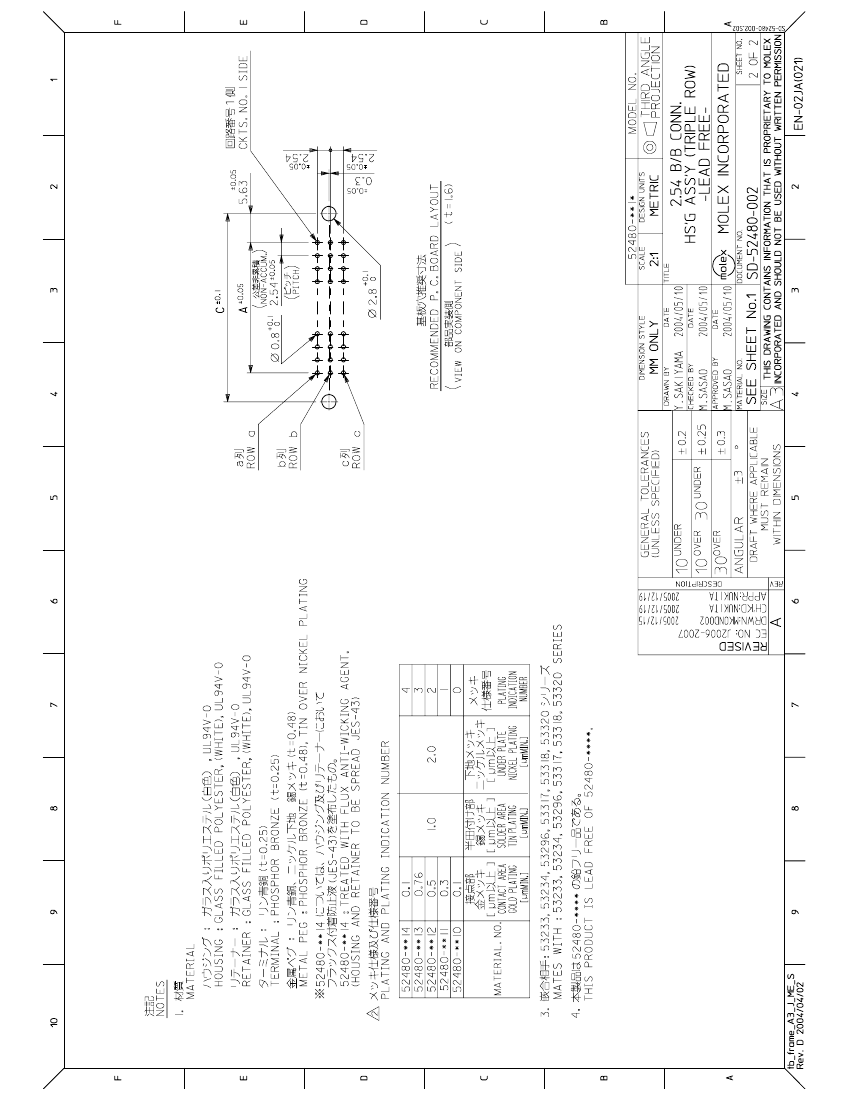

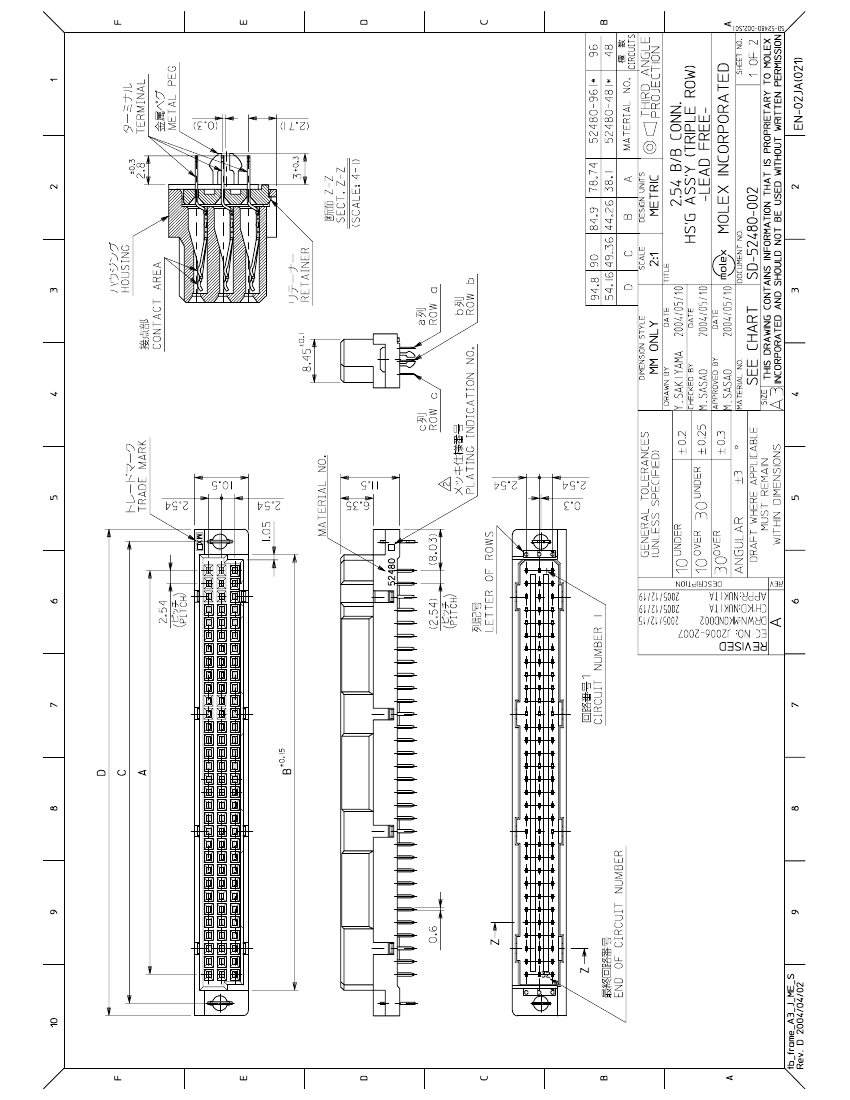

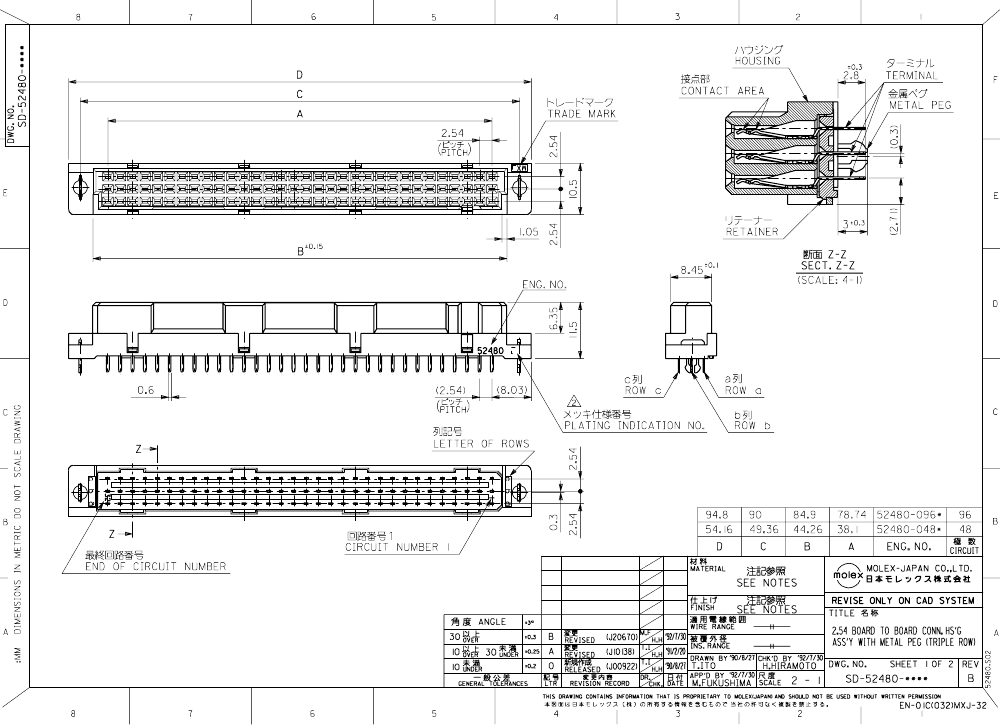

Preview

Download Datasheet

View All

52480-9611 Related Products

	52480-9611	52480-4810	52480-4812	52480-4811	52480-9613
Description	Board Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, White Insulator, Plug, LEAD FREE	Board Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, White Insulator, Plug, LEAD FREE	Board Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, White Insulator, Plug, LEAD FREE	Board Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, White Insulator, Plug, LEAD FREE	Board Connector, 96 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Guide Slot, White Insulator, Plug, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT	ROHS AND ELV COMPLIANT
body width	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch
subject depth	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch
body length	3.732 inch	2.132 inch	2.132 inch	2.132 inch	3.732 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
maximum insertion force	.9174 N	.9174 N	.9174 N	.9174 N	.9174 N
Insulation resistance	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω
Insulator color	WHITE	WHITE	WHITE	WHITE	WHITE
insulator material	GLASS FILLED PBTP	GLASS FILLED PBTP	GLASS FILLED PBTP	GLASS FILLED PBTP	GLASS FILLED PBTP
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	52480	52480	52480	52480	52480
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT	GUIDE SLOT
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Loaded row name	A,B,C	A,B,C	A,B,C	A,B,C	A,B,C
PCB row number	3	3	3	3	3
Number of rows loaded	3	3	3	3	3
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	12u inch	4u inch	20u inch	12u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	2 A	2 A	2 A	2 A	2 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	96	48	48	48	96
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.9174 N	.9174 N	.9174 N	.9174 N	.9174 N
