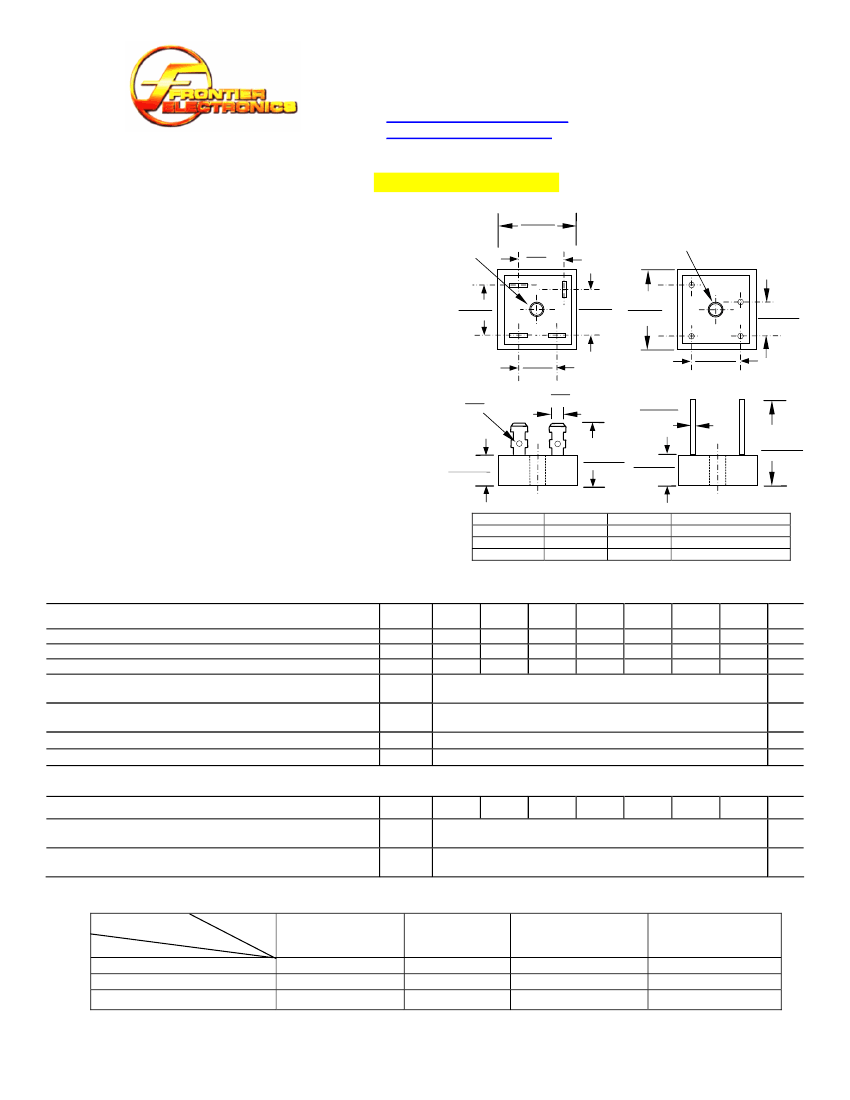

25A HIGH CURRENT SILICON BRIDGE RECTIFIERS
BP25-005 THRU BP25-10
HOLE FOR
No.10 SCREW
0.2〞 (5.08)diam.
1.13(28.7)
1.12(28.4)
0.652
(16.6)
＋
HOLE FOR
No.10 SCREW
0.2〞 (5.08)diam.
FEATURES
CURRENT RATING 25A
REVERSE VOLTAGE RATING UP TO 1000V
TYPICAL IR LESS THAN 1μA
HIGH TEMPERATURE SOLDERING GUARANTEED:
260°C /10 SECONDS
0.728(18.5)
0.689(17.5)
0.657(16.7)
0.618(15.7)
1.13(28.7)
1.12(28.4)
0.469(11.90)
0.429(10.90)
MECHANICAL DATA
CASE: METAL HEAT SINK CASE, ELECTRICALLY INSULATED
TERMINALS: UNIVERSAL .25” (6.3mm) FAST ON
0.094
(2.4)
DIMENSIONS IN INCHES AND (MILLIMETERS)
diam
MOUNTING METHOD: BOLT DOWN ON HEAT SINK WITH
SILICON THERMAL COMPOUND BETWEEN BRIDGE AND
MOUNTING SURFACE FOR MAXIMUM HEAT TRANSFER
H*
0.442(11.23)
EFFICIENCY
0.432(10.97)
WEIGHT: 20 GRAMS
DIM
0.565(14.35)
0.525(13.35)
0.752(19.10)
0.673(17.10)
0.25
(6.35)
0.042(1.07)
0.038(0.97)
I*
1.00(25.40)
0.90(22.86)
L*
H*
0.442(11.23)
0.432(10.97)
1.200
(30.5) MIN
H*
I*
L*
MIN
0.295(7.5)
0.74(18.80)
1.09(27.89)
MAX
0.311(7.9)
0.84(21.30)
-
REMARK
SUFFIX “S” THIN CASE
SUFFIX “S” THIN CASE
SUFFIX “S” THIN CASE
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS, RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED SINGLE
PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD. FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
RATINGS
MAXIMUM RECURRENT PEAK REVERSE VOLTAGE
MAXIMUM RMS VOLTAGE
MAXIMUM DC BLOCKING VOLTAGE
MAXIMUM AVERAGE FORWARD RECTIFIED OUTPUT CURRENT
AT TC=55°C
PEAK FORWARD SURGE CURRENT SINGLE SINE-WAVE
SUPERIMPOSED ON RATED LOAD
STORAGE TEMPERATURE RANGE
OPERATING TEMPERATURE RANGE
SYMBOL BP25-005 BP25-01 BP25-02 BP25-04 BP25-06 BP25-08 BP25-10 UNITS
V
RRM
V
RMS
V
DC
I
O
I
FSM
T
STG
T
OP
50
35
50
100
70
100
200
140
200
400
280
400
25.0
300
- 55 TO + 175
- 55 TO + 175
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
°C
°C
ELECTRICAL CHARACTERISTICS (A
T
T
A
=25°C UNLESS OTHERWISE NOTED)
CHARACTERISTICS
MAXIMUM INSTANTANEOUS FORWARD VOLTAGE PER BRIDGE
ELEMENT AT SPECIFIED CURRENT
MAXIMUM REVERSE DC CURRENT AT RATED DC BLOCKING
VOLTAGE PER ELEMENT
NOTE: Suffix No. Versus Different Cases and Terminals
CASE
SUFFIX No
TERMINAL
FAST ON TERMINALS
WIRE LEAD TERMINALS
IN LINE PIN CONFIGURATION
NORMAL METAL CASE THIN METAL CASE
NO SUFFIX
W
－
S
WS
－
SYMBOL BP25-005 BP25-01 BP25-02 BP25-04 BP25-06 BP25-08 BP25-10 UNITS
V
F
I
R
1.1
10
V
μA
NORMAL PLASTIC
CASE ALUMINUM BASE
P
PW
L
THIN PLASTIC
CASE ALUMINUM BASE
PS
PWS
LS
BP25-005 THRU BP25-10
Page: 1
RATINGS AND CHARACTERISTIC CURVES BP25-005 THRU BP25-10
FIG. 1 -MAXIMUM OUTPUT
RECTIFIED CURRENT
PEAK FORWARD SURGE CURRENT,
AMPERES
400
300
200
FIG. 4 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
35
30
25
20
15
10
5
0
20
40 60
80
100 120 140 160 180
WITHOUT
HEAT SINK
WITH (300mm
2
×1.5mm)
COPPER
100
T
J
=175℃
SINGLE SINE-WAVE
(JEDEC Method)
40
1 1.5 2 3 4 5 6 7 8910 15 20
30 40 50 70100
NUMBER OF CYCLES AT 60H
Z
CASE TEMPERATURE T
C
, ºC
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
PER BRIDGE ELEMENT
500
400
300
250
200
150
100
FIG. 2 - TYPICAL REVERSE CHARACTERISTICS
AT T
J
=25℃
10
INSTANTANEOUS REVERSE
CURRENT, MICROAMPERES
CAPACITANCE, C.J. pF
T
J
=25℃
f=1MH
Z
Vsig=50m Vp-p
1.0
0.1
60
.01
0
20
40
60
80
100
120
140
REVERSE VOLTAGE, VOLTS
PERCENT OR RATED PEAK REVERSE VOLTAGE
FIG. 3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
1000
INSTANTANEOUS FORWARD CURRENT,
AMPERES
500
100
50
1.13（28.7）
1.12（28.4）
10
5
.550
（13.9）
.75
（19.1）
.140（3.6）
.120（3.05）
.040（1.2）
－
AC
＋
1 1.5 2 3 4 5 6 7 8910 15 20
30 40 50 70100
.442（11.23）
.432（10.97）
1.0
T
J
=25℃
300us Pulse Width
1% Duty Cycle
.200
（5.1）
1.8 2.0
0.1
0.6 0.8 1.0 1.2 1.4 1.6
BP25-L
IN LINE PIN CONFIGURATION
(PLASTIC CASE)
INSTANTANEOUS FORWARD
VOLTAGE, VOLTS
BP25-005 THRU BP25-10
Page: 2
