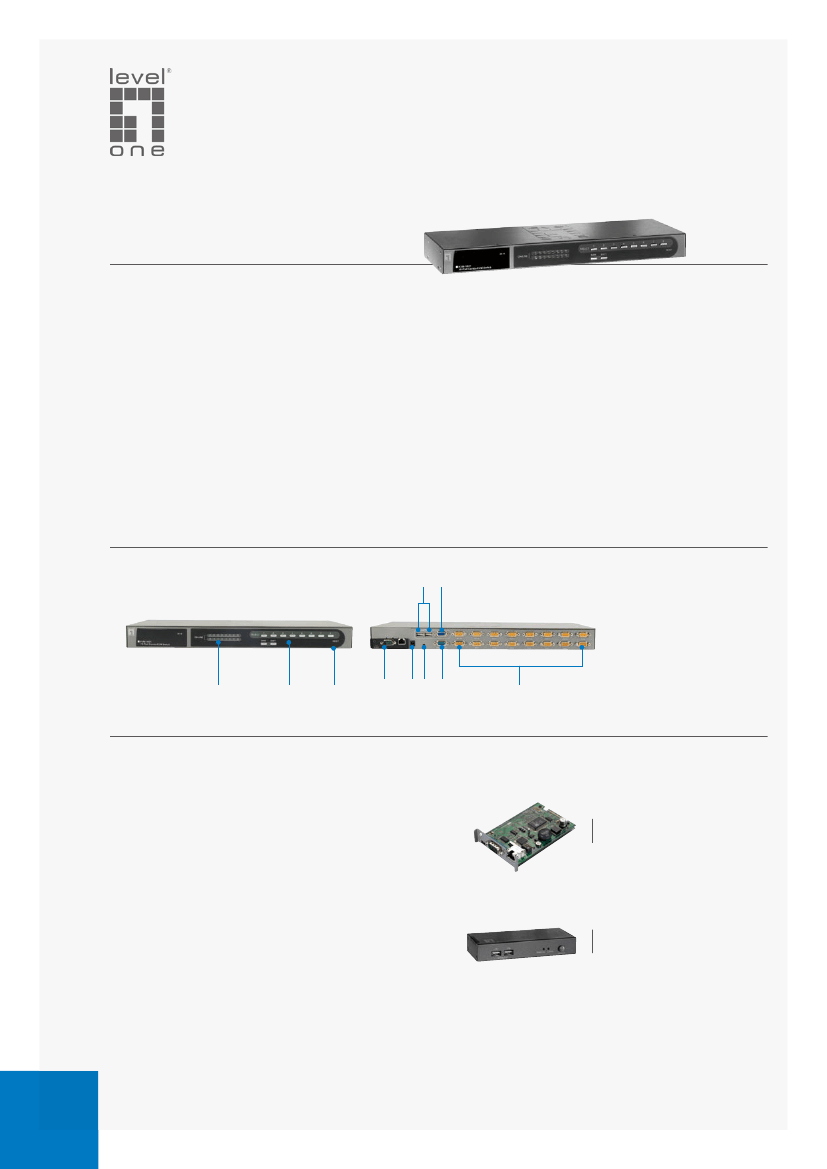

16-port Combo KVM Switch
w/ Expansion Slot
H/W Version: 2
The LevelOne KVM-1631 16-port combo KVM
switch enables users to control and manage several
computers or even an entire server farm, using a
single keyboard, mouse and monitor. Users can switch
to different servers using hot-keys or push button for
fast control of the connected devices.
Up to 128 computers can be connected to KVM-1631
using a daisy chain. This gives network administrator
the ability to control large groups of servers or systems
from one console without the need to physically move
between different monitoring stations.
KVM-1631
Advanced Remote Management via optional
modules
LevelOne also offers a unique module for remote
server control. Just slide in the IP Console Module
(ACC-2000) to KVM-0831/1631 to access and manage
the server farm over the Internet using a standard
web browser. It supports a 1600x1200 pixel screen
resolution for high-quality viewing.
LevelOne also has a module (ACC-1000) that allows
system administrators to extend the control over the
LAN using Cat.5 cabling to control servers and PCs
remotely up to 300 meters away.
9 10
1
2
3
4
5 6 7
8
1. Port LEDs
2. PC Selection
3. Reset hole
4. ACC-2000
5. Power Jack
6. Refresh hole
7. Daisy chain Port
8. HDB-15Pin
9. USB Console Port
10. VGA Console Port
Key Features
- Control servers and computers either locally via
control port or remotely via optional modules
through the module expansion slot
- Features an expansion slot for flexible installation
with optional module choices
- Locate Cat5 console up to 300 meters away from the
KVM switch.
- To enable/disable the Screen Saving function and 10
min auto-logout function.
- High video display quality – up to 1920x1440
- Firmware Upgradable
Works Well With
ACC-2000
KVM IP Console Module
KVM-9007
KVM Cat.5 Receiver
www.level1.com
I
one world_one brand_one level_
KVM Switches/Consoles/Extenders

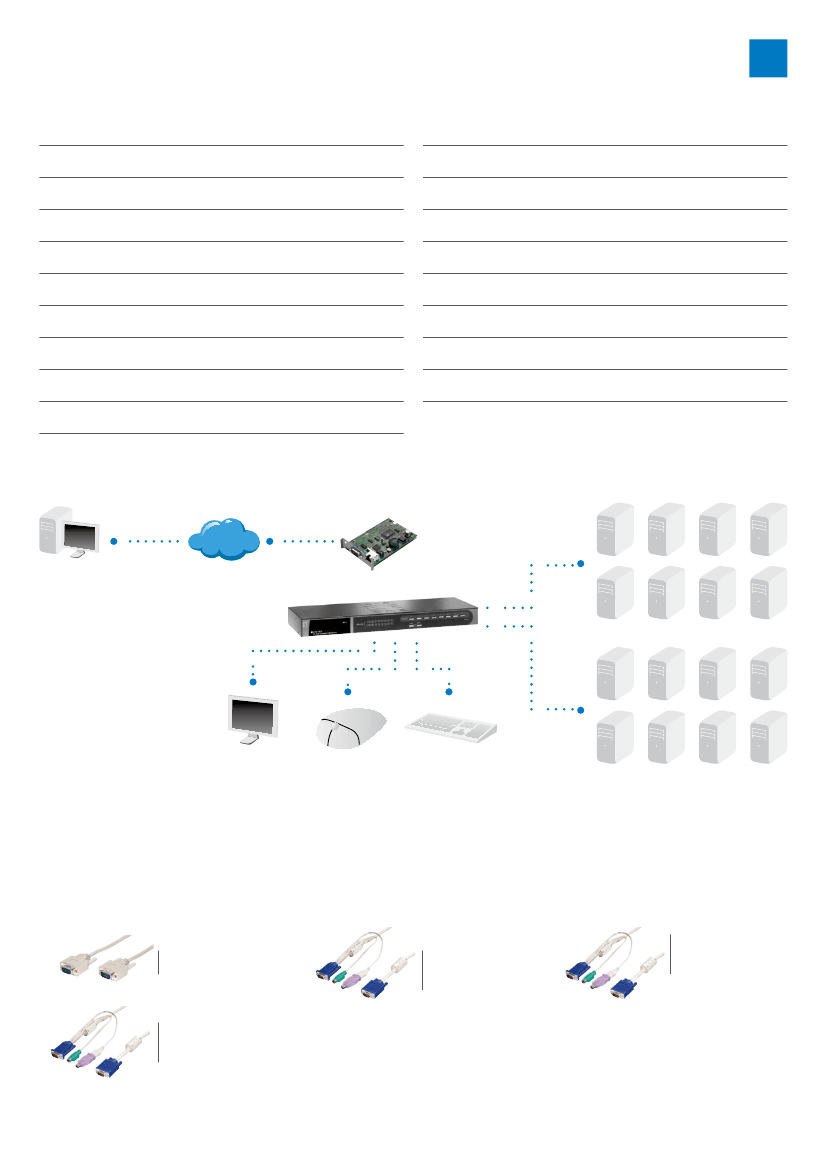

Technical Specifications
Console Port
USB x 2, VGA x 1
PC Port
(PS2/USB/VGA) Combo connector x 16
Cascade Control PC no.
128
Cable Model Name
ACC-2001 ACC-2002
Applicable to Computer
PS2/USB
OSD
Yes
Pushbutton Control
Yes
LEDs
16
Hot plug and Play
Yes
Hotkey Control
Yes
Product Diagram
Rack-Mounted
19" industry-standard
Scan interval
5~99 sec
Resolution
1920 x 1440
Dimension (mm)
445(H)) x 160(W) x45(H)
Size
1U
Power Supply
DC 12V, 1A
Operation Temp.
Operating: 0~50°C
Storage Temp.
-20°C ~ 60°C
Humidity
0~95%, Non-Condensing
PS2/USB
ACC-2000
Remote
Console (IP-
BASED)
Internet
KVM-1631
Local Monitor
Mouse
PS2/USB
Keyboard
16 PCs
Order Information
Package Contents
Option Accessories
KVM-1631:
16-port Combo KVM Switch w/ Expansion Slot
KVM1631, Power Adapter DC 12V, 1.0A, Rack Mount Kit, Rubber Feet, User Manual
ACC-2109
Daisy Chain Cable 90cm
ACC-2101
PS/2 and USB Cable KVM
1.8m
ACC-2102
PS/2 and USB Cable KVM
3.0m
ACC-2103
PS/2 and USB Cable KVM
5.0m
All mentioned brand names are registered trademarks and property of their owners. Technical specifications are subject to change without notice.
© Copyright Digital Data Communications GmbH. All Rights Reserved.
V2.0
