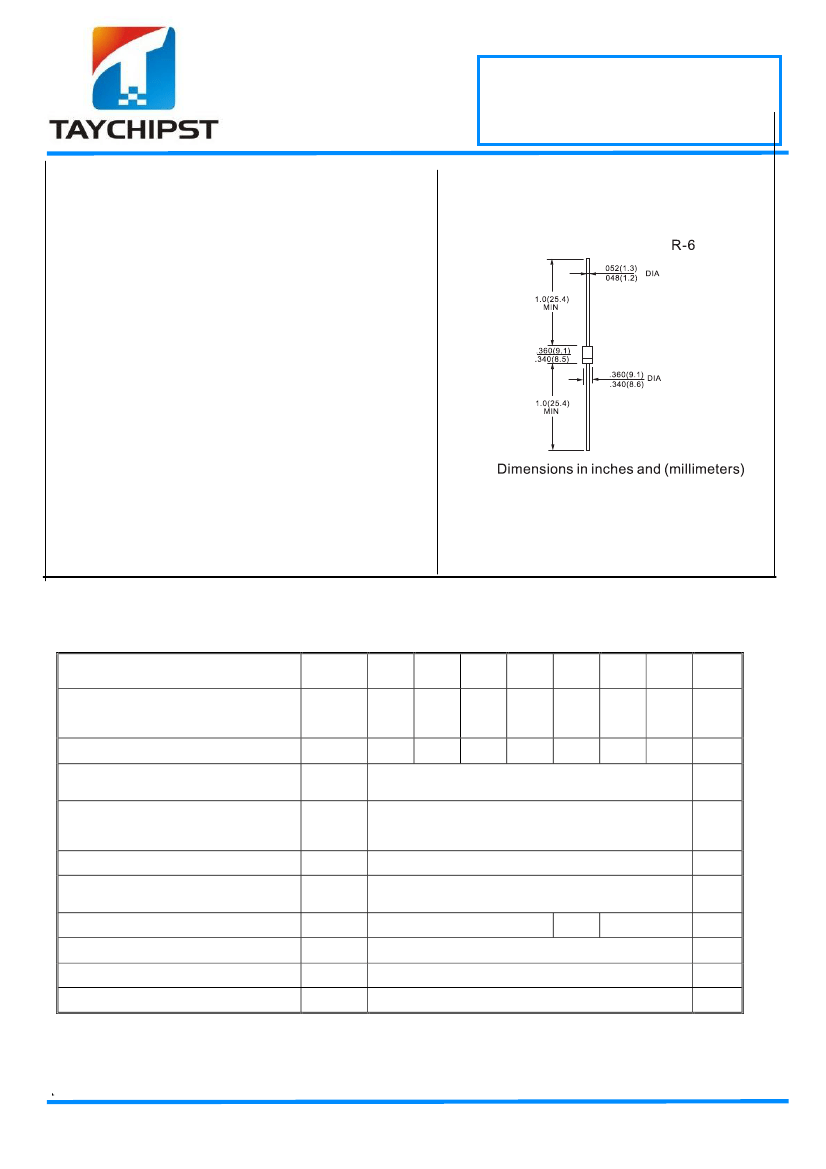

FR601 THRU FR607
50V-1000V
FAST RECOVERY RECTIFIERS
Features
!
!
!
!
!
Diffused Junction
Low Forward Voltage Drop
High Current Capability
High Reliability
High Surge Current Capability
6.0A
Mechanical Data
!
!
!
!
!
!
!
Case: Molded Plastic
Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 2.1 grams (approx.)
Mounting Position: Any
Marking: Type Number
Epoxy: UL 94V-O rate flame retardant
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings atC ambient temperature unless otherwise specified.
25
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Maximum Ratings and Electrical Characteristics
Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
@T
A
=25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
(Note 1)
@T
A
= 55°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
Forward Voltage
Peak Reverse Current
At Rated DC Blocking Voltage
Reverse Recovery Time (Note 2)
Typical Junction Capacitance (Note 3)
Operating Temperature Range
Storage Temperature Range
@I
F
= 6.0A
@T
A
= 25°C
@T
A
= 100°C
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
FR601
FR602
FR603
FR604
FR605
FR606
FR607
Unit
50
35
100
70
200
140
400
280
6.0
600
420
800
560
1000
700
V
V
A
I
FSM
V
FM
I
RM
t
rr
C
j
T
j
T
STG
150
200
1.2
10
200
250
100
-65 to +125
-65 to +150
500
A
V
µA
nS
pF
°C
°C
*Glass passivated forms are available upon request
Note: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case
2. Measured with IF = 0.5A, IR = 1.0A, IRR = 0.25A. See figure 5.
3. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
E-mail: sales@taychipst.com
1 of 2
Web Site: www.taychipst.com
FR601 THRU FR607
50V-1000V
FAST RECOVERY RECTIFIERS
6.0A

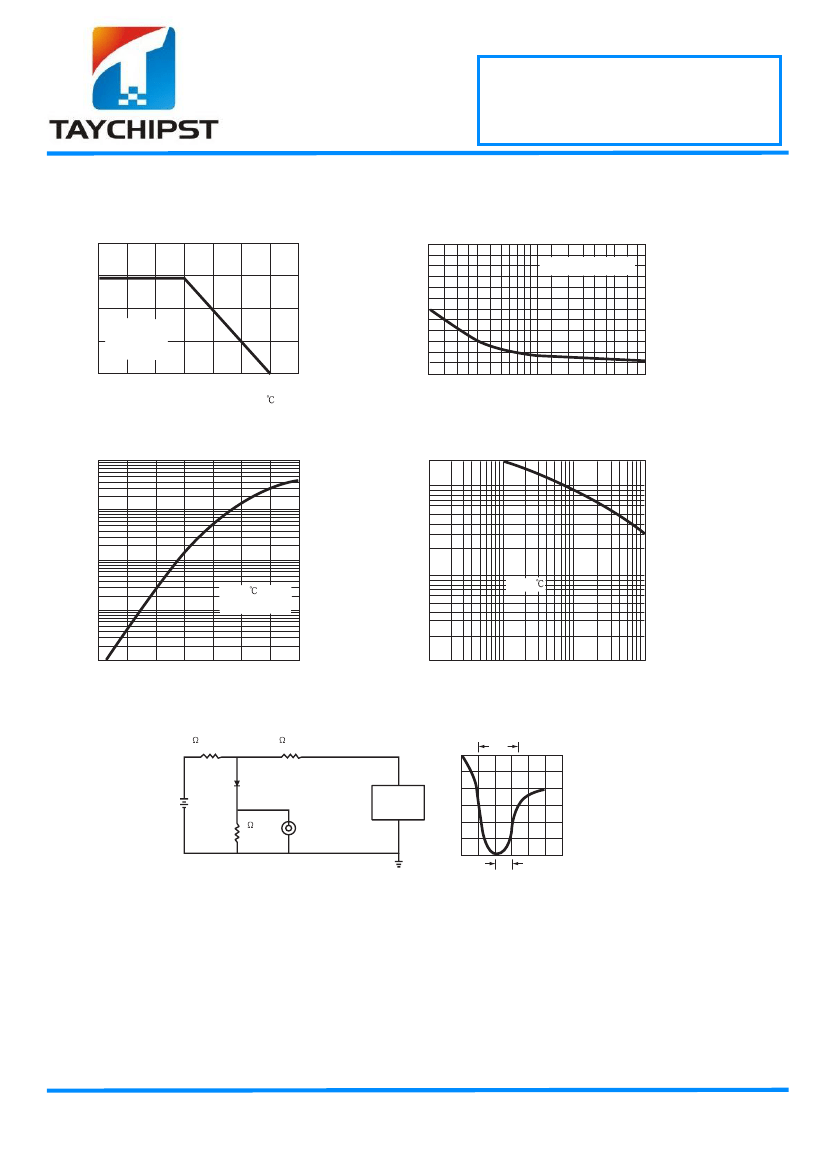

RATING AND CHARACTERISTIC CURVES ( FR601 THRU FR607 )
AVERAGE FORWARD CURRENT, (A)
FIG. 1 - TYPICAL FORWARD CURRENT
DERATING CURVE
8
6
4
2
0
0
25
50
75
100 125 150
AMBIENT TEMPERATURE, ( )
175
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
FIG. 2 - MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE
CURRENT, (A)
600
500
400
300
200
100
0
1
10
50
NUMBER OF CYCLES AT 60Hz
100
8.3ms Single Half Sine-Wave
(JEDED Method)
FIG. 3 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT, (A)
FIG. 4 - TYPICAL JUNCTION CAPACITANCE
200
JUNCTION CAPACITANCE, (pF)
1000
500
100
40
10
TJ = 25
Pulse Width=300uS
1% Duty Cycle
100
60
40
20
10
6
4
2
1
.1
.2
.4
1.0
2
4
10
20
40
100
TJ = 25
1
0
.6
.8
1.0
1.2
1.4
1.6
1.8
2.0
INSTANTANEOUS FORWARD VOLTAGE, (V)
REVERSE VOLTAGE, ( V )
FIG. 5 - TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTIC
50
NONINDUCTIVE
10
NONINDUCTIVE
trr
+0.5A
(-)
PULSE
GENERATOR
(NOTE 2)
(+)
25 Vdc
(approx)
(-)
D.U.T
0
-0.25A
1
NON-
INDUCTIVE
OSCILLOSCOPE
(NOTE 1)
(+)
-1.0A
NOTES:
1 Rise Time = 7ns max. Input Impedance =
1 megohm. 22pF.
2. Rise Time = 10ns max. Source Impedance =
50 ohms.
1cm
SET TIME BASE FOR
50/100 ns/cm
E-mail: sales@taychipst.com
2 of 2
Web Site: www.taychipst.com
