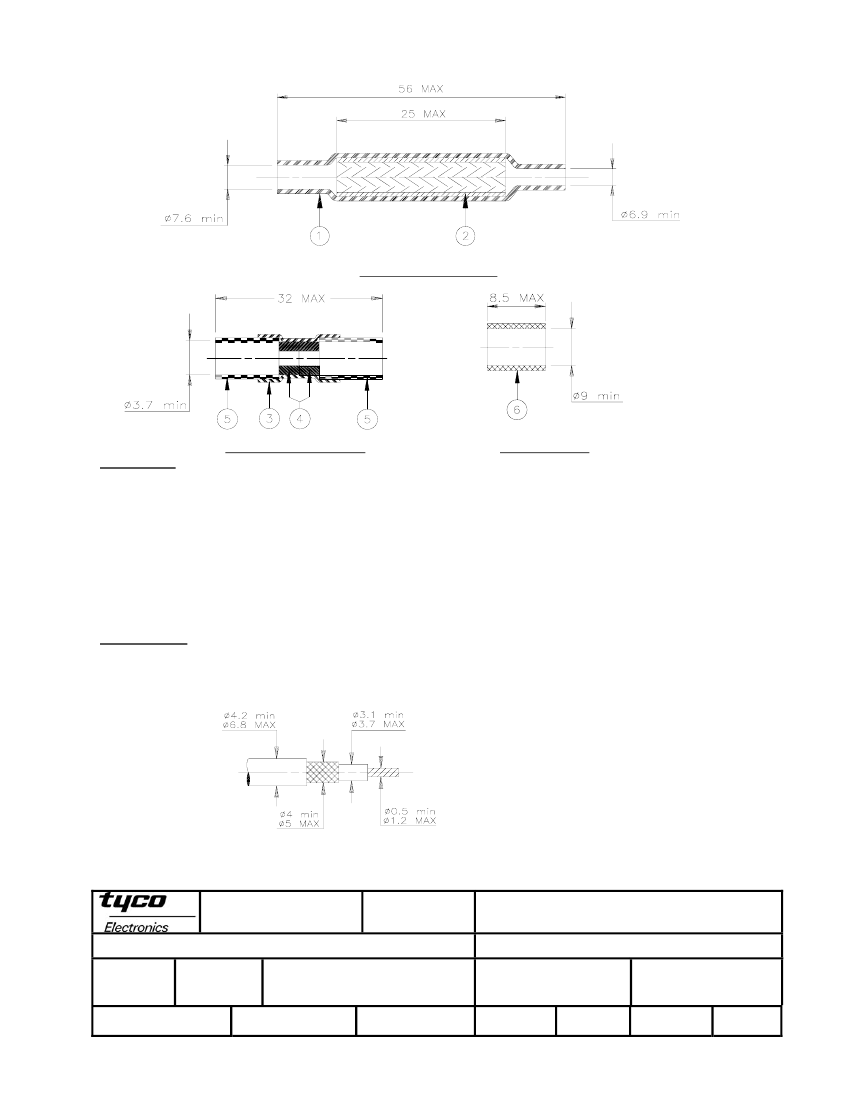

SPECIFICATION CONTROL DRAWING
SOLDERSHIELD* Device
SOLDERSLEEVE* Device
Insulation Tubing
MATERIALS
1. INSULATION SLEEVE: Heat -shrinkable, transparent clear, radiation cross-linked modified polyolefin.
2. SHIELD: Solder impregnated, flux coated, tin plated copper braid.
SOLDER: TYPE Sn63 per ANSI-J-STD-006.
FLUX:
TYPE ROL1 per ANSI-J-STD-004.
3. INSULATION SLEEVE: Heat -shrinkable, transparent clear, radiation cross-linked modified polyvinylidene fluoride.
4. SOLDER PREFORM WITH FLUX:
SOLDER: TYPE Sn63 per ANSI-J-STD-006.
FLUX:
TYPE ROL1 per ANSI-J-STD-004.
5. DIELECTRIC BARRIER: Cross-linked polyvinylidene fluoride. Color: yellow.
6. INSULATION TUBING, PRECOATED: Radiation cross-linked modified polyolefin with adhesive. Color: black.
APPLICATION
1. This controlled soldering device is designed to splice the center conductor and the braid, both made of bare, tin or silver plated
copper, of coaxial cables having an insulation rated for at least +85°C. The product is suitable for single or double braided cables.
2. Temperature range: -55°C to +125°C. For installation procedure, see RPIP-699-00.
Cable dimensions:
* A trademark of Tyco Corporation.
Tyco Electronics Corporation
305 Constitutional Drive
Menlo Park, CA 94025 USA
RAYCHEM
Products
TITLE:
COAXIAL CABLE SPLICE KIT
DOCUMENT NO:
DATE:
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
DRAWN BY:
ANGLES: N/A
Tyco reserves the right to amend this drawing at
any time. Users should evaluate the suitability of
the product for their application.
DCR NUMBER:
B-202-82
DOC ISSUE:
ROUGHNESS IN
MICRON
REPLACES:
June 15, 1998
PROD. REV.
SCALE:
SIZE:
2
SHEET:
M. FORONDA
B20282
D980565
D
None
A
1 of 1
If this document is printed it becomes uncontrolled. Check for the latest revision.
