3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
3.0SMCJ5.0 THRU 3.0SMCJ170A
FEATURES
PLASTIC PACKAGE HAS UNDERWRITERS LABORATORY
FLAMMABILITY CLASSIFICATION 94V-0
GLASS PASSIVATED JUNCTION
LOW PROFILE
EXCELLENT CLAMPING CAPABILITY
LOW INCREMENTAL SURGE RESISTANCE
FAST RESPONSE TIME: TYPICALLY LESS THAN 1.0 pS FROM
0 VOLTS TO V(BR) MIN
3000 W PEAK PULSE POWER CAPABILITY WITH A 10/1000
μS
WAVEFORM , REPETITION RATE (DUTY CYCLE): 0.01%
TYPICAL I
D
LESS THAN 1μA ABOVE 10V
HIGH TEMPERATURE SOLDERING :250°C /10 SECONDS
AT TERMINALS
CATHODE
.126(3.20)
.114(2.90)
.320(8.13)
.305(7.75)
.280(7.11)
.260(6.60)
.103(2.62)
.079(2.06)
.245(6.22)
.220(5.59)
MECHANICAL DATA
CASE: MOLDED PLASTIC, DO-214AB (SMC), DIMENSIONS
IN INCHES AND (MILLIMETERS)
TERMINALS: SOLDER PLATED
POLARITY: INDICATED BY CATHODE BAND
WEIGHT: 0.21 GRAMS
.060(1.52)
.030(0.76)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED
RATINGS
PEAK PULSE POWER DISSIPATION ON 10/1000μS WAVEFORM
(NOTE 1, FIG. 1)
PEAK PULSE CURRENT OF 0N 10/1000μS WAVEFORM
(NOTE 1,FIG. 3)
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
SINE-WAVE SUPERIMPOSED ON RATED LOAD, UNIDIRECTIONAL
ONLY(NOTE 2)
MAXIMUM INSTANTANEOUS FORWARD VOLTAGE AT 25A FOR
UNIDIRECTIONAL ONLY (NOTE 3 & 4)
OPERATING JUNCTION AND STORAGE TEMPERATURE RANGE
NOTE
:
SYMBOL
P
PPM
I
PPM
I
FSM
VF
T
J,
T
STG
VALUE
MINIMUM 3000
SEE TABLE 1
250
SEE NOTE 4
- 55 TO + 150
UNITS
WATTS
A
A
V
℃
1. NON-REPETITIVE CURRENT PULSE, PER FIG.3 AND DERATED ABOVE TA=25°C PER FIG 2.
2. MOUNTED ON 8.0x8.0mm COPPER PADS TO EACH TERMINAL
3. MEASURED ON 8.3mS SINGLE HALF SINE-WAVE OR EQUIVALENT SQUARE WAVE, DUTY CYCLE = 4 PULSES
PER MINUTE MAXIMUM
4. VF=3.5V ON 3.0SMCJ5.0 THRU 3.0SMCJ90A DEVICES AND VF=5.0V ON 3.0SMCJ100 THRU 3.0SMCJ170A
5. PEAK PULSE POWER WAVE FORM IS 10/1000
μS
3.0SMCJ5.0 THRU 3.0SMCJ170A
Page: 1
DEVICE
MARKING
CODE
DEVICE
UNI
BI
WORKING BREAKDOWN VOLTAGE
PEAK
V
(BR)
(VOLTS) at I
T
REVERSE
VOLTAGE
MIN
MAX
V
WM
(VOLTS)
TEST
CURRENT
I
T
(mA)
MAXIMUM
Clamping
VOLTAGE
AT I
PPM
VC(Volts)
(Note 2)
MAX
PEAK PULSE
SURGE CURRENT
I
PPM
(NOTE 2)
(Amps)
MAXIMUM
REVERSE
LEAKAGE
AT V
WM
I
D
(μA)
NOTE： 1. VF=3.5V on 3.0SMCJ5.0 thru 90A devices and VF=5.0V on 3.0SMCJ100 thru 170A devices at IF=25A on
½ Square or Equivalent Sine Wave. PW = 8.3ms , Duty Cycle = 4 Pulses per Minute Maximum
2. For Bipolar types with VR of 10 volts and under , the IR limit is doubled
3. Mounted on 5.0mm
2
copper pads to each terminal.
4. For Bidirectional use C suffix for 10﹪ tolerance , CA suffix for 5﹪ tolerance
3.0SMCJ51
3.0SMCJ51A
3.0SMCJ54
3.0SMCJ54A
3.0SMCJ58
3.0SMCJ58A
3.0SMCJ60
3.0SMCJ60A
3.0SMCJ64
3.0SMCJ64A
3.0SMCJ70
3.0SMCJ70A
3.0SMCJ75
3.0SMCJ75A
3.0SMCJ78
3.0SMCJ78A
3.0SMCJ85
3.0SMCJ85A
3.0SMCJ90
3.0SMCJ90A
3.0SMCJ100
3.0SMCJ100A
3.0SMCJ110
3.0SMCJ110A
3.0SMCJ120
3.0SMCJ120A
3.0SMCJ130
3.0SMCJ130A
3.0SMCJ150
3.0SMCJ150A
3.0SMCJ160
3.0SMCJ160A
3.0SMCJ170
3.0SMCJ170A
HFY
HFZ
HGD
HGE
HGF
HGG
HGH
HGK
HGL
HGM
HGN
HGP
HGQ
HGR
HGS
HGT
HGU
HGV
HGW
HGX
HGY
HGZ
HHD
HHE
HHF
HHG
HHH
HHK
HHL
HHM
HHN
HHP
HHQ
HHR
IFY
IFZ
IGD
IGE
IGF
IGG
IGH
IGK
IGL
IGM
IGN
IGP
IGQ
IGR
IGS
IGT
IGU
IGV
IGW
IGX
IGY
IGZ
IHD
IHE
IHF
IHG
IHH
IHK
IHL
IHM
IHN
IHP
IHQ
IHR
51
51
54
54
58
58
60
60
64
64
70
70
75
75
78
78
85
85
90
90
100
100
110
110
120
120
130
130
150
150
160
160
170
170
56.7
56.7
60.0
60.0
64.4
64.4
66.7
66.7
71.1
71.1
77.8
77.8
83.3
83.3
86.7
86.7
94.4
94.4
100
100
111
111
122
122
133
133
144
144
167
167
178
178
189
189
69.3
62.7
73.3
66.3
78.7
71.2
81.5
73.7
86.9
78.6
95.1
86.0
102.0
92.1
106.0
95.8
115.0
104.0
122.0
111.0
136.0
123.0
149.0
135.0
163.0
147.0
176.0
159.0
204.0
185.0
218.0
197.0
231.0
209.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
91.1
82.4
96.3
87.1
103.0
93.0
107.0
96.0
114.0
103.0
125.0
113.0
134.0
121.0
139.0
126.0
151.0
137.0
160.0
146.0
179.0
162.0
196.0
177.0
214.0
193.0
231.0
209.0
268.0
243.0
287.0
259.0
304.0
275.0
37.0
36.4
31.2
34.4
39.2
32.0
28.0
31.0
26.4
29.2
24.0
26.6
22.4
24.8
21.6
23.8
19.8
21.9
18.8
20.6
16.6
18.6
15.4
16.8
14.0
15.6
13.0
14.4
11.2
12.4
10.4
11.6
9.8
11.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
3.0SMCJ5.0 THRU 3.0SMCJ170A
Page: 3

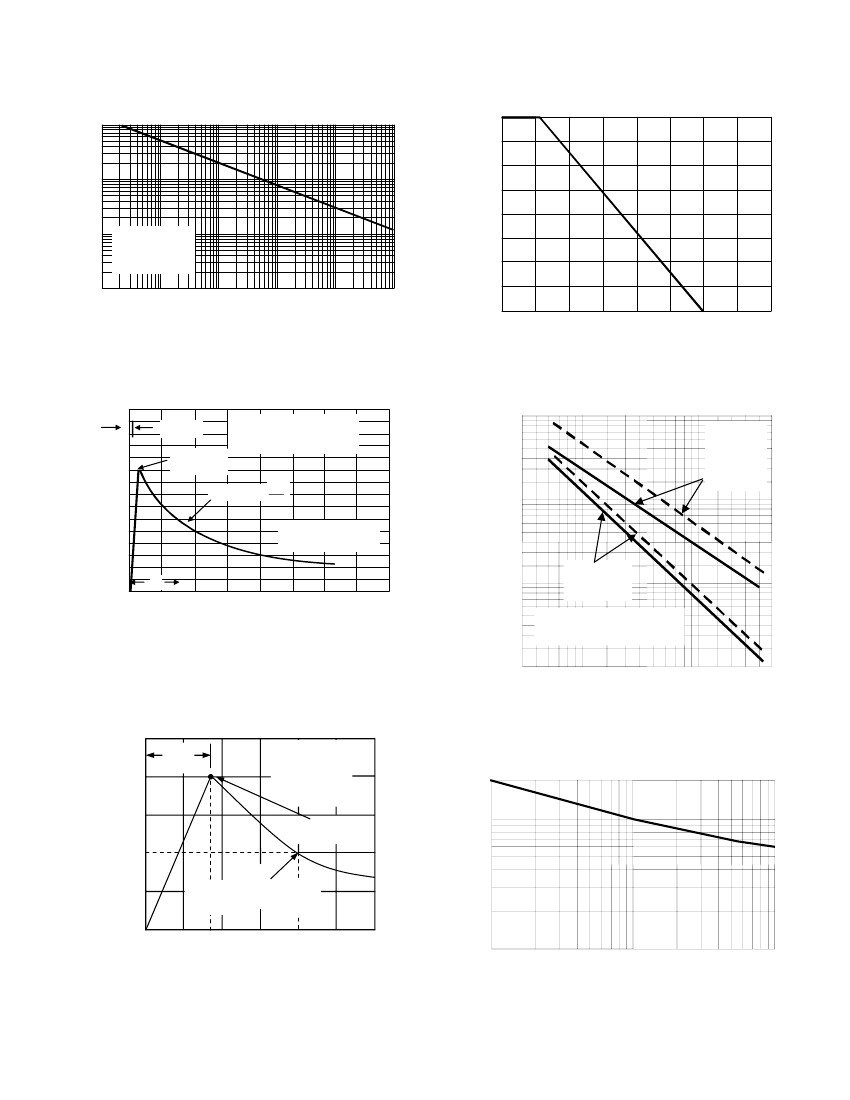

RATINGS AND CHARACTERISTIC CURVES 3.0SMCJ5.0 THRU 3.0SMCJ170A
FIG. 1 - PEAK PULSE POWER RATING CURVE
P
PPM,
PEAK PULSE POWER, KW
100
FIG. 2 – PULSE DERATING CURVE
PEAK PULSE POWER (P
PP
) or CURRENT (I
PP
)
DERATING IN PERCENTAGE,%
100
75
10
50
1.0
NON-REPETITIVE
PULSE WAVEFORM
SHOWN in FIG. 3
T
A
=25℃
25
0.1
0.1
US
1.0
US
10
US
100
US
1.0
MS
10
MS
0
0
25
50
75
100
125
150
175
200
td, PULSE WIDTH, sec.
FIG. 3 - PULSE WAVEFORM
10 / 1000
μ
A
150
tr=10usec.
PULSE WIDTH ?(td) is DEFINED
as the POINT WHERE the PEAK
CURRENT DECAYS to 50% of Ipp
T
A,
AMBIENT TEMPERATURE,℃
FIG. 4 - TYPICAL JUNCTION CAPACITANCE
100,000
T
J
=25℃
f=1 MH
Z
Vsig=50mVp-p
MEASURED at
ZERO BIAS
I
PPM,
PEAK PULSE CURRENT,%
100
PEAK VALUE
Ippm
HALF VALUE
Ipp
2
C
J,
JUNCTION CAPACITANCE,
P
F
10,000
50
10/1000usec. WAVEFORM
as DEFINED by R.E.A.
0
0
td
1,000
MEASURED at
STAND-OFF
VOLTAGE, V
WM
1.0
2.0
t, TIME, ms
3.0
4.0
Unidirectional
Bidirectional
100
5.0
10
------
______
20
50
100
200
500
FIG.5 – PULSE WAVEFORM
8 / 20μ s
V
(BR),
BREAKDOWN VOLTAGE, VOLTS
FIG.6 - MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
250
100
50
Ipp – Pack Pulse Current - % Ipp
100
t
r = 8μ sec
t
d
= 20μ sec
Peak Value - Ipp
50
Half Value –
_____
Ipp
2
@ td
I
FSM,
PEAK FORWARD SURGE CURRENT
(AMPS)
t
r
TEST WAVEFORM
PARAMETERS
0
0
10
20
30
10
1
5
10
50
100
t – Time - usec
NUMBER OF CYCLES AT 60H
Z
3.0SMCJ5.0 THRU 3.0SMCJ170A
Page: 4
