3.0SMCJ26-LFR: Description3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR; File Size125KB，4 Pages; ManufacturerFRONTIER; Websitehttp://www.frontierusa.com/

Download Datasheet View All

3.0SMCJ26-LFR Overview

3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Preview

Download Datasheet

View All

Frontier Electronics Corp.

667 E. COCHRAN STREET, SIMI VALLEY, CA 93065

TEL: (805) 522-9998

FAX: (805) 522-9989

E-mail:

frontiersales@frontierusa.com

Web:

http://www.frontierusa.com

3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

3.0SMCJ5.0-LFR THRU 3.0SMCJ170A-LFR

FEATURES

PLASTIC PACKAGE HAS UNDERWRITERS LABORATORY

FLAMMABILITY CLASSIFICATION 94V-0

GLASS PASSIVATED JUNCTION

LOW PROFILE

EXCELLENT CLAMPING CAPABILITY

LOW INCREMENTAL SURGE RESISTANCE

FAST RESPONSE TIME: TYPICALLY LESS THAN 1.0 ps FROM

0 VOLTS TO V(BR) MIN

3000 W PEAK PULSE POWER CAPABILITY WITH A 10/1000

μS

WAVEFORM , REPETITION RATE (DUTY CYCLE): 0.01%

TYPICAL I

LESS THAN 1μA ABOVE 10V

HIGH TEMPERATURE SOLDERING GUARANTEED: 250°C/10 SECONDS

AT TERMINALS

LEAD FREE

MECHANICAL DATA

CASE: MOLDED PLASTIC

TERMINALS: SOLDER PLATED

POLARITY: INDICATED BY CATHODE BAND

WEIGHT: 0.21 GRAMS

CATHODE

.126(3.20)

.114(2.90)

.320(8.13)

.305(7.75)

.280(7.11)

.260(6.60)

.103(2.62)

.079(2.06)

.245(6.22)

.220(5.59)

.060(1.52)

.030(0.76)

CASE : DO-214AB (SMC)

DIMENSIONS IN INCHES AND (MILLIMETERS)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED

RATINGS

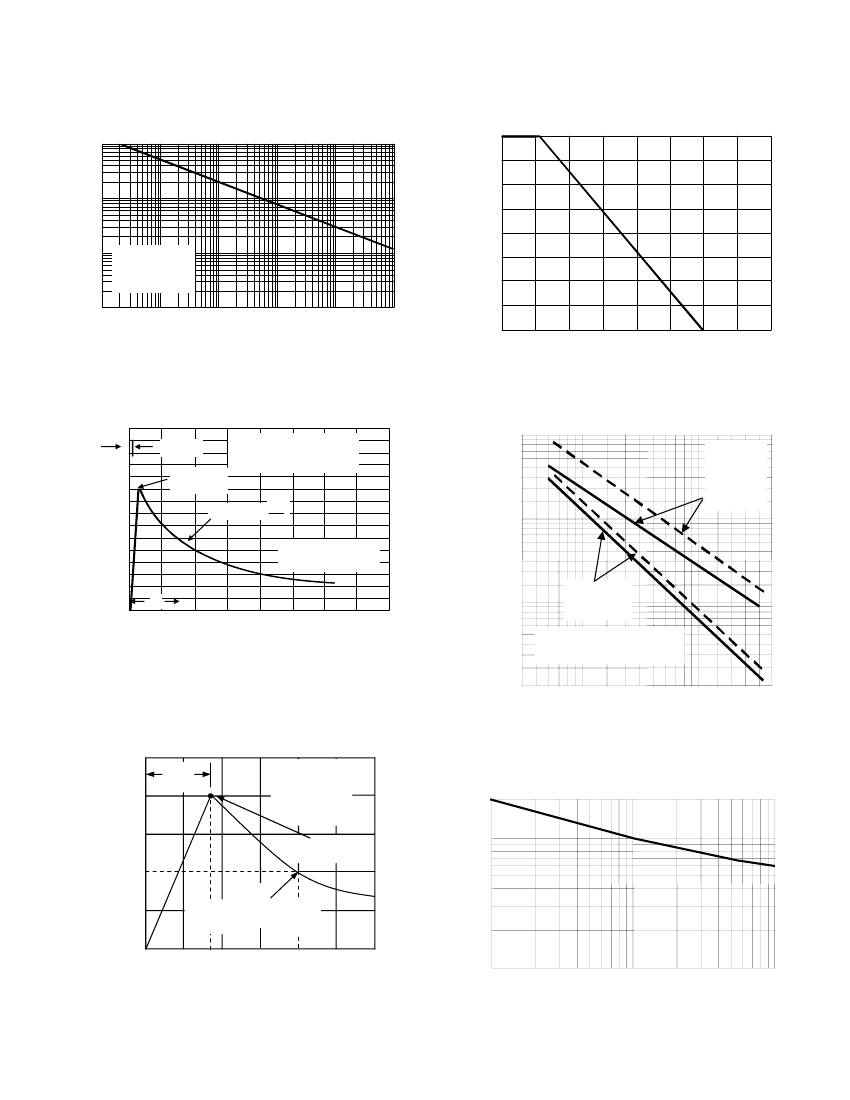

PEAK PULSE POWER DISSIPATION ON 10/1000μS WAVEFORM

(NOTE 1, FIG. 1)

PEAK PULSE CURRENT OF 0N 10/1000μS WAVEFORM

(NOTE 1,FIG. 3)

PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF

SINE-WAVE SUPERIMPOSED ON RATED LOAD, UNIDIRECTIONAL

ONLY(NOTE 2)

MAXIMUM INSTANTANEOUS FORWARD VOLTAGE AT 25A FOR

UNIDIRECTIONAL ONLY (NOTE 3 & 4)

OPERATING JUNCTION AND STORAGE TEMPERATURE RANGE

NOTE

SYMBOL

PPM

FSM

STG

VALUE

MINIMUM 3000

SEE TABLE 1

250

SEE NOTE 4

- 55 TO + 150

UNITS

WATTS

℃

1. NON-REPETITIVE CURRENT PULSE, PER FIG.3 AND DERATED ABOVE TA=25°C PER FIG 2.

2. MOUNTED ON 8.0x8.0mm COPPER PADS TO EACH TERMINAL

3. MEASURED ON 8.3mS SINGLE HALF SINE-WAVE OR EQUIVALENT SQUARE WAVE, DUTY CYCLE = 4 PULSES

PER MINUTE MAXIMUM

4. VF=3.5V ON 3.0SMCJ5.0 THRU 3.0SMCJ90A DEVICES AND VF=5.0V ON 3.0SMCJ100 THRU 3.0SMCJ170A

5. PEAK PULSE POWER WAVE FORM IS 10 / 1000 uS

3.0SMCJ5.0-LFR THRU 3.0SMCJ170A-LFR

Page: 1
