PP312-1CW-120A-W6 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PP312-1CW-120A-W6

PP312-1CW-120A-W6: DescriptionSingle Color LED, Super White, Water Clear,; CategoryLED optoelectronic/LED photoelectric; File Size166KB，3 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric View All

PP312-1CW-120A-W6 Overview

Single Color LED, Super White, Water Clear,

PP312-1CW-120A-W6 Parametric

Parameter Name	Attribute value
Maker	LEDtronics
Reach Compliance Code	unknown
color	SUPER WHITE
Configuration	SINGLE
Maximum forward current	0.008 A
Lens type	WATER CLEAR
Nominal luminous intensity	310.0 mcd
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	30.5 mm
method of packing	BULK
shape	ROUND
surface mount	NO

Preview

Download Datasheet

View All

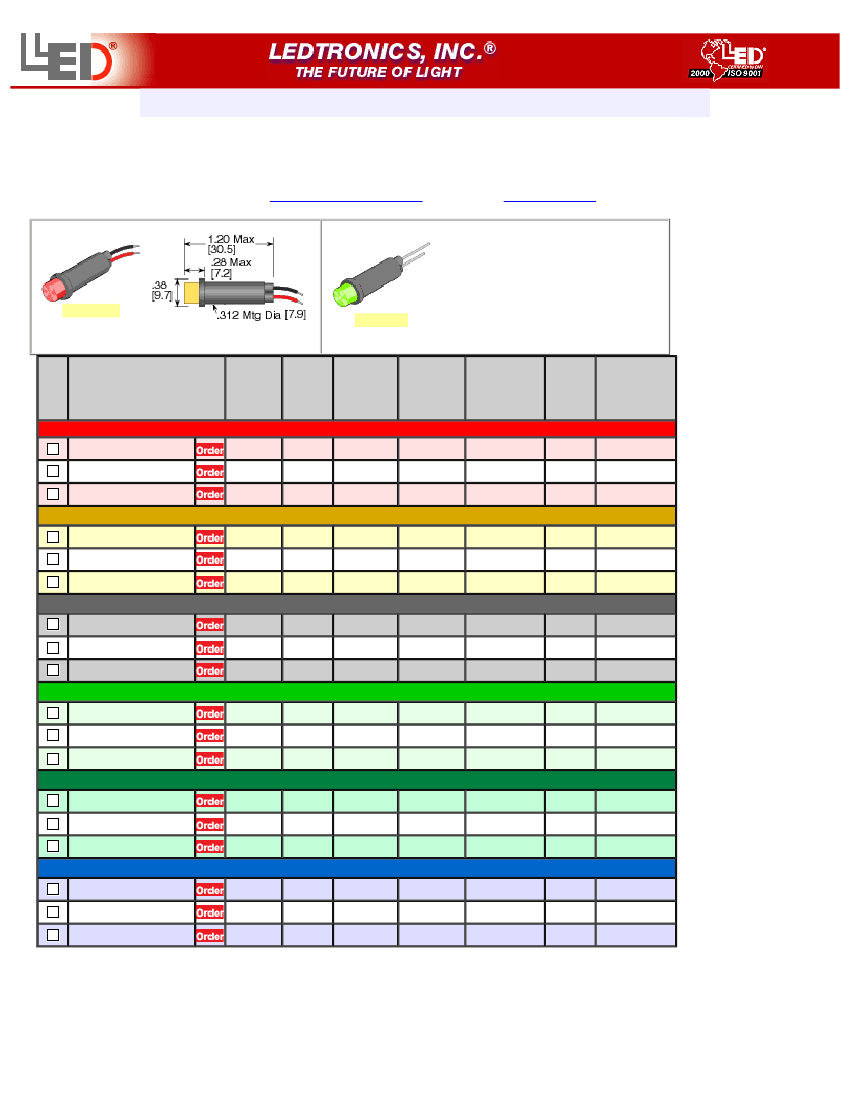

5/16" (8.0mm) Snap-In Panel Mount LED Lamps; Series PP312, Waterclear, Sunlight-Visible, Page 1

View Cart ::

Checkout ::

Sunlight Visible Snap-In Panel Mount LED Lamps

PP312 Series, Clear Top Hat Lens, 5/16"(8mm) Mtg.Dia.

Page 1 (Super-Bright)

All dimensions in inches [mm]

Custom Options:

Notes:

1) See other Custom Options at end of Page.

2) AC Types available for OEM applications.

3) Other Voltages available for OEM

application

4) Intensity & Angle shown for LED used.

Fluted Lens will reduce Intensity but increase

Angle of View

5) Panel Thickness from 0.031 (0.8mm) to

0.500 (12.7mm)

Current

(mA)

typ

Wave

Length

(nm)

LED

Full

Angle

Page 2 (Low-Cost Diffused)

(See Special Notes)

PP312--W

(Wire leads)

PP312--T

Top-Hat Lens

Retail

Price

(Volume

Discount

Available)

(Terminal Type)

(0.020"Sq/Rd)

Min

Order

Qty

Input

Volts‡

(V)

Mark

Order

Part

Number

LED

Intensity

(mcd)

typ

Sunlight Visible Ultra Red (660nm) WaterClear with 6" Wire Leads

PP312-0UR-002F-W6

PP312-0UR-028V-W6

PP312-0UR-120A-W6

$5.50ea

2Vf

24/28

120VAC

1800

900

450

15-20

10-12

6-8

660

12-15°

Sunlight Visible Super Yellow (585nm) WaterClear with 6" Wire Leads

PP312-0UY-002F-W6

PP312-0UY-028V-W6

PP312-0UY-120A-W6

$5.50ea

2Vf

24/28

120VAC

3750

1800

900

15-20

10-12

6-8

595

12-15°

Sunlight Visible Super White (8000K) WaterClear with 6" Wire Leads

PP312-1CW-03.5F-W6

PP312-1CW-028V-W6

PP312-1CW-120A-W6

$7.50ea

3.5Vf

24/28

120VAC

1250

625

310

15-20

10-12

6-8

8000K

12-15°

Sunlight Visible Super L.Green (570nm) WaterClear with 6" Wire Leads

PP312-0UG-002F-W6

PP312-0UG-028V-W6

PP312-0UG-120A-W6

$5.50ea

2Vf

24/28

120VAC

1000

500

250

15-20

10-12

6-8

570

12-15°

Sunlight Visible Super A.Green (525nm) WaterClear with 6" Wire Leads

PP312-1AG-03.5F-W6

PP312-1AG-028V-W6

PP312-1AG-120A-W6

$7.50ea

3.5Vf

24/28

120VAC

3000

1500

750

15-20

10-12

6-8

525

12-15°

Sunlight Visible Super Blue (470nm) WaterClear with 6" Wire Leads

PP312-1PB-03.5F-W6

PP312-1PB-028V-W6

PP312-1PB-120A-W6

$7.50ea

3.5Vf

24/28

120VAC

1000

500

250

15-20

10-12

6-8

470

12-15°

Special Notes for Custom Configurations:

1) For custom OEM large quantity applications, other angles of illumination available.

2) For custom OEM large quantity applications for reducing battery drain, low-current versions available.

3) For custom OEM large quantity applications, longer lead lengths 12" (30.5cm), 24" (61cm) & 36" (91cm) available.

‡ Input Voltage column is for general reference only. Contact LEDtronics for specific details.

file:///E|/LEDT/PP312a.htm (1 of 2) [3/30/2005 1:48:38 AM]
