PPD312-0UY-028V-W6

Description
Single Color LED, Super Yellow, Water Clear, T-1 3/4, 5mm,
CategoryLED optoelectronic/LED    photoelectric
File Size156KB，2 Pages
ManufacturerLEDtronics
Websitehttp://ledtronics.com.my
Download Datasheet Parametric Compare View All

PPD312-0UY-028V-W6 Overview

Single Color LED, Super Yellow, Water Clear, T-1 3/4, 5mm,

PPD312-0UY-028V-W6 Parametric

Parameter NameAttribute value
MakerLEDtronics
Reach Compliance Codeunknown
colorSUPER YELLOW
ConfigurationSINGLE
Maximum forward current0.012 A
Lens typeWATER CLEAR
Nominal luminous intensity1800.0 mcd
Installation featuresPANEL MOUNT
Number of functions1
Number of terminals2
Optoelectronic device typesSINGLE COLOR LED
total height30.5 mm
method of packingBULK
peak wavelength595 nm
shapeROUND
size5 mm
surface mountNO
T codeT-1 3/4

Preview

Download Datasheet

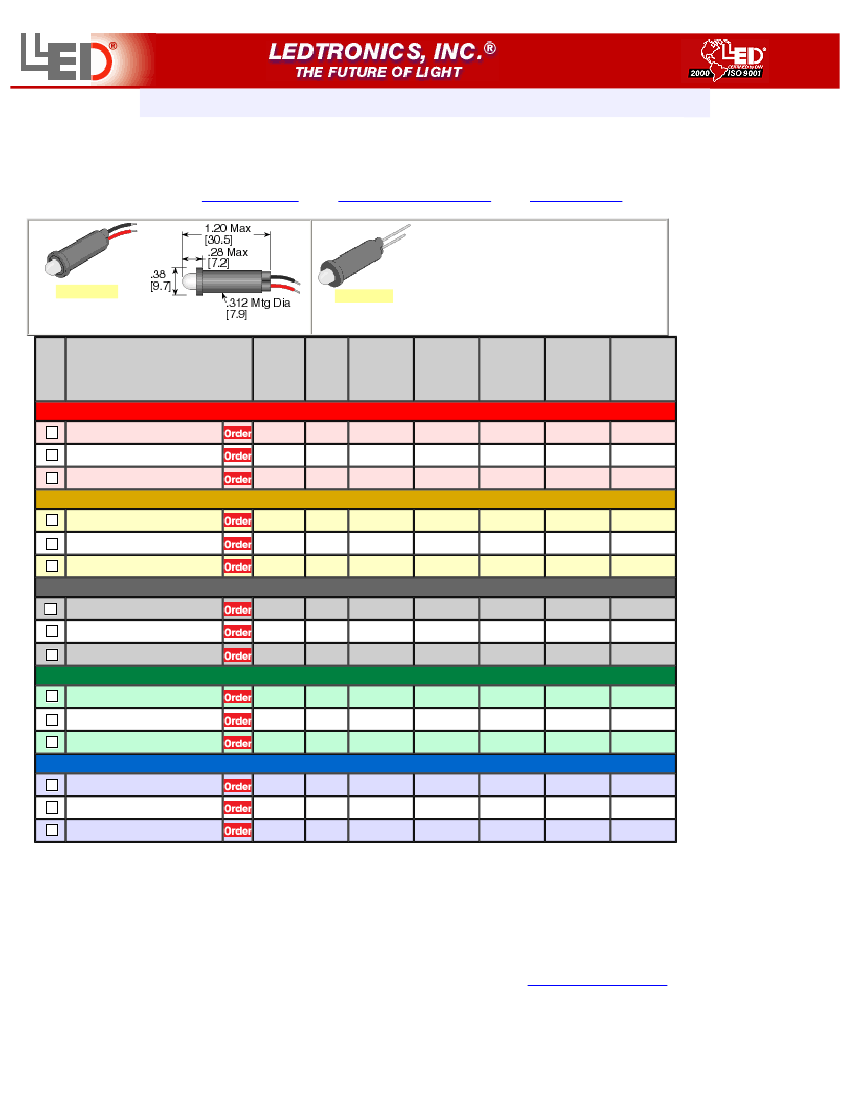

5/16" (8.0mm) Snap-In Panel Mount LED Lamps; Series PPD312, Waterclear, Sunlight-Visible, Page 1
View Cart ::
|
Checkout ::
Sunlight Visible Snap-In Panel Mount LED Lamps
PPD312 Series, Clear Dome Lens, 5/16"(8mm) Mtg.Dia.
Page 1 (Waterclear)
All dimensions in inches [mm]
Notes:
1) See other Custom Options at end of Page.
2) AC Types available for OEM applications.
3) Other Voltages available for OEM application
4) Panel Thickness from 0.031 (0.8mm) to 0.500
(12.7mm)
Page 2 (Diffused)
Page 3 (Low-Cost Diffused)
(See Special Notes)
PPD312-W
5mm Dome
(Wire leads)
PPD312-T
(Terminal Type)
(0.02" Sq/Rd)
Retail
Price
Min
(Volume
Order
Discount
Qty
Available)
Input
Volts‡
(V)
Mark
To
Order
Part
Number
Ι
v
(mcd)
Ι
f
Current
(mA)
typ
Wave
Length
(nm)
Full
Angle
Sunlight-Visible Ultra Red (660nm) WaterClear with 6" Wire Leads
PPD312-0UR-014V-W6
PPD312-0UR-028V-W6
PPD312-0UR-120A-W6
$7.00ea
$7.00ea
$7.00ea
10
10
10
12/14
24/28
120VAC
900
900
540
10-12
10-12
6-8
660
660
660
12-15°
12-15°
12-15°
Sunlight-Visible Super Yellow (585nm) WaterClear with 6" Wire Leads
PPD312-0UY-014V-W6
PPD312-0UY-028V-W6
PPD312-0UY-120A-W6
$7.00ea
$7.00ea
$7.00ea
10
10
10
12/14
24/28
120VAC
1800
1800
1125
10-12
10-12
6-8
595
595
595
12-15°
12-15°
12-15°
Sunlight-Visible Super White (8000k) WaterClear with 6" Wire Leads
PPD312-1CW-014V-W6
PPD312-1CW-028V-W6
PPD312-1CW-120A-W6
$9.50ea
$9.50ea
$9.50ea
10
10
10
12/14
24/28
120VAC
625
625
375
10-12
10-12
6-8
8000K
8000K
8000K
12-15°
12-15°
12-15°
Sunlight-Visible Super A.Green (525nm) WaterClear with 6" Wire Leads
PPD312-1AG-014V-W6
PPD312-1AG-028V-W6
PPD312-1AG-120A-W6
$9.50ea
$9.50ea
$9.50ea
10
10
10
12/14
24/28
120VAC
1500
1500
900
10-12
10-12
6-8
525
525
525
12-15°
12-15°
12-15°
Sunlight-Visible Super Blue (470nm) WaterClear with 6" Wire Leads
PPD312-1PB-014V-W6
PPD312-1PB-028V-W6
PPD312-1PB-120A-W6
$9.50ea
$9.50ea
$9.50ea
10
10
10
12/14
24/28
120VAC
500
500
300
10-12
10-12
6-8
470
470
470
12-15°
12-15°
12-15°
Special Notes for Custom Configurations:
1) For custom OEM large quantity applications, other angles of illumination available.
2) For custom OEM large quantity applications for reducing battery drain, low-current versions available.
3) For custom OEM large quantity applications, longer lead lengths 12" (30.5cm), 24" (61cm) & 36" (91cm) available.
‡ Input Voltage column is for general reference only. Contact LEDtronics for specific details.
23105 Kashiwa Ct, Torrance, CA 90505 - PH: (800) 579-4875/(310) 534-1505 - FAX: (310) 534-1424
© Copyright 1997-2003 LEDtronics, Inc. All Rights Reserved - Contact
Webmaster@ledtronics.com
file:///E|/LEDT/PPD312a.htm [3/30/2005 1:49:35 AM]

PPD312-0UY-028V-W6 Related Products

PPD312-0UY-028V-W6 PPD312-0UR-014V-W6 PPD312-0UY-014V-W6 PPD312-1CW-014V-W6 PPD312-1PB-028V-W6 PPD312-1AG-120A-W6 PPD312-1PB-014V-W6 PPD312-1AG-028V-W6 PPD312-0UR-028V-W6 PPD312-1AG-014V-W6
Description Single Color LED, Super Yellow, Water Clear, T-1 3/4, 5mm, Single Color LED, Ultra Red, Water Clear, T-1 3/4, 5mm, Single Color LED, Super Yellow, Water Clear, T-1 3/4, 5mm, Single Color LED, Super White, Water Clear, T-1 3/4, 5mm, Single Color LED, Super Blue, Water Clear, T-1 3/4, 5mm, Single Color LED, Super Aqua Green, Water Clear, T-1 3/4, 5mm, Single Color LED, Super Blue, Water Clear, T-1 3/4, 5mm, Single Color LED, Super Aqua Green, Water Clear, T-1 3/4, 5mm, Single Color LED, Ultra Red, Water Clear, T-1 3/4, 5mm, Single Color LED, Super Aqua Green, Water Clear, T-1 3/4, 5mm,
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown
color SUPER YELLOW ULTRA RED SUPER YELLOW SUPER WHITE SUPER BLUE SUPER AQUA GREEN SUPER BLUE SUPER AQUA GREEN ULTRA RED SUPER AQUA GREEN
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum forward current 0.012 A 0.012 A 0.012 A 0.012 A 0.012 A 0.008 A 0.012 A 0.012 A 0.012 A 0.012 A
Lens type WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR WATER CLEAR
Nominal luminous intensity 1800.0 mcd 900.0 mcd 1800.0 mcd 625.0 mcd 500.0 mcd 900.0 mcd 500.0 mcd 1500.0 mcd 900.0 mcd 1500.0 mcd
Installation features PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT PANEL MOUNT
Number of functions 1 1 1 1 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2 2 2 2 2
Optoelectronic device types SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED
total height 30.5 mm 30.5 mm 30.5 mm 30.5 mm 30.5 mm 30.5 mm 30.5 mm 30.5 mm 30.5 mm 30.5 mm
method of packing BULK BULK BULK BULK BULK BULK BULK BULK BULK BULK
shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND
size 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm
surface mount NO NO NO NO NO NO NO NO NO NO
T code T-1 3/4 T-1 3/4 T-1 3/4 T-1 3/4 T-1 3/4 T-1 3/4 T-1 3/4 T-1 3/4 T-1 3/4 T-1 3/4
Maker LEDtronics LEDtronics - LEDtronics LEDtronics LEDtronics LEDtronics LEDtronics LEDtronics LEDtronics
peak wavelength 595 nm 660 nm 595 nm - 470 nm 525 nm 470 nm 525 nm 660 nm 525 nm
