Cannon 75 Ohm Connectors
Type 43 (SMZ)

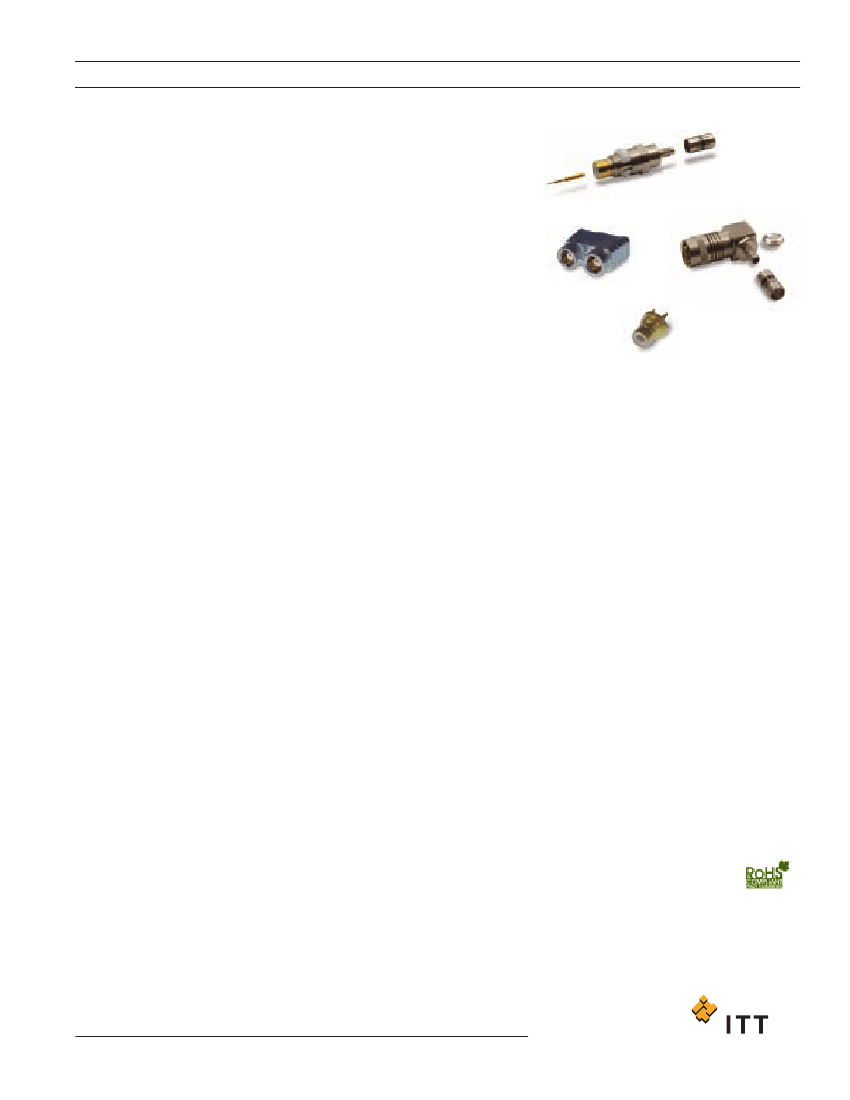

ITT’s wide range of Cannon Type 43 / SMZ connectors are exten-
sively used in 75 ohm communication systems and have become
the recognized standard in telecommunications in many parts of the
world.
Designed around the requirements of BS9210 F0022 and draft
specifications CECC 122 300, these connectors are designed for
field installation and feature the ‘Posi-Lock’ latch to prevent acci-
dental disconnection.
A special feature of the Cannon Type 43 / SMZ range is the QT
(Quick Termination) technology for cable connectors. Designed to
reduce assembly time and loose parts, the QT termination system
incorporates a connector body with a pre-assembled center contact,
termination is simple with no loose contact to drop or lose. QT pro-
vides a reliable gas tight connection between the inner conductor of
the cable and connector contact that meets the most stringent
industry standards. For PCB connectors a snap fit feature is incor-
porated into certain styles to hold the connector in position during
soldering.
Choice of Two Latching Styles – Standard or HDC (High Density)
ITT’s Cannon Type 43 / SMZ connectors are available in 2 package sizes, Standard and HDC (High Density).
Whilst both configurations have the same interface dimensions and are intermateable, the outer body size of
HDC is reduced to facilitate a closer packing density on the equipment or distribution frame.
Applications
• Switching Equipment • DSX Cross Connects • Base Stations • Routers • Wireless • Telecom • LAN Equipment
Features and Benefits
High performance gold plated
contact areas ensure reliable long
term operation
Posi-Lock locking mechanisms
ensure secure coupling and ease
of engagement and separation
Designed for the most commonly
used telecom cables in North
America and Europe
Designed for robust and reliable
field installation
Available for BT standard and HDC
distribution frames
Three-part construction with crimp
inner contact and outer ferrule (no
soldering required)
PCB Plugs come with offset legs
for board locking
QT (Quick termination) technology
available for most cable types
Product offering includes U-links
and between series adaptors
True 75 ohm characteristic imped-
ance up to 3 GHz (for selected
styles)
Most designs require no special
tooling
"Teplock" mounting reduces the
time needed for fitting to DDF's
RoHS compliant part numbers
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
5
Cannon 75 Ohm Connectors
Type 43 (SMZ)
Specifications
75 nominal
0 to 3.0 GHz (some styles limited to 1.0GHz)
At sea level, inner conductor to shell = 500 V
At sea level = 1500 V
5 G minimum
Center contact: 5.0m maximum. Outer contact: 1.0m maximum
Refer to CECC122300
1.5 A dc maximum
All snap-on, Screw-Lock & Posi-Lock styles except U Links = 60 N (13.5 lbs.) maximum
U Links (reduced force snap-on) = 40 N (9 lbs.) maximum
Separation Forces All snap-on, Screw-Lock & Posi-Lock styles except U Links = 60 N (13.5 lbs.) max,
8 N (1.8 lbs.) min.
U Links (reduced force snap-on) = 40 N (9 lbs.) maximum, 20 N (4.5 lbs.) minimum
SMZ
Posi-Lock Latch withstand Pull 220 N (50 lbs.)
Contact and Insulator Retention 21 N (4.7 lbs.)
Materials
Body components: Copper or zinc alloy. Center contacts (male/female): Copper alloy.
Insulators: PTFE or thermoset plastic. Crimp ferrules: Annealed copper alloy
Finish/Plating
Center contacts: Gold. Outer contacts: Gold. Other metal parts: Nickel, tin or zinc
ENVIRONMENTAL
Vibration Severity
(a) Frequency range: 10 Hz to 500 Hz. (b) Displacement**: 0,75 (.029). (c) Acceleration**:
2
2
98 m/s (321 ft./s ). (d) Duration: 6 hours. ** Cross over at approx. 60 Hz
2
Shock Severity
490 m/s for 11 ms
Impact Severity (free specimens only) 5 impacts at 1m
Climatic Catagory
40/100/21
2
Bump
4000 total at 390 m/s
Free Fall (U Link only) BS2011: Part 2.1 Ed. Procedure 2. Severity: 50 falls
GENERAL
Connector Durability 250 matings minimum
*Except U Link connectors. See BS9210 F0022 for details.
NOTES
1)
Values in this specification are typical for this range. Specific connectors may vary.
2)
Cannon 75 ohm coaxial connnectors are designed to meet or exceed the requirements of BS9210F0022 where applicable. This
specification may be superseded by CECC122 300 and the details listed above are subject to change without notice to comply
with changes in these specifications.

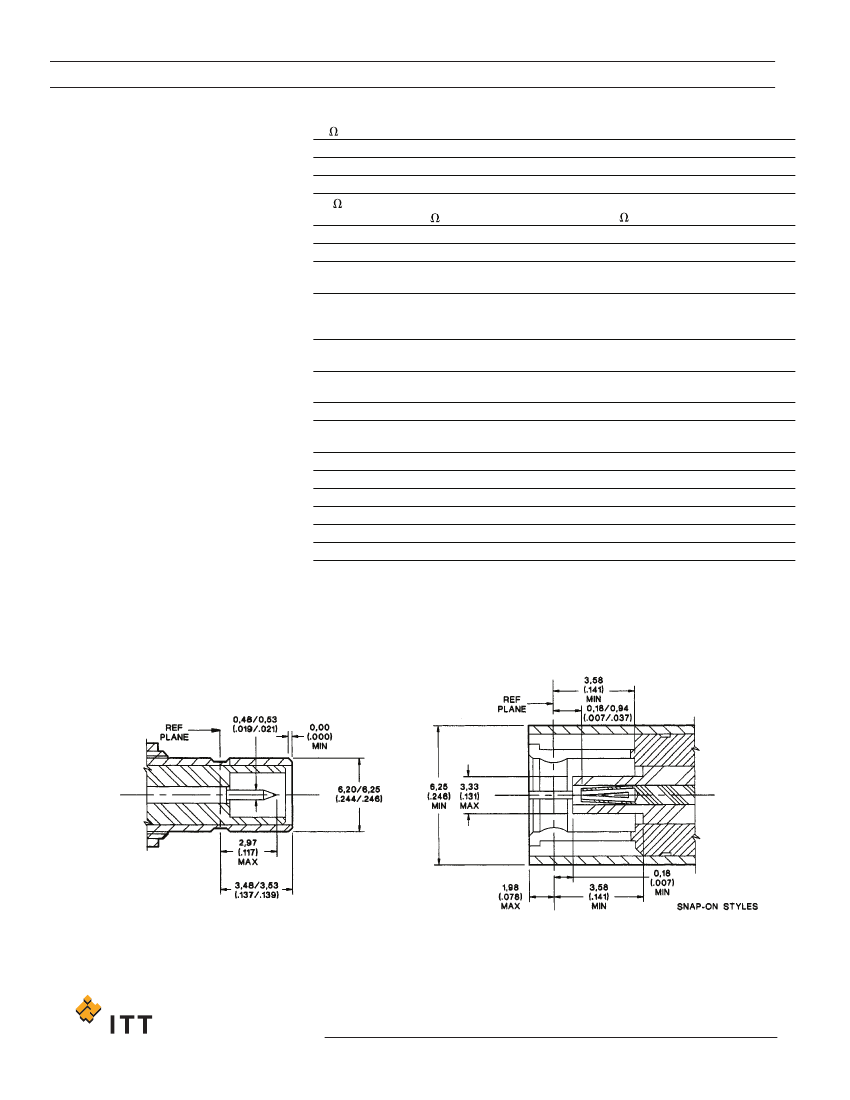

ELECTRICAL
Impedance
Frequency Range
Working Voltage (dc or ac peak)
Proof Voltage (dc or ac peak)
Insulation Resistance
Contact Resistance*
Reflection Coefficient
Current Rating
MECHANICAL
Engagement Forces
Mating Interfaces
PLUG
JACK
SOCKET
PLUG
Please note that the description of the 2 halves follow the UK telecom format. In other regions a plug may be called a
jack, and a socket may be called a plug. Please take care when choosing your connectors.
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
6
Cannon 75 Ohm Connectors
Type 43 (SMZ)

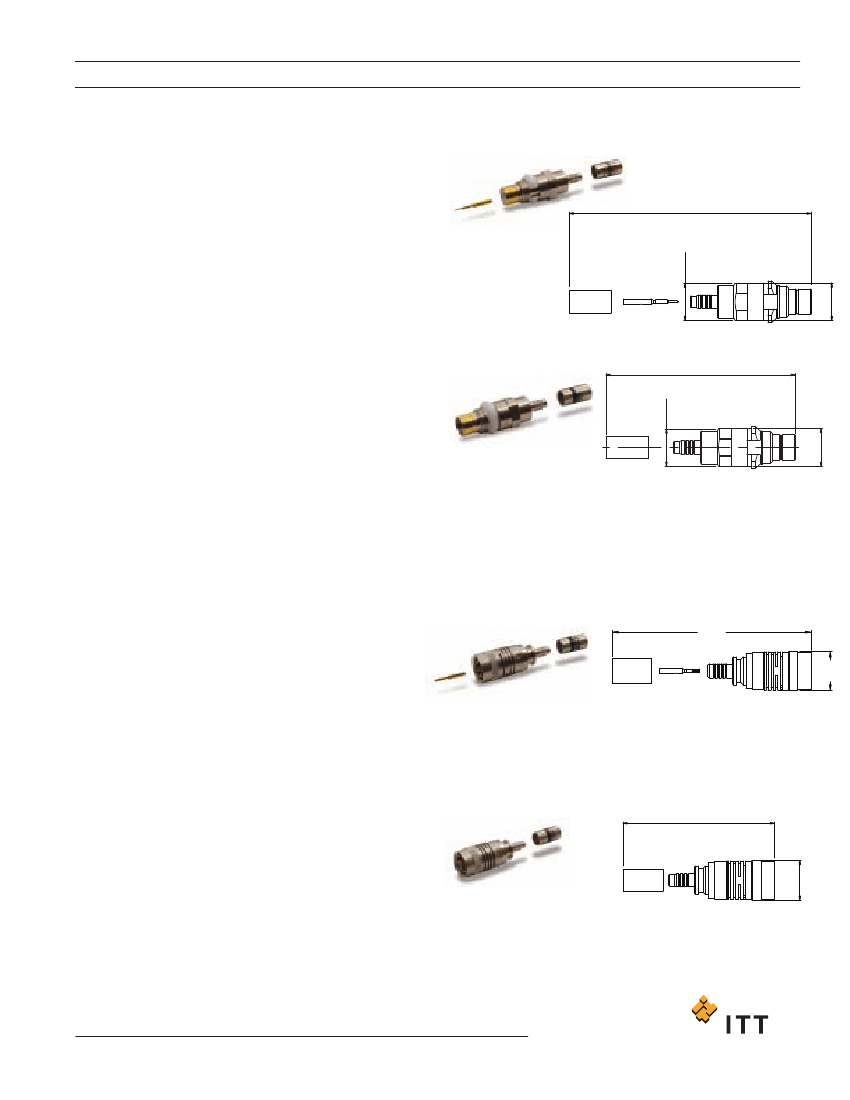

DDF Crimp Plug
Part Number
051-127-9739A9A
051-127-9749A9A
051-127-9759A9A
051-127-9769A9A
051-127-9479A9A
051-127-9779A9A
Cable Type
BT2001
BT2002
BT2003
BT3002 / TZC75024
RA7000
RG179B/U
Industry Reference
P43/1GTIS
P43/2GTIS
P43/3GTIS
P43/5GTIS
P43/7GTIS
P43/4GTIS
33,02
(1.300)
9,04 SQ.
Assembly Instructions: BBAI 1265
Part Number
W51-127-9439A9A
W51-127-9459A9A
W51-127-9479A9A
W51-127-9059A9A
W51-127-9289A9A
W51-127-9049A9A
W51-127-9369A9A
W51-127-9789A9A
W51-127-9039A9A
W51-127-9119A9A
Cable Type
BT2003
BT3002 / TZC75024
RA7000
NCX
735A
ST212 / CT1320/735A (alt)
RG59B
2.5C-2V
0.25/1.3 (mini coax)
RA8000
Industry Reference
BT43/3GTIQT
BT43/5GTIQT
9,04 SQ
(0.356)
~33.02
(1.300)
Assembly Instructions: BBAI 1238
Posilock Straight Crimp Socket
Part Number
051-124-977991A
051-124-978991A
051-124-979991A
051-124-983991A
051-124-950991A
051-124-943991A
Cable Type
BT2002
BT2003
BT3002 / TZC75024
RG179B/U
2.5C-2V
ST212/CT1320/735A
Industry Reference
S43/2FS
S43/3FS
S43/5FS
S43/4FS
~30.40
(1.197)
ø 10.10
(0.398)
Assembly Instructions: BBAI 1265
Posilock Straight QT Socket
Part Number
Cable Type
W51-124-953991A
W51-124-963991A
W51-124-960991A
W51-124-947991A
W51-124-996991A
W51-124-944991A
W51-124-943991A
W51-124-966991A
W51-124-950991A
W51-124-999991A
Industry Reference
30,40
[ 1.197]
BT2003
S43/3FQT
BT3002/TZC75024
S43/5FQT
RA7000
S43/7FQT
RA8000
S43/8FQT
735A
NCX
ST212 / CT1320/735A (alt)
RG59U
2.5C-2V
0.25/1.3 (mini coax)
Assembly Instructions: BBAI 1238
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
Contact Customer Service for other cable types
www.ittcannon.com
7
ø10,10
[ 0.398]
ø 9,14
(0.360)
ø 9,14
(0.360)
DDF QT Plug
(0.356)
Cannon 75 Ohm Connectors
Type 43 (SMZ)
Posilock Right Angle Socket
Part Number
051-128-922991A
051-128-923991A
051-128-924991A
051-128-933991A
051-128-947991A
051-128-941991A
051-128-935991A
Cable Type
BT2002
BT2003
RG179B/U
BT3002/TZC75024
RA7000
RG59U
735A
Industry Reference
9,52 SQ.
[ 0.375 ]
23,98
[ 0.944 ]
S43/3C
S43/4C
S43/5C
S43/7C
21,25
[ 0.837 ]
12,93
[ 0.509 ]
Assembly Instructions: BBAI 1041
Contact Customer Service for other cable types
25,40
(1.000)
9,96
(0.392)

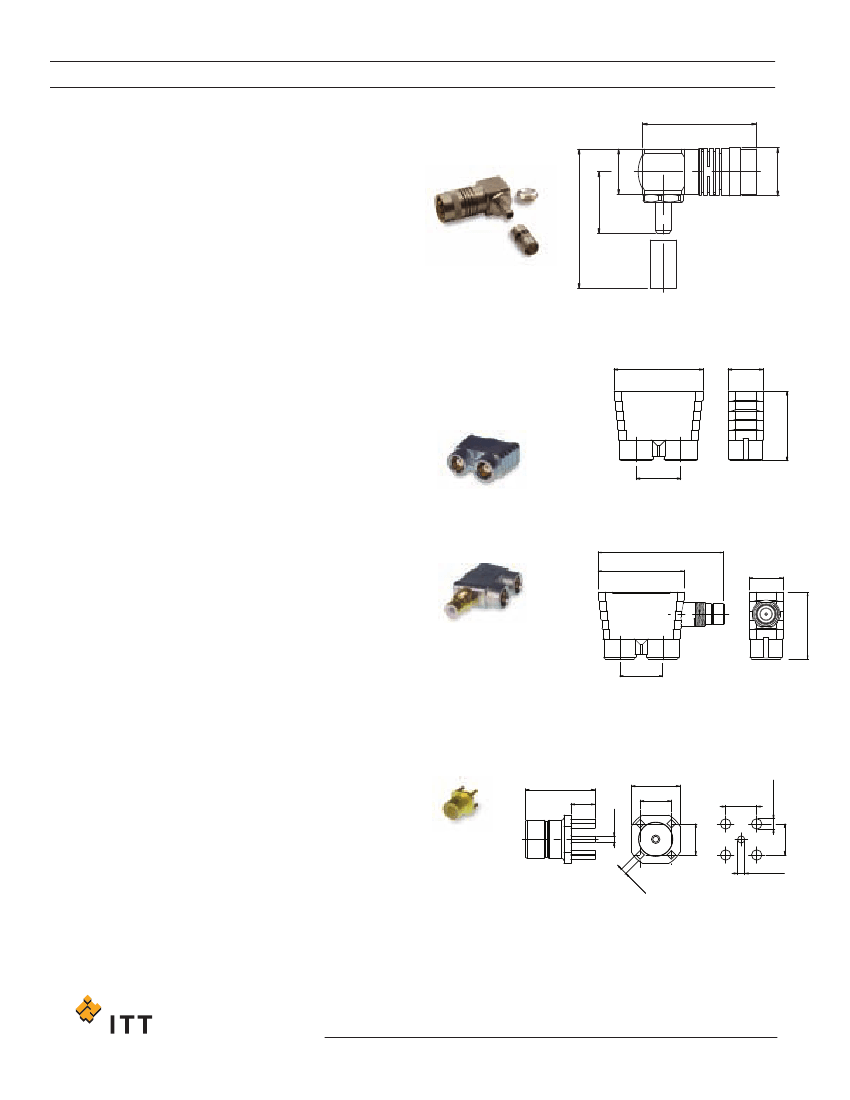

Coaxial U Links
19,79
12,70
(0.500)
37,08
25,40
(1.460)
9,96
(0.392)
(1.00)
ø 10,10
[ 0.398 ]
(0.779)
(0.779)
19,79
12,70
(0.500)
7,92 SQ.
(0.312)
5,08
(0.200)
5,08
(0.200)
5,08
(0.200)
HOLE PATTERN
+0,18
ø 1,17 0
(0.046) +0.007
-0.000
S43/2C
Part Number
055-181-9079AZ0
Industry Reference
Link 13A (without monitor port)
055-181-9119AZ0
Link 13B (with -30dB monitor port)

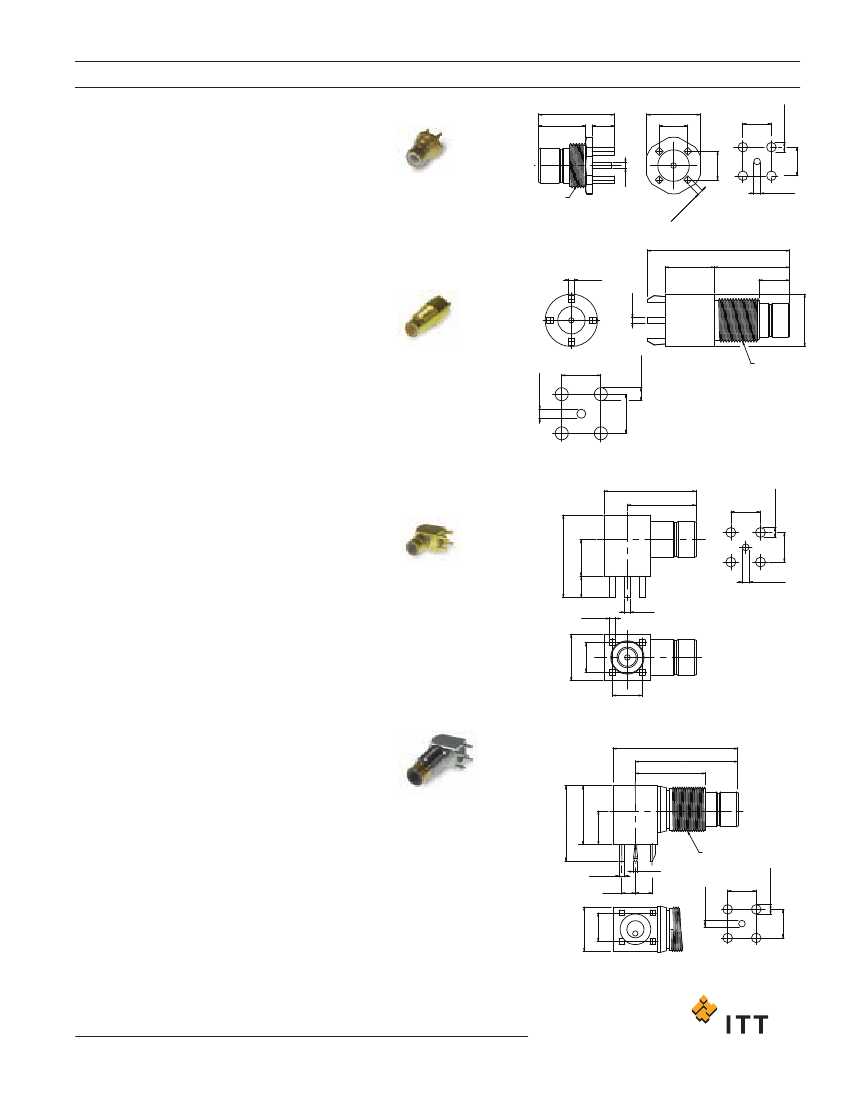

Straight PCB Plug
Part Number
051-151-9019A9A
11,38
(0.448)
3,94
(0.155)
+0,15
ø 1,70 0
(0.067) +0.005
-0.000
4 PLCS.
5,08
(0.200)
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
ø 0,97
(0.038)
.
SQ
2
1,0 40)
0
(0. CS.
L
4P
www.ittcannon.com
8
Cannon 75 Ohm Connectors
Type 43 (SMZ)
Straight Screw-lock PCB Plug
Part Number
051-151-9029A9A
ø 0.97
(0.038)
5/16-32 UNEF-2A THD
1
040 .02 S
)4 Q
PL
CS
.
13.46
8.38 (0.530)
(0.330)
3.93
(0.155)
9.53 HEX
5,08 (0.375)
(0.200)
5,08
(0.200)
5,08
(0.200)
HOLE PATTERN.
ø 1,17 +0,18
0
+0.007
(0.046) -0.000
(0.
Straight Bulkhead PCB Plug
Part Number
051-151-9079A9A
ø 0,97
(0.038)
1,02
(0.040)
4 PLACES.
8,94
(0.352)
25,86
(1.018)
13,64
(0.537) 5,56
(0.219)
ø 9,52
(0.375)
5/16 - 32UNEF-2A
+0,18
ø 1,17 0
(0.046) +0.007
-0.000
5,08
(0.200)
A0023384 Panel Mounting Hardware kit
(Washer and Lock Nut)
HOLE PATTERN
5,08
(0.200)
+0,15
ø 1,70 0
(0.067) +0.005
-0.000
4 PLCS.
Right Angle PCB Plug
Part Number
051-153-9089A9A
Plug 43/1E
11,75
(0.463)
5,08
(0.200)
14,20
(0.559)
6,30
(0.248)
+0,18
ø 1,17 0
+0.007
HOLE PATTERN. (0.046) -0.000
ø 0,97
(0.038)
Right Angle Bulkhead PCB Plug
with board retaining legs
Part Number
051-153-9119EAA
8,00 SQ.
(0.315)
5,08
(0.200)
3,71
(0.146)
1,02 SQ.
(0.040)
4 PLCS.
5,08
(0.200)
18,24
12,50 (0.718)
(0.492)
22,21
(0.874)
13,41
(0.528)
10,49
(0.413)
6,30
(0.248)
B0023382 Panel Mounting Hardware Kit
(Spacer, Washer, Lock Washer, Lock Nut)
5/16 - 32UNEF-2A
1,02 SQ.
(0.040)
4 PLACES.
2,39
(0.094)
7,92
(0.312)
5,08
(0.200)
ø 0,97
(0.038)
+0,18
ø 1,17 0
(0.046) +0.007
-0.000
3,10
(0.122)
5,08
(0.200)
+0,15
ø 1,70 0
(0.067) +0.005
-0.000
4 PLCS.
5,08
(0.200)
HOLE PATTERN.
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
www.ittcannon.com
9
5,08
(0.200)
+0,15
ø 1,70 0
(0.067) +0.005
-0.000
4 PLCS.
15,75
(0.620)
5,08
(0.200)
+0,15
ø 1,70 0
(0.067) +0.005
-0.000
4 PLCS.
