0038317013027020: DescriptionBERYLLIUM COPPER, GOLD (30) OVER NICKEL FINISH, PCB TERMINAL; CategoryThe connector; File Size417KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

0038317013027020 Overview

BERYLLIUM COPPER, GOLD (30) OVER NICKEL FINISH, PCB TERMINAL

0038317013027020 Parametric

Parameter Name	Attribute value
Processing package description	ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
contact surface	GOLD (30) OVER NICKEL
Contact materials	BERYLLIUM COPPER
Manufacturer Series	0038
Terminal male and female	FEMALE
Terminal type	PCB TERMINAL

Preview

Download Datasheet

View All

WRAPOST

RECEPTACLES

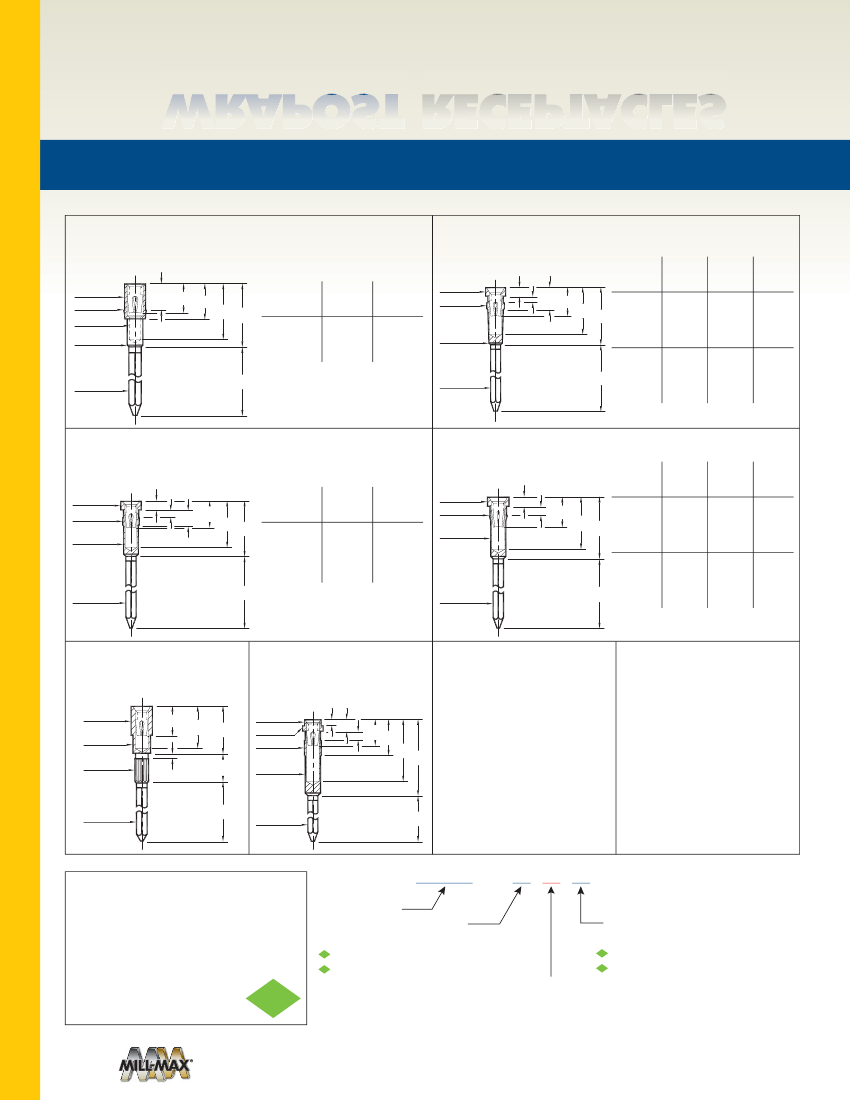

FOR .015” - .025” DIAMETER PINS

1702/1703

170X-X-15-XX-30-XX-02-0

Press-fit in .057 mounting hole

.056

DIA.

.059

DIA.

.030

DIA.

HOLE

.045

DIA.

00380040/00660068

00XX-X-17-XX-30-XX-02-0

Press-fit in .057 mounting hole

C DIA.

.058

DIA.

.020

.031

.076 .101

.162

Basic

Part #

.200

# of

Wraps

Length

A

Dia.

C

.075 .086

.094

.145 .165

Basic Part

Number

# of

Wraps

Length

A

1702-2

1703-3

A

2

3

.370

.510

.052

DIA.

0040-1

0039-2

0038-3

0068-1

0067-2

0066-3

1

2

3

1

2

3

.260

.360

.500

.260

.360

.500

.072

.025

SQUARE

.025

SQUARE

A

.062

0086/0088/0089

008X-X-17-XX-3X-XX-02-0

Press-fit in .057 mounting hole

.071 DIA.

.060

DIA.

KNURL

.053

DIA.

10301036

103X-X-17-XX-3X-XX-02-0

Press-fit in .057 mounting hole

.028

.031

.053 .096

.162.193

Basic

Part #

# of

Wraps

Length

A

Dia.

C

Basic Part

Number

# of

Wraps

Length

A

C DIA.

.060

DIA.

.053

DIA.

.031

.028 .101

.160

.193

0089-2

0088-3

0086-4

2

3

4

.370

.510

.630

1032-1

1031-2

1030-3

1036-1

1035-2

1034-3

1

2

3

1

2

3

.260

.360

.510

.260

.360

.510

.072

.062

.025

SQUARE

A

.025

SQUARE

A

1045

1045-3-17-XX-30-XX-02-0

Press-fit in .043 mounting hole

.072

DIA.

.061 DIA.

.047

DIA.

KNURL

1040

1040-3-17-XX-30-XX-02-0

Press-fit in .056 mounting hole

.020

.058 DIA.

.103

.138

.156

.071 DIA.

.059 DIA.

KNURL

.040

.028 .091.120

.230

.280

.090

.015

.054 DIA.

.025

SQUARE

.500

.025

SQUARE

.600

PAGE 198 | PIN RECEPTACLES

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

RoHS - 2

2011/65/EU

ORDER CODE: XXXX - X - 17 - XX -

XX

- XX - 02 - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200

”

TIN/LEAD OVER NICKEL

80

200

”

TIN OVER NICKEL (RoHS)

15

10

”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

02

100

”

TIN/LEAD OVER NICKEL

84

100

”

TIN OVER NICKEL (RoHS)

27

30

”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

SELECT CONTACT:

#30 or #32

CONTACT (DATA ON PAGE 253)

(For alternate contact choices, see groups B and C on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
