GXO-L72J100.0000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GXO-L72J100.0000MHZ

GXO-L72J100.0000MHZ: DescriptionLVDS Output Clock Oscillator, 100MHz Nom, ROHS COMPLIANT, CERAMIC, 6 PIN; CategoryPassive components oscillator; File Size97KB，2 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GXO-L72J100.0000MHZ Overview

LVDS Output Clock Oscillator, 100MHz Nom, ROHS COMPLIANT, CERAMIC, 6 PIN

GXO-L72J100.0000MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
package instruction	ROHS COMPLIANT, CERAMIC, 6 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL; TRISTATE ENABLE/DISABLE FUNCTION
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	GXO-L72
Installation features	SURFACE MOUNT
Nominal operating frequency	100 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	LVDS
Output load	100 OHM
physical size	7.2mm x 5.2mm x 1.8mm
longest rise time	1 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

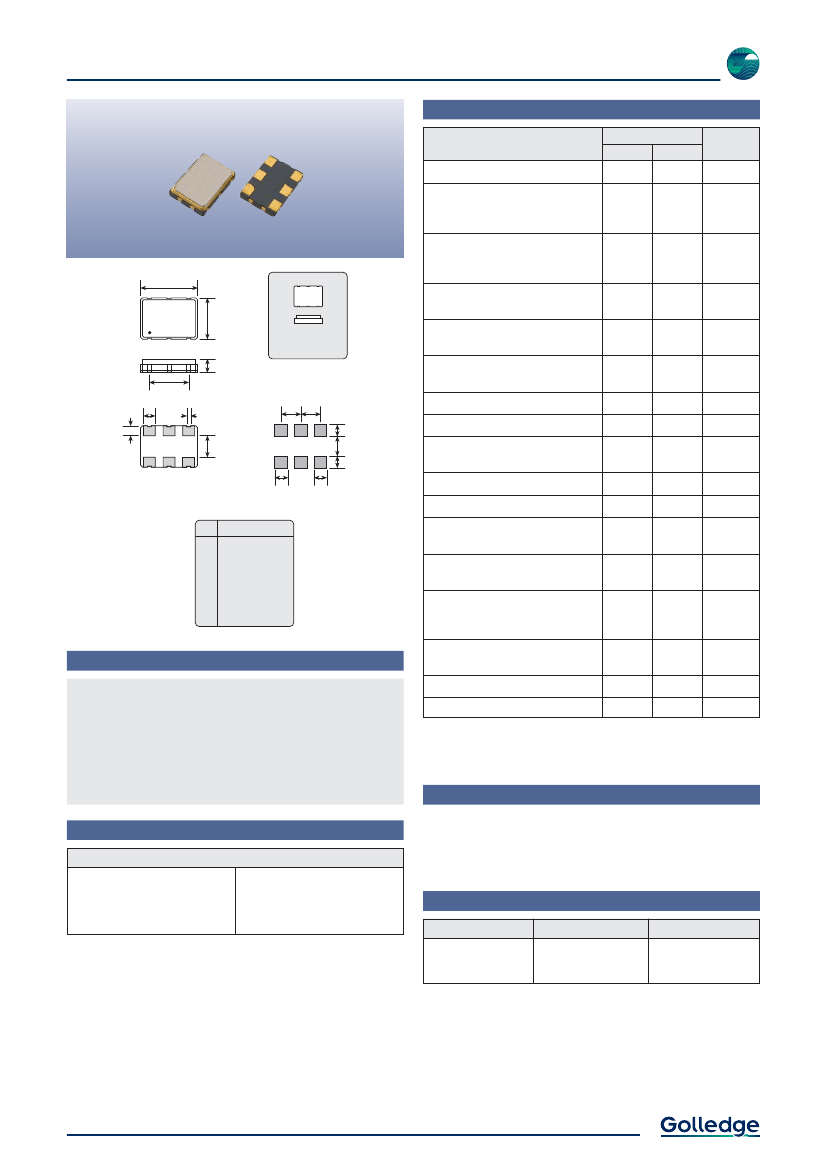

2.5V & 3.3V LVDS Oscillator

Specifications

GXO-L72

Variant

100 ~ 165MHz

±100ppm

±50ppm

±25ppm

Parameters

Frequency range:

Frequency stability*:

Option

Codes

7.20

(max)

Operating temperature range:

-10 to +70°C

-40 to +85°C

Storage temperature range:

-40 to +85°C

Supply voltage (V

+3.3V (±5%)

+2.5V (±5%)

Supply current:

70mA max, 50mA typ

Output:

1.50

2.40

1.50

1.60

5.20

(max)

1.80

(max)

5.08

1.10

1.40

0.60

2.60

ACTUAL SIZE

SOLDER PAD LAYOUT

2.54 2.54

LVDS

1.25V typ

Offset voltage:

Differential output voltage:

0.33V typ

Output load:

Start up time:

100

10ms max

TOP VIEW

PAD

CONNECTION

Enable / disable or

Not connected

Waveform symmetry:

45:55 max @ 50%V

P-P

Rise / fall time:

1.0ns max (20 ~ 80%V

P-P

)

Enable / disable function:

Tristate (control via pad 1)

None (pad 1 not connected)

Output enable / disable time:

20 ms / 200ns max

Stand-by current:

30µA max

Not connected

Ground

Output 1

Output 2

Supply

Scale 2:1

Features

Differential outputs

Enable / disable tristate option

Fast rise / fall times

Designed for SONET, SDH, IEEE1394 etc

Period jitter RMS:

5ps max, 3ps typ

Standard.

Optional - Please specify required code(s) when ordering

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change and load change.

Ordering Information

Product name + variant + option codes (if any) + frequency

eg:

GXO-L72L 108.0MHz

3.3V, ±100ppm -10+70°C

GXO-L72J/BI 125.0MHz

2.5V, ±50ppm -40+85°C

Option code X (eg GXO-L72L/X) denotes a custom spec.

Standard Frequencies

Frequencies in MHz

100.0000

106.2500

108.0000

125.0000

133.0000

Other frequencies available. Please consult our sales office.

155.5200

156.2500

161.1230

164.3550

Enable / Disable Function

Input (pad 1)

Open

‘1’ level ( 0.7V

)

‘0’ level ( 0.3V

)

Output 1 (pad 4)

Enabled

High Impedance

Output 2 (pad 5)

Enabled

High Impedance

Tel:

+44 1460 256 100

17 Mar 2006

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
