BAcKpAneL connectors
XCede
®
HigH-PerformanCe
BaCkPlane ConneCtor SyStem

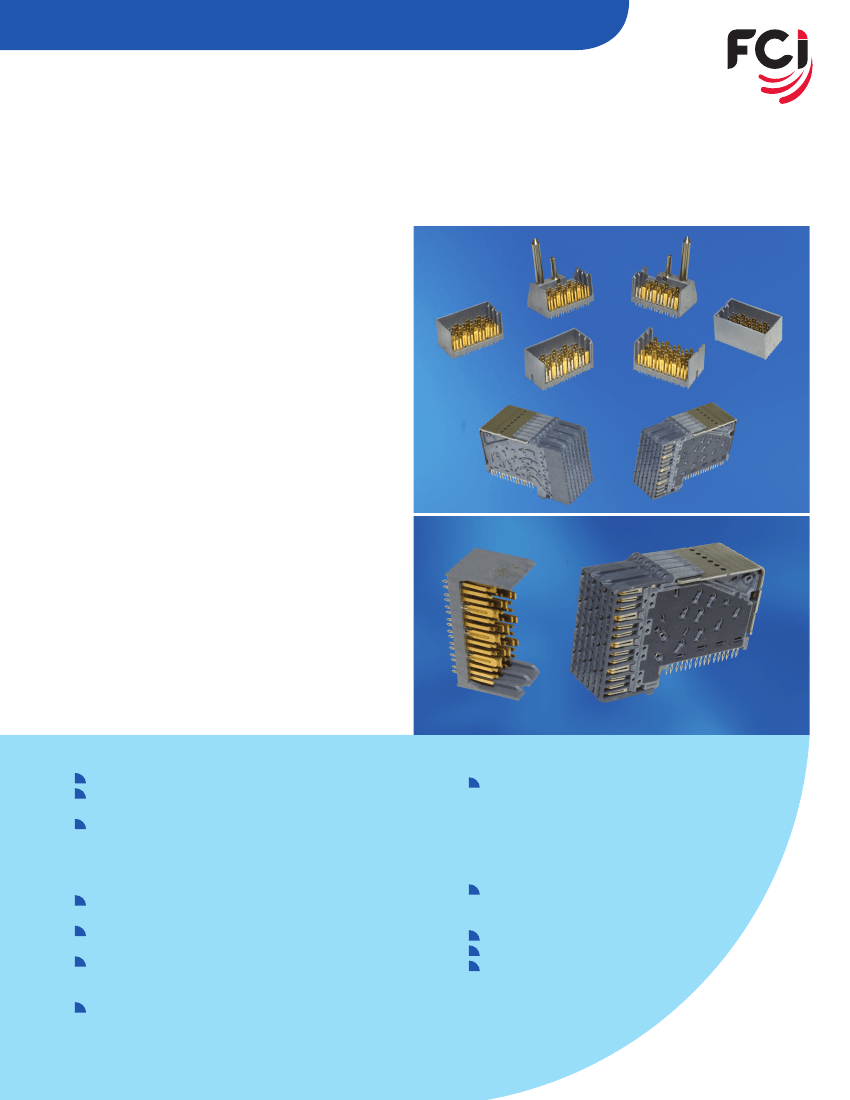

Description
Fci’s Xcede
®
connector platform is designed for 25 Gb/s
performance to provide the headroom to support future
high-speed, serial data rate requirements demanded by
next-generation equipment in data centers and service
provider networks. the use of engineering polymers in a
resonance-damping shield enables very low crosstalk
across a wide frequency range.
Xcede connectors also address requirements for higher
linear signal density at the interface of backplane and
daughter card. signal connectors can be configured with
2, 4 or 6 differential pairs per column, providing up to 82.4
differential pairs/inch, suiting architectures with multiple
front or rear fabric slots and blade systems with cooling
straight through the backplane. complementary guidance
and power modules are also included in the product
range. A wafer organizer can be used to combine groups
of right-angle signal, guidance and power modules as an
integrated daughter-card connector.
the Xcede backplane header system provides the
ruggedness and long-term reliability required by today’s
systems. the wide ground contacts feature a stiffness-
enhancing rib and are advanced well ahead of the signals
for exceptional robustness and signal pin protection.
FeAtures & BeneFits
High-speed backplane system designed for 25 Gb/s
Use of engineering materials in the shield aids in
reduction of crosstalk resonances
1.85 mm column pitch offers high linear signal density
• Configurations with 6 differential pairs/column fit 36 mm
card slot pitch and provide 82.4 pairs/inch
• 4 pairs/column fit 25 mm slot pitch with 54.9 pairs/inch
• 2 pairs/column fit 15 mm slot pitch with 27.5 pairs/inch
Two ground vias between differential pairs allow elongated
antipads to further improve impedance
Optional short compliant pin permits deeper backdrilling and
dual diameter vias to enhance return loss performance
Wide ground contacts feature a stiffening rib and are
advanced well ahead of signals for exceptional robustness
and signal pin protection
Intermateable, electrically and mechanically interchangeable
licensed second source to Amphenol TCS
Xcede® is a registered trademark of Amphenol corporation
tArGet MArKets / AppLicAtions
Communications
•
Routers
•
Switches
•
Networking
•
Access
•
Transport
•
Wireless
Data
•
Servers
•
Storage Systems
Industrial
Medical
Test & Measurement
XCede
®
HigH-PerformanCe BaCkPlane ConneCtor SyStem
tecHnicAL inForMAtion
MAteriALs
contacts: copper alloy
platings:
• performance based plating at separable interface
(telecordia Gr-1217 core central office)
• tin or tin-lead over nickel on press-fit tails
Housings: High temperature thermoplastic, uL 94-V0
Wafer organizer: stainless steel
speciFicAtions
production specification: Gs-12-588
Application specification: Gs-20-121
ApproVALs AnD certiFicAtions
uL and csA approvals
eLectricAL perForMAnce
contact resistance: 10 mΩ maximum change from initial
reading after environmental exposure
current rating (with < 30
o
c temperature rise above
ambient):
• signal contact: 1 A/contact
• Wide ground contact: 2 A/contact
• power contact: 6 A/blade
insertion loss performance: see below
crosstalk performance: see below
MecHAnicAL perForMAnce
Mating force: 0.65 n maximum per contact
unmating force: 0.15 n minimum per contact
press-fit insertion force: 35.6 n maximum per tail
enVironMentAL
telcordia Gr-1217-core central office

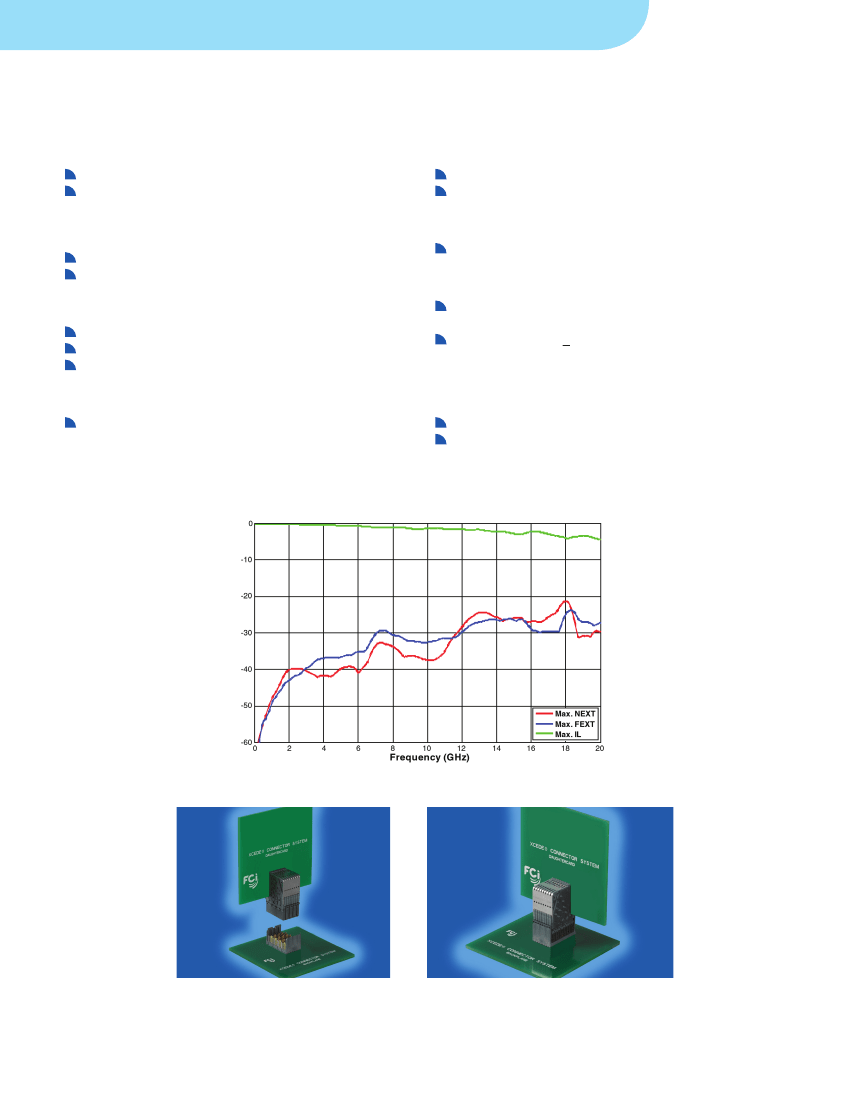

Maximum power-summed crosstalk & insertion Loss
(Xcede connectors with 4 differential pairs/column)
AppLicAtions
For more information, visit www.fciconnect.com/highspeed or contact Xcede@fci.com
dB
www.fciconnect.com

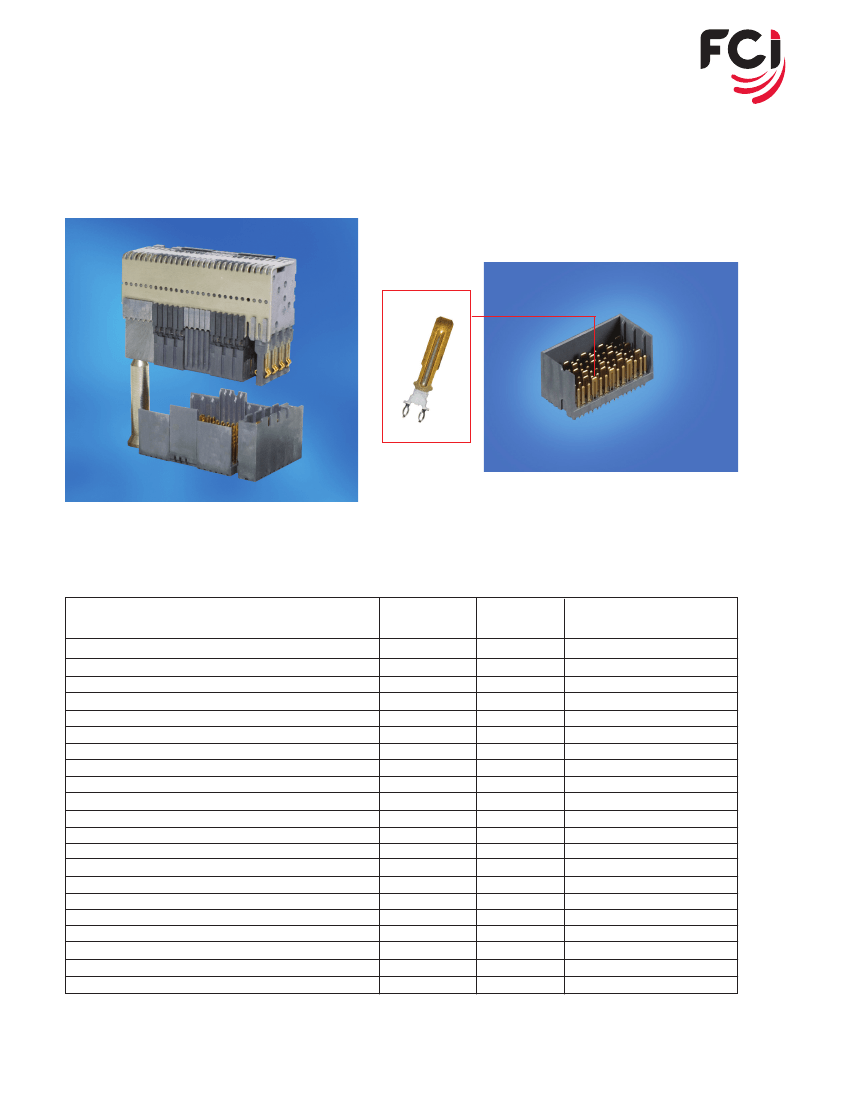

ADDitionAL FeAtures
• in addition to providing individual right-angle receptacle
signal modules, customized groupings of right-angle
signal, guidance and power modules can be attached to
a single wafer organizer to form an integrated daughter
card connector.
• the wide ground contacts in the vertical backplane
headers feature a stiffening rib that extends near the
tip of the contact and are advanced well ahead of
the signal contacts for exceptional robustness and
signal pin protection.
pArt nuMBers
Lead-free part numbers are listed in the table; tin-lead versions are available upon request. Header part numbers
shown provide 2mm signal contact wipe length; versions providing 3mm wipe length are also available.
Module Description
Right-angle receptacle
Vertical header with 2 side walls
Vertical header with 3 walls including right end wall
Vertical header with 3 walls including left end wall
Vertical header with 4 walls
Vertical header with 3 walls, left guide & key opening
Vertical header with 3 walls, right guide & key opening
Right-angle receptacle
Vertical header with 2 side walls
Vertical header with 3 walls including right end wall
Vertical header with 3 walls including left end wall
Vertical header with 4 walls
Vertical header with 3 walls, left guide & key opening
Vertical header with 3 walls, right guide & key opening
Right-angle receptacle
Vertical header with 2 side walls
Vertical header with 3 walls including right end wall
Vertical header with 3 walls including left end wall
Vertical header with 4 walls
Vertical header with 3 walls, left guide & key opening
Vertical header with 3 walls, right guide & key opening
Differential pairs
per column
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
Number
of columns
4
4
4
4
4
4
4
6
6
6
6
6
6
6
8
8
8
8
8
8
8
Part Number
10091844-101LF
10091836-00J-10DLF
10091836-M0J-10DLF
10091836-L0J-10DLF
10091836-10J-10DLF
10091836-J0J-10DLF
10091836-Y0J-10DLF
10091799-101LF
10091767-00C-10DLF
10091767-M0C-10DLF
10091767-L0C-10DLF
10091767-10C10DLF
10091767-J0C-10DLF
10091767-Y0C-10DLF
10091812-101LF
10091777-00E-10DLF
10091777-M0E-10DLF
10091777-L0E-10DLF
10091777-10E10DLF
10091777-J0E-10DLF
10091777-Y0E-10DLF
For more information, visit www.fciconnect.com/highspeed or contact Xcede@fci.com
www.fciconnect.com
XCede
®
HigH-PerformanCe BaCkPlane ConneCtor SyStem
tecHnicAL inForMAtion
pArt nuMBers
Lead-free part numbers are listed in the table; tin-lead versions are available upon request. Header part numbers
shown provide 2mm signal contact wipe length; versions providing 3mm wipe length are also available.
Module Description
Vertical header with 2 side walls
Vertical header with 3 walls including right end wall
Vertical header with 3 walls including left end wall
Vertical header with 4 walls
Vertical header with 3 walls, left guide & key opening
Vertical header with 3 walls, right guide & key opening
Vertical header with 2 side walls
Vertical header with 3 walls including right end wall
Vertical header with 3 walls including left end wall
Vertical header with 4 walls
Vertical header with 3 walls, left guide & key opening
Vertical header with 3 walls, right guide & key opening
Vertical header with 2 side walls
Vertical header with 3 walls including right end wall
Vertical header with 3 walls including left end wall
Vertical header with 4 walls
Vertical header with 3 walls, left guide & key opening
Vertical header with 3 walls, right guide & key opening
Vertical header with 2 side walls
Vertical header with 3 walls including right end wall
Vertical header with 3 walls including left end wall
Vertical header with 4 walls
Vertical header with 3 walls, left guide & key opening
Vertical header with 3 walls, right guide & key opening
Vertical header with 2 side walls
Vertical header with 3 walls including right end wall
Vertical header with 3 walls including left end wall
Vertical header with 4 walls
Vertical header with 3 walls, left guide & key opening
Vertical header with 3 walls, right guide & key opening
Vertical header with 2 side walls
Vertical header with 3 walls including right end wall
Vertical header with 3 walls including left end wall
Vertical header with 4 walls
Vertical header with 3 walls, left guide & key opening
Vertical header with 3 walls, right guide & key opening
Differential pairs
per column
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
Number
of columns
4
4
4
4
4
4
6
6
6
6
6
6
8
8
8
8
8
8
4
4
4
4
4
4
6
6
6
6
6
6
8
8
8
8
8
8
Part Number
10114868-00J-10DLF
10114868-M0J-10DLF
10114868-L0J-10DLF
10114868-10J-10DLF
10114868-J0J-10DLF
10114868-Y0J-10DLF
10113947-00C-10DLF
10113947-M0C-10DLF
10113947-L0C-10DLF
10113947-10C10DLF
10113947-J0C-10DLF
10113947-Y0C-10DLF
10113949-00E-10DLF
10113949-M0E-10DLF
10113949-L0E-10DLF
10113949-10E10DLF
10113949-J0E-10DLF
10113949-Y0E-10DLF
10114508-00J-10DLF
10114508-M0J-10DLF
10114508-L0J-10DLF
10114508-10J-10DLF
10114508-J0J-10DLF
10114508-Y0J-10DLF
10104997-00C-10DLF
10104997-M0C-10DLF
10104997-L0C-10DLF
10104997-10C10DLF
10104997-J0C-10DLF
10104997-Y0C-10DLF
10104999-00E-10DLF
10104999-M0E-10DLF
10104999-L0E-10DLF
10104999-10E10DLF
10104999-J0E-10DLF
10104999-Y0E-10DLF
For more information, visit www.fciconnect.com/highspeed or contact Xcede@fci.com
FCI - Americas : 1 (800) 237 2374 - Europe : 33 1 72 67 35 00 - Asia/Pacific : 65 6549 6666
www.fciconnect.com
ELXXCEDE0511ELT
Printed on recycled paper
