BOARD TO BOARD CONNECTORS
CONAN
®
High Density, Low Profile 1.00mm Pitch Mezzanine Connectors
C - Series
for Demanding Commercial Electronics Applications
DESCRIPTION
The Conan 1.0mm mezzanine
connector system provides a
mechanically secure, high density
electrical interface between parallel
printed circuit boards.
Conan’s mechanical features and
palladium/nickel/gold plated
electrical contacts qualify it for high
reliability use in durable commercial
electronic equipment and
instruments.
FEATURES & BENEFITS
“Snap” engagement contacts assure secure mating
with an audible “click”
Blade-on-beam contact design allows "peeling"
disengagement and prevents contact stubbing
Connector housings feature "lead-in" angles to
assist in mating
Surface mounted metal hold-downs reinforce
connector retention to the printed circuit board
Mating polarization prevents backward connections
PCB polarization prevents errors during printed
circuit board assembly
Pick and place caps with tape and reel packaging
support automated assembly processes
Header height options support a range of PCB
stack heights: 4.15mm to 7mm
9 part sizes: 9 to 69 contacts
Lead-free RoHS compatible products satisfy
environmental regulations
TARGET MARKETS / APPLICATIONS
Portable meters / instruments
Medical diagnostics
Point-of-sale equipment, scanning
Machine-to-Machine (M2M)
Energy controllers / modules / displays
Communications and networking equipment
Electronic security
Office equipment
High Density, Low Profile 1.00mm Pitch Mezzanine Connectors
CONAN
®
C - Series
for Demanding Commercial Electronics Applications
MATERIALS
Contact base metal
• Header: Phosphor bronze
• Receptacle: Copper Alloy, High Spring
Contact area finish: gold or GXT
Solder area finish: Pure tin over 1.27um (50uin.) nickel
Housing material: Cream-colored LCP (UL 94V-0)
MECHANICAL PERFORMANCE
Mating force: 125g per contact max
Unmating force: 25g per contact min
Retention force (connector to PCB): 44 N (10lbf) min
Contact wipe: 0.64mm (0.025 in.)
Durability: 30 mating cycles
ELECTRICAL PERFORMANCE
Insulation resistance: 1000 MΩ min
Contact resistance: 30 mΩ max
Withstanding voltage: 500 V ac, rms, 60 Hz
Current rating: 1.0 amp continuous
(per contact, all contacts powered)
Signal Integrity (differential pairs, connector only)
• Impedance: 100Ω +/- 10% @ 50 ps edge (10-90%)
• Insertion Loss: < 1dB to 5GHz
• NEXT:
≤3.5%
for a 50 ps edge (10-90%)
• FEXT:
≤2.5%
for a 50 ps edge (10-90%)
ENVIRONMENTAL PERFORMANCE
IMFG per EIA 364-65 class 2a
without SO
2
, 20 days mated
High temperature life 105°C
SPECIFICATIONS
GS-12-0977
PACKAGING
Tape and reel with vacuum pickup caps
PART NUMBERS

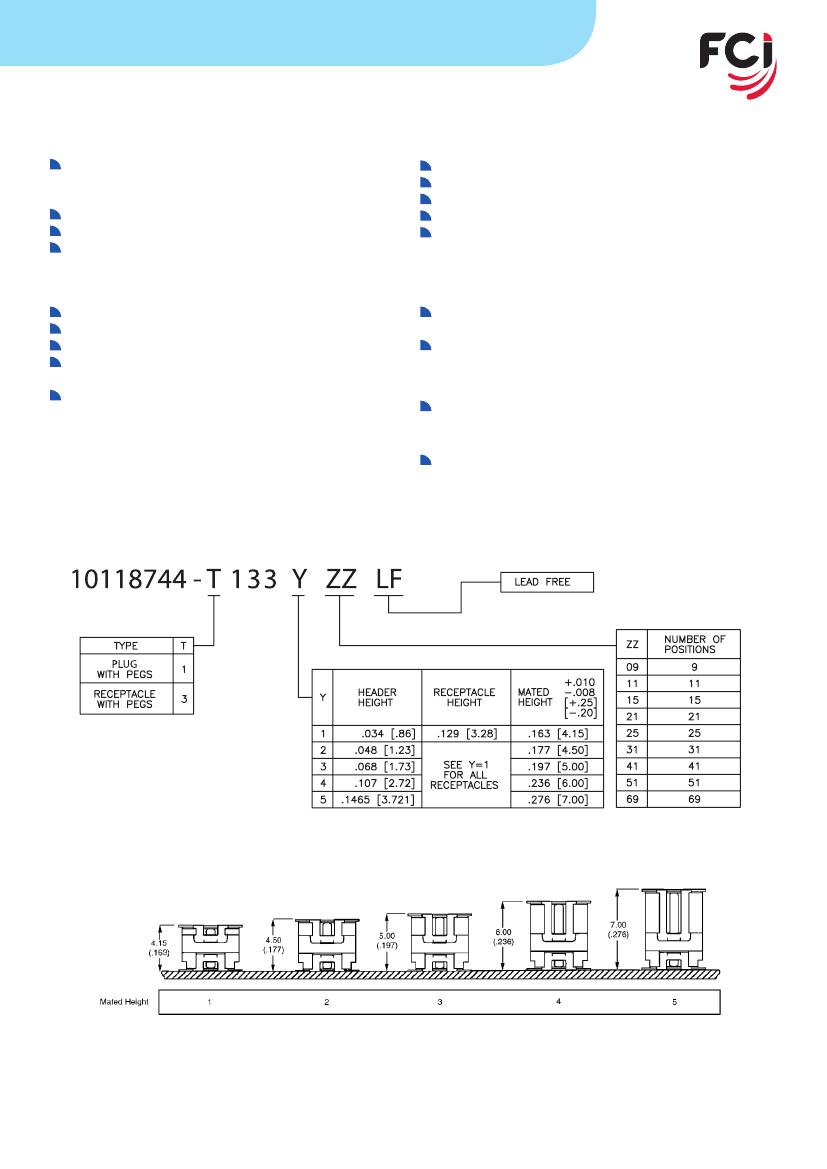

For additional configurations and packaging please consult print 91900 at www.fciconnect.com
Mated connector max.width: .220” (5.59mm)
For more information please contact: elxcommunications@fci.com
www.fciconnect.com/conan
ELXCONANCOM1211EA4
