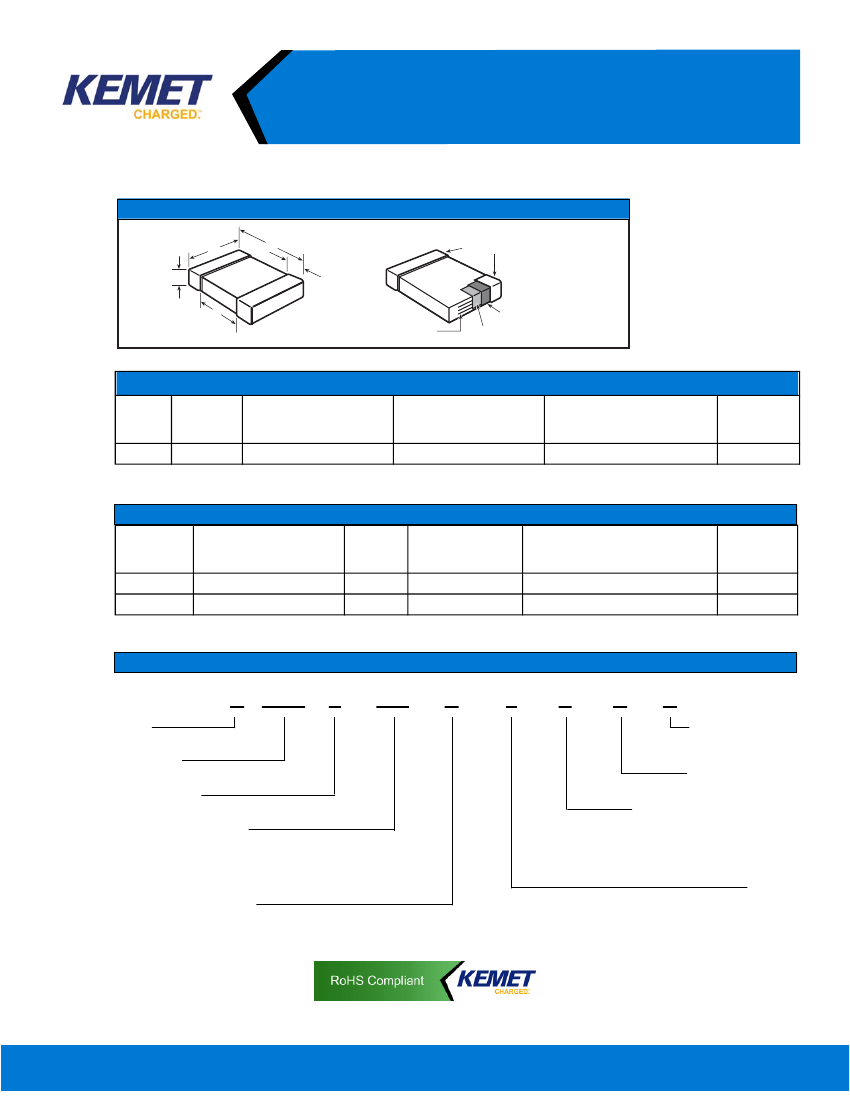

Product Bulletin
Surface Mount Ceramic Chip Capacitors – C0201
Series
-
X5R
Dielectric
Outline Drawing
W
T
S
ELECTRODES
L
B
NICKEL PLATE
CONDUCTIVE METALLIZATION
TIN PLATE
Dimensions – Millimeters (Inches)
EIA Size Metric Size
Code
Code
0201
0603
L
Length
0.6 (.024) ± 0.03 (.001)
W
Width
0.3 (.012) ± 0.03 (.001)
B
Bandwidth
0.15 (.006) ± 0.05 (.002)
S
Separation
-
See Capacitance Value Table below for thickness dimension.
Capacitance Value
Capacitance
Value (uF)
0.01
0.10
KEMET Part Number
C0201C103K4PAC
C0201C104K9PAC
Voltage
16
6.3
Capacitance
Tolerance
K,M
K,M
Thickness
0.3 (.012) ± 0.03 (.001)
0.3 (.012) ± 0.03 (.001)
Qty
7" Reel
15,000
15,000
Capacitor Ordering Information
C 0201
Style
C - Ceramic
Size Code
See dimension table
Specification
C - Standard
C
104
K
9
P
A
C
End Metallization
C = Standard (Tin-plate
nickel barrier)
Failure Rate Level
A = Not Applicable
Capacitance Code, pF
First two digits represent significant figures.
Third digit specifies number of zeros. 100 pF = 101.
(Use “9” for 1.0 through 9.9 pF)
(Use “8” for 0.1 through .99 pF)
Capacitance Tolerance
K = ± 10%
M = ± 20%
Temperature Characteristic
Designated by Capacitance
Change Over Temperature Range
P = X5R (±15%) (-55°C +85°C)
Voltage
9 = 6.3V
4 = 16V
F-9078C 08/06
Electrical Parameters
As detailed in the KEMET Surface Mount Catalog F3102 for X5R, with following specific requirements
based on room temperature (25°C) parameters:
• Operating Range: -55°C to +85°C, with no-bias capacitance shift limited to ± 15% over that range.
• Insulation Resistance (IR) measured after 2 minutes at rated voltage @ 25°C: Limit is 500
megohm microfarads or 10000MΩ, whichever of the two is smaller.
• Capacitance and Dissipation Factor (DF) measured at 1 kHz and 1 Vrms. DF Limit is 10%
max.**
** Please refer to individual specifications.
Soldering Process
These components are suitable for reflow only. All parts incorporate the standard KEMET
barrier layer of pure nickel, with an overplate of pure tin to provide excellent solderability as well as resist-
ance to leaching.
Marking
These chips will be supplied unmarked.
In general, the information in the KEMET Surface Mount catalog F3102 applies to these
capacitors. The information in this bulletin supplements that in the catalog.
F-9078C 08/06
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
