MFW2815T/ES: Description3-OUTPUT 60W DC-DC REG PWR SUPPLY MODULE, HERMETIC SEALED PACKAGE-10; CategoryPower/power management The power supply circuit; File Size458KB，7 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com

Download Datasheet Parametric Compare View All

MFW2815T/ES Overview

3-OUTPUT 60W DC-DC REG PWR SUPPLY MODULE, HERMETIC SEALED PACKAGE-10

MFW2815T/ES Parametric

Parameter Name	Attribute value
Maker	Interpoint （ Crane Aerospace & Electronics ）
Parts packaging code	MODULE
package instruction	,
Contacts	10
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ADDITIONAL +/-15V OUTPUTS AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	84%
Maximum input voltage	40 V
Minimum input voltage	19 V
Nominal input voltage	28 V
JESD-30 code	R-CXMA-P10
JESD-609 code	e3
Maximum grid adjustment rate	0.095%
Maximum load regulation	0.4%
Number of functions	1
Output times	3
Number of terminals	10
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	5.05 V
Minimum output voltage	4.9 V
Nominal output voltage	5 V
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN
Terminal form	PIN/PEG
Terminal location	UNSPECIFIED
Maximum total power output	60 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

NOT RECOMMENDED FOR NEW DESIGNS

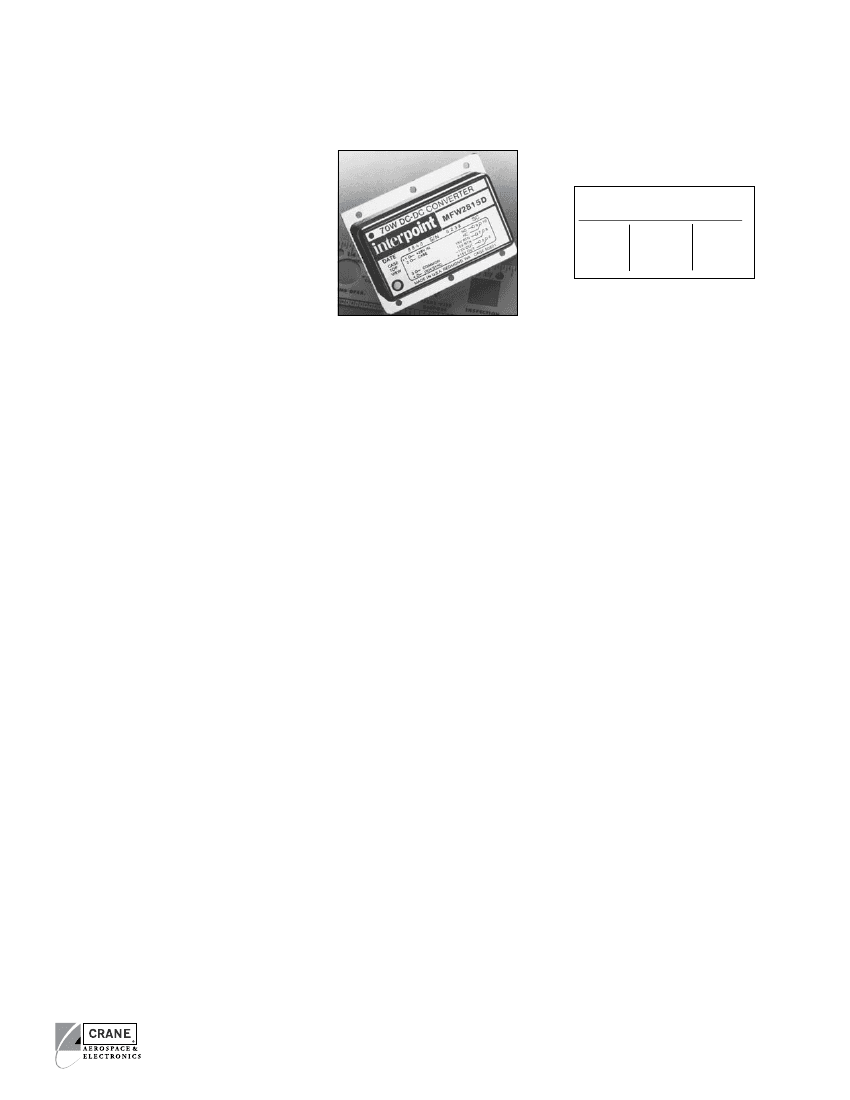

Features

•

DC/DC C

onverters

28 v

olt

nput

mfw SerieS

70 watt

–55°C to + 85°C operation

19 to 40 VdC input

Fully Isolated

ModELS

VDC O

utput

single

optocoupler feedback

Fixed frequency, 245 kHz typical

Topology – Push-Pull Forward

Inhibit/sync function

50 V for up to 50 ms transient protection

Indefinite short circuit protection

Up to 84% efficiency

Dual

±12

±15

tRiple

+5 & ±12

+5 & ±15

Remote sense on single models

Size (max.): 3.20 x 2.46 x 0.595 inches (81.3 x 62.5 x 15.11 mm)

See case L for dimensions.

Weight:

140 grams typical

Screening: Standard or ES. See “85°C Non-QML Products–Environmental

Screening (Standard & ES)“ screening table for more information.

description

The MFW Series™ of dC/dC converters offers up to 70 watts of

power from single, dual, or triple outputs in one package. Using hybrid

thick film technology a power density of over 20 watts per cubic inch

is achieved. These devices are packaged in hermetically sealed cold

rolled steel enclosures with a tin plate finish making them ideal for use

in military, aerospace, or other high reliability applications. Unscreened

models are guaranteed to pass a gross leak test (maximum leak rate

of 0.001 atm-cc/sec). Environmentally screened units (designated

by the /ES suffix) are hermetically solder sealed. See Section C2 for

screening specifications.

iDe

Oltage

ange

All models of the MFW Series are designed to provide full power

operation over an input voltage range of 19 to 40 VdC. operation

below an input of 19 volts, including operation in MIL-STd-704E emer-

gency power conditions, is possible with derated output power. Please

refer to the derating information and the low voltage drop-out graphs

(Figures 10 and 11) on the following pages.

iDe

eMpeRatuRe

ange

esign

ethODOlOgy

The MFW Series converters utilize a quasi-square wave forward

converter design with a nominal switching frequency of 245 kHz.

Isolation between input and output is provided with a transformer in the

forward power loop and a wideband, temperature insensitive optical

link in the feedback control loop. output regulation is accomplished

with constant frequency pulse width modulation. In addition, the load

regulation of the single output models is further enhanced through

the use of remote output voltage sense pins to overcome the adverse

effects of line resistance voltage drops. Short circuit protection is

provided by detecting peak primary switching current on a cycle by

cycle basis and limiting it to approximately 130% of the full load input

current. This method results in quick and positive current limiting under

short circuit conditions.

Full load operation of any of the MFW Series converters is available

at case temperatures of –55°C to + 85°C. operation up to +125°C is

possible with derated output power. The MFW Series converters are

provided in a flange mount case designed to facilitate the removal of

internally generated heat. Because of this, heat sinking requirements

are minimal. Sustained full power operation does however require that

an efficient heat sink be attached to the baseplate. Please refer to the

heat sink requirements section for more information.

nhibit

ynC

eatuRe

Oise

Standard on all models of the MFW Series is a dual mode inhibit/sync

pin. This pin serves as both an output inhibit and as a synchronization

input. In the inhibit mode an open collector TTL compatible low (<0.8

V) will disable internal switching thereby inhibiting the unit’s output.

Inhibiting in this manner results in an extremely low quiescent current.

Since a pull-up resistor is included internally, this pin may be left open

should the inhibit function not be desired.

In a digital system it is often desirable to synchronize the input or

output ripple with the system clock. For this reason each model of the

MFW Series was designed to synchronize with a system clock applied

to the inhibit/sync pin. Please refer to the technical data section for

timing details for the external sync feature.

The MFW Series converters offer low noise on both the input and

output lines. A two section, four pole LC input filter is included to

provide very low reflected line ripple current. Adherence to MIL-STd-

461C (CE03) is possible with the addition of the FMB-461 filter. output

ripple is maintained at less than 50 mV p-p for single and dual output

models and 85 mV for triple output models.
