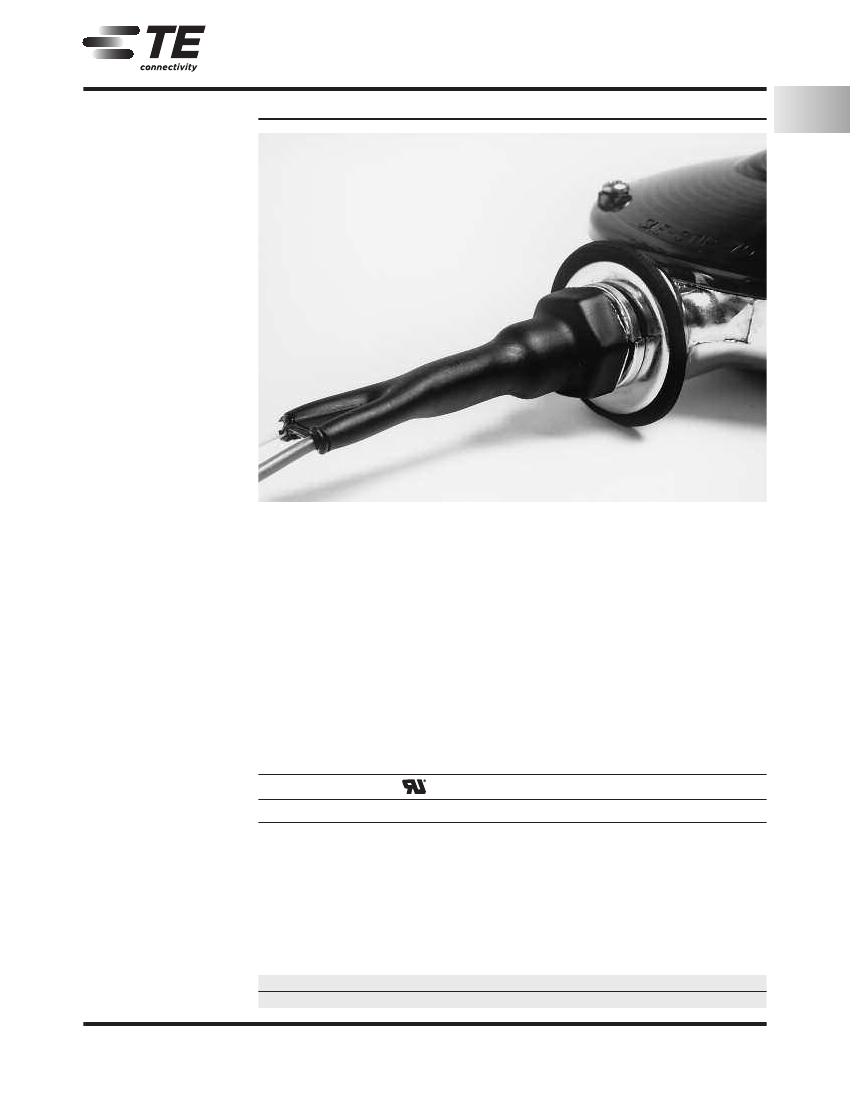

RAYCHEM Tubing Products
SCL
Semirigid,
Encapsulant-Lined,
Polyolefin Tubing
Product Facts
3:1 shrink ratio
I
Splash-resistant, moisture-
resistant covering; not
intended for use where
immersion in fluids is
required
I
Rugged protection against
abrasion, vibration, and
flexing
I
Excellent strain relief and
insulation of weak points
I
RoHS compliant
I
1
Heat-shrinkable Tubing
Applications
Encapsulates components,
splices, and terminations
where moisture resistance
and mechanical protection
are required. Encapsulant
melts and flows to fill
surface irregularities of the
substrate. While still hot,
the tubing can be blocked
to form a wire breakout.
Installation
Minimum shrink
temperature: 125°C [257°F]
Minimum full recovery
temperature: 135°C [275°F]
Operating Temperature Range
-55°C to 110°C
[-67°F to 230°F]
Specifications/Approvals
Series
SCL
UL
E85381
600 V, 125°C
Military
AMS-DTL-23053/4*, Class 1
Raychem
RT-1301
*Formerly MIL-I-23053/4 and MIL-DTL-23053/4.
Available in:
Americas
I
Europe
I
Asia Pacific
I
1-109
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666
RAYCHEM Tubing Products
SCL
(Continued)
Product Dimensions
Size
1/8
3/16
1/4
3/8
1/2
3/4
1
Additional
Standard Color
Brown
Gray
White
Red
Blue
Yellow
N/A
Inside Diameter
Minimum
Maximum
Expanded
Recovered
After Heating
as Supplied
3.2 [0.125]
0.6 [0.023]
4.8 [0.187]
1.5 [0.060]
6.4 [0.250]
2.0 [0.080]
9.5 [0.375]
3.4 [0.135]
12.7 [0.500]
5.0 [0.195]
19.1 [0.750]
8.0 [0.313]
25.4 [1.000]
10.2 [0.400]
Recovered Wall Thickness**
Meltable Wall
Total Wall
After Heating
After Heating
(Nominal)
0.96 ± 0.15 [0.038 ± 0.006]
0.51 [0.020]
1.09 ± 0.15 [0.043 ± 0.006]
0.64 [0.025]
1.19 ± 0.15 [0.047 ± 0.006]
0.69 [0.027]
1.27 ± 0.18 [0.050 ± 0.007]
0.76 [0.030]
1.39 ± 0.18 [0.055 ± 0.007]
0.89 [0.035]
1.65 ± 0.18 [0.065 ± 0.007]
1.02 [0.040]
1.90 ± 0.18 [0.075 ± 0.007]
1.02 [0.040]
**Wall thickness will be less if tubing recovery is restricted during shrinkage.
Ordering Information
Black (-0) for all sizes, plus one additional color per size per
Product Dimensions table.
Size selection
Always order the largest size that will shrink snugly over the component to be covered.
Special order sizes are available upon request.
Standard packaging
In 1.2-meter [4-foot] lengths.
Ordering description*** Specify product name, size and color (for example, SCL 1/4-0).
***Europe only. For supply to MIL spec., Def Stan and BS add -MS, -DS or -BS to ordering description.
Color
Standard
1-110
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666

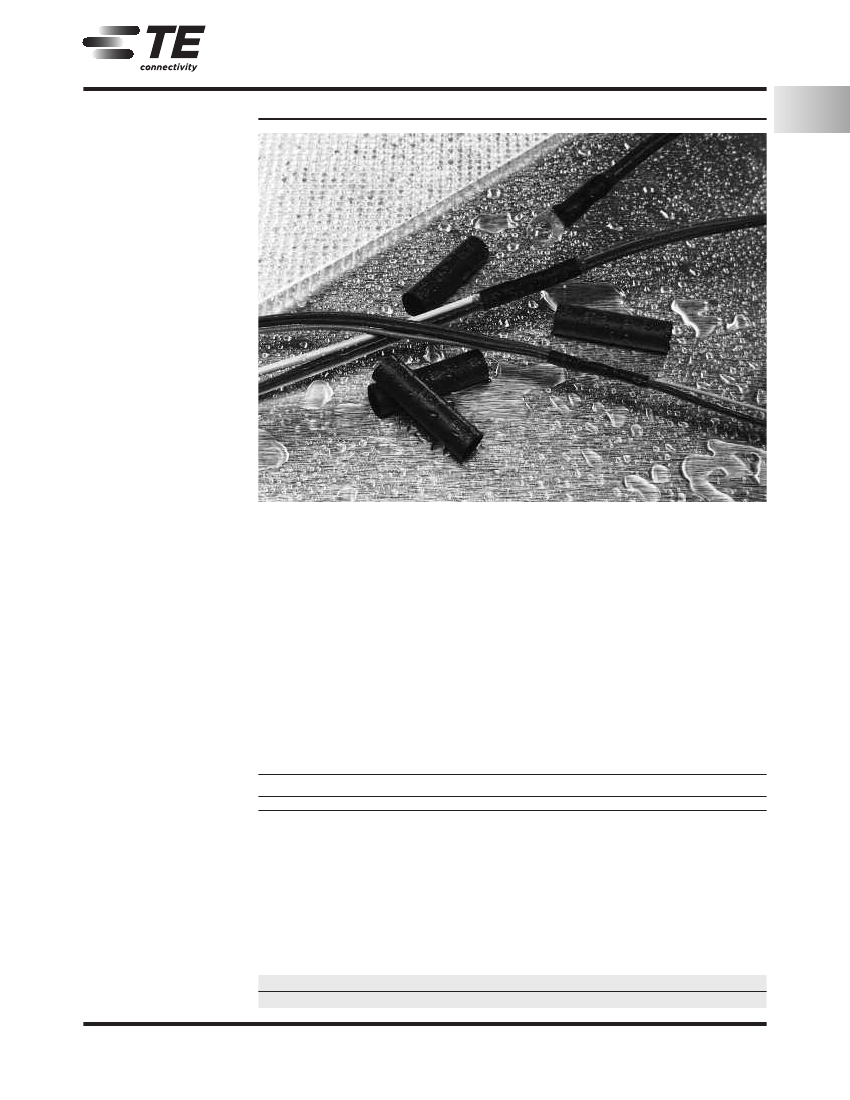

RAYCHEM Tubing Products
SCT
Flame-Retardant,
Adhesive-Lined, Semirigid
Polyolefin Tubing (Extended
Temperature Range)
Product Facts
4:1 shrink ratio allows a few
sizes to cover a wide range
of splice and component
diameters
I
Flame-retardant and
mechanically tough, the
tubing provides strain relief
and abrasion protection of
wire splices, terminals, and
other components
I
Thick adhesive liner forms
an effective barrier against
fluids and moisture and
performs well at an
extended temperature range
I
RoHS compliant
I
1
Heat-shrinkable Tubing
Applications
Specially designed to
insulate and seal
automotive wire splices
and components in an
under-the-hood automotive
environment. Specially
formulated to function at
an extended temperature
range.
Installation
Minimum shrink
temperature: 110°C [230°F]
Minimum full recovery
temperature: 135°C [266°F]
Operating Temperature Range
-40°C to 150°C
[-40°F to 302°F]
Specifications/Approvals
Series
SCT
Raychem
SCT SCD
Available in:
Americas
I
Europe
I
Asia Pacific
I
1-111
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666
RAYCHEM Tubing Products
SCT
(Continued)
Product Dimensions
Part
Number
SCT No. 1
SCT No. 2
SCT No. 3
SCT No. 4
Inside Diameter
Minimum
Maximum
Expanded
Recovered
After Heating
as Supplied
7.6 [0.300]
1.7 [0.065]
9.0 [0.355]
2.3 [0.090]
11.6 [0.455]
2.5 [0.100]
17.8 [0.700]
4.4 [0.175]
Recovered Wall Thickness*
Meltable Wall
Total Wall
After Heating
After Heating
(Nominal)
1.52 ± 0.30 [0.060 ± 0 .012]
0.76 [0.030]
1.52 ± 0.30 [0.060 ± 0 .012]
0.76 [0.030]
2.29 ± 0.30 [0.090 ± 0.012]
1.40 [0.055]
2.54 ± 0.30 [0.100 ± 0.012]
1.52 [0.060]
*Wall thickness will be less if tubing recovery is restricted during shrinkage.
Ordering Information
Color
Size selection
Standard packaging
Marking
Ordering description
Black
Always order the largest size that will shrink snugly over the component being covered.
Special order sizes are available upon request.
Cut pieces.
Tubing will be printed with its numbered size (such as SCT-1, SCT-2, SCT-3, SCT-4).
Specify product name, numbered size, color and cut length
(for example, SCT-NO.3-E3-0-75MM).
1-112
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666

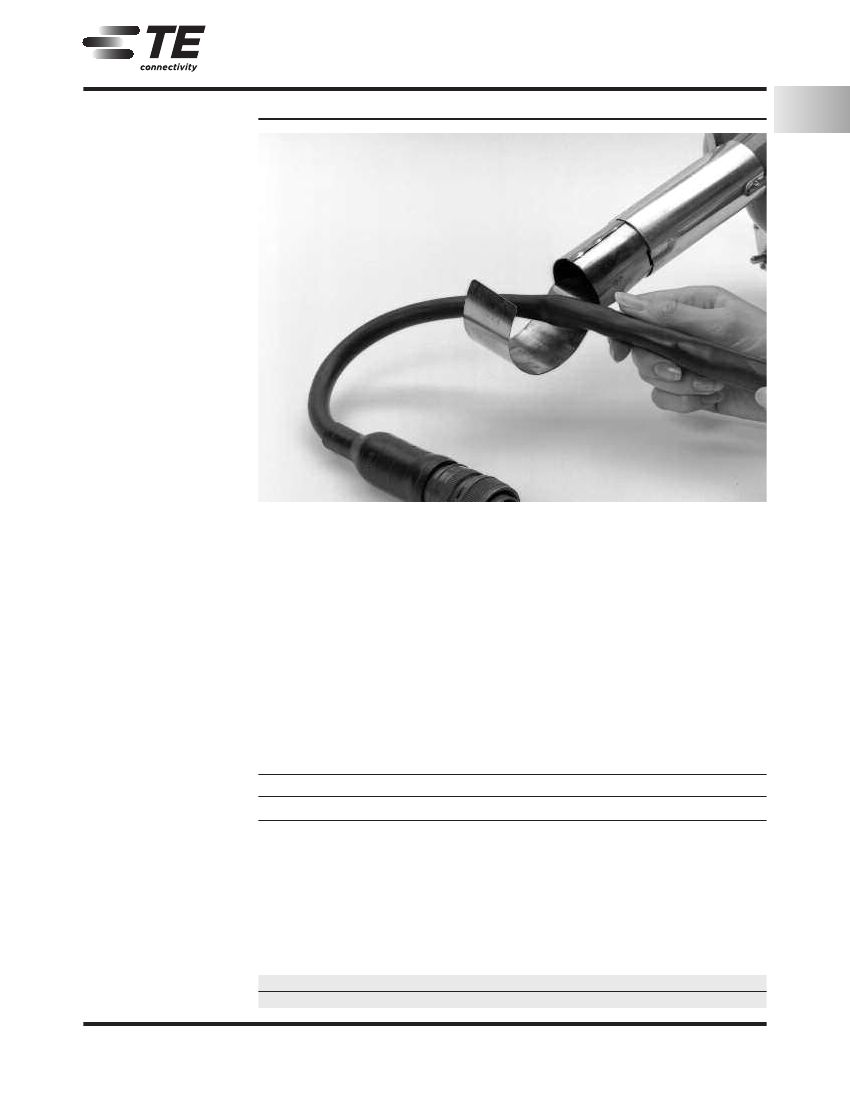

RAYCHEM Tubing Products
SFR
Very Flexible,
Flame-Retardant,
Silicone Elastomer
Tubing
Product Facts
Outstanding low-temperature
flexibility
I
Resistance to hydraulic fluids,
fuel, and lubricating oil
I
Very good ablative
characteristics: when
exposed to flame, surface
turns to insulative char or
“ablates”
I
RoHS compliant
I
1
Heat-shrinkable Tubing
Applications
Provides cable jacketing,
harness protection, and
strain relief for electronic
components, semi-
conductor leads, and
wire splices. Suitable for
applications that require
flexibility over a wide range
of operating temperatures.
Installation
Minimum shrink
temperature: 135°C [285°F]
Minimum full recovery
temperature: 175°C [347°F]
Operating Temperature Range
-75°C to 180°C
[-103°F to 356°F]
Specifications/Approvals
Series
SFR
Military
AMS-DTL-23053/10*
MIL-PRF-46846, Type II, Class 1
Raychem
RT-1140
*Formerly MIL-I-23053/10 and MIL-DTL-23053/10.
Available in:
Americas
I
Europe
I
Asia Pacific
I
1-113
9-1773447-9
CIS WR 08/2011
te.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-475-6222
Mexico: 52-55-1106-0800
L. & S. America: 54-11-4733-2200
Germany: 49-6251-133-1999
China: 86-400-820-6015
Japan: 81-44-844-8013
UK: 44-800-267-666
