HFM09H: DescriptionFLAT RIBBON CABLE D-SUB ASSEMBLY; File Size43KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet Compare View All

HFM09H Overview

FLAT RIBBON CABLE D-SUB ASSEMBLY

Preview

Download Datasheet

View All

30.81

24.99

16.33

11.08

Cover

10.16

Without Insulator Support

Material:

• Insulator: Glass-Filled Thermoplastic PBT, UL94V-0

• Contact: Copper alloy

• Shell: SPCC

Strain Relief

Electrical:

• Contact Resistance: 20M Max. @1Amp DC

• Insulation Resistance: 1,000M @500V DC

• Dielectric Withstanding Voltage: 1,000V AC/rms 60Hz for 1 Min.

• Current Rating: 1 Amp

• Voltage Rating: 250V AC/rms 60Hz

Unit: MM±0.25MM

*Important is that the min mating cycles D-subs must have are 1,000

ITEM NO.

RoHS

Compliant

TITLE

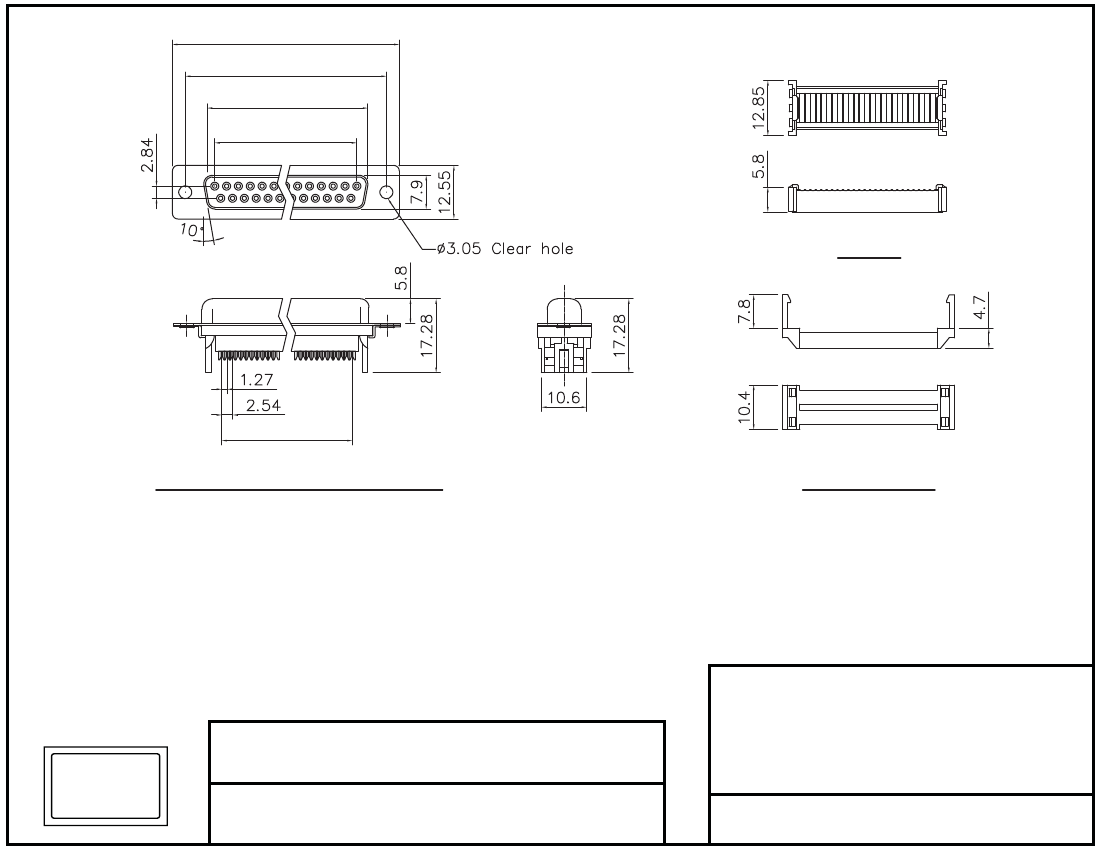

A-DFF09LPXX-III-R

Flat Ribbon Cable D-Sub Assembly - 9Pin, Female,

Low Profile

1840 W. Drake Drive, Suite 101 • Tempe, AZ 85283

Toll Free: 1-877-277-6266 • Email: info@usa-assmann.com

THIS DRAWING IS UNPUBLISHED

All International Rights Reserved

Electronics, Inc.

ASSMANN

HFM09H Related Products

	HFM09H	A-DFF09LPXX-III-R
