Datasheet> All Categories > Analog mixed-signal IC> converter> SDC-14531II-685
PDF
Preview

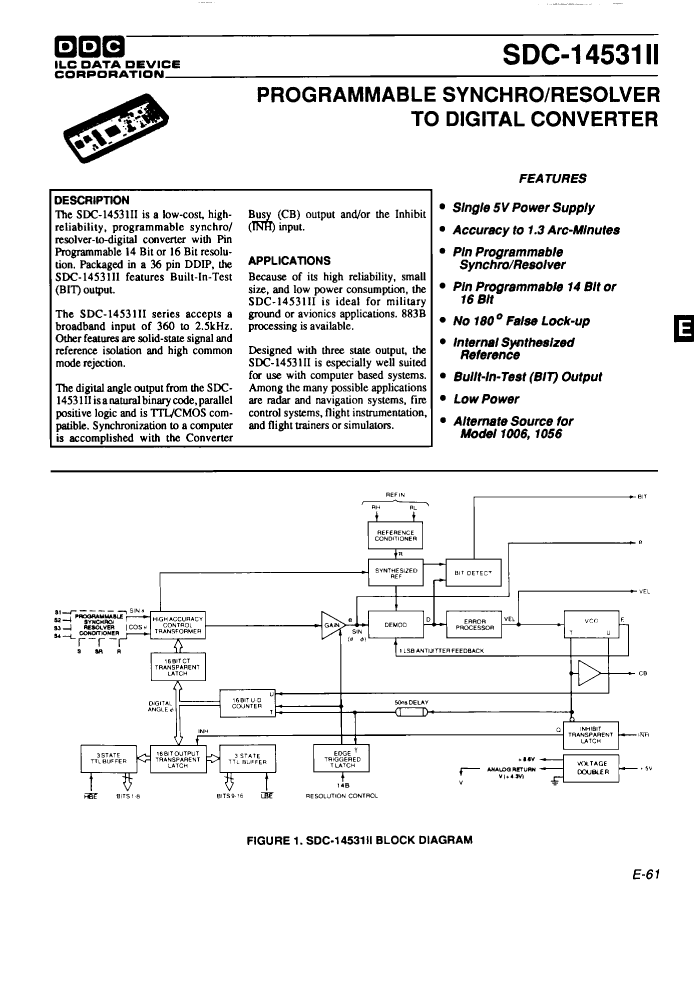

SDC-14531II-685

Description
Synchro or Resolver to Digital Converter, Hybrid, 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36
CategoryAnalog mixed-signal IC    converter
File Size463KB，11 Pages
ManufacturerData Device Corporation
Download Datasheet Parametric Compare View All

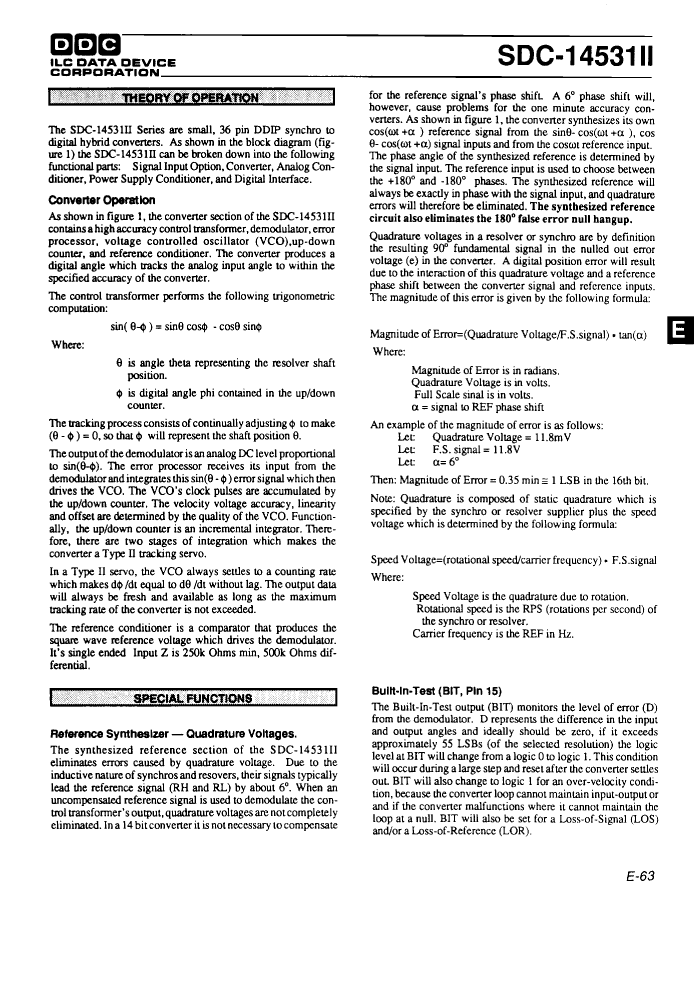

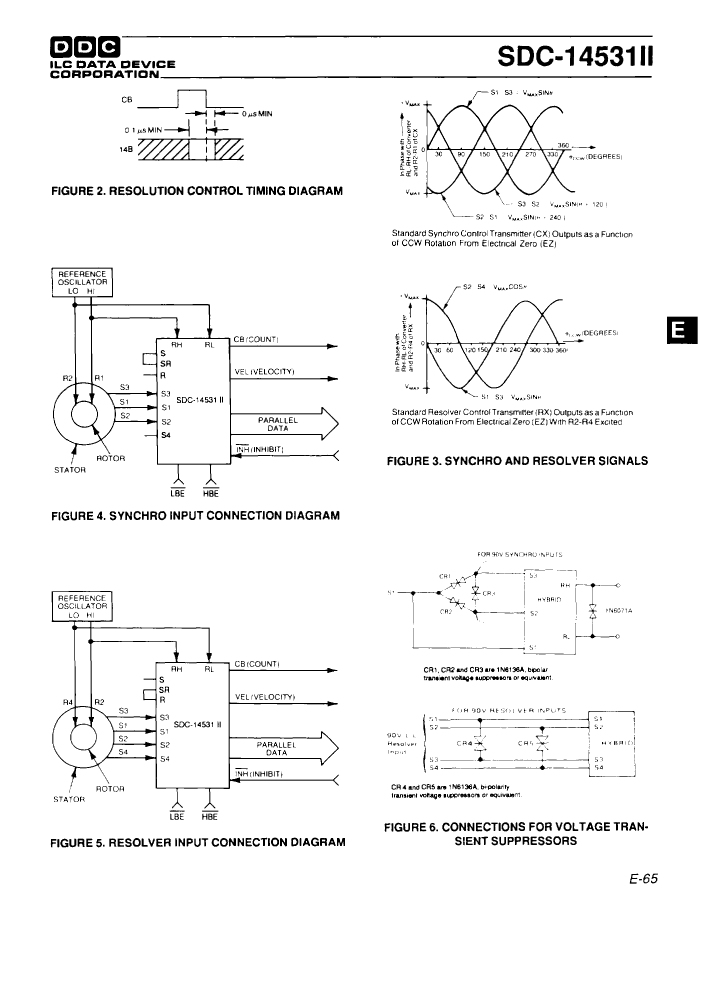

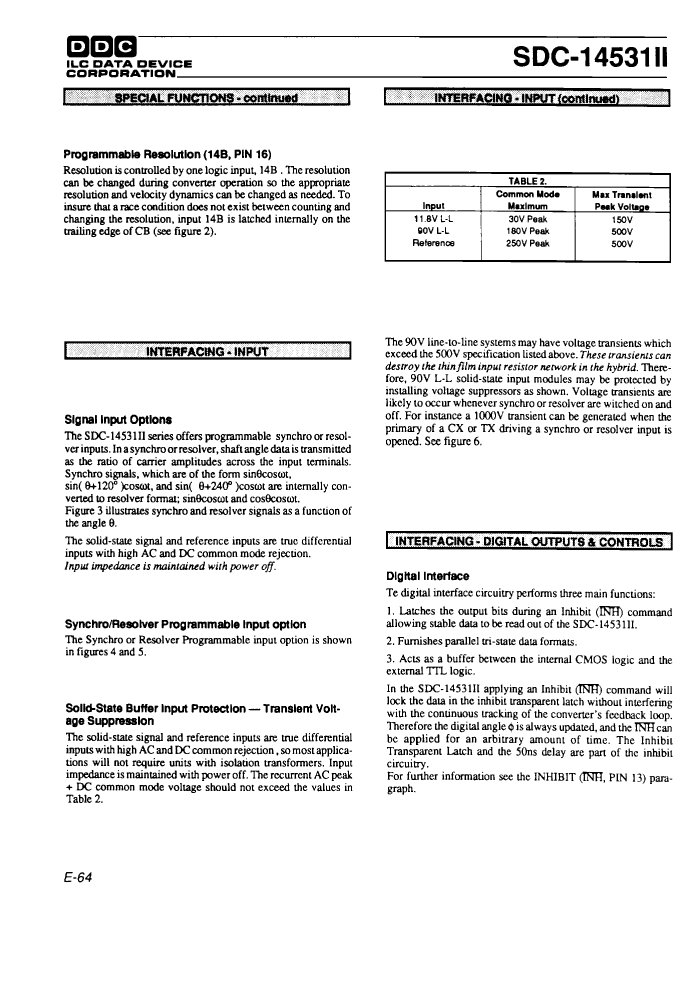

SDC-14531II-685 Overview

Synchro or Resolver to Digital Converter, Hybrid, 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36

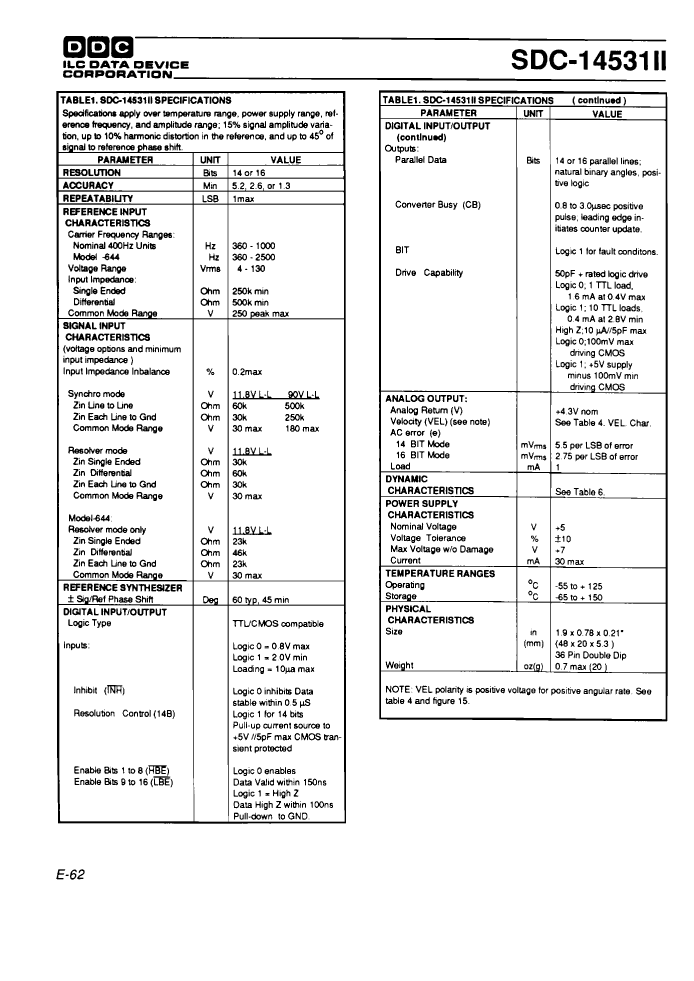

SDC-14531II-685 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerData Device Corporation
Parts packaging codeDIP
package instructionDIP, DIP36,.6
Contacts36
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPROGRAMMABLE RESOLUTION
Maximum analog input voltage90 V
Maximum angular accuracy5.2 arc min
Converter typeSYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 codeR-XDIP-P36
JESD-609 codee0
length48.13 mm
Number of digits16
Number of functions1
Number of terminals36
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialUNSPECIFIED
encapsulated codeDIP
Encapsulate equivalent codeDIP36,.6
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusNot Qualified
Filter levelMIL-STD-883 Class B (Modified)
Maximum seat height5.69 mm
Signal/output frequency1000 Hz
Maximum slew rate30 mA
Nominal supply voltage5 V
surface mountNO
technologyHYBRID
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formPIN/PEG
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum tracking rate10 rps
width15.24 mm

Preview

Download Datasheet

SDC-14531II-685 Related Products

SDC-14531II-685 SDC-14531II-683 SDC-14531II-680 SDC-14531II-690 SDC-14531II-693 SDC-14531II-681 SDC-14531II-691 SDC-14531II-682 SDC-14531II-692
Description Synchro or Resolver to Digital Converter, Hybrid, 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 Synchro or Resolver to Digital Converter, Hybrid, 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 Synchro or Resolver to Digital Converter, Hybrid, 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 Synchro or Resolver to Digital Converter, Hybrid, 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 Synchro or Resolver to Digital Converter, Hybrid, 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 Synchro or Resolver to Digital Converter, Hybrid, 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 Synchro or Resolver to Digital Converter, Hybrid, 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 Synchro or Resolver to Digital Converter, Hybrid, 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 Synchro or Resolver to Digital Converter, Hybrid, 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Maker Data Device Corporation Data Device Corporation Data Device Corporation Data Device Corporation Data Device Corporation Data Device Corporation Data Device Corporation Data Device Corporation Data Device Corporation
Parts packaging code DIP DIP DIP DIP DIP DIP DIP DIP DIP
package instruction DIP, DIP36,.6 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 1.900 X 0.780 INCH, 0.210 INCH HEIGHT, DOUBLE WIDTH, DIP-36 DIP, DIP36,.6
Contacts 36 36 36 36 36 36 36 36 36
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features PROGRAMMABLE RESOLUTION PROGRAMMABLE RESOLUTION PROGRAMMABLE RESOLUTION PROGRAMMABLE RESOLUTION PROGRAMMABLE RESOLUTION PROGRAMMABLE RESOLUTION PROGRAMMABLE RESOLUTION PROGRAMMABLE RESOLUTION PROGRAMMABLE RESOLUTION
Maximum analog input voltage 90 V 90 V 11.8 V 11.8 V 90 V 11.8 V 11.8 V 11.8 V 11.8 V
Maximum angular accuracy 5.2 arc min 1.3 arc min 1.3 arc min 1.3 arc min 1.3 arc min 2.6 arc min 2.6 arc min 5.2 arc min 5.2 arc min
Converter type SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code R-XDIP-P36 R-XDIP-P36 R-XDIP-P36 R-XDIP-P36 R-XDIP-P36 R-XDIP-P36 R-XDIP-P36 R-XDIP-P36 R-XDIP-P36
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0
length 48.13 mm 48.13 mm 48.13 mm 48.13 mm 48.13 mm 48.13 mm 48.13 mm 48.13 mm 48.13 mm
Number of digits 16 16 16 16 16 16 16 16 16
Number of functions 1 1 1 1 1 1 1 1 1
Number of terminals 36 36 36 36 36 36 36 36 36
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
encapsulated code DIP DIP DIP DIP DIP DIP DIP DIP DIP
Encapsulate equivalent code DIP36,.6 DIP36,.6 DIP36,.6 DIP36,.6 DIP36,.6 DIP36,.6 DIP36,.6 DIP36,.6 DIP36,.6
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Filter level MIL-STD-883 Class B (Modified) MIL-STD-883 Class B (Modified) MIL-STD-883 Class B (Modified) 38535Q/M;38534H;883B 38535Q/M;38534H;883B MIL-STD-883 Class B (Modified) 38535Q/M;38534H;883B MIL-STD-883 Class B (Modified) 38535Q/M;38534H;883B
Maximum seat height 5.69 mm 5.69 mm 5.69 mm 5.69 mm 5.69 mm 5.69 mm 5.69 mm 5.69 mm 5.69 mm
Signal/output frequency 1000 Hz 1000 Hz 1000 Hz 1000 Hz 1000 Hz 1000 Hz 1000 Hz 1000 Hz 1000 Hz
Maximum slew rate 30 mA 30 mA 30 mA 30 mA 30 mA 30 mA 30 mA 30 mA 30 mA
Nominal supply voltage 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
surface mount NO NO NO NO NO NO NO NO NO
technology HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID
Temperature level MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum tracking rate 10 rps 10 rps 10 rps 10 rps 10 rps 10 rps 10 rps 10 rps 10 rps
width 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm
