D Series
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1 and 2, 100 V
DC
, General Purpose
D
D
FEATURES
• Low losses
• High stability
• High capacitance in small size
Tangent
line
SH
Tangent
line
DR
• Kinked (preferred) or straight leads
• Compliant to RoHS directive 2002/95/EC
APPLICATIONS
• Bypassing
• Coupling
F
F
• Resonant circuit
Capacitors with 5 mm (0.20") and 2.5 mm (0.10") lead spacing
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
The capacitors have inward kinked leads with a spacing of
5 mm (0.200") and straight leads with 2.5 mm (0.100"), lead
length from 4 mm to 30 mm.
QUICK REFERENCE DATA
DESCRIPTION
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
1.0
100
CLASS 1
(NP0, SL0)
CLASS 2
(YP5, Z50, Y5V, Z5V)
100
150
47 000
Through hole
CAPACITANCE RANGE
1.0 pF to 100 pF; Class 1, at 1 MHz, 1.2 V
RMS
150 pF to 47 000 pF; Class 2, at 1 kHz, 1 V
RMS
± 0.2 V
RMS
1 kHz, 1 V
RMS
± 0.2 V
RMS
for capacitance values higher than
1000 pF
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198”.
OPERATING TEMPERATURE RANGE
Class 1, - 55 °C to + 125 °C
Class 2, - 30 °C to + 85 °C
RATED DC VOLTAGE
100 V
TEMPERATURE COEFFICIENTS
Class 1, NP0; SL0
Class 2, Y5P; Z5U; Y5V; Z5V
DIELECTRIC STRENGTH
250 % of rated voltage
INSULATION RESISTANCE AT 100 V
DC
≥
10 000 MΩ
SECTIONAL SPECIFICATIONS
Class 1, IEC 60 384-8,
Class 2, IEC 60 384-9,
EIA 198
TOLERANCE ON CAPACITANCE
± 0.25 pF; ± 0.5 pF; ± 5 % ; ± 10 %; ± 20 %; + 80/- 20 %
CLIMATIC CATEGORY
Class 1, 55/125/21
Class 2, 10/85/21 and 30/85/21
DISSIPATION FACTOR
Class 1, C
≤
30 pF;
≤
2 x (10/C + 0.7) x 10
-4
maximum
Class 1, C > 30 pF;
≤
0.2 %
Class 2,
≤
3.0 %
Note
The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient temperature of
25 °C ± 3 °C, at normal atmospheric conditions.
www.vishay.com
28
For technical questions, contact:
CDC@vishay.com
Document Number: 28511
Revision: 07-Jan-10
D Series
Ceramic Disc Capacitors
Class 1 and 2, 100 V
DC
, General Purpose
Vishay BCcomponents
ORDERING INFORMATION, CLASS 1, 100 V
DC
, KINKED AND STRAIGHT
C
(pF)
CLASS 1 NP0
1.0
1.5
2.2
3.3
4.7
6.8
10
12
15
18
22
27
33
39
6.5
47
CLASS 1 SL0
56
68
±5
82
100
Notes
(1)
SH = seated height; DR = run down
• Maximum thickness 4.0 mm
• Lead style codes refer to lead cofigurations
5.0
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D560J20SL0H6.J5R
D560J20SL0H6.L2R
D680J20SL0H6.J5R
D680J20SL0H6.L2R
D820J20SL0H6.J5R
D820J20SL0H6.L2R
D101J20SL0H6.J5R
D101J20SL0H6.L2R
±5
± 0.5 pF
5.0
± 0.25 pF
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D109C20C0KH6.J5R
D109C20C0KH6.L2R
D159C20C0KH6.J5R
D159C20C0KH6.L2R
D229C20C0JH6.J5R
D229C20C0JH6.L2R
D339C20C0JH6.J5R
D339C20C0JH6.L2R
D479C20C0HH6.J5R
D479C20C0HH6.L2R
D689D20C0HH6.J5R
D689D20C0HH6.L2R
D100J20C0GH6.J5R
D100J20C0GH6.L2R
D120J20C0GH6.J5R
D120J20C0GH6.L2R
D150J20C0GH6.J5R
D150J20C0GH6.L2R
D180J20C0GH6.J5R
D180J20C0GH6.L2R
D220J20C0GH6.J5R
D220J20C0GH6.L2R
D270J20C0GH6.J5R
D270J20C0GH6.L2R
D330J20C0GH6.J5R
D330J20C0GH6.L2R
D390J25C0GH6.J5R
D390J25C0GH6.L2R
D470J25C0GH6.J5R
D470J25C0GH6.L2R
TOL.
(%)
D
MAX.
(mm)
LEAD SPACING
F
(mm)
SH/DR
MAX. (1)
(mm)
CLEAR TEXT CODE
13
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
Document Number: 28511
Revision: 07-Jan-10
For technical questions, contact:
CDC@vishay.com
www.vishay.com
29
D Series
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1 and 2, 100 V
DC
, General Purpose
ORDERING INFORMATION, CLASS 2, 100 V
DC
, KINKED AND STRAIGHT
C
(pF)
CLASS 2 Y5P
150
180
220
330
470
680
1000
±10
1500
1800
2200
3300
4700
6800
10000
CLASS 2 Z5U
1000
1500
5.0
2200
3300
4700
6800
10 000
15 000
22 000
7.5
8.5
10.0
± 20
6.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D102M20Z5UH6.J5R
D102M20Z5UH6.L2R
D152M20Z5UH6.J5R
D152M20Z5UH6.L2R
D222M20Z5UH6.J5R
D222M20Z5UH6.L2R
D332M20Z5UH6.J5R
D332M20Z5UH6.L2R
D472M25Z5UH6.J5R
D472M25Z5UH6.L2R
D682M25Z5UH6.J5R
D682M25Z5UH6.L2R
D103M29Z5UH6.J5R
D103M29Z5UH6.L2R
D153M33Z5UH6.J5R
D153M33Z5UH6.L2R
D223M39Z5UH6.J5R
D223M39Z5UH6.L2R
7.5
8.5
10.0
11.0
6.5
5.0
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D151K20Y5PH6.J5R
D151K20Y5PH6.L2R
D181K20Y5PH6.J5R
D181K20Y5PH6.L2R
D221K20Y5PH6.J5R
D221K20Y5PH6.L2R
D331K20Y5PH6.J5R
D331K20Y5PH6.L2R
D471K20Y5PH6.J5R
D471K20Y5PH6.L2R
D681K20Y5PH6.J5R
D681K20Y5PH6.L2R
D102K20Y5PH6.J5R
D102K20Y5PH6.L2R
D152K25Y5PH6.J5R
D152K25Y5PH6.L2R
D182K25Y5PH6.J5R
D182K25Y5PH6.L2R
D222K25Y5PH6.J5R
D222K25Y5PH6.L2R
D332K29Y5PH6.J5R
D332K29Y5PH6.L2R
D472K33Y5PH6.J5R
D472K33Y5PH6.L2R
D682K39Y5PH6.J5R
D682K39Y5PH6.L2R
D103K43Y5PH6.J5R
D103K43Y5PH6.L2R
TOL.
(%)
D
MAX.
(mm)
LEAD SPACING
F
(mm)
SH/DR
MAX. (1)
(mm)
CLEAR TEXT CODE
13
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
Note
(1)
SH = seated height; DR = run down
• Maximum thickness 4.0 mm
• Lead style codes refer to lead cofiguration
www.vishay.com
30
For technical questions, contact:
CDC@vishay.com
Document Number: 28511
Revision: 07-Jan-10
D Series
Ceramic Disc Capacitors
Class 1 and 2, 100 V
DC
, General Purpose
Vishay BCcomponents
ORDERING INFORMATION, CLASS 2, 100 V
DC
, KINKED AND STRAIGHT
C
(pF)
CLASS 2 Y5V
1000
1500
5.0
2200
3300
4700
6800
10 000
15 000
22 000
CLASS 2 Z5V
4700
10 000
+ 80/- 20
22 000
47 000
8.5
11.0
5.0
6.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D472Z20Z5VH6.J5R
D472Z20Z5VH6.L2R
D103Z25Z5VH6.J5R
D103Z25Z5VH6.L2R
D223Z33Z5VH6.J5R
D223Z33Z5VH6.L2R
D473Z43Z5VH6.J5R
D473Z43Z5VH6.L2R
7.5
8.5
10.0
+ 80/- 20
6.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
5.0
2.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
4.0
1.5
D102Z20Y5VH6.J5R
D102Z20Y5VH6.L2R
D152Z20Y5VH6.J5R
D152Z20Y5VH6.L2R
D222Z20Y5VH6.J5R
D222Z20Y5VH6.L2R
D332Z20Y5VH6.J5R
D332Z20Y5VH6.L2R
D472Z25Y5VH6.J5R
D472Z25Y5VH6.L2R
D682Z25Y5VH6.J5R
D682Z25Y5VH6.L2R
D103Z29Y5VH6.J5R
D103Z29Y5VH6.L2R
D153Z33Y5VH6.J5R
D153Z33Y5VH6.L2R
D223Z39Y5VH6.J5R
D223Z39Y5VH6.L2R
TOL.
(%)
D
MAX.
(mm)
LEAD SPACING
F
(mm)
SH/DR
MAX. (1)
(mm)
CLEAR TEXT CODE
13
TH
DIGIT:
T = REEL; U = AMMO; 3 = BULK
Note
(1)
SH = seated height; DR = run down
• Maximum thickness 4.0 mm
• Lead style codes refer to lead cofiguration
PACKAGING
D
MAX.
(mm)
5.0 (0.20")
6.5 (0.25")
7.5 (0.29")
8.5 (0.33")
10.0 (0.39")
11.0 (0.43")
SIZE CODE
20
25
29
33
39
43
1000
2500
2000
PACKAGING QUANTITIES
BULK
REEL
AMMO
Note
• The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel or in ammopack
Document Number: 28511
Revision: 07-Jan-10
For technical questions, contact:
CDC@vishay.com
www.vishay.com
31
D Series
Vishay BCcomponents
D
Ceramic Disc Capacitors
Class 1 and 2, 100 V
DC
, General Purpose
P
2
P
ΔP
Δh
ΔP
Δh
H
1
W
2
H
0
W
1
W
0
W
A
e
P
1
Direction of unreeling
Ød
F
P
0
D
0
t
1

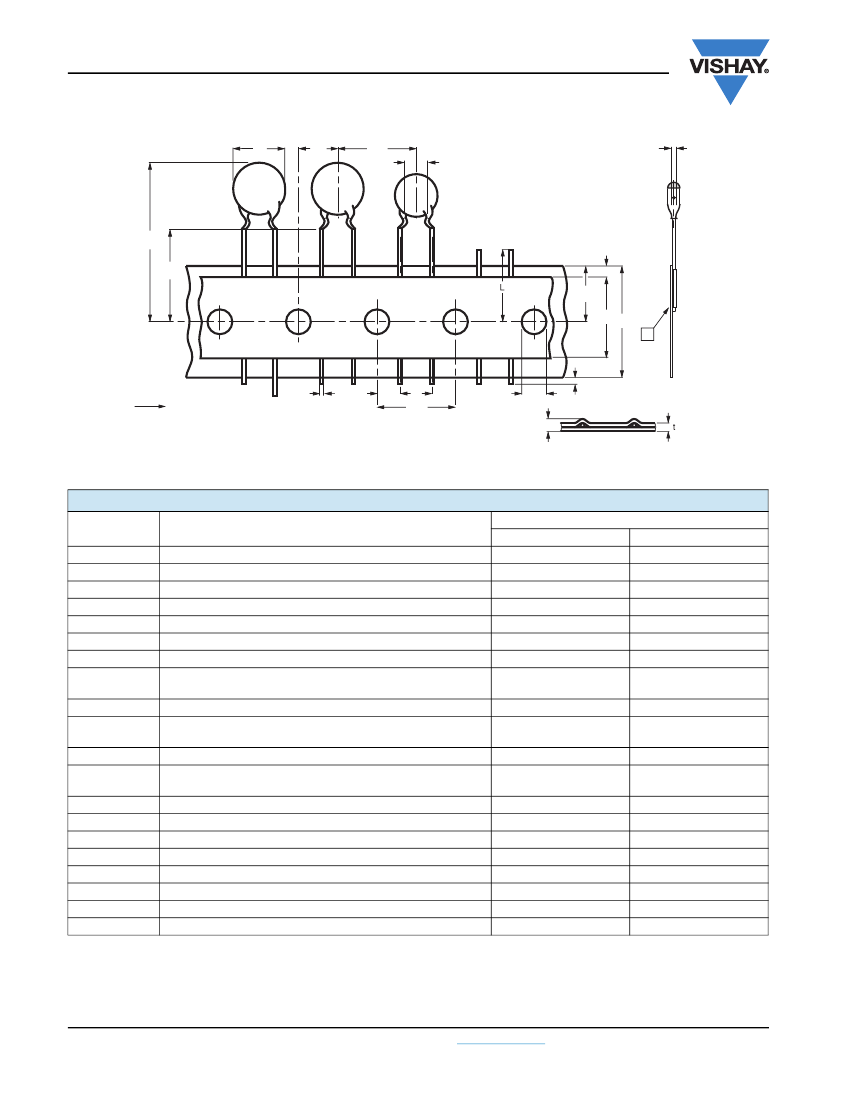

Kinked capacitors on tape, lead
spacing
5.0 mm (0.2")
detail A
DIMENSION OF TAPE
SYMBOL
D
d
P
P
0
ΔP
P
1 (2)
P
2 (2)
F
Δh
W
W
0
W
1
W
2
H
0
H
1
e
L
D
0
t
t
1
(1)
PARAMETER
Body diameter
Lead diameter
Pitch between capacitors
Feed-hole pitch
Plane deviation
Feed-hole center to lead center
Feed-hole center to component center
Lead spacing
Component alignment
Tape width
Hold-down tape width
Hole position
Hold-down tape margin
Height to seating plane
Maximum component height
Lead end protrusion
Maximum length of snipped lead
Feed-hole diameter
Total tape thickness
Maximum thickness of tape and wires
DIMENSIONS (mm)
NOMINAL
11.0 maximum
0.6
12.7
12.7
1.0 maximum
3.85
6.35
5.0
0
18.0
5.0 minimum
9.0
3.0 maximum
16.0
32.0
1.0 maximum
11.0
4.0
0.9 maximum
1.5 maximum
TOLERANCE
-
± 0.05
± 1.0
± 0.3
(1)
-
± 0.7;
(2)
± 1.3;
(2)
0.6
- 0.4
± 1.0
1.0
- 0.5
-
0.75
- 0.5
-
± 0.5
-
-
-
± 0.2
-
-
Notes
(1)
Cumulative pitch error: ±
≤
1 mm/20 pitches
(2)
Obliquity maximum 3°
www.vishay.com
32
For technical questions, contact:
CDC@vishay.com
Document Number: 28511
Revision: 07-Jan-10
