MS6130-55DC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MS6130-55DC

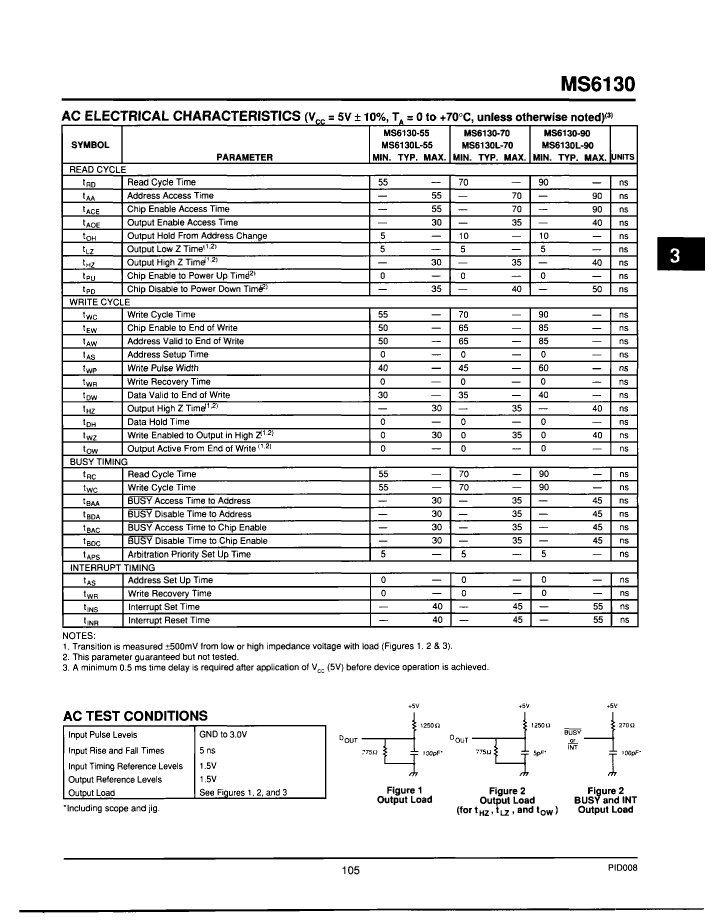

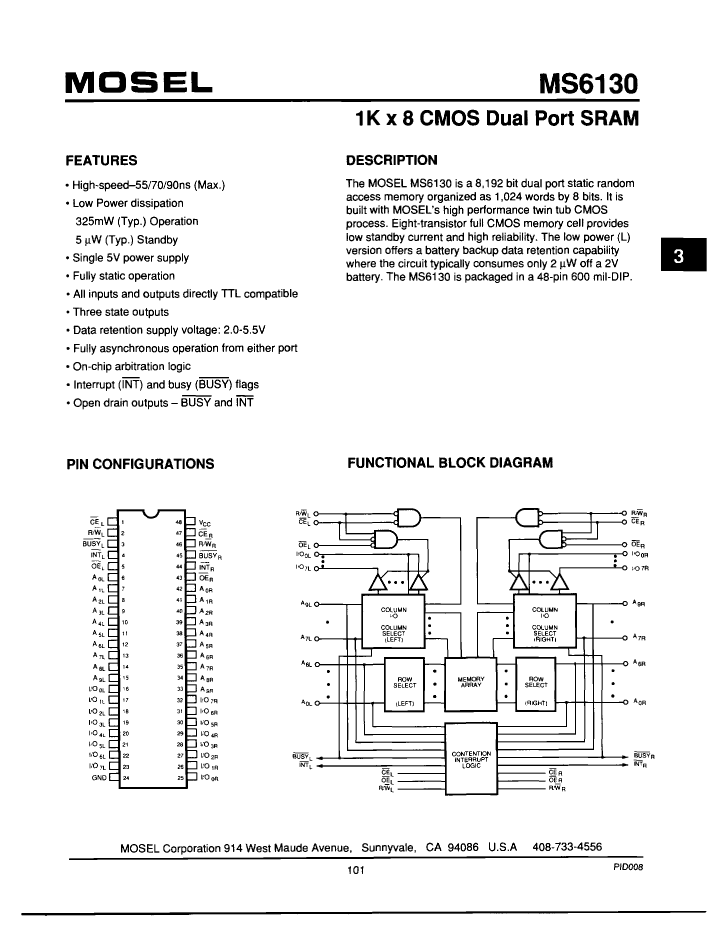

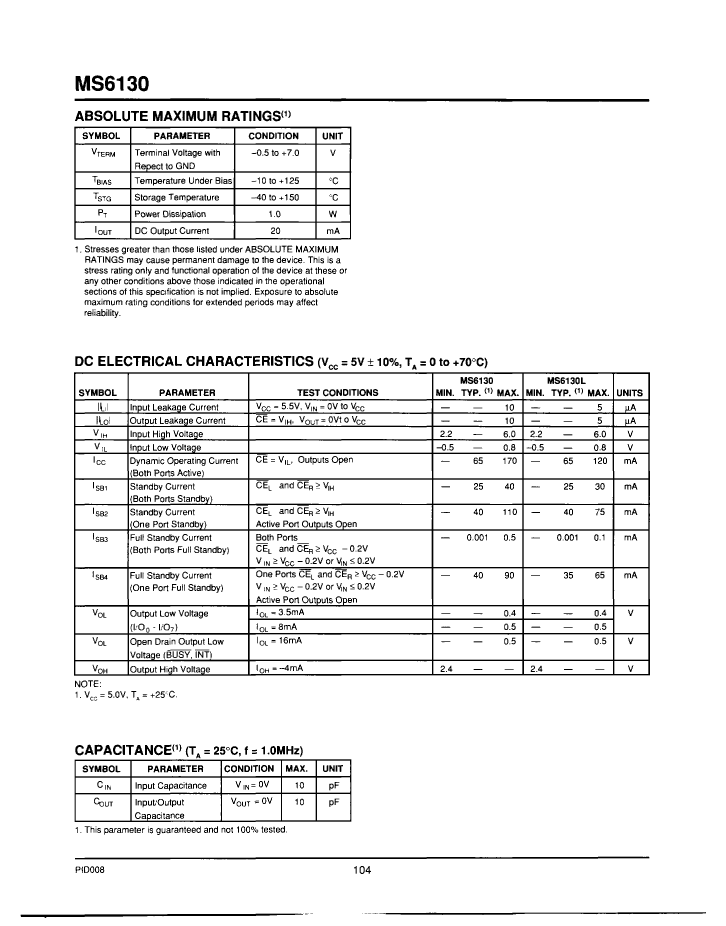

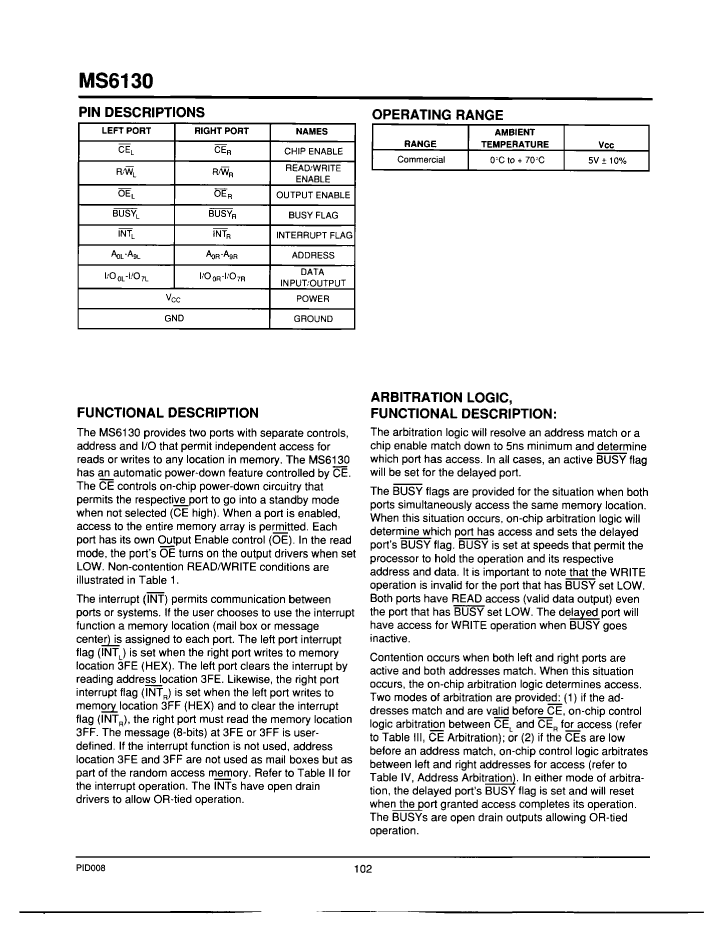

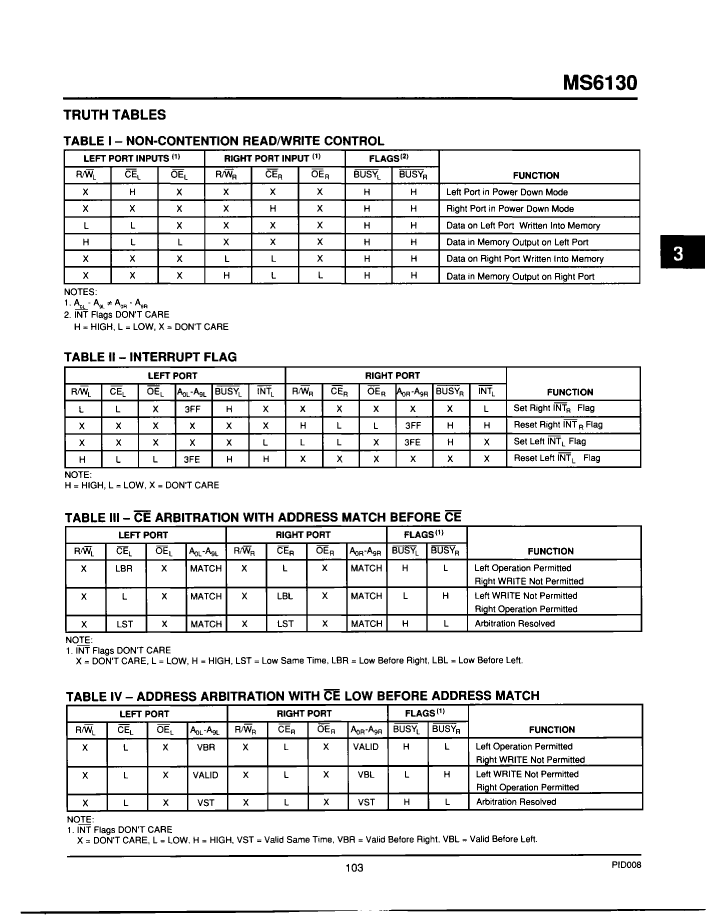

Preview

MS6130-55DC: DescriptionDual-Port SRAM, 1KX8, 55ns, CMOS, CDIP48, 0.600 INCH, SIDE BRAZED, CERDIP-48; Categorystorage storage; File Size240KB，10 Pages; ManufacturerMosel Vitelic Corporation ( MVC ); Websitehttp://www.moselvitelic.com

Download Datasheet Parametric Compare View All

MS6130-55DC Overview

Dual-Port SRAM, 1KX8, 55ns, CMOS, CDIP48, 0.600 INCH, SIDE BRAZED, CERDIP-48

MS6130-55DC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mosel Vitelic Corporation ( MVC )
Parts packaging code	DIP
package instruction	DIP, DIP48,.6
Contacts	48
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	55 ns
I/O type	COMMON
JESD-30 code	R-CDIP-T48
JESD-609 code	e0
length	60.98 mm
memory density	8192 bit
Memory IC Type	DUAL-PORT SRAM
memory width	8
Number of functions	1
Number of ports	2
Number of terminals	48
word count	1024 words
character code	1000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1KX8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP48,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum standby current	0.0005 A
Minimum standby current	4.5 V
Maximum slew rate	0.17 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

Preview

Download Datasheet

View All

MS6130-55DC Related Products

	MS6130-55DC	P0505K2083BNW	MS6130-90DC	MS6130L-70DC	MS6130L-55DC	MS6130L-90DC
Description	Dual-Port SRAM, 1KX8, 55ns, CMOS, CDIP48, 0.600 INCH, SIDE BRAZED, CERDIP-48	Fixed Resistor, Thin Film, 0.125W, 208000ohm, 50V, 0.1% +/-Tol, 100ppm/Cel, Surface Mount, 0505, CHIP	Dual-Port SRAM, 1KX8, 90ns, CMOS, CDIP48, 0.600 INCH, SIDE BRAZED, CERDIP-48	Dual-Port SRAM, 1KX8, 70ns, CMOS, CDIP48, 0.600 INCH, SIDE BRAZED, CERDIP-48	Dual-Port SRAM, 1KX8, 55ns, CMOS, CDIP48, 0.600 INCH, SIDE BRAZED, CERDIP-48	Dual-Port SRAM, 1KX8, 90ns, CMOS, CDIP48, 0.600 INCH, SIDE BRAZED, CERDIP-48
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP48,.6	CHIP	DIP, DIP48,.6	DIP, DIP48,.6	DIP, DIP48,.6	DIP, DIP48,.6
Reach Compliance Code	unknown	compliant	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	48	2	48	48	48	48
Maximum operating temperature	70 °C	155 °C	70 °C	70 °C	70 °C	70 °C
Package form	IN-LINE	SMT	IN-LINE	IN-LINE	IN-LINE	IN-LINE
surface mount	NO	YES	NO	NO	NO	NO
technology	CMOS	THIN FILM	CMOS	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	TIN SILVER OVER NICKEL	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	Mosel Vitelic Corporation ( MVC )	-	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )	Mosel Vitelic Corporation ( MVC )
Parts packaging code	DIP	-	DIP	DIP	DIP	DIP
Contacts	48	-	48	48	48	48
Maximum access time	55 ns	-	90 ns	70 ns	55 ns	90 ns
I/O type	COMMON	-	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-CDIP-T48	-	R-CDIP-T48	R-CDIP-T48	R-CDIP-T48	R-CDIP-T48
JESD-609 code	e0	-	e0	e0	e0	e0
length	60.98 mm	-	60.98 mm	60.98 mm	60.98 mm	60.98 mm
memory density	8192 bit	-	8192 bit	8192 bit	8192 bit	8192 bi
Memory IC Type	DUAL-PORT SRAM	-	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM	DUAL-PORT SRAM
memory width	8	-	8	8	8	8
Number of functions	1	-	1	1	1	1
Number of ports	2	-	2	2	2	2
word count	1024 words	-	1024 words	1024 words	1024 words	1024 words
character code	1000	-	1000	1000	1000	1000
Operating mode	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
organize	1KX8	-	1KX8	1KX8	1KX8	1KX8
Output characteristics	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	-	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP48,.6	-	DIP48,.6	DIP48,.6	DIP48,.6	DIP48,.6
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Parallel/Serial	PARALLEL	-	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	-	5 V	5 V	5 V	5 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	-	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum standby current	0.0005 A	-	0.0005 A	0.00002 A	0.00002 A	0.00002 A
Minimum standby current	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V
Maximum slew rate	0.17 mA	-	0.17 mA	0.12 mA	0.12 mA	0.12 mA
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V	5 V	5 V
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	-	15.24 mm	15.24 mm	15.24 mm	15.24 mm
