Wire and Harness ID Products
Heat-Shrink/Cable Markers

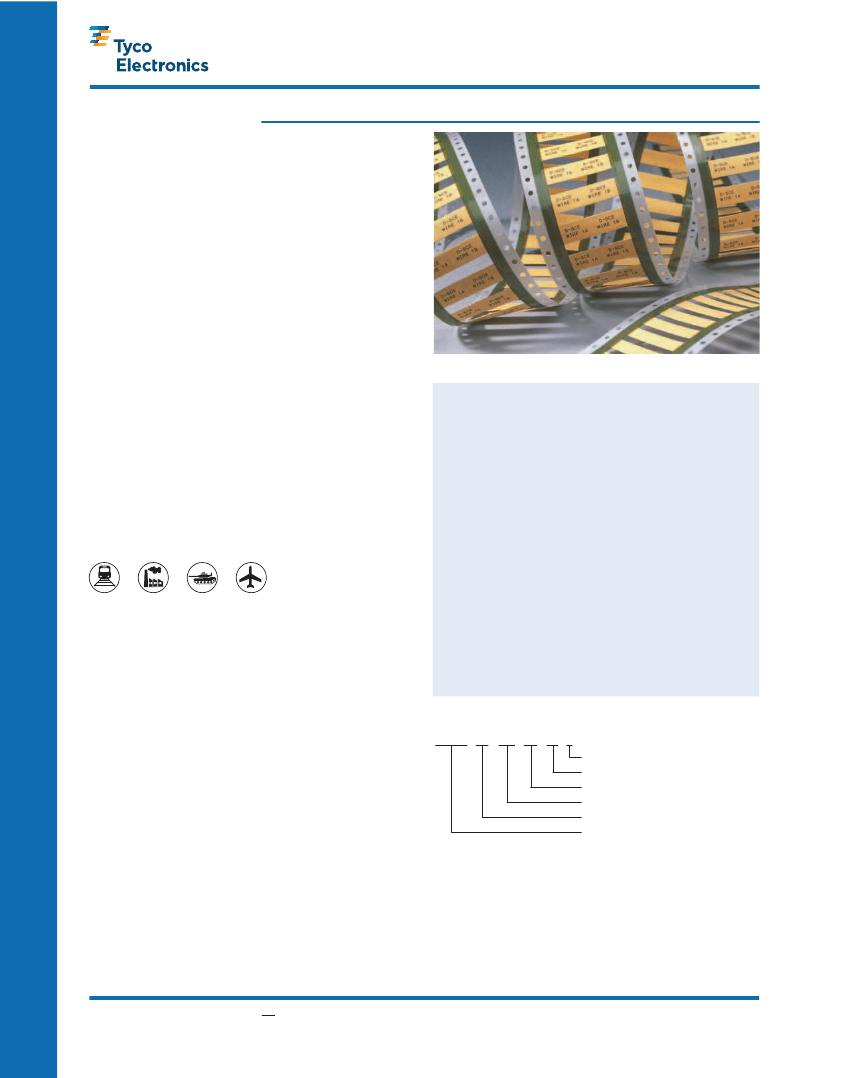

D-SCE Fluid resistant heat-shrinkable wire identification sleeves
D-SCE markers are used to identify wires and cables where
exposure to organic fluids, especially oils, is required. D-SCE
markers are designed to operate in these conditions at elevated
temperatures for extended periods of time, making them ideal in
aerospace, rail and construction industries. The D-SCE markers are
suitable for use in environments with temperatures of – 55°C to
+135°C (– 67°F to +275°F), and will provide strain relief,
insulation and protection from mechanical abuse. The 3:1 shrink
ratio markers* are assembled in a ladder format enabling sleeves to
be printed on both sides for maximum data content and
readability.
*See ordering description.
Features and benefits
I
Resistance to organic fluids, common fuels, lubricants
and solvents
Temperature rating
I
I
I
3:1 shrink ratio
Wide range of sizes for several wire and bundle diameters
Formulated for use in aerospace, rail and construction
equipment
Dot matrix and thermal transfer printable — both print
technologies meet all specifications and approvals listed
Operating temperature range
Minimum recovery temperature
Maximum storage temperature
–55°C to +135°C
+135°C
+40°C
–67°F to +275°F
+275°F
+104°F
Specifications/approvals
Tyco Electronics
Military
RW 2519
TTDS-017
SAE-AMS-DTL-23053/6, Class 1
(material and performance requirements)
SAE AS81531 4.6.2
MIL-STD-202 Method 215J
NF F 00 608 Category A and H
I
Industry
Printer information
Heat Shrink/Cable Markers
Tyco Electronics printer
AM6310 (dot matrix)
T312M (thermal transfer)
Tyco Electronics ribbon
1892BK04-RIBBON (dot matrix)
1966-RIBBON
Part numbering system
D-SCE - 5K - 3.2 - 50 - S1- 4
Color
Scoring (optional)
Sleeve length (mm)
Expanded inside diameter (mm)
Large packaging (optional)
Product family
12
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Heat-Shrink/Cable Markers
D-SCE Fluid resistant heat-shrinkable wire identification sleeves
Ordering information
50mm
(nom )
SOG-ER33-3 BT-M
SOG-ER32-3 BT-M
D
d
SOG-ER13-3 BT-M
Available sizes and formats
Inside diameter
Ordering
description
D-SCE-1K- 2.4-50-<color>
D-SCE-1K- 3.2-50-<color>
D-SCE-1K- 4.8-50-<color>
D-SCE-1K- 6.4-50-<color>
D-SCE-1K- 9.5-50-<color>
D-SCE-1K-12-50-<color>
D-SCE-1K-18-50-<color>
D-SCE-1K-25-50-<color>
D-SCE-1K-38-50-<color>*
* 2:1 shrink ratio
D (min)
As supplied
mm
inches
2.39
3.18
4.75
6.35
9.53
12.70
19.05
25.40
38.10
0.094
0.125
0.187
0.250
0.375
0.500
0.750
1.000
1.500
d (max)
After recovery
mm
inches
0.79
1.07
1.57
2.11
3.18
4.22
6.35
8.46
19.05
0.031
0.043
0.063
0.084
0.125
0.167
0.250
0.333
0.750
Recommended
use range
mm
inches
0.81 - 1.90
1.11 - 2.66
1.75 - 4.06
2.31 - 5.46
3.47 - 8.12
4.64 - 10.79
6.99 - 16.25
9.29 - 21.59
20.95 - 33.02
0.032 - 0.075
0.044 - 0.105
0.069 - 0.160
0.091 - 0.215
0.137 - 0.320
0.183 - 0.425
0.275 - 0.640
0.366 - 0.850
0.825 - 1.300
Total width as supplied 90.18 mm (3.550 inches) including tape and carrier width.
Options
Prescoring
Perforated score to produce multiple marker sleeves from each D-SCE sleeve.
Standard
Number of prescores
Code
Package sizes
Standard
Nonstandard
Colors
Standard
Code
Nonstandard
Code
Side scored
1 prescore
S1
2 prescores
S2
3 prescores
1K - 1000 piece packages available for all D-SCE sizes
Larger pack sizes are available. Please contact Tyco Electronics.
White
9
Pink
2L
Yellow
4
Blue
6
Ordering information: Specify product name, pack size, sleeve size, prescore, format and color.
Ordering example: D-SCE-1K-6.4-50-S2-4
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Heat Shrink/Cable Markers
13
S3
Wire and Harness ID Products
