Printers

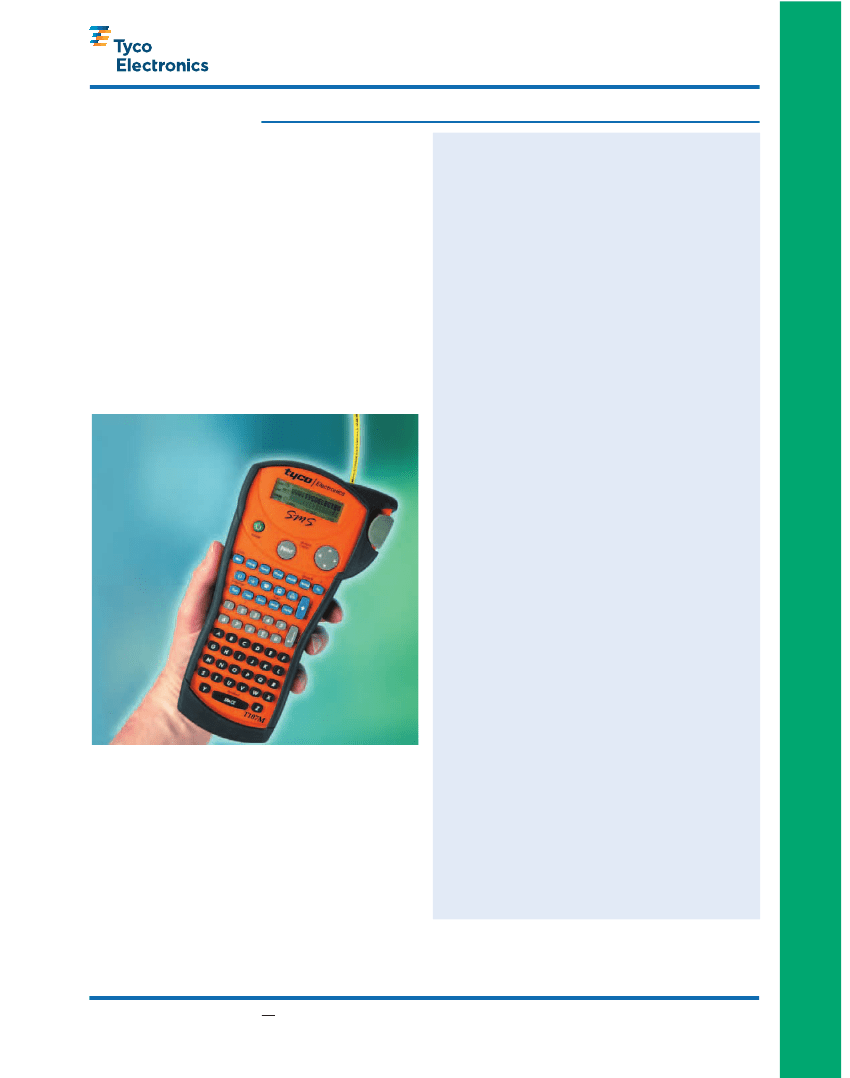

T107M Handheld Printer
The new T107M from Tyco Electronics is perfect for the
professional user who needs an affordable label printer for on-site
applications that's tough and easy to use. Contractors, panel
builders and facility managers will save time and money by using
the special Hot Keys that provide labels at the touch of a button
including wire and cable wraps,module marking, fixed length,
serialization, vertical printing, barcodes, symbols and much more.
The T107M offers clear, smudge-free high-performance labels that
stick permanently to a variety of surfaces and provides remarkable
MIL-spec print permanence on Heat Shrink Tubing. Print media is
offered in easy-to-load cassettes and includes an optimized ribbon
and choice of material: Heat-Shrink, Nylon Cloth, Vinyl, Polyester,
and Polypropylene labels.
Printer Specifications
Printing Method
Dimensions
Printer Weight
Keyboard
Thermal Transfer Printhead (180 dpi)
70 mm L x 114mm W x 212mm H
519g
ABC layout
To access international characters: Rapid
Accented Character Entry, according to the
mobile phone principle.
2 lines
Rechargeable battery pack life indicator
Display backlighting
Temperature: 4°C to 40°C (39°F to 104°F)
Humidity: 10% to 90% RH
Storage conditions
Temperature : 0°C to 90°C (32°F to 194°F)
Humidity: 10% to 90% RH
LCD Display
Operating conditions
Product Order Code
T107M-SMS-PRINTER-KIT-US
T107M-SMS-PRINTER-KIT-UK
T107M-SMS-PRINTER-KIT-EU
T107M-SMS-PRINTER-KIT-AUZ
T107M-SMS-PRINTER-KITASI
T107M-SMS-PRINTER-US
T107M-SMS-PRINTER-EU
SMS-US-A/C-ADAPTOR
SMS-EU-A/C-ADAPTOR
SMS-ASIA-A/C-ADAPTER
SMS-AUZ-A/C-ADAPTOR
SMS-BATTERY-PACK
SMS-CARRY STRAP
SMS-PRINTER-HARDCASE
Description
Printer Kit - US power adaptor included
Printer Kit - UK power adaptor included
Printer Kit - European power adaptor included
Printer Kit - Australia power adaptor included
Printer Kit - Asia power adaptor included
Printer Only (US)
Printer Only (European)
US A/C power adaptor
European A/C power adaptor
UK & Asia A/C power adaptor
Australian A/C power adaptor
Rechargeable battery pack
Soft carry strap
Hard case
Printer Kit Contents
Printer
Rubber protection bumper
User guide
Six (6) AA batteries
Power adaptor
Hard carry case
One (1) 19mm white flexible nylon tape printer cassette
One (1) 9mm yellow heat-shrinkable tubing printer cassette
See page 136 for available printer cassettes and ordering information.
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Printers
135
Hardware/Software
Hardware/Software
Printers
T107M Handheld Printer Cassettes
Ordering Infornation
T107M Cassettes
Cable Diameter
Description
SMS-TMS-3.9-4
SMS-TMS-3.9-9
SMS-TMS-5.2-4
SMS-TMS-5.2-9
SMS-TMS-7.9-4
SMS-TMS-7.9-9
SMS-TMS-13.2-4
SMS-TMS-13.2-9
Material
Heat-shrink tubing
Heat-shrink tubing
Heat-shrink tubing
Heat-shrink tubing
Heat-shrink tubing
Heat-shrink tubing
Heat-shrink tubing
Heat-shrink tubing
mm
1.18 - 2.33
1.18 - 2.33
1.73 - 3.73
1.73 - 3.73
2.97 - 5.13
2.97 - 5.13
4.64 - 8.70
4.64 - 8.70
inches
0.05 - 0.09
0.05 - 0.09
0.07 - 0.15
0.05 - 0.15
0.12 - 0.20
0.12 - 0.20
0.18 - 0.34
0.18 - 0.34
Length
m
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
Shrink
Radio
3:1
3:1
3:1
3:1
3:1
3:1
3:1
3:1
Color
Yellow
White
Yellow
White
Yellow
White
Yellow
White
Technical
Datasheet
TTDS-122
TTDS-122
TTDS-122
TTDS-122
TTDS-122
TTDS-122
TTDS-122
TTDS-122
Width
Description
SMS-NC-12-4
SMS-NC-12-9
SMS-NC-19-9
SMS-PPNA--6-9
SMS-PPNA-9-9
SMS-V-12-4
SMS-V-12-9
SMS-V-19.2
SMS-V-19-4
SMS-V-19-5
SMS-V-19-9
SMS-WP-9-9
SMS-WP-12-9
SMS-MP-12-8A
SMS-MP-19-8A
SMS-CP-12-X
SMS-CP-19-X
Material
Nylon Cloth
Nylon Cloth
Nylon Cloth
Non-adhesive tag
Non-adhesive tag
Colored vinyl
Colored vinyl
Colored vinyl
Colored vinyl
Colored vinyl
Colored vinyl
Polyester
Polyester
Polyester
Polyester
Polyester
Polyester
mm
12
12
19
6
9
12
12
19
19
19
19
9
12
12
19
12
19
inches
0.47
0.47
0.75
0.24
0.35
0.47
0.47
0.75
0.75
0.75
0.75
0.35
0.47
0.47
0.75
0.47
0.75
Length
m
3.5
3.5
3.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
Color
Yellow
White
White
White
White
Yellow
White
Red
Yellow
Green
White
White
White
Metalized
Metalized
Clear
Clear
Technical
Datasheet
TTDS-123
TTDS-123
TTDS-123
TTDS-124
TTDS-124
TTDS-125
TTDS-125
TTDS-125
TTDS-125
TTDS-125
TTDS-125
TTDS-126
TTDS-126
TTDS-127
TTDS-127
Printers
136
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Printers

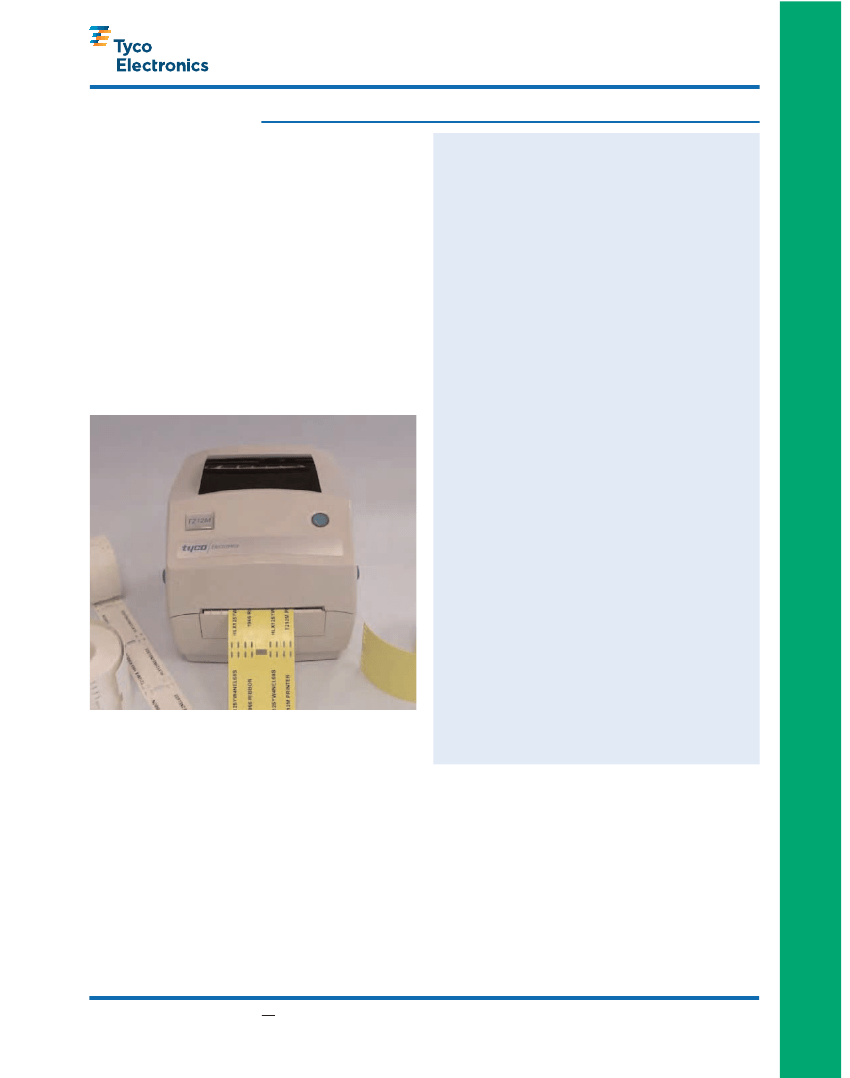

T200 Series portable thermal transfer printers
The T200 series of printers are portable/desktop thermal transfer
printers with a 4.1" print head offering an economical option for
low volume customers who want to take advantage of thermal
transfer printing technology. Their small, light weight design
makes them ideal for applications requiring portability or in
environments with multiple workstations where space is limited.
The T208M has a 200 dpi printhead; the T212M has a 300 dpi
printhead for crisp, high quality text, barcodes and graphic images.
Both printers are designed for use with Tyco Electronics range of
TMS heat shrinkable wire marker sleeves and limited thermal
transfer printable pressure sensitive label products.
T200 series printers are available with optional label spindle
accessory. It externally holds a roll of labels on 3" core for easy
dispensing.
Printer Specifications
Tyco Electronics
Print head width
Print head resolution
T208M-TTDS-011
T212M-TTDS-064
104mm (4.09")
T208M: 8dpmm (203 dpi)
T212M: 12dpmm (305 dpi)
Print speed (maximum)
Media sensor
51mm/sec (2 inch/sec)
Transmissive (fixed)
Reflective (fixed
Memory
T208M: 256KB SRAM and 512KB Flash
T212M: 512KB SRAM and 1MB Flash
Communication interface
Parallel (Centronics), serial (RS232),
and USB
Printer dimensions
200mm W x 247mm D x 171mm H
(7.9" W x 9.75" D x 6.75" H)
Printer weight
Shipping weight
1.81 kg (4 lbs)
4 kg (9 lbs)
Media Specifications
Maximum print width
Maximum media width
Minimum media width
Maximum media roll diameter
Media core diameter
Ribbon wind
104mm (4.09")
118mm (4.65")
28mm (1.12")
127mm (5.0")
25mm (1.0")
Ink side out
Product Order Code
T208M-PRINTER
T208M-C-PRINTER
T212M-PRINTER
T212M-C-PRINTER
T200-LABEL-SPINDLE
Description
T208M thermal printer - standard
T208M thermal printer - cutter option
T212M thermal printer - standard
T212M thermal printer - cutter option
External label roll holder for T200 printers
Only the T212M printer is recommended when printing size 3/32 (2.4mm) marker
sleeves.
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Printers
137
Hardware/Software
Hardware/Software
Printers

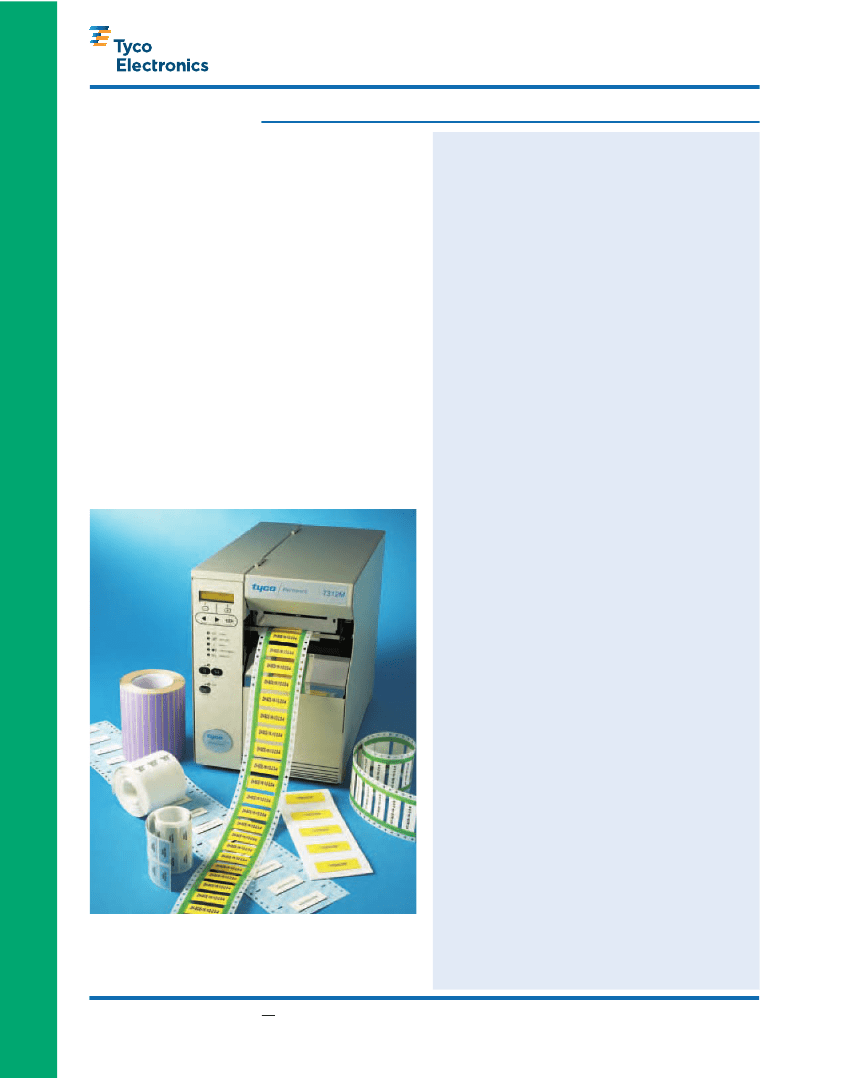

T300 Series High performance, cost effective thermal transfer printers
The T300 series printers are high performance, yet cost effective
thermal transfer printers with a 4.1" printhead. The rugged and
durable all metal construction makes them suitable for demanding
industrial and commercial environments. The enhanced memory
and 32 bit processor provide fast data processing and print
speeds. Optional accessories are available for added convenience
and efficiency.
The T308S and T308SN have a 200 dpi printhead for use with
the Tyco Electronics range of thermal transfer printable pressure
sensitive label products. The T308SN provides network capability
for real time connectivity with the printer. With such connectivity,
print jobs can be modified from any location over the Internet via
Web-based tools. The T308SN printer is also capable of sending
alerts via email enabled wired or wireless devices.
The 300 dpi printhead on the T312S, T312M and T312Z
produces crisp, high quality text, barcodes and graphic images.
The T312S and T312Z are for use with Tyco Electronics thermal
transfer printable pressure sensitive label products. The color-
coded operator cues and auto-calibration features make T312Z an
affordable yet easy to use label printing system. The T312M is
designed for use with Tyco Electronics TMS and HSI wire marker
sleeves, as well as thermal transfer pressure sensitive label
products.
Printer specifications
Tyco Electronics
T308S-TTDS-054
T312M-TTDS-066
T312Z-TTDS-115
104mm (4.09")
T308S: 8dpmm (203 dpi)
T312M/T312S/T312Z*: 12dpmm (305 dpi)
Print speed (maximum)
T308S/T312M/T312S: 203mm/sec
(8 inch/sec)
T312Z*: 154mm/sec (6 inch/sec)
Media sensor
Memory
Transmissive - adjustable
Reflective (fixed)
T308S/T312M/T312S: 6MB DRAM and
2MB Flash
T308SN: Additional 8MB flash memory
in PCMCIA socket
T312Z*: 4MB DRAM and 1MB Flash
Communication interface
Printer dimensions
Bi-directional parallel (Centronics) and
serial (RS232)
T308S/T312M/T312S:
283mm W x 495mm D x 394mm H
(11.2" W x 19.5" D x 15.5" H)
T312Z*:
278mm W x 475mm D x 338mm H
(10.93" W x 18.69" D x 13.32" H)
Printer weight
Shipping weight
T308S/T312M/T312S: 25kg (55 lbs)
T312Z*:15kg (32.4 lbs)
T308S/T312M/T312S: 29kg (63 lbs)
T312Z*:22kg (49 lbs)
Print head width
Print head resolution
Media Specifications
Maximum print width
Maximum media width
Minimum media width
Maximum media roll diameter
Media core diameter
Ribbon wind
104mm (4.09")
114mm (4.48")
T308S/T312M/T312S: 20mm (0.76")
T312Z*: 25.4mm (1.0")
203mm (8.0")
76mm (3.0")
Ink side out
Product order code
T308S-PRINTER
T308S-C-PRINTER
T308S-R-PRINTER
T308SN-PRINTER
T312SN
T312S-PRINTER
T312S-C-PRINTER
T312S-R-PRINTER
T312M-PRINTER
T312M-R-PRINTER
T312Z-PRINTER
Description
T308S thermal printer - standard
T308S thermal printer - cutter option
T308S thermal printer - internal rewind
option
T308S thermal printer - network capabilities
T312S thermal printer - network capabilities
T312S thermal printer - standard
T312S thermal printer - cutter option
T312S thermal printer - internal rewind
option
T312M thermal printer - standard
T312M thermal printer - internal rewind
option
T312Z thermal printer - standard*
Printers
*Not available in Europe, Middle East or Africa
138
Catalog 1654227
Revised 04-07
www.tycoelectronics.com
Dimensions not italicized are
in millimeters while dimensions
in inches are italicized.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
DigiKey Technology Zone
京公网安备 11010802033920号
EEWORLD
