LTIHK51-1S-BL-AM-FN/12V datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> LTIHK51-1S-BL-AM-FN/12V

Preview

LTIHK51-1S-BL-AM-FN/12V: DescriptionRocker Switch, 3PST, On-off, Latched, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size59KB，2 Pages; ManufacturerCarling Technologies

Download Datasheet Parametric Compare View All

LTIHK51-1S-BL-AM-FN/12V Overview

Rocker Switch, 3PST, On-off, Latched, Quick Connect Terminal, Rocker Actuator, Panel Mount

LTIHK51-1S-BL-AM-FN/12V Parametric

Parameter Name	Attribute value
Maker	Carling Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	BLACK
Actuator material	NYLON
Actuator type	ROCKER
body width	22.86 mm
body height	27.76 mm
Body length or diameter	39.87 mm
Contact (AC) maximum rated power R load	0.5HP@250VAC
Contact (AC) maximum rated R load	15A@125VAC
Maximum contact current (AC)	15 A
Contact function	ON-OFF
Maximum contact voltage (AC)	125 V
Dielectric withstand voltage	1000VDC V
illumination	AMBER LAMP
Insulation resistance	100000000 Ω
insulator material	PHENOLIC
Manufacturer's serial number	LTIH
Installation features	PANEL MOUNT
surface mount	NO
Switch action	LATCHED
switch function	3PST
Switch type	ROCKER SWITCH
Terminal length	0.392 inch
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

Rocker Switches

LTIH-Series

The LTIH-Series Tippette rocker

switches are lighted, three-pole and AC

rated up to 15 amps. A variety of circuits,

colors, terminations and lamp voltages

are available.

Specifications

•Certifications*: UL, CSA

•Dielectric Strength: 1,000V (minimum)

•Insulation Resistance: 100 Megohms

(minimum)

•Base Material: Phenolic

•Actuator Material: Nylon

•Bezel Material: Steel

* Due to ongoing technological advances, consult factory for

certification specifics.

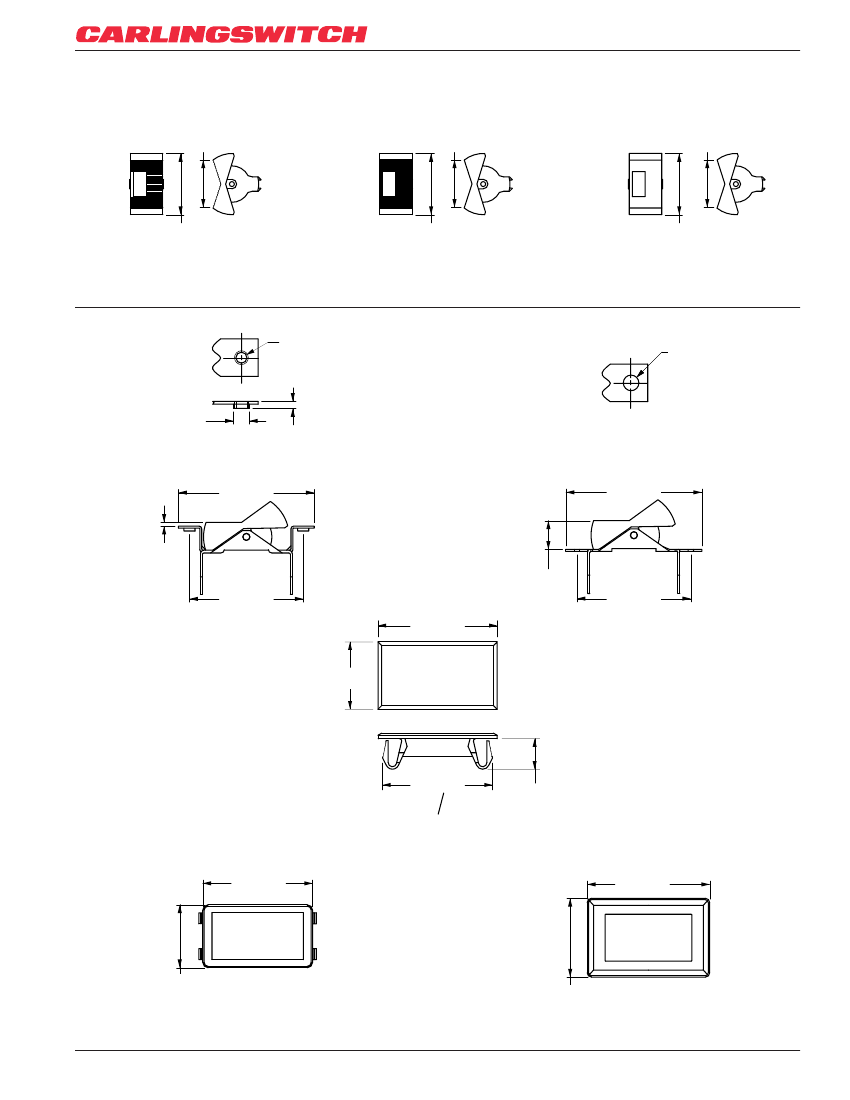

Dimensional Specifications: in. [mm]

.125[3.18] DIA

.075[1.91] DIA

.055[1.40] DIA

.330[8.38]

1.570[39.87]

.187[4.74]

SOLDER LUG

.437[11.09]

.394[10.00]

.250[6.35]

.250 TAB (Q.C.)

.187[4.74]

.187 TAB (Q.C.)

.392[9.96]

1.093[27.76]

#6-32NC-2

THREAD

.370[9.39]

TERMINAL TYPE

6.000[152.40]

.141[3.58]

.187[4.75]

.350[8.89]

WIRE LEAD

PRINTED

CIRCUIT

.187[4.75]

1.436[36.47]

1.302[33.07]

.500[12.70]

.286[7.26]

1.190[30.22]

.680[17.27]

MOUNTING HOLE

(Metal Snap-in Brackets)

Panel Thickness:

.040 min. - .100 max.

.830[21.08]

55° 4 plcs*

1.450[36.83]

* Angled corners are suggested for optimum fit.

Standard rectangular cutout is acceptable.

SCREW

(ASSEMBLED)

LTIH

SERIES

K

5

RATING

1

- 1S

-

BL

-

RC - FN / 125N

BRACKET STYLE

4

A

C

FN

NARROW

FW

WIDE

LAMP VOLTAGE

NEON

125N

125 VOLT

250N

250 VOLT

INCANDESCENT

6V

6 VOLT

12V

12 VOLT

18V

18 VOLT

24V

24 VOLT

28V

28 VOLT

ACTUATOR STYLE

1

1C

CROSS SERRATED

1L

LONG LINED

1S

SMOOTH ANGLED

ACTUATOR COLOR

2

BL

BLACK

WH

WHITE

LENS COLOR

3

AM

CL

GN

LU

RC

WH

AMBER

CLEAR

GREEN

BLUE

RED

WHITE

LTIH

THREE POLE IN

A FOUR POLE

BASE LIGHTED

CIRCUIT

K

ON-NONE-OFF

L

ON-NONE-ON

M

ON-OFF-ON

6

10A 250VAC

15A 125VAC

1/2HP 125-250VAC

1, 2 OR 3 PHASE

3A 250VAC

6A 125VAC

1/4HP 125-250VAC

NOTES:

Shading indicates standard configurations.

Panel Cut-Out Recommendations: For sheet metal panels, switch

must enter panel in same direction as the punch. (Burr on bottom.)

Test cut hole in actual material.

1

Imprinting available on smooth face rockers. Other actuator

styles available. Consult factory.

2

Custom colors are available. Consult factory.

3

Green and blue not recommended with 125 volt or / 250 volt

neon lamps.

For two different color lenses, please specify when ordering

lens color. (ex.) RC/GN

Split lenses available. Please specify when choosing lens. (ex.)

RC/GN

4

Bracket Styles D, E, and G available. Supplied with double

brackets.

Barbs are available on FN style bracket to accommodate

panel thickness of .062, .100, .125, .156 & .250. Specify after

bracket selection. (ex.) FN/.125

Standard FN and FW brackets are nickel. FN brackets are

available in stainless steel, chrome and black oxide. FW

brackets are available in chrome and black oxide. Please

specify when ordering.

TERMINATION/FUNCTION

.250 .187

SOLDER TAB TAB SCREW WIRE PC

FUNCTION

LUG

(QC) (QC) TERM. LEAD TERM.

ON-NONE-OFF

0

1

3

4

5

6

(ON)-NONE-OFF

A

B

D

E

F

G

ON-NONE-(OFF)

L

M

R

S

T

U

ON-NONE-ON

0

1

3

4

5

6

ON-NONE-(ON)

A

B

D

E

F

G

ON-OFF-ON

0

1

3

4

5

6

ON-OFF-(ON)

A

B

D

E

F

G

(ON)-OFF-(ON)

L

M

R

S

T

U

48

Carlingswitch,Inc. (860) 793-9281• Carlingswitch, LTD. Int + 44 1392-364422 • Carlingswitch Asia-Pacific, LTD. Int + 852-2737-2277

LTIHK51-1S-BL-AM-FN/12V Related Products

	LTIHK51-1S-BL-AM-FN/12V	LTIHK51-1S-BL-AM-FN/125N	LTIHK51-1S-BL-AM-FN/250N	LTIHK51-1S-BL-RC-FN/12V
Description	Rocker Switch, 3PST, On-off, Latched, Quick Connect Terminal, Rocker Actuator, Panel Mount	Rocker Switch, 3PST, On-off, Latched, 15A, 30VDC, Quick Connect Terminal, Rocker Actuator, Panel Mount,	Rocker Switch, 3PST, On-off, Latched, 15A, 30VDC, Quick Connect Terminal, Rocker Actuator, Panel Mount,	Rocker Switch, 3PST, On-off, Latched, Quick Connect Terminal, Rocker Actuator, Panel Mount
Maker	Carling Technologies	Carling Technologies	Carling Technologies	Carling Technologies
Reach Compliance Code	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator material	NYLON	NYLON	NYLON	NYLON
Actuator type	ROCKER	ROCKER	ROCKER	ROCKER
body width	22.86 mm	22.86 mm	22.86 mm	22.86 mm
body height	27.76 mm	27.76 mm	27.76 mm	27.76 mm
Body length or diameter	39.87 mm	39.87 mm	39.87 mm	39.87 mm
Contact (AC) maximum rated R load	15A@125VAC	15A@125VAC	15A@125VAC	15A@125VAC
Maximum contact current (AC)	15 A	15 A	15 A	15 A
Contact function	ON-OFF	ON-OFF	ON-OFF	ON-OFF
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V
illumination	AMBER LAMP	AMBER LAMP	AMBER LAMP	RED LAMP
insulator material	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
surface mount	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED
switch function	3PST	3PST	3PST	3PST
Switch type	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH	ROCKER SWITCH
Termination type	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
