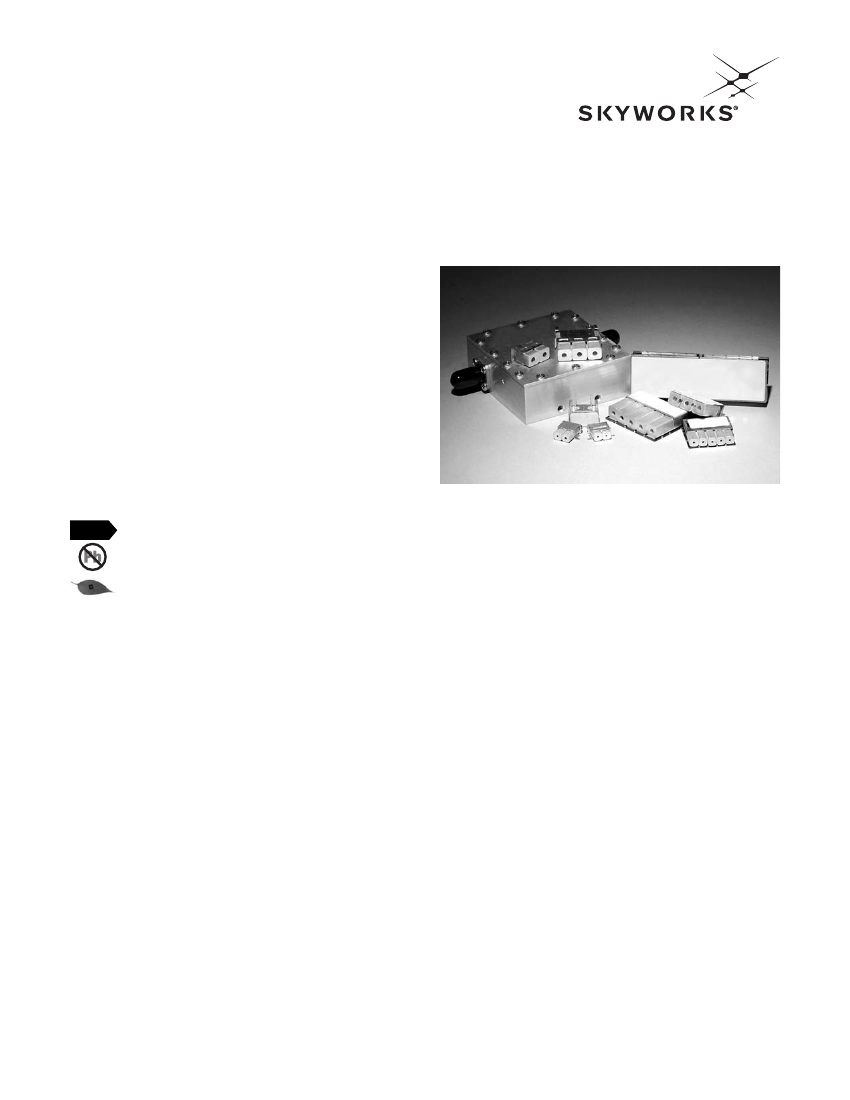

DATA SHEET
Introduction and Applications for Ceramic Band Pass Filters
Features
High Q ceramic
●
Rugged
●
Temperature compensated
●
Custom designs
●
Available lead (Pb)-free, RoHS-compliant, and Green
●
Benefits
Low insertion loss
●
Small compact design
●
Frequency stability
●
Mechanical stability
●
NEW
Skyworks Green products are lead (Pb)-free, RoHS
(Restriction of Hazardous Substances)-compliant,
conform to the EIA/EICTA/JEITA Joint Industry Guide
(JIG) Level A guidelines, and are free from antimony
trioxide and brominated flame retardants.
Introduction
Skyworks is a world-class supplier of high performance ceramic
band pass filters. Specializing in band pass, notch and diplexing
applications, Skyworks can cover a frequency range from 300 MHz
to 6000 MHz with surface mount or connectorized devices.
Utilizing state of the art assembly automation, Skyworks provides
cost-effective solutions meeting high performance specifications.
Skyworks surface mount PCB configured filters are designed to
comply with “green” manufacturing initiatives eliminating heavy
metal elements. This configuration is designed to comply with
pending European regulations regarding the elimination of lead in
electronic assemblies. Custom assemblies can be obtained with
flat pack style SMT devices, through-hole or Sn/Pb coated PCB
surface mount designs.
Skyworks assembly methodology offers a wide array of designs,
from 2 mm x 2 pole – 8 mm x 10 pole band pass filters and
diplexers, to advanced band stop (notch) designs and high-pass
or low-pass filters. For typical applications and ranges of prod-
ucts, refer to the Standard Filters/Duplexers listing included in
this document. Detailed specifications, both mechanical and
electrical, are maintained for many popular designs on our
Web site, or by contacting your local sales representative.
The nature of applications utilizing a band pass filter, duplexer or
notch filter, necessitates the close interaction of the customer
and Skyworks application engineering. Our application engineers
employ the latest in simulation and circuit analysis software with
accurately defined design rules to provide rapid turnaround on
new filter designs. With our experience and design aids,
Skyworks can provide the necessary support for your application
from prototype through production. In addition to the personal
attention, Skyworks offers a computer-aided design tool, CRaFT,
to assist engineers designing filters (the latest version can be
downloaded from our Web site, www.skyworksinc.com.
The strength of Skyworks designs begin with our ability to
produce our own coaxial resonators from proprietary ceramic
formulations. These resonators provide a high Q element that
allows us to maintain our low filter insertion loss values. With
numerous design package styles, Skyworks offers aggressive
leadtimes on both prototype and volume applications.
*These products are produced by Trans-Tech (a wholly-owned subsidiary of Skyworks Solutions, Inc.)
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • September 11, 2006
1
DATA SHEET • INTRODUCTION AND APPLICATIONS FOR CERAMIC BAND PASS FILTERS
Standard Filter Selection Guide
Skyworks has a wide range of standard filters, as well as the
capability to rapidly create new custom designs. Figure 1.1 illus-
trates our general capability for filters. If a desired requirement
falls within the listed categories, Skyworks can easily offer a suit-
able design. Beyond this general list, Skyworks has a staff of
experienced filter designers who can provide new custom and
more technologically difficult filters. In addition, the CRaFT pro-
gram functions as a useful tool when analyzing filter requirements.
Skyworks welcomes the chance to review specifications and
determine a design solution.
Figure 1.1 Standard Capabilities*
Center frequency
Standard filter type
Number of poles
Resonator sizes
Bandwidth
Insertion loss
Attenuation
Impedance
300 MHz to 6 GHz
Ceramic band pass, duplexer,
notch, LPF
2–10
2, 3, 4, 6, 8 and 12
1.0%–10% (May vary depending
on resonator size, F
O
&
ε
R
)
1–4 dB typical by design
Varies by number of poles
50 or 75
Ω
2.0:1 maximum
-40 to +85 °C
PCB surface mount, thru-hole, & flat
pack surface mount
1 W typical*
Standard Filters/Duplexers*
This list contains Skyworks most popular filter and diplexer
designs. A variety of footprints and configurations are available
for application-specific needs. Please contact the factory or your
local representative with your specifications or for more informa-
tion on any of these designs. Skyworks maintains a list of over
700 active filters and diplexers. We welcome every opportunity to
assist in the selection or creation of a filter or diplexer that will
meet your specifications.
VSWR
Operating temperature range
Mechanical packaging options
Power handling (continuous)
* Contact Skyworks application engineering for assistance with any other requirement.
CATV
Part Number
TT3P2-1068P0-3507
TT4P2-1013P2-2020
TT4P2-1082.5P2-0720
TT4P2-1082P2-0620
TT4P2-1090P2-0610
TT4P3-1030P2-1535
TT4P3-1067P2-4420
TT6P4-1080P4-7015
TT6P4-1090P2-1036
Filter Type
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Size/Poles
3 mm/2 pole
4 mm/2 pole
4 mm/2 pole
4 mm/2 pole
4 mm/2 pole
4 mm/3 pole
4 mm/3 pole
6 mm/4 pole
6 mm/4 pole
Center Frequency
(MHz)
1068
1013
1082.5
1082
1090
1030
1067
1080
1090
Bandwidth
(MHz)
35
20
7
6
6
15
44
70
10
Insertion Loss
(dB)
0.7
2
2
2
1
3.5
2
1.5
3.6
Package
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
WCS
Part Number
TT6P6-0750P0-5017
TT6P5-0765P0-11225
TT6P2-0770T-1215
TT6P3-0770T-1225
TT6P3-0770T-2020
Filter Type
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Size/Poles
6 mm/4 pole
6 mm/5 pole
6 mm/2 pole
6 mm/3 pole
6 mm/3 pole
Center Frequency
(MHz)
750
765
770
770
770
Bandwidth
(MHz)
50
112
12
12
20
Insertion Loss
(dB)
1.7
2.5
1.5
2.5
2
Package
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
2
September 11, 2006 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice.
DATA SHEET • INTRODUCTION AND APPLICATIONS FOR CERAMIC BAND PASS FILTERS
MDS
Part Number
TT4P3-2120P2-6020
TT4P6-2122P0-2835
TT6P4-2158P2-14220
TT6P6-2500P3-3635
Filter Type
Band Pass
Band Pass
Band Pass
Band Pass
Size/Poles
4 mm/3 pole
4 mm/6 pole
4 mm/4 pole
6 mm/6 pole
Center Frequency
(MHz)
2120
2122
2158
2500
Bandwidth
(MHz)
60
28
14
36
Insertion Loss
(dB)
2
3.5
2
3.5
Package
PCB SMT
PCB SMT
PCB SMT
PCB SMT
ISM
Part Number
TT4P2-0915P2-2620
TT6P2-0902F-2518
TT6P2-0915T-2518
TT6P3-0902T-2520
TT6P3-0915T-2520
TT6P3-0917F-1425
TT3P3-2400P1-1030
TT3P3-2450P1-1445
TT6P3-2467P0-3330
Filter Type
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Size/Poles
4 mm/2 pole
6 mm/2 pole
6 mm/2 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
3 mm/3 pole
3 mm/3 pole
6 mm/3 pole
Center Frequency
(MHz)
915
902
915
902
915
917
2400
2450
2467
Bandwidth
(MHz)
26
25
25
25
25
14
10
14
33
Insertion Loss
(dB)
2
1.8
1.8
2
2
2.5
3
4.5
3
Package
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
Cellular/PCS/DCS/UMTS
Part Number
TT3P2-1880P0-6010
TT3P3-0881.5P2-2530
TT3P3-1880P0-6022
TT3P3-1960P0-6022
TT3P3-1960P2-6030
TT3P4-0836.5P2-2525
TT3P4-0881.5P2-2525
TT3P4-1880P2-6020
TT3P4-1880P2-6030
TT4P3-0863P0-0585
TT4P3-2180P1-2540
TT4P4-1880P0-6216
TT4P4-1960P0-6216
TT4P5-2240P2-1032
TT4P6-0860.5P0-1937
TT6P3-0836T-2520
TT6P3-0860P3-2020
TT6P3-0860T-2020
TT6P3-0881F-2520
TT6P5-1960P0-6025
TT6P5-2280P1-7032
TT6P6-1900P3-8035
TT6P3-2140P2-6011
TT6P10-R1950-T2140
Filter Type
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Diplexer
Size/Poles
3 mm/2 pole
3 mm/3 pole
3 mm/3 pole
3 mm/3 pole
3 mm/3 pole
3 mm/4 pole
3 mm/4 pole
3 mm/4 pole
3 mm/4 pole
4 mm/3 pole
4 mm/3 pole
4 mm/4 pole
4 mm/4 pole
4 mm/5 pole
4 mm/6 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/5 pole
6 mm/5 pole
6 mm/6 pole
6 mm/3 pole
6 mm/10 pole
Center Frequency
(MHz)
1880
881.5
1880
1960
1960
836.5
881.5
1880
1880
863
2180
1880
1960
2240
860.5
836
860
860
881
1960
2280
1900
2140
1950
Bandwidth
(MHz)
60
25
60
60
60
25
25
60
60
5
25
62
62
10
19
25
20
20
25
60
70
80
60
-
Insertion Loss
(dB)
1
3
2.2
2.2
3
2.5
2.5
2
3
8.5
4
1.6
1.6
3.2
3.7
2
2
2
2
2.5
3.2
3.5
1.1
-
Package
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • September 11, 2006
3
DATA SHEET • INTRODUCTION AND APPLICATIONS FOR CERAMIC BAND PASS FILTERS
GPS
Part Number
TT4P4-R1227.6-T1575.42
TT4P3-1227.6P1-2030
TT4P3-1575.42P2-2040
TT3P3-1227.6P1-1030
TT3P3-1575.42P2-1030
Filter Type
Diplexer
Band Pass
Band Pass
Band Pass
Band Pass
Size/Poles
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
Center Frequency
(MHz)
1227.6
1227.6
1575.42
1227.6
1575.42
Bandwidth
(MHz)
-
20
20
10
10
Insertion Loss
(dB)
-
3
4
3
3
Package
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
Other
Part Number
TT3P4-2513P2-5055
TT3P5-3687P1-7466
TT4P3-3417P2-0220
TT4P5-1090P0-1050
TT6P5-0810P3-5030
TT6P4-0509P7-0148
TT4P4-1000P2-1030
TT6P3-0826.5P3-0520
TT6P3-0827P3-0620
TT6P6-1000P5-8530
TT6P6-0545P6-3022
TT4P3-3500P2-10020
TT6P6-0889P3-4029
TT6P4-0722P4-4817
TT3P3-1088P2-9015
TT6P3-0740P3-2020
TT6P5-1950P3-6040
TT3P4-0917P2-4524
TT6P3-1090P2-1029
TT6P4-0770P0-1240
TT6P3-1030P2-1029
TT6P5-0881.5P0-2530
TT6P3-0730P3-1213
TT6P3-0445.25T-0145
TT4P3-2400P1-20015
TT6P3-1080P2-0650
TT6P3-0745.3P3-1920
TT6P4-0435P0-3019-NS
TT3P4-0895.5P2-3926
Filter Type
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Band Pass
Size/Poles
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
6 mm/3 pole
Center Frequency
(MHz)
2513
3687
3417
1090
810
509
1000
826.5
825
1000
545
3500
889
722
1088
740
1950
917
1090
770
1030
881.5
730
445.25
2400
1080
745.3
435
895.5
Bandwidth
(MHz)
50
74
2
10
50
1
10
5
6
85
30
10
40
48
90
20
60
45
10
12
10
25
12
1
20
6
19
30
39
Insertion Loss
(dB)
5.5
6.6
2
5
3
4.8
3
2
2
3
2.2
2
2.9
1.7
1.5
2
4
2.4
2.9
4
2.9
3
1.3
4.5
1.5
5
2
1.9
2.6
Package
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
PCB SMT
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
4
September 11, 2006 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice.
DATA SHEET • INTRODUCTION AND APPLICATIONS FOR CERAMIC BAND PASS FILTERS
Available Packages
Skyworks offers filters in a number of standard packages. In
addition to SMT, Skyworks offers a flat-pack and through-hole
configuration. Mechanical drawings are provided for most of our
filters. In addition to our standard offering, Skyworks has the
capability and experience to meet many unique footprint layouts
and custom packages.
For each of our 2 to 6 pole packages, Skyworks can offer profiles
ranging from 2 mm to 6 mm.
2 mm SMT
TT2P2—P—
TT2P5—P—
TT2P6—P—
TT2P3—P—
SMT Filter Length
Filter
P1
P2
P3
P4
P5
P6
P7
Inches
0.434
0.512
0.590
0.669
0.748
0.827
0.906
Custom
mm
11
13
15
17
19
21
23
Custom
TT2P4—P—
P0
Dimension ‘L’ will vary in length dependent upon filter’s frequency.
All dimensions are in inches.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice. • September 11, 2006
5
京公网安备 11010802033920号
EEWORLD
