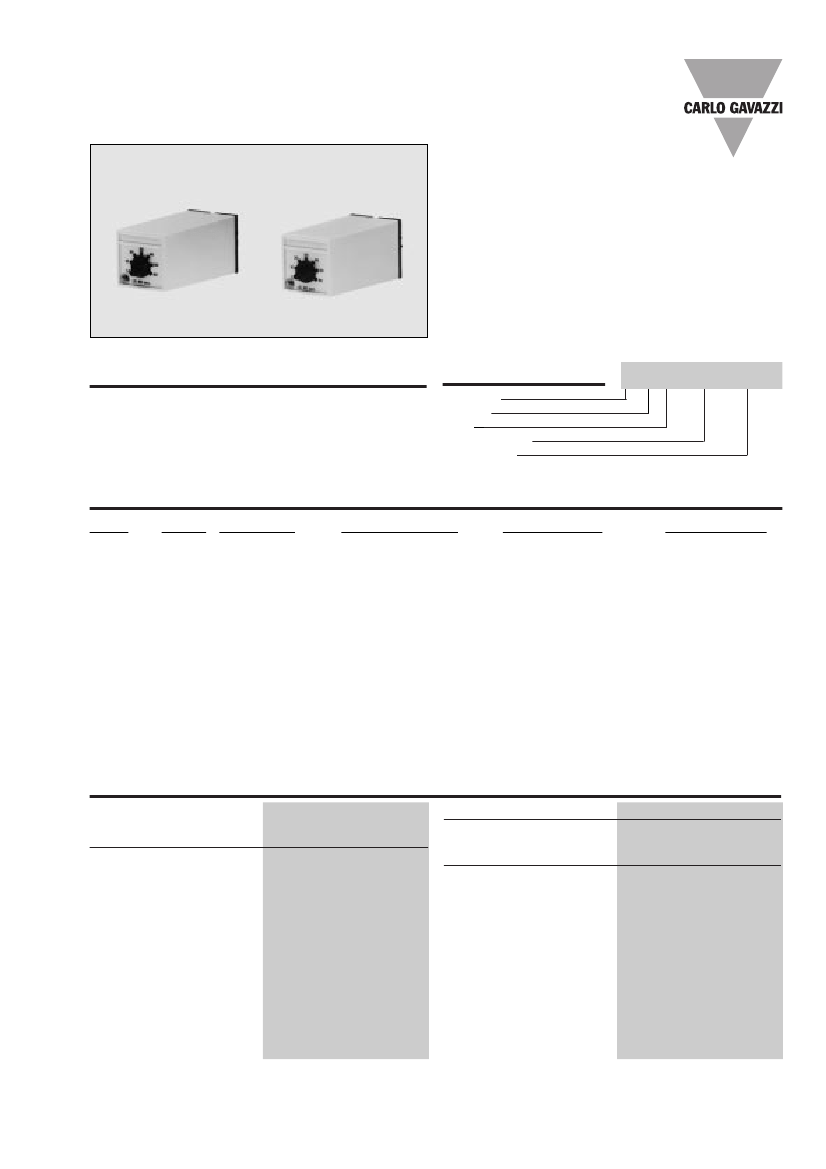

Timers

Interval

Types B 101, B 201, B 108, B 208

• Time ranges: 0.15 s to 600 s

• Automatic start

• Knob-adjustable time within range

• Oscillator-controlled time circuit

• Repeatability deviation:

≤

• Output: 10 A SPDT or 8 A DPDT relay

• Plug-in type module

• Scantimer housing

• LED-indication for relay on

• AC or DC power supply

Product Description

Mono-function, plug-in mini-

ature interval time relays up

to 600 s (10 min) covering 3

individual time ranges. This

economical timer is often

used in applications such as

lubricating pumps, drying ele-

ments, etc. where an opera-

tion is wanted to last for a lon-

ger period of time.

Ordering Key

Function

Output

Type

Power supply

Time range

B 108 024 600

Type Selection

Plug

Circular

8 pin

Circular

11 pin

Circular

8 pin

Circular

11 pin

DPDT

Output

SPDT

Time ranges

0.15 - 6 s

1.5 - 60 s

15 - 600 s

0.15 - 6 s

1.5 - 60 s

15 - 600 s

0.15 - 6 s

1.5 - 60 s

15 - 600 s

0.15 - 6 s

1.5 - 60 s

15 - 600 s

Supply: 24 VAC/DC

B 108 024 006

B 108 024 060

B 108 024 600

B 101 024 006

B 101 024 060

B 101 024 600

B 208 024 006

B 208 024 060

B 208 024 600

B 201 024 006

B 201 024 060

B 201 024 600

Supply: 120 VAC

B 108 120 006

B 108 120 060

B 108 120 600

B 101 120 006

B 101 120 060

B 101 120 600

B 208 120 006

B 208 120 060

B 208 120 600

B 201 120 006

B 201 120 060

B 201 120 600

Supply: 220 VAC

B 108 220 006

B 108 220 060

B 108 220 600

B 101 220 006

B 101 220 060

B 101 220 600

B 208 220 006

B 208 220 060

B 208 220 600

B 201 220 006

B 201 220 060

B 201 220 600

Time Specifications

Time ranges

0.15- 6 s

1.5 - 60 s

15 - 600 s

0 to +10% on max.

min. actual time

≤

min.

set time

Repeatability deviation

Time variation

Within rated power supply

and ambient temperature

Reset

Time and/or relay

≤

0.05%/V

≤

0.2%/°C

Power supply interruption

≥250

Time range accuracy

Specifications are subject to change without notice (25.10.99)
