MEH60-200-4-30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MEH60-200-4-30

MEH60-200-4-30: DescriptionOptical Position Encoder, ROTARY OPTICAL POSITION ENCODER; CategoryLED optoelectronic/LED photoelectric; File Size31KB，1 Pages; ManufacturerCUI; Websitehttp://www.cui.com

Download Datasheet Parametric View All

MEH60-200-4-30 Overview

Optical Position Encoder, ROTARY OPTICAL POSITION ENCODER

MEH60-200-4-30 Parametric

Parameter Name	Attribute value
Maker	CUI
Reach Compliance Code	compliant
Optoelectronic device types	ROTARY POSITION ENCODER

Preview

Download Datasheet

View All

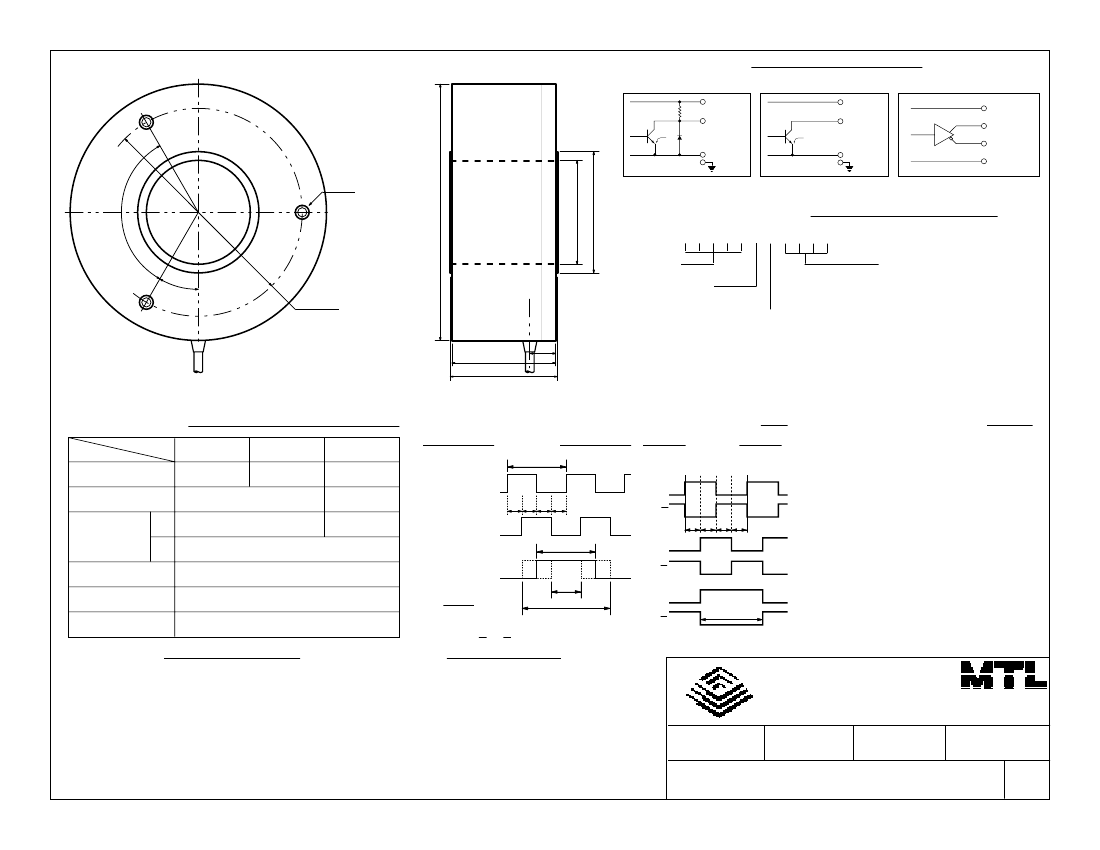

C U I Stack, Inc.,

1997

OUTPUT CIRCUITS

TYPE ' ' (Voltage)

TYPE C (Open Coll) TYPE E (Line Driver)

Vcc

2kΩ

Vcc

Signal

30mA

max

Vcc

Signal

Inv. Sig.

Signal

20mA

max

CABLE SHIELD

3-M4

Ø74

Ø30

Ø35

120˚

30˚

ORDERING INSTRUCTIONS

MEH60-_ _ _ _ _-_ _-_ _ _ _

Resolution

Output Format:

" "= TTL voltage

C = Open Collector

E = Line Driver

Bore Size:

127 = 0.5"

1905 = 0.75"

245 = 1.0"

30 = 30mm

(smaller sizes available)

PCD60

7.5

Input Voltage:

1 = 5VDC

±10%

3 = 5~12VDC

±10%

4 = 24VDC

±10%

SPECIFICATIONS

OUTPUT WAVEFORM

(Clockwise rotation viewed from front)

TYPE E

TYPE

Supply Voltage

Current

Output

Voltage

Sink Current

Signal Risetime

Freq. Response

5~12VDC

24VDC

5VDC

TYPE ' ', C

Signal A

a b c d

Sig A

Sig B

h min

h max

Sig Z

60mA max.

150mA max.

Vcc - 1V

≤

0.5V

20mA max.

≤

2µS

30 - 100kHz

≥

2.5V

Signal B

Signal Z

PPR

a,b,c,d =

P P

4 8

a b c d

STANDARD RESOLUTIONS

MEH60-XXXXX

180 180 P/R

1800 1800 P/R

200 200 P/R

2000 2000 P/R

360 360 P/R

4000 4000 P/R

400 400 P/R

5000 5000 P/R

500 500 P/R

5400 5400 P/R

600 600 P/R

9000 9000 P/R

1000 1000 P/R 21600 *21600P/R

*Operating Temp: 0°C-50°C

h = P ± 0.75P

Wave Duty Ratio: 50% ± 25%

MECHANICAL

1. Max Shaft Load, radial: 2.0 kgf

axial: 1.0 kgf

2. Moment of Inertia: 40 g•cm

3. Angular Acceleration: 1x10

rad/S

4. Max Slewing Speed: 1000 RPM

5. Starting Torque: 200 gf•cm max.

6. Rotational Life: 1 x 10

rpm•hrs

ENVIRONMENTAL

Operating Temp: 0° to +60° C

Storage Temp: -20° to +80° C

Humidity: 90% RH, no condensation

Vibration: 10~55 Hz, 1.5 mm, 2 hrs

Shock: 50G, 11ms, 3 axes, 3 reps

C U I Stack, Inc.

9615 SW Allen Blvd. #103

Beaverton, OR 97005

Tel: 503/643-4899 FAX: 503/643-6129

DRAWN BY

UPDATED

CHECKED

RELEASED

JAS

PART NO.

03/07/00

REV.

MEH60-XXXXX-XX-XXXXX
