E205ECBD: DescriptionPower/Signal Relay, DPDT, Momentary, 0.056A (Coil), 28VDC (Coil), 1568mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size766KB，4 Pages; ManufacturerSTPI Siege Social

Download Datasheet Parametric View All

E205ECBD Overview

Power/Signal Relay, DPDT, Momentary, 0.056A (Coil), 28VDC (Coil), 1568mW (Coil), 5A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount,

E205ECBD Parametric

Parameter Name	Attribute value
Maker	STPI Siege Social
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	10.4 mm
body height	16.3 mm
Body length or diameter	20.6 mm
Maximum coil current (DC)	0.056 A
Coil operating voltage (DC)	18 V
Coil power	1568 mW
Coil release voltage (DC)	1.5 V
Coil resistance	500 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@115VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
JESD-609 code	e0
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	6 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-70 °C
physical size	20.6mm x 10.4mm x 16.3mm
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	6 ms
surface mount	NO
Terminal surface	TIN LEAD
Termination type	SOLDER

Preview

Download Datasheet

View All

E205

Technical Characteristics

Coil Characteristics

COIL CODE

Nom inal coil voltage

M axim um pick-up voltage at 25°C

M axim um pick-up voltage at 125°C

M axim um hold voltage at 125°C

M inim um drop-out voltage at -70°C

Coil resistance ( ohm s ± 10% at 25° C )

M ax coil transient suppression

(w here applicable) VDC

3,3

4,5

2,3

0,25

-42

6,5

4,5

0,5

-42

26,5

13,5

1,2

440

-42

13,5

1,5

500

-42

16,7

825

-100

2,4

1400

-100

34,7

3500

-100

110

5,5

5000

-154

OTHER VOLTAGES AVAILABLE FROM FACTORY ON REQUEST

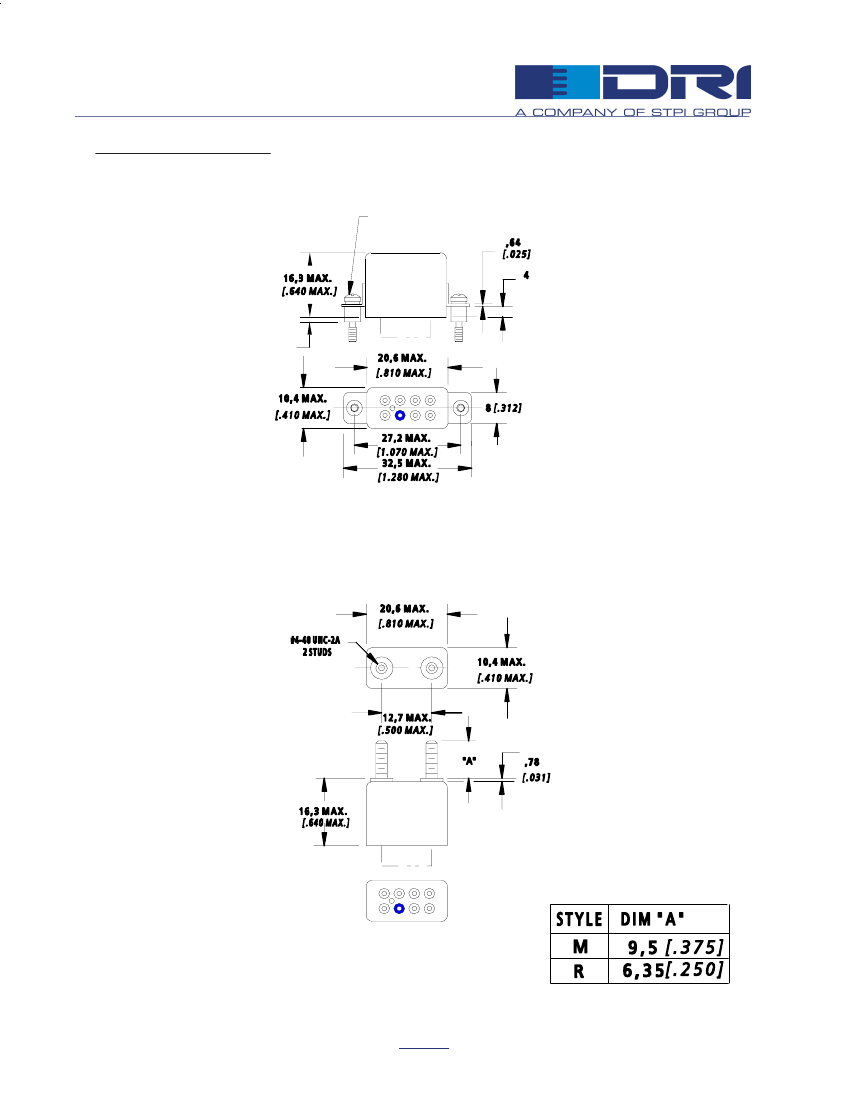

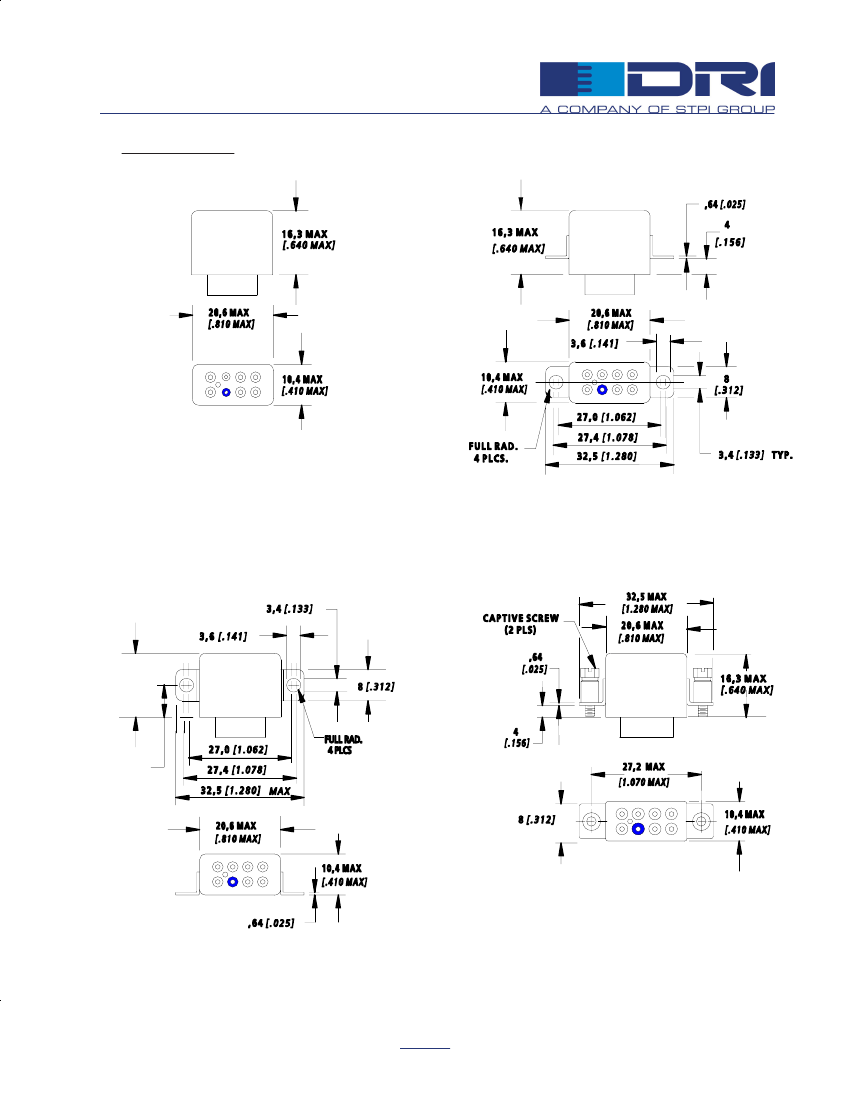

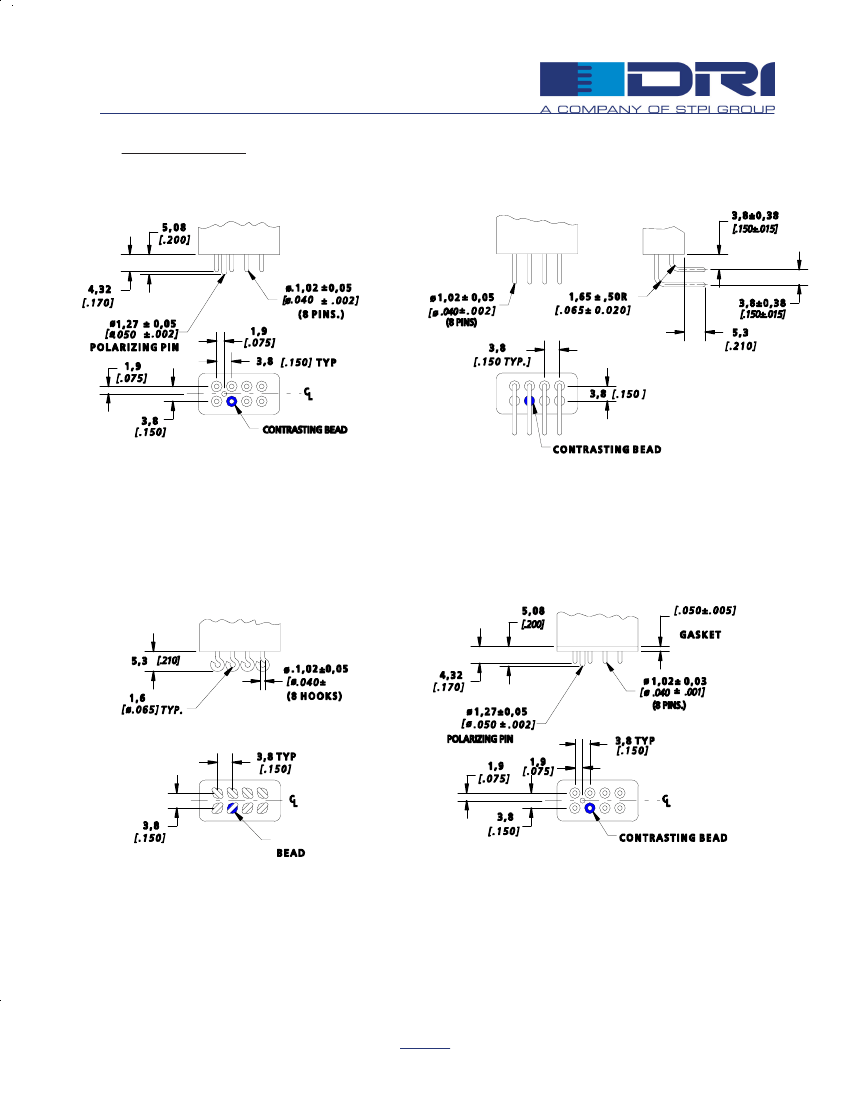

Circuit Diagram

E205

ES 205

O P T I ON A L I N T E R NA L

VOLTAGE SUPPRES SOR
