Fuseholders
https://www.schurter.com /PG02
FUP
Shock-Safe Fuseholder, 5 x 20 / 6.3 x 32 mm, Slotted Cap, horizontal
Socket with Slotted Cap
250/500 VAC · 4 W / 16 A (VDE) · 600 V · 30 A (UL/CSA)
Description
Approvals and Compliances
Applications
Weblinks
- Equipment with three-phase supply (400 VAC)
- Applications with rated current up to 16 A (VDE)
pdf datasheet, html-datasheet, General Product Information, Packaging
details, Distributor-Stock-Check, Accessories, Detailed request for
product, Microsite
See below:
- Fuseholder for 500 VAC applications
- Fuseholder with high rated power acceptance
- Same drilling diagram (FUP and FUA)
Technical Data
PC2
5 x 20 or 6.3 x 32 mm
PCB
Solder THT
250/500 VAC (VDE), 600 V (UL/CSA)
16 A (VDE), 30 A (UL/CSA)
4 W / 16 A @ Ta 23 °C
Admissible power acceptance at higher
ambient temperature see derating cur-
ves
Degree of Protection
IP 40
Protection Class
Suitable for appliances with protection
class I or II acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Material: Socket
Thermoset, black, UL 94V-0
Material: Terminals
Tin-Plated Copper Alloy
Unit Weight
14.6 g
Storage Conditions
0 °C to 60 °C, max. 70% r.h.
Product Marking
, Type, Rated Voltage, Power Rating,
Rated current, Approvals
Shock-Safe Category
Fuse-Link
Mounting
Terminal
Rated Voltage
Rated current
Rated Power Acceptance IEC
Soldering Methods
Solderability
Resistance to Soldering Heat
Contact Resistance
Dielectric Strength
Impulse Withstand Voltage
Insulation Resistance
Overvoltage Category
Pollution Degree
Wave
Soldering Profile
245 °C / 2 sec acc. to IEC 60068-2-20,
Test Ta, method 1
260 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 1
≤
10 mΩ at 20 mV acc. to IEC 60127-6
> 3 kV between life parts
(50 Hz; 1 min)
> 4 kV between life parts
≥
10 MΩ between life parts
(500 VDC; 1 min)
III acc. to IEC 60664-1
2 (500 VAC), 3 (250 VAC) acc. to IEC
60664-1
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FUP
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
VDE Certificate Number: 40045336
UL File Number: E39328
Fuses
1
FUP
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Standard
IEC 60127-6
UL 4248-1
CSA C22.2 no. 4248.1
Description
https://www.schurter.com /PG02
Fuseholders
Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Fuseholder general requirements
Fuseholder general requirements
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60335-1
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the en-
hanced requirements of glow wire tests acc. to IEC 60695-2-12 and -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
Meets the glow wire test acc. IEC 60335-1 edition 4
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG
White paperGlow wire test
SCHURTER AG
Dimension [mm]
54.8 mm
54.8
4
8.5
2.6
-0.10
0
1.3
+0.10
0
7.62
ø 19
14.9
10
19.5
1.8
30.48
1.6
10.16
7.62
15.24
7.62
11.77
ø 2.5
30.48
0.9
10.16
0.8
0.8
0.9
Drilling diagram
2
Fuses
15.24
Fuseholders
https://www.schurter.com /PG02
FUP

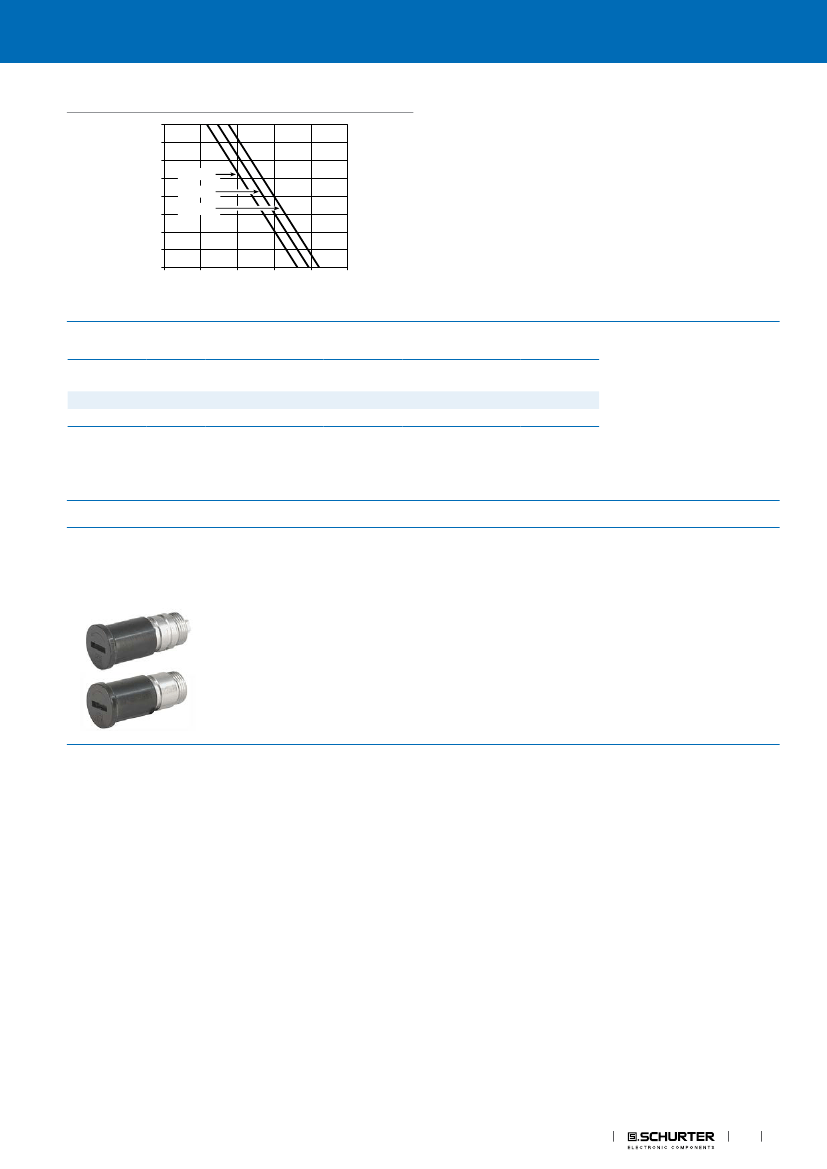

Derating Curves
Admissible Power Acceptance in Watt
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Ambient Air Temperature T
a
°C
All Variants
Holder
l
l
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Cap
slotted
slotted
Fuse-Link
5 x 20mm
6.3 x 32mm
Degree of Pro-
tection
IP 40
IP 40
Remark
0031.2500 + 0031.2323
0031.2500 + 0031.2321
Order Number
0031.2510
0031.2520
█
█
Packaging Unit
Required Accessory
Bulk (25 pcs.)
Description
Caps to FUL, FUP, FUA
Caps to Holder FUL, FUP, FUA
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Fuses
3
26.02.2018
