DAC87AU/B: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 6us Settling Time; CategoryAnalog mixed-signal IC converter; File Size231KB，6 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

DAC87AU/B Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 6us Settling Time

DAC87AU/B Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-XDIP-T24
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal settling time (tstl)	6 µs
Nominal supply voltage	15 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm

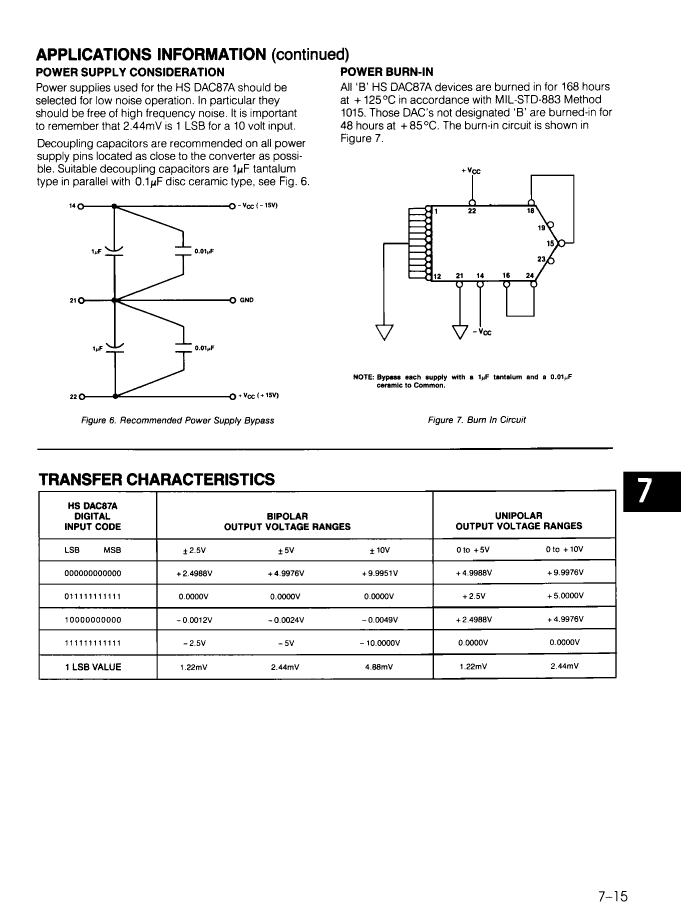

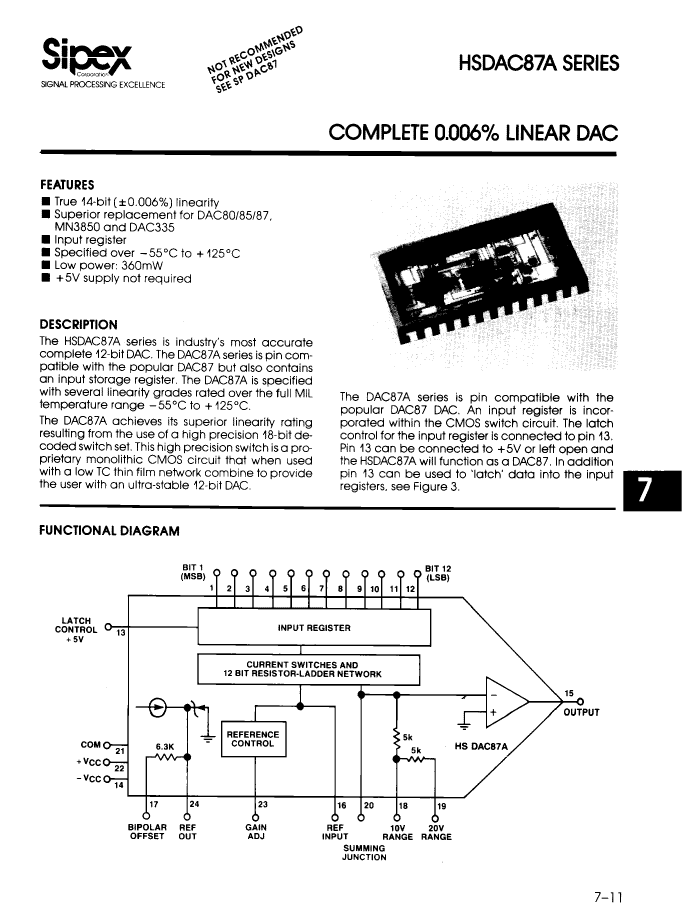

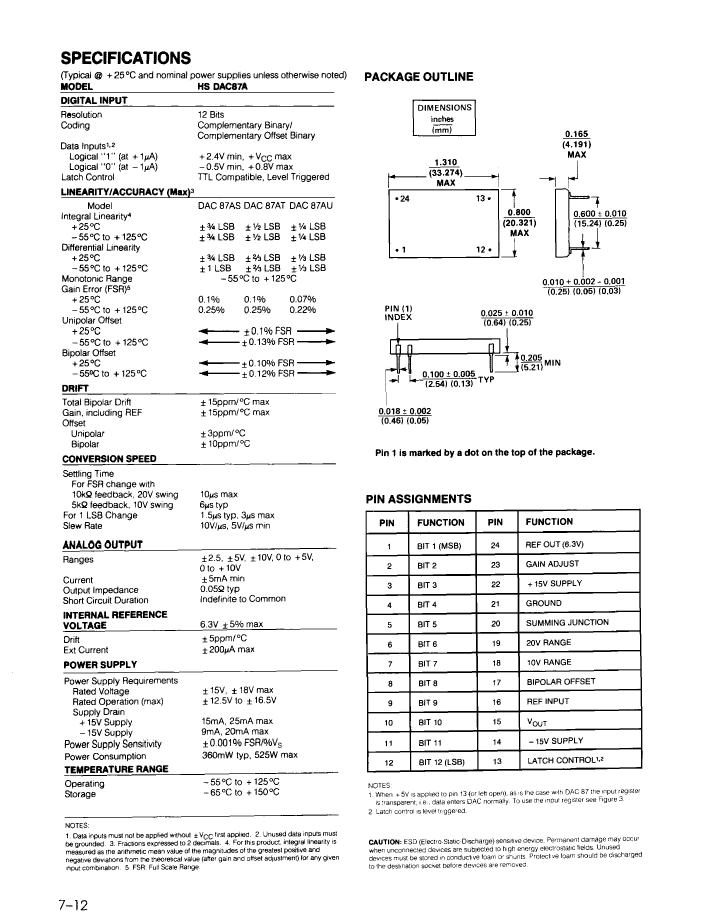

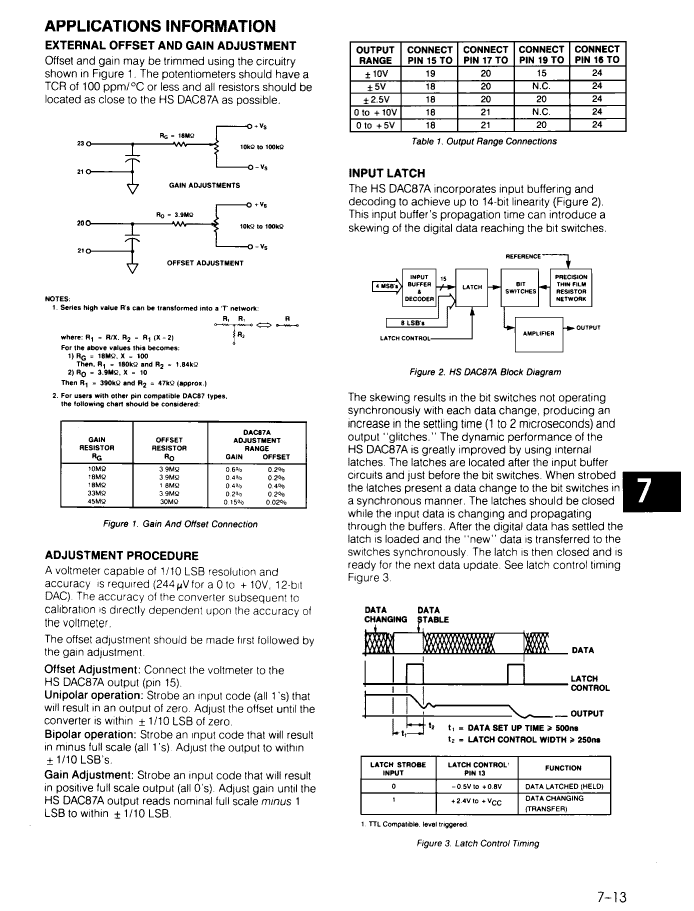

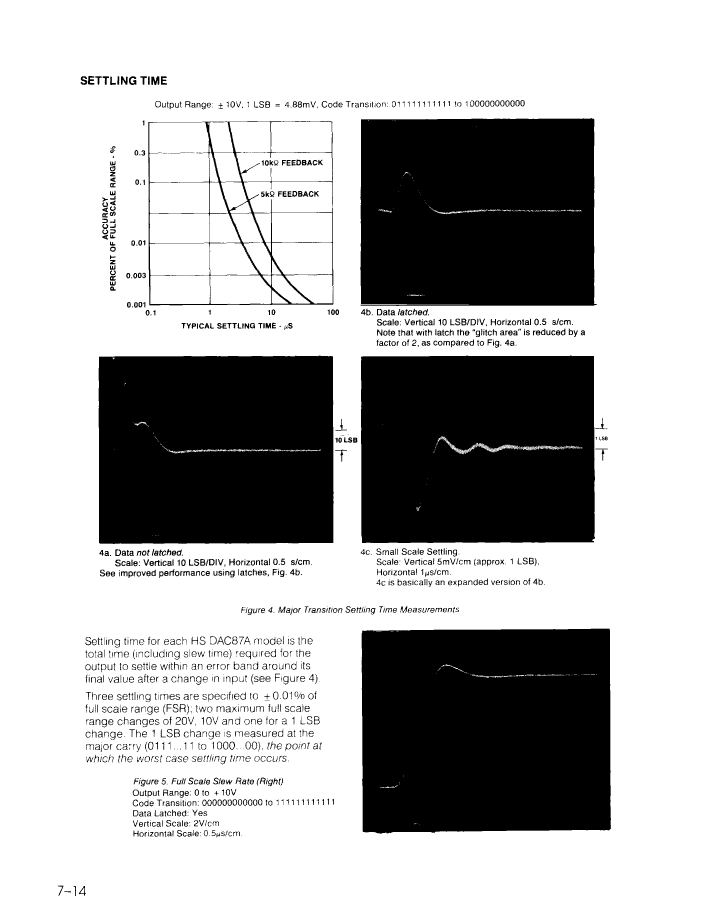

Preview

Download Datasheet

View All

DAC87AU/B Related Products

	DAC87AU/B	DAC87AT/B	DAC87AS/B
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 6us Settling Time	D/A Converter, 1 Func, Parallel, Word Input Loading, 6us Settling Time	D/A Converter, 1 Func, Parallel, Word Input Loading, 6us Settling Time
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
package instruction	DIP,	DIP,	DIP,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum analog output voltage	10 V	10 V	10 V
Minimum analog output voltage	-10 V	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24
Nominal negative supply voltage	-15 V	-15 V	-15 V
Number of digits	12	12	12
Number of functions	1	1	1
Number of terminals	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
Nominal settling time (tstl)	6 µs	6 µs	6 µs
Nominal supply voltage	15 V	15 V	15 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm
