0E1300M0: DescriptionCHERRY - 0E1300M0 - MICRO SW; SPRING PLUNGER; SPDT; 15A 250V; Categorysemiconductor Analog mixed-signal IC; File Size776KB，3 Pages; ManufacturerCHERRY; Websitehttp://www.cherry-semi.com

Download Datasheet View All

0E1300M0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0E1300M0	-	-	View	Buy Now

0E1300M0 Overview

CHERRY - 0E1300M0 - MICRO SW; SPRING PLUNGER; SPDT; 15A 250V

Preview

Download Datasheet

View All

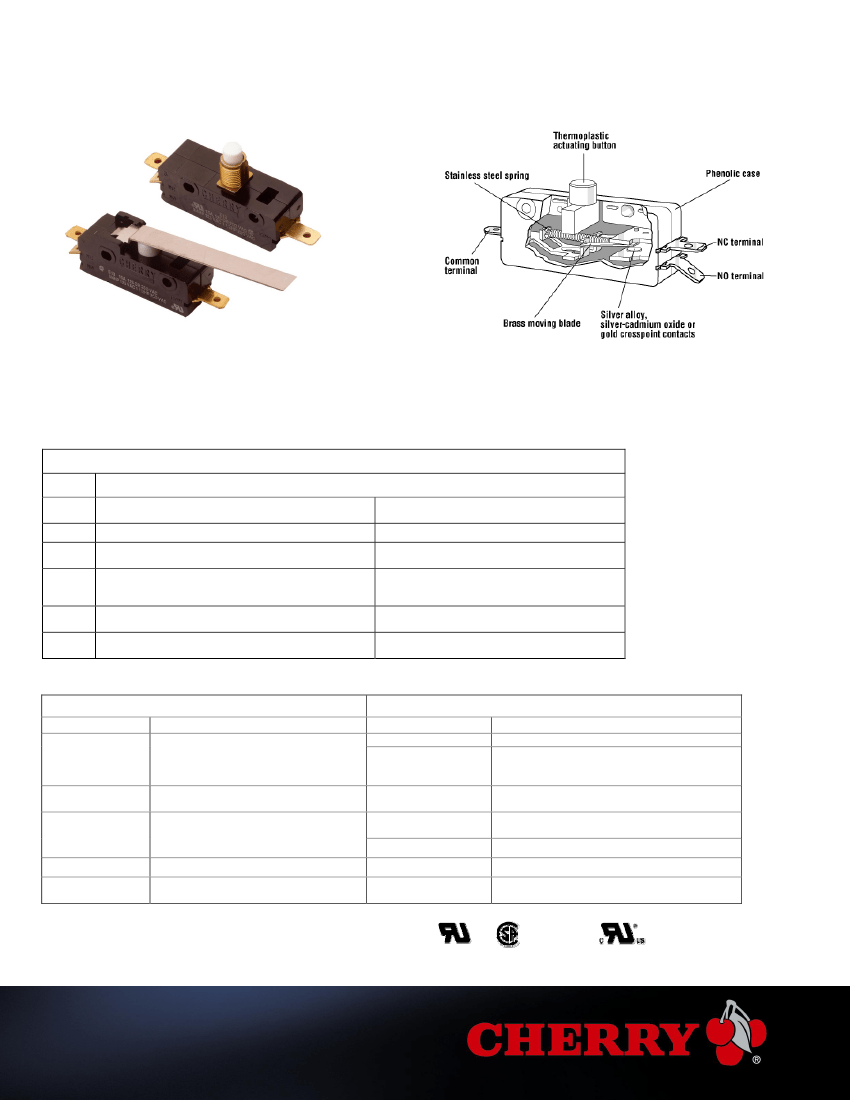

E Series

GENERAL PURPOSE – SINGLE POLE

Features



Choice of 5 contact ratings

Long life coil spring, snap action mechanism

Agency approved extended life versions available



RoHS Compliant

High Temperature 200°C versions available

Electrical Ratings and Operating Life

According to UL1054

Switch

Series

G13

E13

E14

E30

Nominal Load

0.1A 125VAC, 0.1A 30VDC

15A, 125/250VAC; 3/4HP 125VAC

1 ½ hp 250VAC; 2A 48VDC

25A 125/250VAC; 1HP 125VAC

2HP 250VAC; 2A 48VDC

Operation cycles (Min operations)

6000*

6000

30.1A 125/250VAC; 1HP 125VAC

6000

2HP 250VAC (UL Only)

30.1A 125/250/277 VAC

6000

E29

UL Approved Only – Resistive Load Only



Extended life 105°C UL versions available. Contact factory for more information. Special part number required.

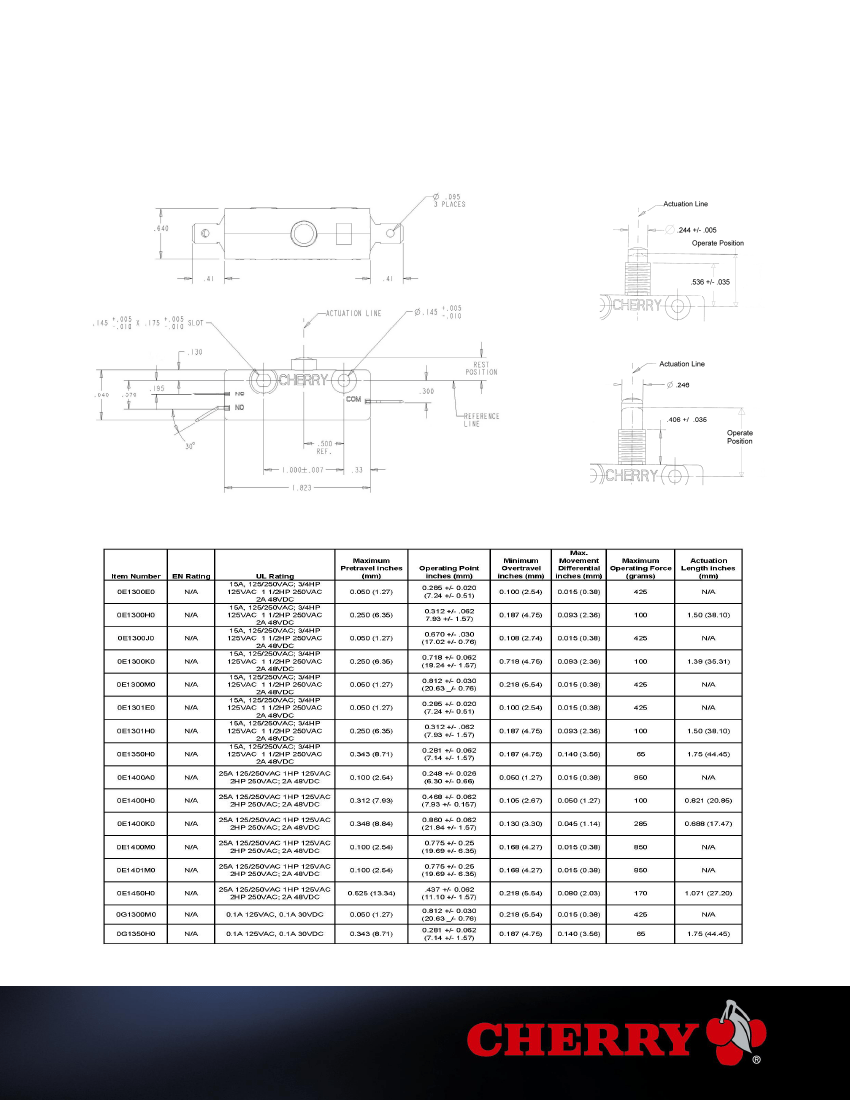

Technical Specifications

Material Specifications

Case:

Actuator button:

Common Terminal:

Terminals:

Moving Blade:

Spring:

CSA File Number

UL File Number:

16503

E23301

Auxiliary Actuator:

Contacts:

General Purpose Phenolic

Thermoplastic Nylon

Brass: G13 and E13

Silver Plated Brass: E14

Silver Plated Copper (E29, E30)

Brass (G13, E13)

Copper (E14, E29, E30)

Brass (G13, E13)

Silver Plated Beryllium Copper (E14, E29, E30)

Stainless Steel

Cold-Rolled Stainless Steel (Nickel Plated)

Silver-CdO: E13, E14, E29, E30

Gold Crosspoint: G13

(G13, E13,

E14 @ T200)

Temperature

Ratings:

Flammability

Rating:

Terminals:

-40°C to 105°C (G13, E13, E14)

-40°C to 85°C (E29)

150°C & 200°C optional (G13, E13, E14)

UL94HB

0.250” x 0.032” (6.35mm x 0.81mm)

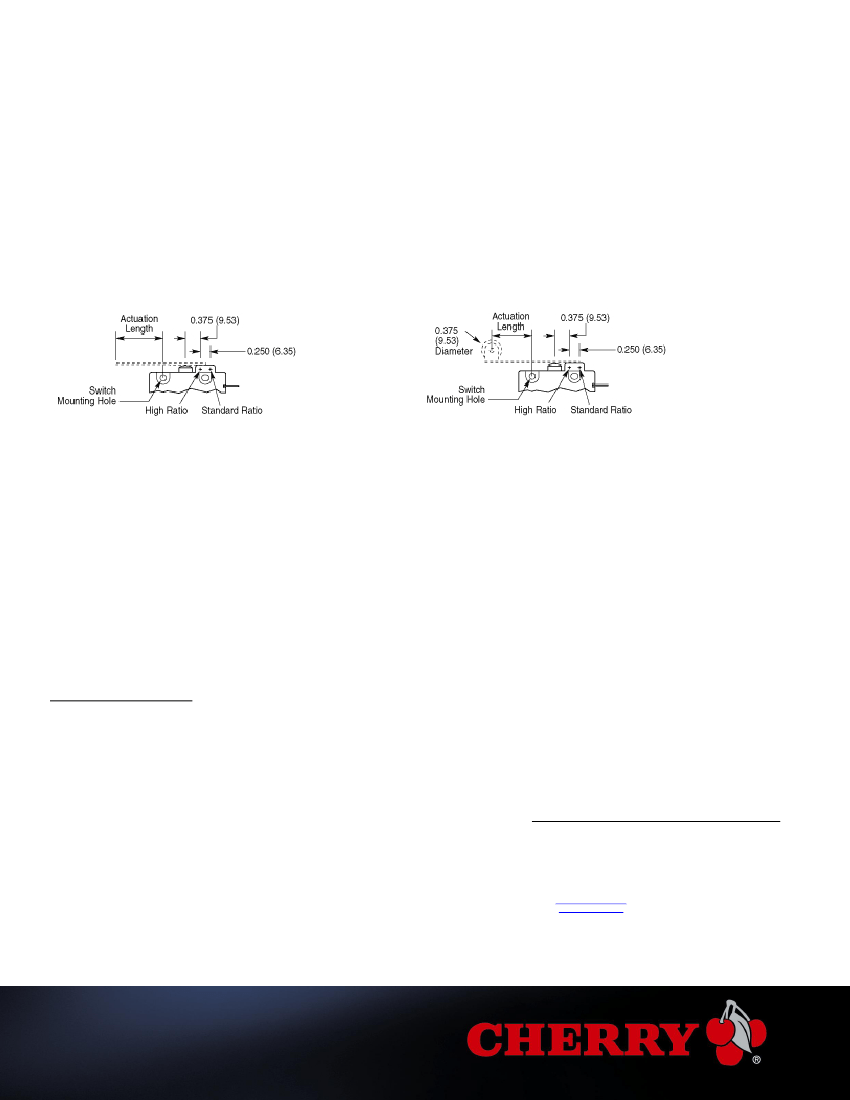

Specifications subject to change
